1. Product Overview

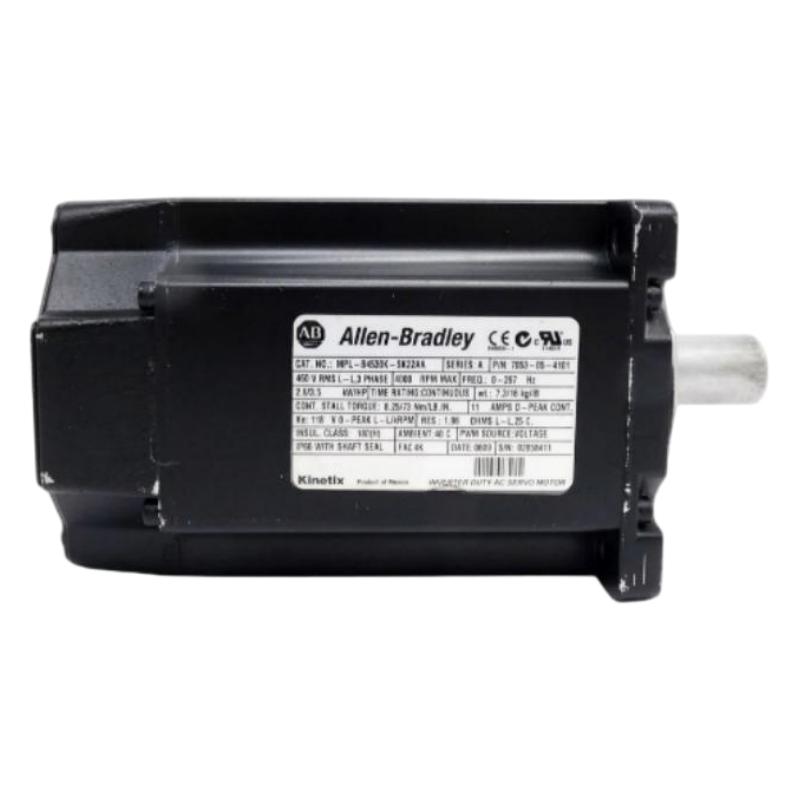

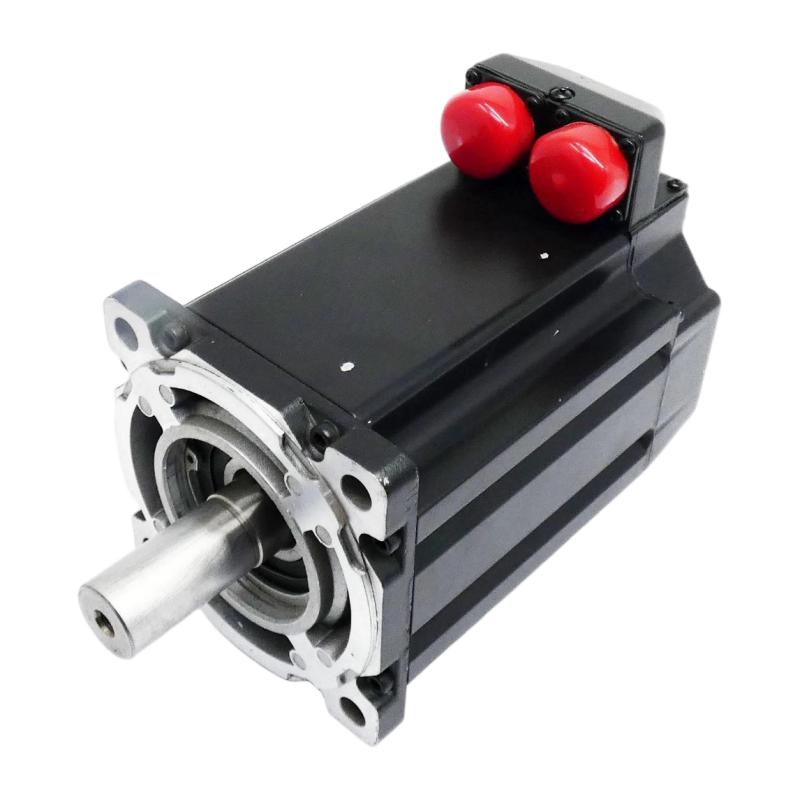

The Allen-Bradley MPL-B4530K-SK22AA Servo Motor is a low-inertia brushless AC servo motor designed for industrial automation, precision motion control, and automated manufacturing equipment. Belonging to the Allen-Bradley MP-Series MPL product family, it is intended to operate with a compatible servo drive and motion controller to deliver controlled rotational movement in industrial applications.
This model features a 130 mm frame size, a 76.2 mm magnet stack length, and a rated speed of 4000 RPM. It uses a single-turn high-resolution encoder for feedback and a keyless shaft extension for connection to compatible mechanical couplings. The SK22AA configuration does not include an integrated holding brake.

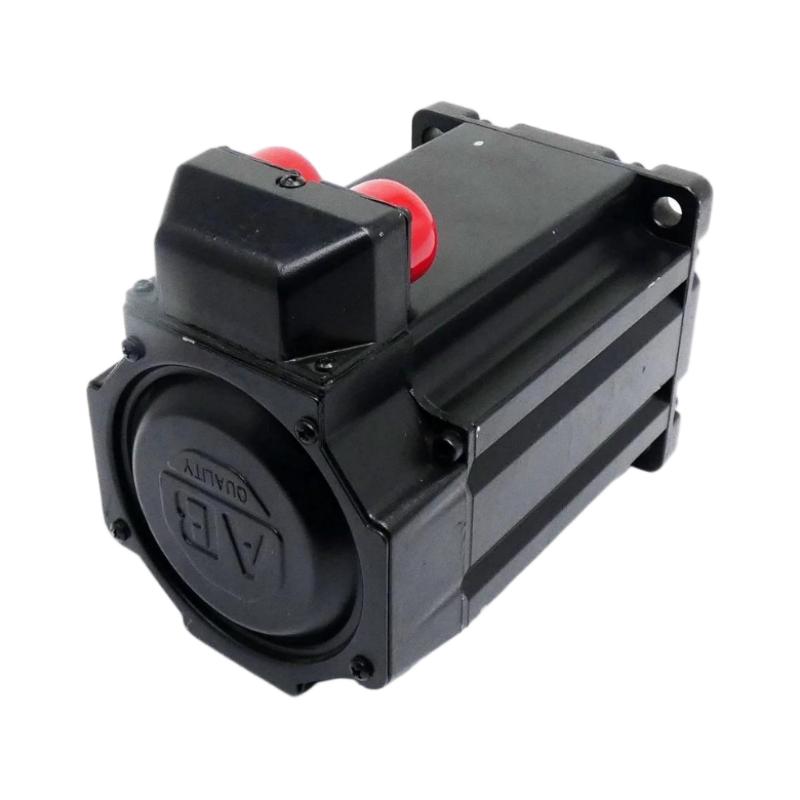

The motor uses a circular bayonet connector facing the shaft. This connection arrangement is an important identification detail when selecting cables or sourcing a replacement, because other MPL motors with similar dimensions may use different connector designs.
During operation, a compatible servo drive supplies controlled electrical power to the motor and processes encoder feedback to support closed-loop motion control. The controller can command the motor to accelerate, decelerate, rotate at a specified speed, or move through a defined position profile. Actual system performance depends on the motor, drive, controller, mechanical transmission, and application requirements.
The MPL-B4530K-SK22AA may be considered for packaging machinery, automated assembly equipment, material handling systems, production machinery, and other industrial applications requiring controlled movement. Final suitability depends on torque requirements, load inertia, duty cycle, operating speed, feedback compatibility, and mechanical integration.
For replacement projects, buyers should verify the complete part number and connector configuration before ordering. A motor with the same frame size may have a different feedback device, brake option, shaft arrangement, or electrical interface.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Product Model | MPL-B4530K-SK22AA |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Product Family | MP-Series MPL |
| Frame Size | 130 mm |
| Frame Designation | Frame 45 |
| Magnet Stack Length | 76.2 mm (3.0 in.) |
| Rated Speed | 4000 RPM |
| Voltage Class | Confirm the applicable nameplate and motor documentation |
| Feedback Type | Single-Turn High-Resolution Encoder |
| Shaft Configuration | Keyless Shaft Extension |
| Connector Type | Circular Bayonet Connector |
| Connector Orientation | Facing Shaft |
| Brake Configuration | No Integrated Brake |
| Mounting Type | IEC Metric Flange |
| Weight | 5.44 kg, as supplied |
| Typical Application | Industrial Servo Motion Control |
The specifications identify the main configuration of the MPL-B4530K-SK22AA. The stated weight of 5.44 kg is based on the supplied product information and should be verified against the physical motor before being used for shipping calculations or equipment-handling plans.
Voltage terminology can vary between catalog descriptions and product documentation. Before selecting a servo drive, confirm the actual motor voltage class, electrical ratings, and supported feedback interface from the applicable nameplate and technical documentation.
Other parameters, including continuous torque, peak torque, rated current, maximum permissible shaft loads, thermal limits, and protection ratings, should also be confirmed before the motor is specified for a particular machine.
3. Function and Working Principle
3.1 Brushless AC Servo Motor Operation
The MPL-B4530K-SK22AA is a brushless AC servo motor designed for controlled industrial motion. It works with a compatible servo drive that regulates the electrical power supplied to the motor windings.
When a motion controller issues a command, the servo drive determines the electrical output required to achieve the requested movement. Controlled motor current generates electromagnetic torque, causing the rotor and shaft to turn.
The drive adjusts the output according to the motion command and feedback signals. This enables controlled acceleration, deceleration, speed regulation, and changes in direction.
In an automated production line, this operating principle allows the motor to coordinate with conveyors, sensors, positioning mechanisms, and other machine axes. The motor itself is only one component of the complete motion-control system.
3.2 Low-Inertia Design
Low-inertia servo motors are designed for applications that benefit from responsive changes in rotational speed. A lower rotor inertia can reduce the torque required to accelerate or decelerate the motor’s rotating components.
This characteristic may be useful in equipment that performs frequent indexing movements, short positioning cycles, or repeated start-and-stop operations. For example, a packaging machine may need to position a product, perform a processing operation, and then advance to the next cycle.
Actual response depends on the complete system. The inertia of the connected load, transmission ratio, mechanical rigidity, coupling alignment, control-loop tuning, and drive capabilities all affect motion performance.
Selecting the correct motor therefore requires an evaluation of the application’s motion profile rather than relying only on frame size or rated speed.
3.3 Single-Turn High-Resolution Encoder Feedback
The MPL-B4530K-SK22AA uses a single-turn high-resolution encoder to provide position-related information to a compatible servo drive.
The encoder measures angular position within a single revolution and supplies feedback signals that the drive uses for motor control. This information helps the drive regulate the motor’s response to commanded movement.
A single-turn encoder differs from a multi-turn absolute encoder, which can provide information about position across multiple revolutions. The appropriate feedback arrangement depends on the machine’s position-reference requirements and the capabilities of the controller and drive.
When replacing this motor, verify that the existing drive supports the encoder type and interface. A motor with a different feedback technology may require a different cable, drive configuration, or commissioning procedure.
3.4 Keyless Shaft Extension
The SK22AA configuration uses a keyless shaft extension. Unlike a keyed shaft, which transmits torque through a key fitted into matching keyways, a keyless shaft is intended for compatible coupling or clamping arrangements designed for that interface.
The coupling must match the shaft dimensions, torque requirements, alignment tolerances, and operating conditions. A keyless shaft should not be assumed to accept a keyed coupling without a proper compatibility assessment.
Correct mechanical installation helps reduce vibration, excessive bearing loading, and premature wear. The shaft and coupling should be inspected before installation, particularly when the motor is being used as a replacement for an existing unit.
3.5 Brake-Free Configuration
The MPL-B4530K-SK22AA does not include an integrated holding brake. This configuration may be appropriate for applications where an internal motor brake is not required and the machine can safely manage movement when motor torque is removed.
A brake-free motor should not be relied upon to hold a gravity-loaded or suspended axis stationary when the drive is disabled. If a load must remain secured during power loss, maintenance, or an emergency condition, the machine may require an appropriate external mechanical holding device or another engineered solution.
The required load-holding strategy depends on the machine’s orientation, load characteristics, risk assessment, and applicable safety requirements.
3.6 Circular Bayonet Connector
The SK22AA uses a circular bayonet connector facing the shaft. This is an important feature for electrical integration and replacement planning.
The connector must match the appropriate power or feedback connection specified for the motor configuration. Cable selection should be based on the exact motor revision and connection requirements rather than appearance alone.
Other MPL models may use a right-angle SpeedTEC DIN connector. These connection arrangements should not be assumed interchangeable without checking the applicable electrical and mechanical documentation.
3.7 Closed-Loop Motion Control
The motor, encoder, servo drive, and motion controller work together to provide controlled movement.
A typical sequence is:
- The controller issues a position, speed, or torque command.
- The servo drive calculates the required electrical output.
- The motor generates torque and rotates the shaft.
- The encoder supplies position-related feedback.
- The drive adjusts motor operation based on the feedback.
- The controller coordinates the axis with the rest of the machine.
This closed-loop arrangement allows the machine to respond to changing commands and operating conditions. Reliable operation depends on correct motor identification, compatible drive settings, proper wiring, and appropriate mechanical integration.
4. Role in Industrial Automation Systems
4.1 Integration with Servo Drives
The MPL-B4530K-SK22AA operates with a compatible servo drive that supports its electrical characteristics and single-turn encoder feedback.
The drive supplies controlled power to the motor and regulates the feedback loop. It must be selected according to the motor’s voltage class, current and torque requirements, feedback interface, and intended operating profile.
The circular bayonet connector configuration must also be considered when selecting compatible cables and connection hardware. A mechanically similar connector does not guarantee electrical compatibility.
4.2 Integration with PLCs and Motion Controllers
A programmable logic controller (PLC) or motion controller coordinates the machine sequence and sends motion commands to the servo drive.
For example, a controller may instruct an indexing conveyor to advance a product to a defined position. The drive regulates the motor, while encoder feedback supports closed-loop movement.
The controller may also monitor drive-ready signals, motion-complete status, alarms, and other diagnostic information. This allows the motor to operate as part of a larger automation system involving sensors, actuators, operator interfaces, and supervisory control functions.
4.3 Mechanical Transmission
The motor shaft can drive a compatible gearbox, coupling, belt transmission, screw mechanism, rotary table, or other mechanical assembly.
The transmission converts motor rotation into the required movement at the load. Selection depends on the desired output speed, torque, load inertia, friction, and mechanical arrangement.
Because the SK22AA has a keyless shaft, the mechanical coupling must be designed for the corresponding interface. Correct alignment and fastening are essential for reliable torque transmission and reduced mechanical wear.
4.4 Feedback and System Diagnostics
The encoder provides position-related feedback, while the servo drive monitors motor operation and system status. Depending on the connected drive and controller, diagnostic information may help maintenance personnel investigate feedback faults, wiring problems, motor overloads, or configuration mismatches.
If the axis does not move as commanded, the cause may involve the motor, drive, encoder cable, power cable, controller configuration, or mechanical load.
A structured troubleshooting process should check the complete motion-control system before replacing the motor.
4.5 Brake-Free Axis Design
Because this model does not have an integrated brake, the machine designer must determine how the axis behaves when motor torque is removed.
For horizontal axes with no significant tendency to move under gravity, the application may not require a motor-mounted holding brake. Other applications, particularly vertical or gravity-loaded axes, may need a separate holding mechanism.
The appropriate solution depends on the mechanical load, potential hazards, and machine safety design. The absence of a brake should be considered during both equipment selection and replacement planning.
5. Industrial Applications
5.1 Packaging Machinery
Packaging equipment often requires controlled indexing, synchronized movement, and repeatable operating cycles. Servo motors may drive feeding mechanisms, sealing units, cutting systems, transfer devices, and conveyors.
The MPL-B4530K-SK22AA may be suitable for a compatible axis where its speed, torque characteristics, encoder feedback, keyless shaft, and brake-free configuration meet the application requirements.
Before selection, verify the motor’s performance ratings against the machine’s acceleration, deceleration, load inertia, and duty-cycle requirements.
5.2 Automated Assembly Equipment
Automated assembly systems use servo-driven axes to position components, move fixtures, and coordinate production steps between stations.
Encoder feedback supports closed-loop motion control, while the keyless shaft can connect to a compatible mechanical coupling. The brake-free configuration may suit applications that do not require an integrated motor holding brake.
The complete positioning performance depends on the controller, drive, encoder interface, mechanical transmission, tooling, and structural rigidity.
5.3 Material Handling Systems
Material handling equipment may use servo motors for indexing conveyors, transfer units, rotary positioning mechanisms, and other controlled movements.
The MPL-B4530K-SK22AA can be evaluated for such applications when its torque, speed, and feedback characteristics match the machine requirements.
For vertical axes or loads that can move under gravity, the absence of an integrated brake requires particular attention. An appropriate holding strategy must be provided by the overall machine design where necessary.
5.4 Machine Tools and Production Equipment
Industrial production machinery may use servo motors to control feed mechanisms, positioning tables, rotary equipment, and auxiliary movements.
The 130 mm frame and 4000 RPM rated speed provide useful identification points when comparing the SK22AA with other motor options. However, actual suitability depends on the torque requirements, operating speed, load inertia, thermal limits, and compatible drive.
The encoder and connector configuration must also match the intended control system.
5.5 Special-Purpose Automation
Special-purpose machines may use servo motors for synchronized movement, indexing, positioning, and transfer operations.
The SK22AA may be considered where a single-turn high-resolution encoder is appropriate, the keyless shaft matches the coupling, and the machine does not require an integrated holding brake.
Connector orientation and cable routing should be considered during machine design, particularly where installation access is limited.
5.6 Industrial Maintenance and Replacement
A failed servo motor can interrupt production and delay automated processes. Identifying a compatible replacement helps maintenance teams reduce uncertainty during repair planning.
For the MPL-B4530K-SK22AA, important identification points include the complete model number, single-turn encoder feedback, keyless shaft, brake-free configuration, circular bayonet connector, and mounting dimensions.
A replacement should not be selected solely because it shares the same frame size. Differences in feedback, connectors, shaft arrangements, and brake options may affect electrical integration and mechanical installation.
6. Installation and System Integration
6.1 Verify the Complete Model Number
Before installation, check the motor nameplate and compare the full model number with the machine documentation.
Confirm that the motor is MPL-B4530K-SK22AA and that the feedback, shaft, connector, and brake configurations match the application. Similar MPL models can have different connection arrangements and mechanical options.
6.2 Check Mechanical Mounting
Verify the frame size, flange dimensions, mounting-hole pattern, shaft extension, and installation clearance.
The motor should be mounted securely on a structure capable of supporting the expected mechanical loads. Correct alignment between the motor shaft and the driven component helps reduce vibration and unnecessary bearing stress.
The keyless coupling must match the actual shaft dimensions and the application’s torque requirements.
6.3 Confirm Electrical Compatibility
Select a servo drive that supports the motor’s electrical characteristics and encoder feedback. Confirm the motor power cable, feedback cable, grounding, shielding, and connector configuration.
The circular bayonet connection should be identified correctly before ordering cables or replacement accessories. Do not assume that a cable designed for a different MPL connector arrangement will fit or function correctly.
All wiring should follow the applicable technical documentation and electrical safety procedures.
6.4 Connect Encoder Feedback
Connect the encoder to the compatible drive feedback interface using the correct cable and pin configuration.
Inspect the connector for damaged contacts, contamination, loose connections, or mechanical wear. Route feedback cables according to the equipment manufacturer’s recommendations to reduce interference and prevent cable damage.
After wiring, confirm that the drive recognizes the expected feedback device and that the motor configuration is correct.
6.5 Inspect the Keyless Shaft Coupling
Verify that the coupling is suitable for the motor’s keyless shaft extension. Confirm the coupling’s torque capacity, alignment tolerances, and installation requirements.
Avoid applying impact forces to the shaft or using an unsuitable coupling. If the existing motor has a keyed shaft, the original coupling may not be suitable for the SK22AA without an approved mechanical change.
6.6 Evaluate Load-Holding Requirements
The SK22AA does not include an integrated brake. Before installation, determine whether the application requires the axis to remain stationary when the motor is no longer producing torque.
If the load can move under gravity or create a hazard when the drive is disabled, the machine may need an appropriate external holding mechanism or another engineered solution.
Do not assume that a brake-free motor can safely replace a brake-equipped model without evaluating the machine’s operating and safety requirements.
6.7 Configure the Servo Drive
Select the correct motor configuration in the compatible servo drive. Verify the feedback settings, motor parameters, direction of rotation, axis scaling, acceleration and deceleration limits, and current limits as applicable.
Commissioning procedures depend on the selected drive and controller. Parameters from another motor model should not be copied without checking compatibility.
6.8 Perform a Controlled Commissioning Test
Before returning the machine to normal production, perform a controlled test under appropriate safety conditions.
The verification process should include:
- Confirming the motor model and mounting arrangement.
- Checking power, encoder, grounding, and connector connections.
- Verifying feedback recognition and drive configuration.
- Testing controlled movement at an appropriate speed.
- Confirming the direction of rotation and axis response.
- Inspecting for abnormal noise, vibration, or overheating.
- Verifying that the machine’s load-holding arrangements are suitable.
- Confirming machine interlocks and required safety functions.
Installation and commissioning should be performed by qualified personnel following the applicable procedures.
7. Compatible System Components
The MPL-B4530K-SK22AA operates as part of a compatible servo motion-control system. The following component categories may be required, depending on the application.
| Component | Function | Compatibility Considerations |
|---|---|---|
| Servo Drive | Regulates motor power and motion | Must support the motor’s electrical characteristics and encoder feedback |
| PLC or Motion Controller | Coordinates axis movement | Must support the selected drive and motion-control architecture |
| Motor Power Cable | Supplies controlled power | Must match the motor connector and drive output |
| Encoder Feedback Cable | Transfers position feedback | Must match the encoder interface and drive |
| Circular Bayonet Connector | Provides the motor-side connection | Confirm the correct connector configuration and cable |
| Keyless Mechanical Coupling | Transfers torque to the load | Must match the shaft dimensions and application requirements |
| Gearbox or Transmission | Adapts motor output to the load | Select according to speed, torque, and load inertia |
| Mounting Structure | Supports the motor | Must match the flange dimensions and mechanical loads |
| External Holding Mechanism, If Required | Holds a load when motor torque is removed | Must be selected according to the machine design and risk assessment |
| Protective and Safety Devices | Address machine hazards | Must meet the applicable machine safety requirements |
This table describes general system component categories and does not guarantee direct compatibility with every product. Final selection should be based on the installed drive, controller, cables, mechanical design, and applicable technical documentation.
8. Recommended Alternative Models and Replacement Considerations
Related Allen-Bradley MPL motors may share a similar frame size and speed rating, but differences in feedback, shaft design, connectors, and brake configuration can affect interchangeability.
| Model | Main Configuration | Replacement Considerations |
|---|---|---|
| MPL-B4530K-SK22AA | Single-turn high-resolution encoder, keyless shaft, circular bayonet connector, no brake | Reference model |
| MPL-B4530K-SK72AA | Single-turn high-resolution encoder, keyless shaft, SpeedTEC DIN connector, no brake | Connector configuration differs |
| MPL-B4530K-SK24AA | Single-turn high-resolution encoder, keyless shaft, brake-equipped configuration | Brake and connector details require verification |
| MPL-B4530K-SK74AA | Single-turn high-resolution encoder, keyless shaft, SpeedTEC DIN connector, 24 V DC brake | Connector and brake configuration differ |
| MPL-B4530K-MK72AA | Multi-turn high-resolution absolute encoder, keyless shaft, no brake | Feedback type and connector configuration require review |
| MPL-B4530K-MK74AA | Multi-turn high-resolution absolute encoder, keyless shaft, 24 V DC brake | Feedback and brake configuration differ |
These models are comparison candidates, not guaranteed drop-in replacements. Verify the exact model suffix and applicable technical documentation before choosing an alternative.
8.1 Feedback Compatibility
The reference model uses a single-turn high-resolution encoder. A motor with multi-turn absolute feedback or a resolver may require a different drive interface, cable, configuration, or commissioning procedure.
The selected drive must support the replacement motor’s feedback technology.
8.2 Connector Compatibility
The SK22AA uses a circular bayonet connector facing the shaft. Other related motors may use a right-angle SpeedTEC DIN connector.
Confirm the actual motor-side connector, cable type, pin configuration, and available installation space before selecting a replacement.
8.3 Shaft Compatibility
The SK22AA has a keyless shaft. A keyed-shaft alternative may require a different coupling or an approved mechanical modification.
Check shaft dimensions, coupling type, torque capacity, and alignment requirements before approving a substitute.
8.4 Brake Configuration
The SK22AA does not have an integrated brake. Replacing it with a brake-equipped motor changes the electrical and control requirements, while replacing a brake-equipped motor with the SK22AA may remove an existing load-holding function.
The brake requirements should be assessed as part of the complete machine design.
8.5 Electrical and Performance Matching
A suitable replacement must meet the application’s voltage, torque, speed, acceleration, duty-cycle, thermal, and load-inertia requirements.
Matching frame size alone does not guarantee that the motor will perform correctly with the existing drive and mechanical system.
9. Key Advantages
Low-Inertia Motion Characteristics
The low-inertia design is intended for servo applications that benefit from responsive acceleration and deceleration. Actual performance depends on correct sizing, load characteristics, mechanical integration, and drive tuning.
Single-Turn High-Resolution Encoder
The encoder provides position-related feedback for compatible closed-loop motion control. Maintaining the correct feedback interface is important for reliable operation and replacement planning.
Keyless Shaft Configuration
The keyless shaft provides a mechanical interface for compatible coupling and clamping arrangements. Correct coupling selection and installation help support reliable torque transmission.
Compact 130 mm Frame
The 130 mm frame size supports integration into machinery designed around the corresponding mounting dimensions. Mechanical compatibility still depends on the flange and shaft interfaces.
4000 RPM Rated Speed
The specified 4000 RPM rated speed makes the motor a candidate for applications requiring controlled rotational movement within its operating limits. Actual performance depends on load and drive configuration.
Circular Bayonet Connector
The circular bayonet connector facing the shaft is a useful identification feature when sourcing cables and replacement parts. Connector compatibility should always be confirmed before installation.
Brake-Free Configuration
The absence of an integrated brake may suit applications that do not require a motor-mounted holding brake. Where load holding is necessary, the machine must provide an appropriate solution.
10. Technical FAQs
Q1: What is the Allen-Bradley MPL-B4530K-SK22AA?
It is a low-inertia brushless AC servo motor in the Allen-Bradley MP-Series MPL family. It is specified with a 130 mm frame, single-turn high-resolution encoder feedback, a keyless shaft, a circular bayonet connector, and no integrated brake.
Q2: What is the frame size?
The motor has a 130 mm frame size, corresponding to Frame 45 in the product selection description.
Q3: What is the rated speed?
The specified rated speed is 4000 RPM. The permitted operating range should be confirmed against the motor and drive documentation and the application’s load requirements.
Q4: What feedback does this motor use?
The MPL-B4530K-SK22AA uses a single-turn high-resolution encoder. The servo drive must support the appropriate feedback interface and motor configuration.
Q5: Does the motor include a brake?
No. The SK22AA configuration does not include an integrated holding brake. If the application requires load holding when motor torque is removed, the machine design must provide an appropriate solution.
Q6: Is the shaft keyed?
No. This model uses a keyless shaft extension. The mechanical coupling must match the shaft dimensions and torque requirements.
Q7: What type of connector does it use?
The SK22AA uses a circular bayonet connector facing the shaft. Confirm the connector and cable configuration against the actual motor before ordering accessories.
Q8: What is the magnet stack length?
The magnet stack length is 76.2 mm, equivalent to 3.0 inches.
Q9: Can the SK22AA replace the SK72AA?
Not automatically. Although the two configurations share the single-turn encoder, keyless shaft, and no-brake arrangement, their connector configurations differ. Cable compatibility, drive configuration, and mechanical details must be checked.
Q10: Can this motor be used on a vertical axis?
Its suitability depends on the complete machine design. Because the motor does not include an integrated brake, any vertical or gravity-loaded application must have an appropriate load-holding strategy where required.
Q11: Can a multi-turn encoder motor replace this model?
Not automatically. Multi-turn absolute feedback differs from single-turn feedback. The drive, controller, cabling, and position-reference requirements must be evaluated before substitution.
Q12: What is the listed weight?
The supplied product information states 5.44 kg. Verify the actual motor weight and gross shipping weight separately before arranging transport or handling.
11. Procurement and Replacement Considerations

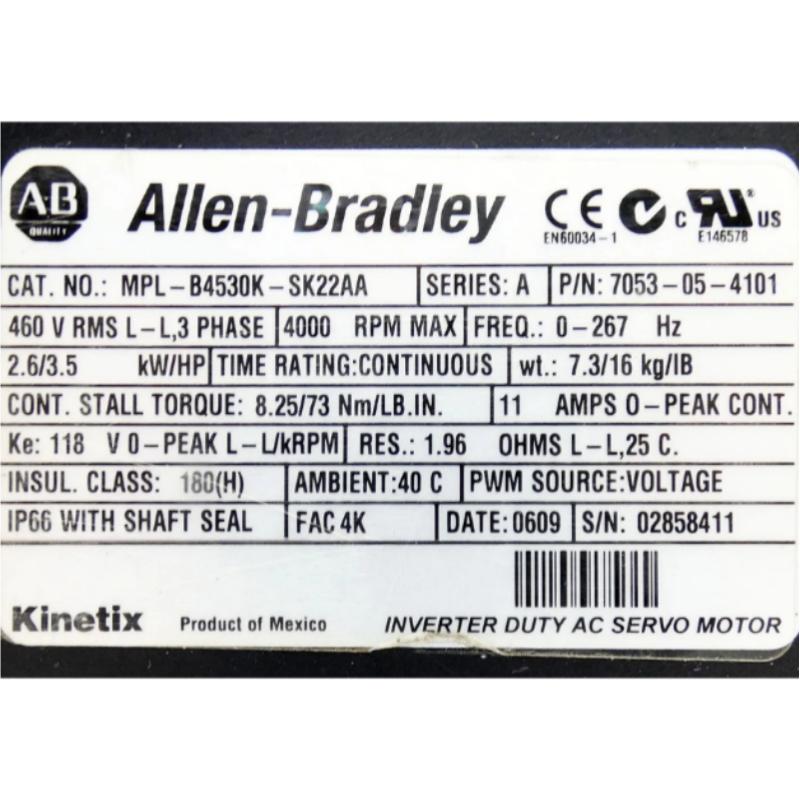

When sourcing the Allen-Bradley MPL-B4530K-SK22AA Servo Motor, verify the complete model number on the nameplate and compare it with the original equipment documentation.
The most important configuration details are the single-turn high-resolution encoder, keyless shaft, circular bayonet connector, and absence of an integrated brake. These features should be checked before selecting a replacement or ordering compatible cables.
Buyers should confirm the condition of the supplied unit, such as new, unused surplus, refurbished, or used. Where appropriate, request clear nameplate photographs, identification details, inspection records, and available test information.
For critical production equipment, consider whether the motor should be tested before installation and whether maintaining a spare would reduce the risk of future downtime.
The stated weight of 5.44 kg should be verified before shipment planning. Gross shipping weight may be higher after packaging and protective materials are added. Packaging should protect the shaft, connector, and feedback interface from impact and contamination.
Before returning a replacement motor to service, confirm that the servo drive supports the exact feedback configuration and that the connector and cable arrangement are correct. Any proposed alternative with a different brake, feedback, shaft, or connector configuration should be reviewed by qualified engineering personnel.
12. Conclusion
The Allen-Bradley MPL-B4530K-SK22AA Servo Motor is a low-inertia brushless AC servo motor designed for industrial automation and motion-control applications. Its principal configuration includes a 130 mm frame, a 76.2 mm magnet stack length, a 4000 RPM rated speed, single-turn high-resolution encoder feedback, a keyless shaft extension, a circular bayonet connector facing the shaft, and no integrated brake.
These characteristics make it a candidate for compatible automated machinery requiring controlled motion. Successful integration depends on correct drive selection, encoder compatibility, connector matching, mechanical coupling, installation, and commissioning.
For procurement and maintenance teams, the key is to verify the complete model number and ensure that the electrical, feedback, connector, shaft, and load-holding requirements match the application. With appropriate engineering checks and correct installation, the MPL-B4530K-SK22AA can serve as a replacement or spare motor in compatible industrial servo systems.
