1. Product Overview

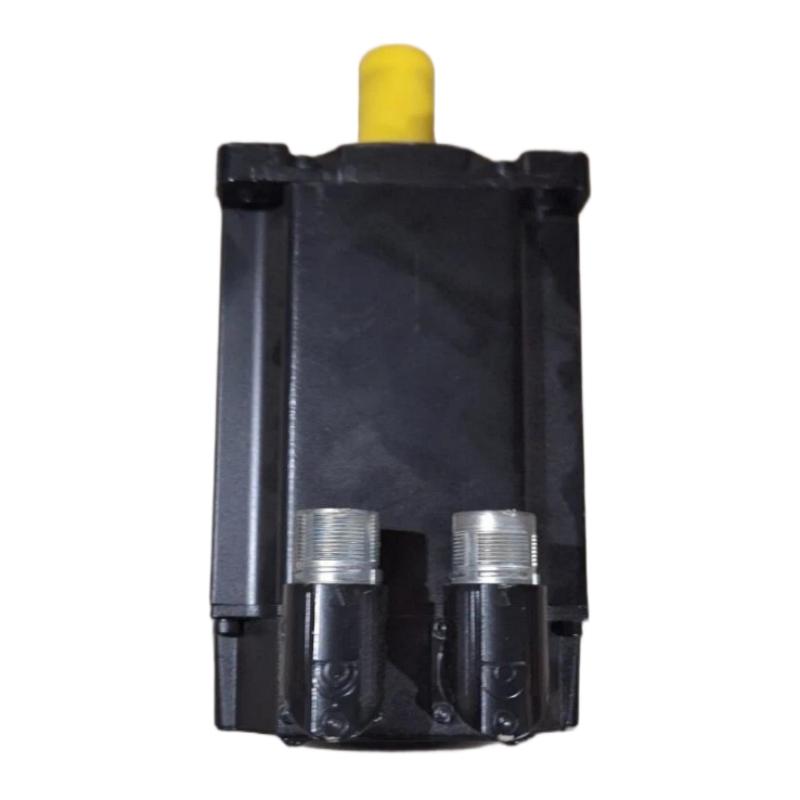

The Allen-Bradley MPL-B4530K-RJ72AA Servo Motor is a low-inertia brushless AC rotary servo motor manufactured by Rockwell Automation under the Allen-Bradley MP-Series MPL product family. It is designed for industrial motion control systems that require controlled rotational movement, reliable feedback, and integration with compatible servo drives.

The MPL-B4530K-RJ72AA features a 130 mm frame size, a 76.2 mm magnet stack length, and a rated speed of 4000 rpm. Its permanent-magnet brushless design supports controlled motion in automated machinery, manufacturing equipment, and industrial production systems.

A key characteristic of this model is its resolver feedback configuration. Unlike MPL models equipped with high-resolution absolute encoders, this version uses a resolver to provide rotor position information to a compatible servo drive. The feedback type is an important consideration when selecting a replacement motor because the drive must support the required feedback interface.

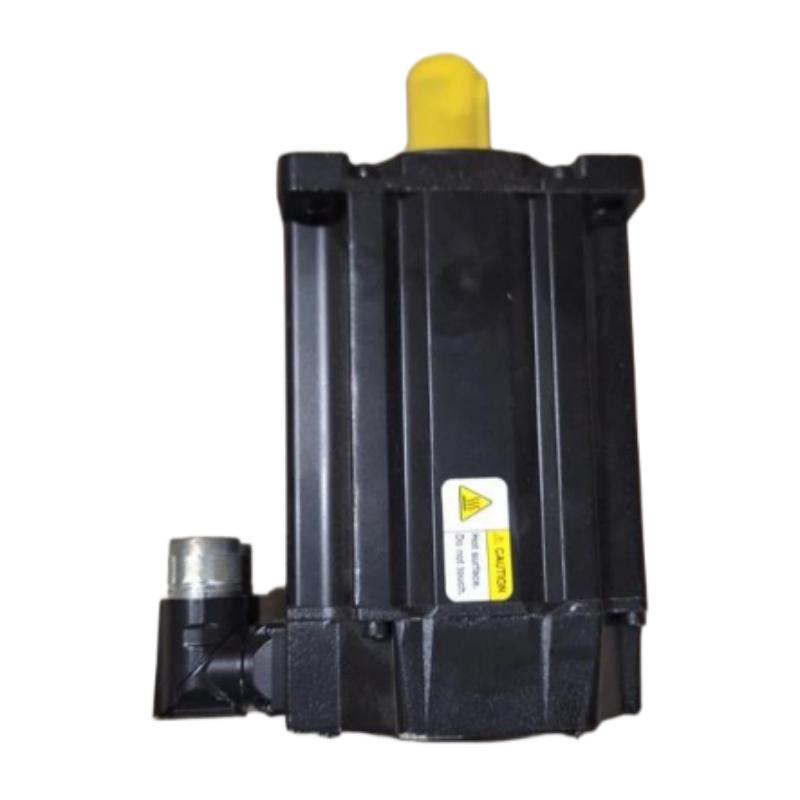

The motor also features a keyed shaft extension, a right-angle SpeedTEC DIN connector that can be rotated through 180 degrees, and an IEC metric mounting arrangement with free mounting holes. This model is specified without an integrated holding brake.

These characteristics make the MPL-B4530K-RJ72AA a potential option for compatible motion control applications in packaging, material handling, assembly machinery, and other industrial automation systems. Before purchasing or installing the motor, users should verify the complete catalog number, drive compatibility, resolver interface, shaft dimensions, mounting requirements, and load characteristics.

For industrial maintenance and procurement teams, accurate identification is particularly important when comparing this model with other MPL-B4530K variants. Motors with similar frame dimensions may have different feedback systems, shaft configurations, and brake options.

2. Technical Specifications

Specification note: The 7.3 kg weight is the value provided for this product listing. Actual unit weight and shipping weight may differ depending on the product revision and packaging. Confirm the nameplate and applicable technical documentation before using specifications for engineering calculations or installation planning.

3. Function and Working Principle

3.1 Brushless AC Servo Motor Technology

The MPL-B4530K-RJ72AA converts electrical energy into controlled rotational movement using brushless permanent-magnet servo motor technology.

The motor contains a stator with electrical windings and a rotor containing permanent magnets. A compatible servo drive supplies controlled current to the stator windings, generating the magnetic field required to produce torque.

Electronic commutation controls the relationship between the electrical input and the rotor’s position. This allows the drive to regulate motor operation according to commands from a motion controller or automation system.

Compared with a conventional motor operating without closed-loop position feedback, a servo system can provide more precise control of position, speed, and torque when properly configured. Actual performance depends on the motor, drive, mechanical load, feedback system, and control parameters.

3.2 Low-Inertia Motor Design

The MPL product family is designed for industrial applications requiring responsive motion. Low motor inertia can help a properly sized system accelerate and decelerate efficiently.

This is useful in machines that repeatedly start, stop, and reposition components during each production cycle. Examples include packaging systems, automated assembly equipment, indexing mechanisms, and selected material handling applications.

Motor inertia is only one factor in motion performance. The load inertia, transmission ratio, coupling, friction, machine rigidity, and required acceleration must also be considered.

Correct motor sizing and servo tuning help the system achieve stable operation and reduce unnecessary mechanical stress.

3.3 Resolver Feedback

The MPL-B4530K-RJ72AA uses resolver feedback to provide rotor position information to the compatible servo drive.

A resolver is an electromechanical position transducer that uses electromagnetic coupling to generate signals corresponding to rotor position. The drive processes these signals to determine the motor’s angular position and support controlled commutation.

Resolver feedback is used in industrial motion control because it provides position information through a robust electromechanical sensing arrangement. However, the resolver interface differs from the high-resolution absolute encoder systems used by some other MPL motor variants.

The selected servo drive must support the resolver type and its electrical interface. Appropriate feedback wiring and drive configuration are essential for correct operation.

3.4 Closed-Loop Motion Control

In a closed-loop servo system, the controller issues a motion command and the drive uses feedback to regulate the motor’s response.

Depending on the application, the system may control position, velocity, or torque. The drive continuously adjusts the motor’s electrical input to achieve the requested movement within its supported operating limits.

For example, an automated machine may command the motor to rotate through a specified angle and stop at a defined position. Resolver feedback helps the drive monitor rotor movement during the operation.

The final positioning performance depends on the entire system, including the resolver, servo drive, mechanical transmission, load, and motion control parameters.

4. Role in Industrial Automation Systems

4.1 Position and Speed Control

Servo motors provide controlled movement in automated machinery where repeatable positioning and coordinated operation are important.

The MPL-B4530K-RJ72AA can be used in a compatible motion system to regulate rotational speed and follow commanded movement profiles. Its rated speed of 4000 rpm is a relevant selection parameter for applications requiring relatively high rotational speed.

However, rated speed alone does not establish the motor’s suitability. Engineers should also assess the available torque across the operating speed range, acceleration requirements, load inertia, and duty cycle.

4.2 Integration with PLC and Motion Controllers

In a typical industrial automation architecture, a PLC manages machine sequencing and process logic, while a motion controller or compatible PLC motion function coordinates servo movement.

The servo drive receives the motion commands and supplies controlled power to the motor. Feedback from the resolver is processed through the supported drive interface to regulate movement.

Compatibility depends on the specific controller, servo drive, feedback interface, communication network, and motor configuration. The presence of an Allen-Bradley product label does not mean that every Allen-Bradley servo drive supports every MPL motor variant.

4.3 Machine Synchronization

Some production processes require several axes to move in a coordinated manner. Servo systems can support synchronization between feeding mechanisms, transfer units, cutters, indexing tables, and other machine components.

Accurate synchronization can help improve process consistency and reduce errors caused by poorly coordinated motion.

The MPL-B4530K-RJ72AA may be considered for an axis in a compatible system when its mechanical and electrical characteristics satisfy the application requirements.

4.4 Maintenance and Diagnostics

A compatible servo drive may provide diagnostic information such as position error, speed, current, and fault status. Maintenance personnel can use these indications to investigate unexpected machine behavior.

Resolver feedback and drive diagnostics can assist with troubleshooting, but they do not independently identify every mechanical or electrical fault. Proper diagnosis may require checking wiring, coupling alignment, bearings, load conditions, and drive configuration.

5. Industrial Applications

5.1 Packaging Machinery

Packaging equipment often uses servo motors to control feeding, indexing, cutting, sealing, and product positioning.

A compatible servo system can provide repeatable movement and coordinate operations within the production cycle. When considering the MPL-B4530K-RJ72AA, engineers should verify the speed and torque requirements, resolver support, and mechanical interface.

5.2 Automated Assembly Systems

Assembly equipment frequently requires controlled movement to position components, operate tooling, and coordinate multiple machine axes.

Servo motors support repeatable positioning and controlled acceleration. Resolver feedback allows the compatible drive to monitor rotor position and regulate movement.

The motor’s suitability depends on the required cycle time, load inertia, positioning performance, and system compatibility.

5.3 Material Handling Equipment

Automated material handling systems use motion control to transfer, sort, lift, and position materials. Servo motors may be installed in transfer mechanisms, positioning units, and other controlled movement assemblies.

Before selecting a motor, engineers should evaluate the payload, transmission ratio, acceleration, operating duty, and required stopping behavior.

Because the MPL-B4530K-RJ72AA does not include an integrated brake, applications requiring load holding must be assessed carefully.

5.4 Machine Tools

Selected machine tools use servo motors to drive positioning axes and coordinated mechanisms. Motion performance depends on the motor, drive, mechanical transmission, feedback system, and controller.

The MPL-B4530K-RJ72AA may be evaluated for compatible machinery where its resolver feedback, rated speed, mounting arrangement, and shaft configuration meet the application requirements.

5.5 Printing and Converting Equipment

Printing and converting machinery may require synchronized roller movement, material feeding, cutting, and registration control.

Servo systems can support repeatable motion and coordinated production sequences. The exact motor selection depends on the mechanical design, speed profile, feedback interface, and required control performance.

5.6 General Industrial Automation

Other potential applications include specialized production equipment, indexing systems, and automated machinery requiring controlled rotary movement.

In every case, the motor should be selected according to verified application requirements rather than frame size or rated speed alone.

6. Installation and System Integration

Proper installation helps ensure reliable motion control and protects the motor from unnecessary mechanical or electrical stress.

6.1 Verify the Complete Catalog Number

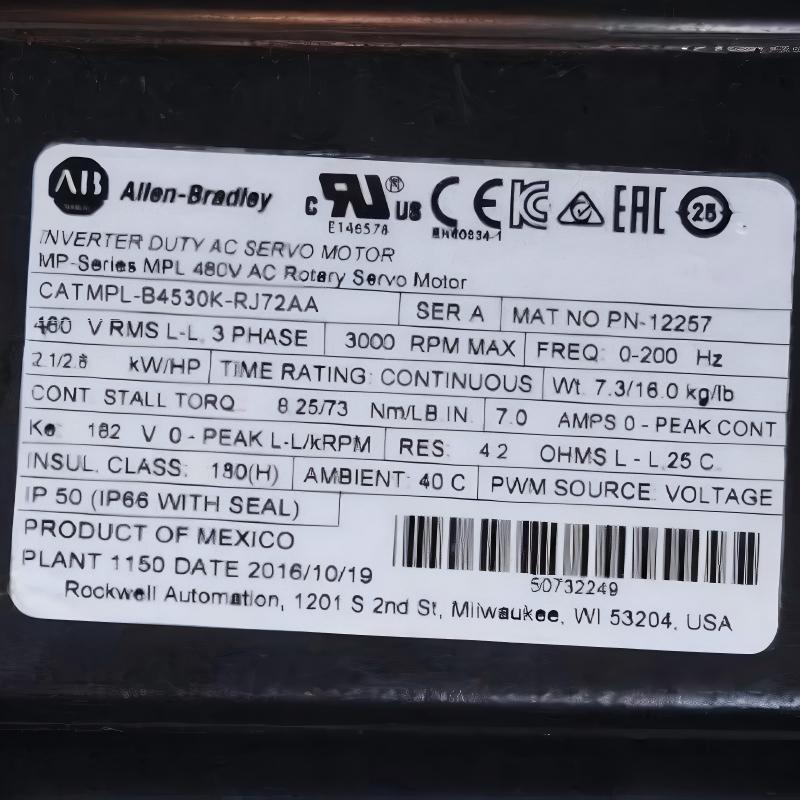

Confirm that the nameplate identifies the motor as MPL-B4530K-RJ72AA.

The MPL product family contains multiple configurations with different feedback options, shaft types, connector arrangements, and brake features. A motor with similar dimensions may not be electrically interchangeable.

For replacement projects, compare the complete catalog number and review the installed motor’s documentation before ordering.

6.2 Confirm Mechanical Mounting

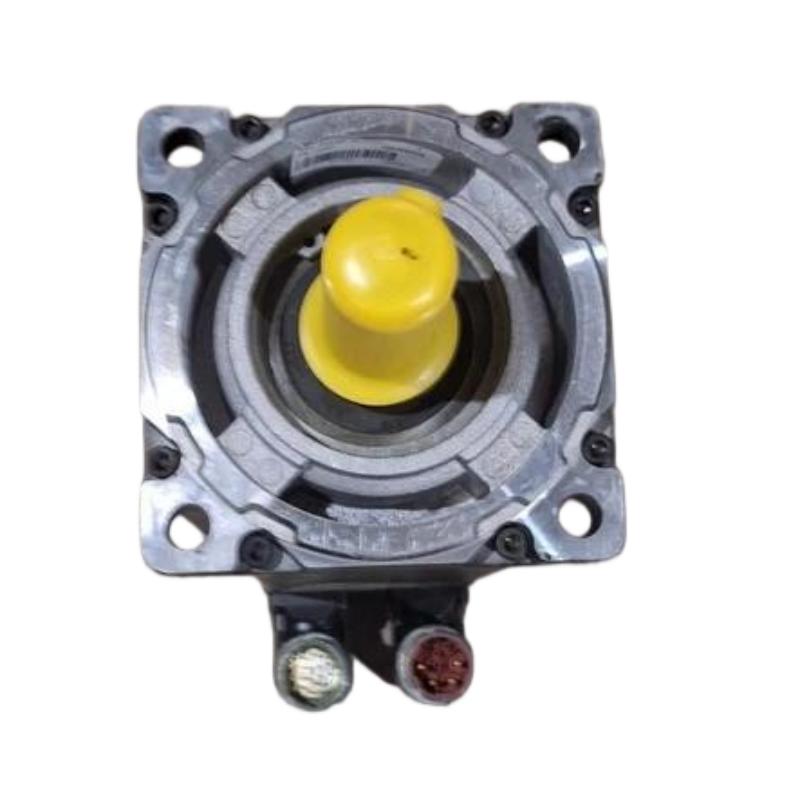

The motor uses a 130 mm frame and an IEC metric mounting arrangement. Check the mounting flange, bolt pattern, shaft dimensions, and available installation clearance against the machine drawings.

Correct alignment is important because excessive misalignment can increase bearing loads, produce vibration, and shorten the service life of the coupling or driven equipment.

Use appropriate mounting hardware and follow the manufacturer’s installation instructions.

6.3 Check the Keyed Shaft

The MPL-B4530K-RJ72AA has a keyed shaft extension. The coupling or driven component must be compatible with the shaft diameter, keyway, usable shaft length, and torque requirements.

A keyed shaft should not be treated as interchangeable with a keyless shaft simply because both motors have the same frame size.

During installation, avoid impact or excessive force on the shaft. Confirm coupling alignment and the permitted radial and axial loads.

6.4 Verify Resolver and Drive Compatibility

The servo drive must support the motor’s resolver feedback configuration and voltage class. The correct motor configuration and feedback interface must be selected in the drive.

Check the resolver cable, connector, wiring diagram, grounding, and shielding requirements before energizing the system.

A drive designed for a different feedback technology may not be suitable without an approved interface or system modification. Verify compatibility before purchasing a replacement motor.

6.5 Check Power and Feedback Wiring

Use the appropriate motor power and resolver feedback cables for the installed system. Confirm that the connectors are properly seated and secured.

Route cables to protect them from abrasion, excessive bending, vibration, heat, and electrical interference. Follow the system’s grounding and cable-separation requirements.

Incorrect wiring or damaged feedback cables can lead to drive faults or unreliable motor operation.

6.6 Consider the No-Brake Configuration

The MPL-B4530K-RJ72AA is specified without an integrated brake. When motor power is removed, the motor should not be assumed to hold a load in position.

For vertical axes, gravity-loaded mechanisms, or applications where unintended movement presents a hazard, the machine design must provide an appropriate holding and safety arrangement.

Possible solutions depend on the application and may include an external holding mechanism or selecting a suitable brake-equipped motor. Any change should be reviewed against the machine’s engineering and safety requirements.

6.7 Commissioning and Functional Testing

Before normal production, inspect the motor mounting, power connections, resolver wiring, drive parameters, and mechanical coupling.

Verify the direction of rotation, feedback operation, commanded speed, position response, and stopping behavior according to the approved commissioning procedure.

Begin with appropriate test conditions and monitor for abnormal vibration, noise, overheating, or recurring drive faults. Investigate unexpected behavior before placing the machine into normal operation.

7. Compatible System Components

The MPL-B4530K-RJ72AA requires compatible supporting components to operate as part of a complete motion control system.

Compatibility should be established using the exact motor and drive documentation. Do not assume that a servo drive supporting an absolute encoder motor will automatically support a resolver-equipped motor.

8. Alternative Models and Replacement Considerations

Selecting an alternative requires checking the complete motor configuration, not just the product family or frame size.

The listed alternatives illustrate why similar catalog numbers must be checked carefully. In particular, the RJ72AA model should not be considered directly interchangeable with an encoder-equipped MPL motor without confirming drive support and system requirements.

Before replacing an installed motor, compare:

• Complete catalog number and nameplate information.
• Frame size, magnet stack length, and mounting dimensions.
• Keyed shaft dimensions and coupling requirements.
• Resolver feedback interface and required cables.
• Rated speed, torque requirements, and duty cycle.
• Brake configuration and load-holding requirements.
• Drive compatibility and commissioning parameters.

A proposed replacement should be approved by the appropriate engineering or maintenance personnel before installation.

9. Key Advantages

Low-Inertia Servo Design

The MPL low-inertia design supports dynamic motion applications where responsive speed and position changes are required, provided that the motor is correctly sized and tuned.

Resolver Feedback

The resolver provides rotor position information to a compatible servo drive. Its suitability depends on the drive’s feedback interface and the requirements of the application.

4000 RPM Rated Speed

The specified rated speed makes the motor relevant to compatible applications requiring relatively high rotational speed. Actual torque capability and operating limits should be verified against the product documentation.

Keyed Shaft Extension

The keyed shaft provides a defined mechanical interface for compatible couplings and driven components. Shaft dimensions and keyway requirements must be checked before installation.

Flexible Connector Orientation

The right-angle SpeedTEC DIN connector is specified as rotatable through 180 degrees, allowing installation flexibility within the permitted cable-routing arrangement.

Integration into Industrial Motion Systems

When combined with compatible drive and controller hardware, the motor can support controlled rotary motion, repeatable machine cycles, and coordinated automated production.

10. Technical FAQs

Q1: What is the Allen-Bradley MPL-B4530K-RJ72AA?

It is a low-inertia brushless AC rotary servo motor from the Allen-Bradley MP-Series MPL product family, intended for compatible industrial motion control systems.

Q2: What is the frame size?

The specified frame size is 130 mm.

Q3: What is the magnet stack length?

The magnet stack length is 76.2 mm, equivalent to 3.0 inches.

Q4: What is the rated speed?

The motor is specified for a rated speed of 4000 rpm. The actual operating range and torque performance depend on the application and the applicable motor specifications.

Q5: What feedback type does this model use?

The MPL-B4530K-RJ72AA uses resolver feedback. The servo drive and feedback cable must support the required interface.

Q6: Does this model have an integrated brake?

No. This model is specified without an integrated brake. Applications requiring load holding must provide an appropriate engineered solution.

Q7: Does it have a keyed shaft?

Yes. The model uses a keyed shaft extension. Confirm the shaft dimensions and coupling requirements before installation.

Q8: What is the stated product weight?

The product listing supplied for this article gives a weight of 7.3 kg. Confirm the actual unit and shipping details when precise weight information is required.

Q9: Can it replace an encoder-equipped MPL servo motor?

Not automatically. Resolver feedback and absolute encoder feedback are different technologies. Drive compatibility, wiring, configuration, and shaft requirements must be verified before replacement.

Q10: Which applications may use this servo motor?

Potential applications include packaging machinery, automated assembly, material handling, machine tools, printing equipment, and other compatible industrial motion control systems.

11. Procurement and Replacement Considerations

When sourcing the Allen-Bradley MPL-B4530K-RJ72AA, begin by confirming the complete catalog number and the requirements of the intended installation. The resolver feedback and keyed shaft configuration are especially important when replacing another servo motor.

If the motor is intended for existing equipment, provide the supplier with the nameplate information and, where possible, photographs of the shaft, connectors, and mounting flange. These details can help reduce the risk of receiving a motor with a different feedback or mechanical configuration.

Confirm whether the quotation includes the motor only or also covers power cables, resolver feedback cables, connectors, mounting accessories, or other required components. These items should not be assumed to be included unless they are explicitly listed.

Purchasing teams should also confirm product condition, warranty terms, inspection requirements, delivery schedule, packaging, and shipping weight. The specifications and condition of the supplied unit should be checked before installation.

For critical production machinery, compatibility should be reviewed before the motor is installed. Verify the drive’s resolver support, mechanical fit, shaft coupling, operating requirements, and any load-holding needs. Commission the motor according to the manufacturer’s instructions and the site’s approved procedures.

12. Conclusion

The Allen-Bradley MPL-B4530K-RJ72AA Servo Motor is a 130 mm frame, low-inertia brushless AC servo motor with a 76.2 mm magnet stack length, a rated speed of 4000 rpm, resolver feedback, a keyed shaft extension, and no integrated brake.

Its configuration makes it a candidate for compatible industrial motion control applications requiring controlled rotation and feedback-based movement. Correct integration depends on matching the resolver interface, servo drive, shaft and mounting arrangement, and machine operating requirements.

For maintenance and procurement teams, the complete catalog number is essential when selecting a replacement. Confirming feedback type, shaft configuration, brake requirements, and drive compatibility helps reduce installation errors and supports reliable operation in industrial automation systems.
