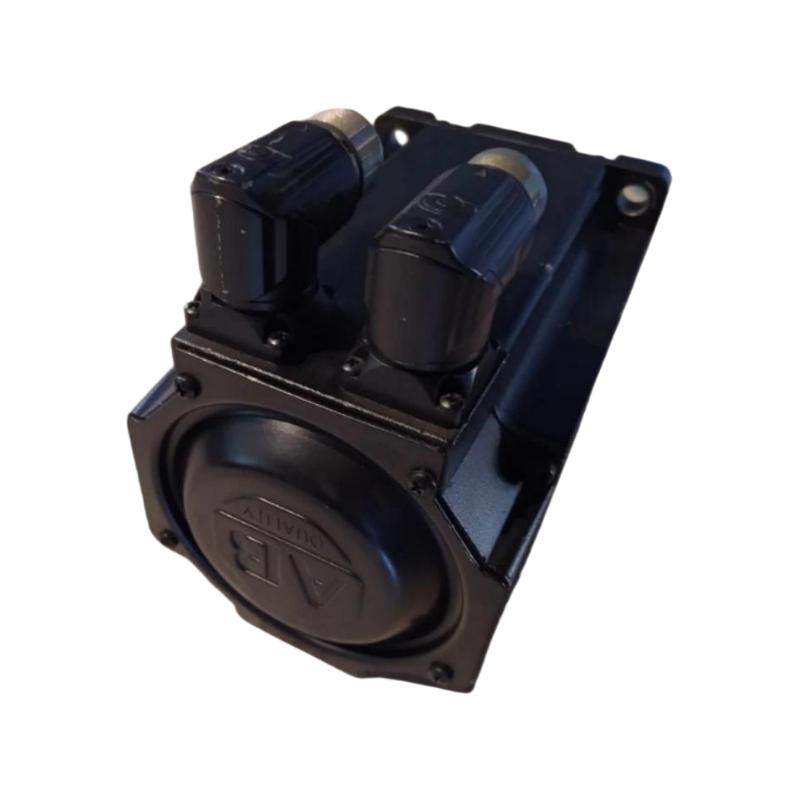

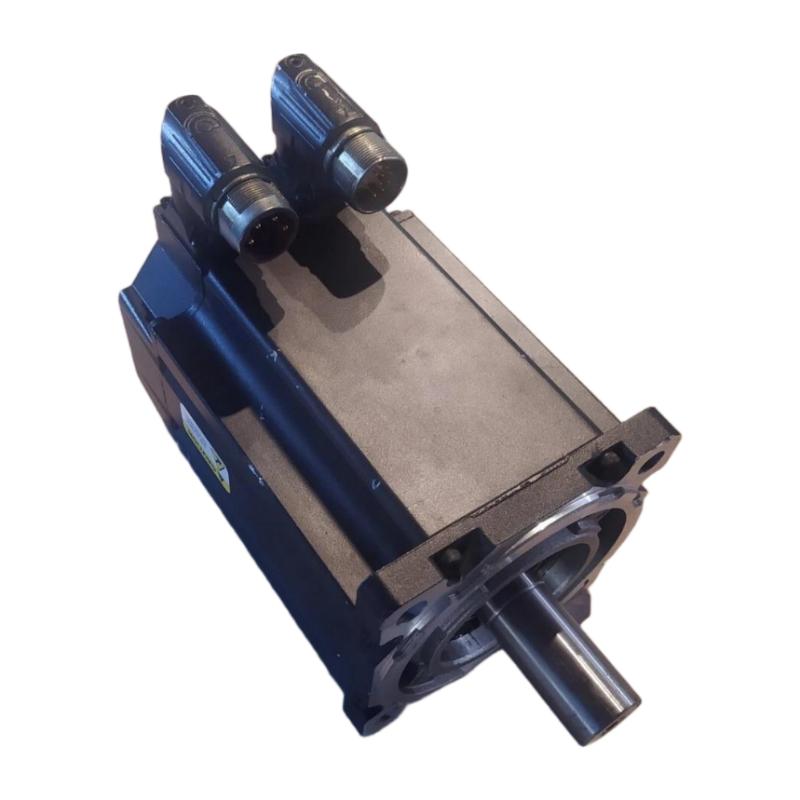

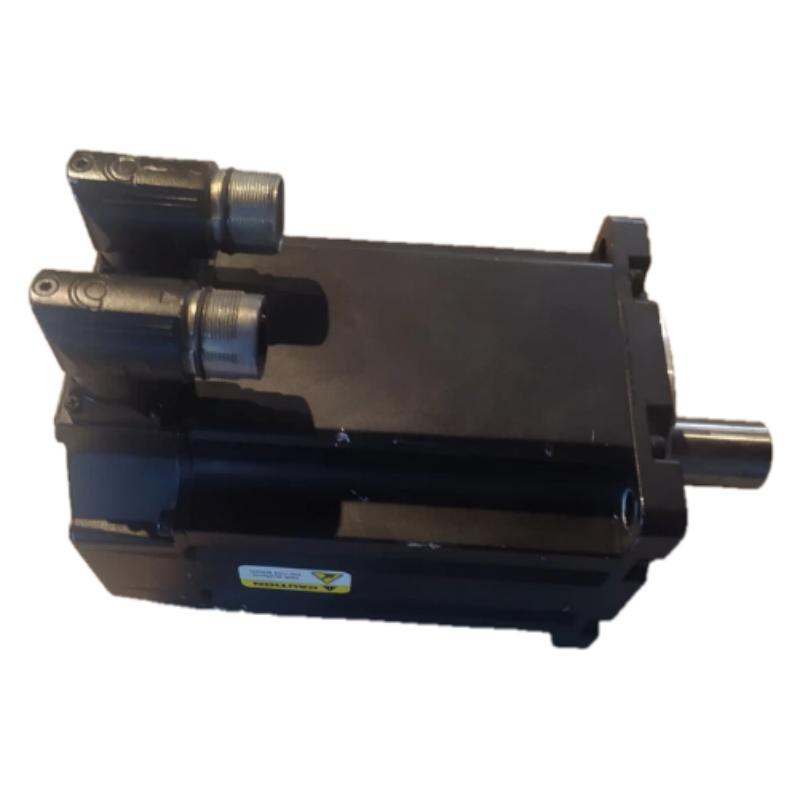

1. Product Overview

The Allen-Bradley MPL-B4530K-MK72AA Servo Motor is a low-inertia brushless AC rotary servo motor in the MP-Series MPL product family from Rockwell Automation. Designed for industrial motion control applications, this motor supports precise rotational movement in automated machinery, production equipment, and other applications requiring controlled speed, position, and torque.

With a 130 mm frame size, a 76.2 mm magnet stack length, and a rated speed of 4000 rpm, the MPL-B4530K-MK72AA is designed for dynamic motion systems where responsive motor performance and accurate feedback are important. Its low-inertia design is intended to support rapid acceleration and deceleration when correctly matched with a suitable servo drive and mechanical load.

The motor features a multi-turn high-resolution absolute encoder, a keyless shaft extension, and a right-angle SpeedTEC DIN connector that can be rotated through 180 degrees for installation flexibility. This configuration does not include a holding brake. The motor uses a metric mounting arrangement and is intended for integration into compatible industrial motion control systems.

In automated production environments, servo motors convert electrical energy into controlled mechanical motion. They are commonly used in packaging machinery, material handling equipment, assembly systems, machine tools, and other applications where conventional induction motors may not provide the required level of positioning accuracy or dynamic response.

The MPL-B4530K-MK72AA can be considered for new installations, maintenance projects, and replacement requirements involving compatible Allen-Bradley servo systems. Before selecting this motor, engineers and procurement teams should confirm the complete catalog number, drive compatibility, feedback interface, shaft dimensions, mounting arrangement, and application requirements.

2. Technical Specifications

Specification note: The 7.3 kg weight is the value provided for this product listing. Confirm the physical unit’s nameplate and the supplier’s shipping details if the exact net weight or packaged weight is important. Electrical ratings and installation requirements should be checked against the official documentation for the exact catalog number.

3. Function and Working Principle

3.1 Brushless AC Servo Motor Technology

The MPL-B4530K-MK72AA uses brushless servo motor technology. Unlike traditional brushed motors, brushless designs do not rely on mechanical brushes and a commutator to switch current in the rotor circuit. Instead, the servo drive electronically controls the motor’s phase currents to generate the required rotating magnetic field.

The rotor contains permanent magnets, while the stator contains the motor windings. When the drive supplies appropriately controlled current to the stator, electromagnetic interaction produces rotational torque. By adjusting current, frequency, and the timing of the electrical excitation, the drive controls the motor’s motion according to the application command.

This architecture is suitable for applications that require controlled acceleration, repeatable positioning, and coordinated movement. Actual operating performance depends on the selected drive, feedback configuration, mechanical load, and system tuning.

3.2 Low-Inertia Design

Motor inertia affects how quickly a motor can change its rotational speed. A low-inertia motor can respond rapidly to changes in commanded motion when the motor and load are appropriately matched.

This characteristic can be valuable in machinery that repeatedly starts, stops, accelerates, and decelerates. Examples include indexing systems, pick-and-place equipment, automated assembly machines, and packaging lines.

However, low motor inertia alone does not guarantee high system performance. Engineers must also consider load inertia, transmission ratios, coupling stiffness, backlash, friction, and the required acceleration profile. Proper sizing and servo tuning are necessary to achieve stable operation.

3.3 Encoder Feedback and Position Control

The MPL-B4530K-MK72AA is configured with a multi-turn high-resolution absolute encoder. The encoder provides feedback about motor position, allowing a compatible servo drive or motion controller to regulate the motor’s movement.

Absolute feedback differs from incremental feedback because it can provide position information within its supported range without relying solely on counting movement from an initial reference point. A multi-turn configuration also supports position information across multiple shaft revolutions, subject to the encoder’s design and system requirements.

The drive compares commanded motion with feedback information and adjusts motor current to reduce position, speed, or torque errors. This closed-loop control process enables accurate motion when the motor, drive, controller, and mechanical system are properly configured.

The exact feedback interface and supported communication method must be verified for the motor and intended drive combination.

3.4 Speed and Torque Regulation

Servo systems control motor movement by regulating the electrical input supplied to the motor. Depending on the application and controller configuration, the system may operate in position, velocity, or torque control modes.

In position control, the system follows a specified movement profile. In velocity control, it regulates rotational speed. In torque control, it manages the requested torque within the drive’s permitted operating limits.

The motor’s 4000 rpm rated speed is an important selection parameter, but it should not be treated as a complete description of the available torque across the speed range. Continuous torque, peak torque, thermal limits, and duty-cycle requirements must be obtained from the appropriate technical documentation.

4. Role in Industrial Automation Systems

4.1 Precision Motion Control

Servo motors are important components in automated systems that require predictable movement and repeatable positioning. The MPL-B4530K-MK72AA can form part of a coordinated motion system when paired with a compatible servo drive and controller.

Typical motion commands may include moving an axis to a defined position, maintaining a specified speed, or following a programmed trajectory. Encoder feedback allows the drive to monitor the motor’s actual position and adjust its output accordingly.

This capability supports applications in which product dimensions, machine timing, and positioning accuracy affect production quality.

4.2 Integration with PLCs and Motion Controllers

In a typical industrial automation architecture, a programmable logic controller (PLC) or motion controller coordinates machine operations, while the servo drive supplies the controlled electrical power required by the motor.

The controller may issue motion commands through a supported motion network or control interface. The servo drive then manages motor commutation and feedback processing according to the configured control mode.

System designers should confirm the controller, drive family, firmware, network, feedback interface, and motor configuration before installation. A motor’s manufacturer and product family alone are not enough to establish complete system compatibility.

4.3 Support for Automated Production

Accurate servo motion can improve the consistency of repeated machine operations. For example, a packaging machine may use a servo axis to position film or move a cutting mechanism, while an assembly machine may use servo motion to align components.

The motor is one element of the complete motion system. Production performance also depends on the mechanical design, control software, sensors, safety functions, and maintenance condition.

4.4 Operational Monitoring and Maintenance

Servo systems can provide useful operating information through compatible drives and controllers. Depending on the system, this information may include position error, speed, current, temperature-related status, and fault codes.

Maintenance personnel can use these diagnostics to investigate motion problems and plan service activities. Correct interpretation requires knowledge of the specific drive, motor, and machine application.

5. Industrial Applications

5.1 Packaging Machinery

Packaging lines often require rapid, repeated movement and accurate synchronization between mechanical axes. Servo motors can control indexing, feeding, cutting, sealing, and product positioning mechanisms.

The MPL-B4530K-MK72AA may be considered for a compatible packaging axis when its speed, torque, mounting arrangement, and feedback configuration meet the application requirements.

5.2 Material Handling Systems

Automated material handling equipment uses controlled motion to transfer, position, and sort products. Servo motors may be used in conveyor positioning mechanisms, transfer units, lift axes, and other motion-controlled assemblies.

When selecting a motor for these applications, engineers should evaluate the payload, acceleration profile, duty cycle, transmission ratio, and required stopping performance.

5.3 Automated Assembly Equipment

Assembly machines often combine multiple axes to position parts, operate tooling, and synchronize mechanical processes. Servo feedback helps maintain repeatable movement and supports coordination between different machine operations.

The motor’s suitability depends on the required positioning accuracy, load inertia, cycle time, and compatible drive configuration.

5.4 Machine Tools

Selected machine-tool applications use servo motors for controlled axis movement, positioning, and coordinated motion. The appropriate motor must be matched to the axis mechanics and the controller’s requirements.

Factors such as acceleration, torque at operating speed, coupling design, mechanical rigidity, and environmental conditions should be assessed before installation.

5.5 Printing and Converting Equipment

Printing and converting machinery may require coordinated movement of rollers, feeding mechanisms, cutters, and registration systems. Servo motors can help maintain synchronization and repeatable movement between machine sections.

The actual benefits depend on the control architecture and the performance requirements of the equipment.

5.6 General Industrial Automation

Other possible applications include automated inspection equipment, production fixtures, component positioning systems, and special-purpose machinery. In each case, the motor should be selected according to verified electrical, mechanical, and control requirements rather than frame size alone.

6. Installation and System Integration

Proper installation helps protect the motor and supports stable operation throughout its service life. The following considerations should be addressed before commissioning.

6.1 Verify the Complete Model Number

Confirm that the motor’s nameplate matches MPL-B4530K-MK72AA. Catalog numbers that differ by only one or two characters can represent different speed ratings, shaft configurations, encoder options, connector arrangements, or brake configurations.

Do not assume that another MPL motor is an interchangeable replacement without comparing its complete specifications.

6.2 Check Mechanical Mounting

The motor uses a 130 mm frame and an IEC metric mounting arrangement. Before installation, verify the mounting flange, bolt pattern, shaft dimensions, available clearance, and mechanical alignment against the machine drawings.

Incorrect alignment can increase bearing loads, cause vibration, and shorten the service life of couplings or driven components. Use suitable mounting hardware and follow the equipment manufacturer’s installation instructions.

6.3 Confirm Shaft and Coupling Requirements

This model uses a keyless shaft extension. The coupling or driven component must be compatible with the shaft configuration and the application’s torque requirements.

Check shaft diameter, usable shaft length, coupling bore, allowable radial and axial loads, and alignment tolerances. Avoid applying excessive force to the shaft or bearings during installation.

6.4 Verify Drive and Feedback Compatibility

The servo drive must support the motor’s voltage class, rated speed, encoder type, and feedback interface. The drive’s motor configuration or parameter set should correspond to the exact motor model.

A mismatched feedback interface may prevent correct motor identification or closed-loop operation. Confirm the required feedback cable and connector before powering up the system.

6.5 Plan Power and Cable Routing

Use the specified motor power and feedback cables for the installed configuration. Connectors should be fully seated and secured according to the manufacturer’s instructions.

Route cables to reduce exposure to mechanical damage, excessive bending, heat, and electrical interference. Follow the system’s grounding, shielding, and cable-separation requirements.

6.6 Consider the No-Brake Configuration

The MPL-B4530K-MK72AA is specified as a no-brake motor. Do not assume that the motor can hold a vertical or gravity-loaded axis in place when drive power is removed.

Where the application requires load holding or protection against uncontrolled movement, the machine design must provide a suitable engineered solution. This may involve an external holding mechanism, an appropriate brake-equipped motor, or another approved safety arrangement based on the risk assessment.

6.7 Commissioning and Testing

Before normal operation, verify mounting, electrical connections, grounding, cable compatibility, drive parameters, and safety functions. Test the system at an appropriate commissioning speed and load while monitoring for abnormal vibration, noise, heating, or position error.

Confirm that the direction of rotation, feedback polarity, motion limits, and stopping behavior are correct. Commissioning should be performed by qualified personnel according to the manufacturer’s documentation and the machine’s approved procedures.

7. Compatible System Components

The motor must be used with components that support its electrical and feedback configuration. The following table describes the main categories of equipment considered during integration.

Do not assume that every drive within the Allen-Bradley or Kinetix product families supports this exact motor configuration. Confirm the applicable motor-and-drive compatibility documentation before ordering or commissioning a system.

8. Alternative Models and Replacement Considerations

When replacing an installed servo motor, the most important requirement is to maintain compatibility with the existing drive, feedback system, and mechanical assembly.

A similar model number does not guarantee interchangeability. For example, a different speed code may change the motor’s rated operating characteristics, while a different shaft or feedback code can affect installation and drive compatibility.

Before approving a replacement, compare the mounting dimensions, shaft details, rated speed, torque requirements, encoder interface, cable connections, brake configuration, and drive support. Any proposed change should be reviewed against the machinery manufacturer’s requirements.

9. Key Advantages

Low-Inertia Servo Design

The MPL product family is designed for dynamic motion applications. When appropriately sized and tuned, a low-inertia servo motor can support responsive changes in speed and position.

High-Resolution Absolute Feedback

The multi-turn absolute encoder configuration supports position feedback for compatible motion control systems. Correct drive and feedback integration is essential for realizing the intended functionality.

4000 RPM Rated Speed

The specified 4000 rpm rating makes the motor relevant to applications requiring relatively high rotational speed. Actual usable speed and torque must be confirmed against the complete motor and drive specifications.

Compact Industrial Mounting

The 130 mm frame and metric mounting configuration provide a defined mechanical interface for compatible machine designs. Engineers should still confirm all mounting dimensions before installation.

Flexible Connector Orientation

The right-angle SpeedTEC DIN connector is specified as 180-degree rotatable, allowing some flexibility in cable orientation where permitted by the installation instructions and available clearance.

Integration into Industrial Motion Systems

The motor can be incorporated into compatible servo control architectures to support repeatable machine motion, coordinated axes, and automated production processes.

10. Technical FAQs

Q1: What is the Allen-Bradley MPL-B4530K-MK72AA?

It is a low-inertia brushless AC rotary servo motor from the Allen-Bradley MP-Series MPL family, intended for compatible industrial motion control applications.

Q2: What is the frame size?

The specified frame size is 130 mm.

Q3: What is the magnet stack length?

The magnet stack length is 76.2 mm, equivalent to 3.0 inches.

Q4: What is the rated speed?

The catalog configuration is rated at 4000 rpm. The permissible operating range and available torque depend on the applicable motor data and drive configuration.

Q5: Does this model have an absolute encoder?

Yes. The MPL-B4530K-MK72AA is specified with a multi-turn high-resolution absolute encoder. Verify the feedback interface and required cables for the intended drive.

Q6: Does the motor include a holding brake?

No. This model is specified as a no-brake configuration. If the application requires holding torque when power is removed, the machine must have an appropriate engineered solution.

Q7: What is the motor’s weight?

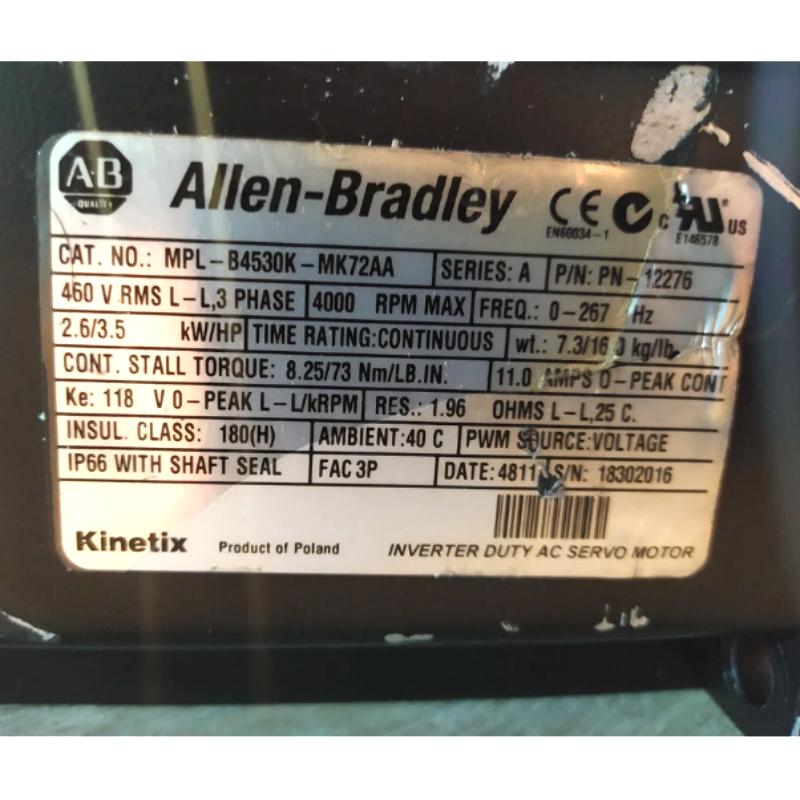

The stated weight for this product listing is 7.3 kg. Confirm the actual unit’s specification and whether any quoted shipping weight includes packaging or accessories.

Q8: Can it be used with any Allen-Bradley servo drive?

No. Drive compatibility depends on the exact drive model, voltage class, feedback support, motor configuration, and system requirements. Consult the applicable compatibility documentation.

Q9: What should be checked before replacing an existing motor?

Check the complete catalog number, frame and mounting dimensions, shaft type, rated speed, torque requirements, feedback configuration, connector orientation, brake option, and compatibility with the existing drive.

Q10: Which applications commonly use servo motors of this type?

Potential applications include packaging equipment, material handling, automated assembly, machine tools, printing equipment, and other industrial systems requiring controlled rotary motion.

11. Procurement and Replacement Considerations

For industrial spare-parts procurement, accurate identification is essential. The MPL-B4530K-MK72AA should be ordered using the complete catalog number rather than a shortened description such as “130 mm Allen-Bradley servo motor.”

Before requesting a quotation, confirm the required quantity, product condition, delivery schedule, warranty expectations, and destination. If the motor is intended as a replacement, provide the existing nameplate information and, where possible, photographs of the motor connectors and mounting interface.

It is also important to distinguish between the motor itself and the accessories required for installation. Power cables, feedback cables, couplings, mounting hardware, and servo drives should not be assumed to be included unless the quotation explicitly lists them.

For a critical production line, verify compatibility before the replacement motor is installed. A motor that fits mechanically may still be unsuitable if its encoder, speed rating, shaft design, or drive requirements differ from those of the original unit.

During receipt and inspection, check the product label, catalog number, external condition, connector condition, and packaging. Store and handle the motor in accordance with the manufacturer’s requirements, and protect connectors and shaft surfaces from impact or contamination.

12. Conclusion

The Allen-Bradley MPL-B4530K-MK72AA Servo Motor is a 130 mm frame, low-inertia brushless AC servo motor configured for 4000 rpm operation and multi-turn high-resolution absolute feedback. Its keyless shaft extension, rotatable right-angle SpeedTEC DIN connector, and no-brake configuration are important characteristics to consider when planning an installation or replacement.

Designed for use in compatible industrial motion control systems, the motor can support applications requiring controlled rotation, repeatable positioning, and coordinated machine movement. Successful integration depends on proper motor sizing, compatible drive and feedback hardware, correct mechanical mounting, and suitable commissioning procedures.

For purchasing and maintenance teams, confirming the full catalog number and application requirements is the most reliable way to reduce replacement errors. Verify the motor’s technical documentation and system compatibility before installation to help ensure dependable operation in the intended automation application.
