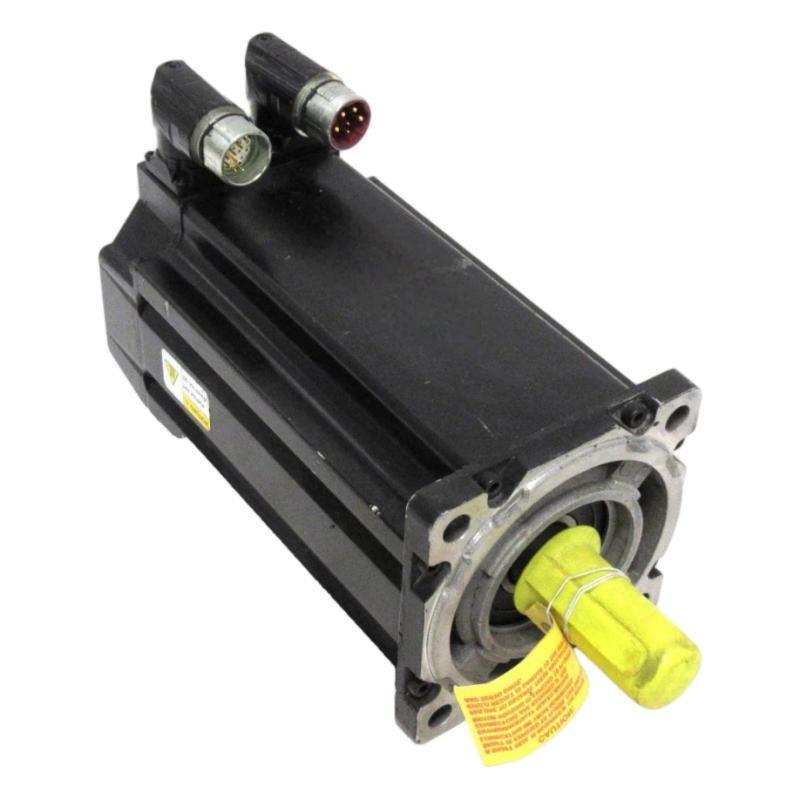

Allen-Bradley MPL-B4530F-MJ74AA Servo Motor
Detailed Technical Specifications, Product Introduction, Applications, Advantages, Series Information and Related Models
1. Product Overview
The Allen-Bradley MPL-B4530F-MJ74AA is a low-inertia brushless AC servo motor designed for high-performance industrial motion-control applications where fast acceleration, accurate positioning, stable torque output, and reliable feedback are important.
It belongs to the MP-Series MPL Low-Inertia Servo Motor family and is designed around a 400/480 V-class industrial servo architecture, with a nominal 460 V AC supply class.
The motor uses a 130 mm frame size, a 76.2 mm magnet stack length, and a rated speed of 3000 rpm. Its low-inertia rotor construction allows the motor to respond quickly to changes in speed and position, making it particularly suitable for machines that repeatedly accelerate, decelerate, stop, reverse, and reposition.
The MPL-B4530F-MJ74AA is also equipped with a multi-turn high-resolution absolute encoder and a 24 V DC holding brake. This combination makes the motor well suited to applications where position retention, controlled stopping, vertical-axis holding, and repeatable machine positioning are important.
The keyed shaft provides a conventional mechanical connection for compatible couplings, pulleys, gears, or other transmission components. The right-angle DIN connector can be rotated to help accommodate different cable-routing requirements inside compact machine assemblies.
2. Brand and Product Series
| Item | Description |
|---|---|
| Brand | Allen-Bradley |
| Product Family | MP-Series |
| Motor Series | MPL Low-Inertia Brushless Servo Motors |
| Motor Type | Permanent-magnet brushless AC servo motor |
| Product Category | Industrial rotary servo motor |
| Voltage Class | 400/480 V AC class |
| Nominal Voltage Class | 460 V AC |
| Frame Size | 45 / 130 mm |
| Magnet Stack | 30 / 76.2 mm |
| Rated Speed | 3000 rpm |
| Feedback Type | Multi-turn high-resolution absolute encoder |
| Brake | 24 V DC holding brake |
| Shaft | Keyed shaft extension |
| Mounting | IEC metric flange |
| Connector | SpeedTEC DIN right-angle connector |
| Motor Construction | Low-inertia brushless design |
The MPL series is intended for applications where dynamic response and precise motion control are more important than simply producing continuous rotary power.
Compared with a conventional industrial motor, a servo motor such as the MPL-B4530F-MJ74AA is designed to operate as part of a closed-loop motion-control system. The drive continuously monitors motor feedback and adjusts current, torque, speed, and position according to the machine’s motion requirements.

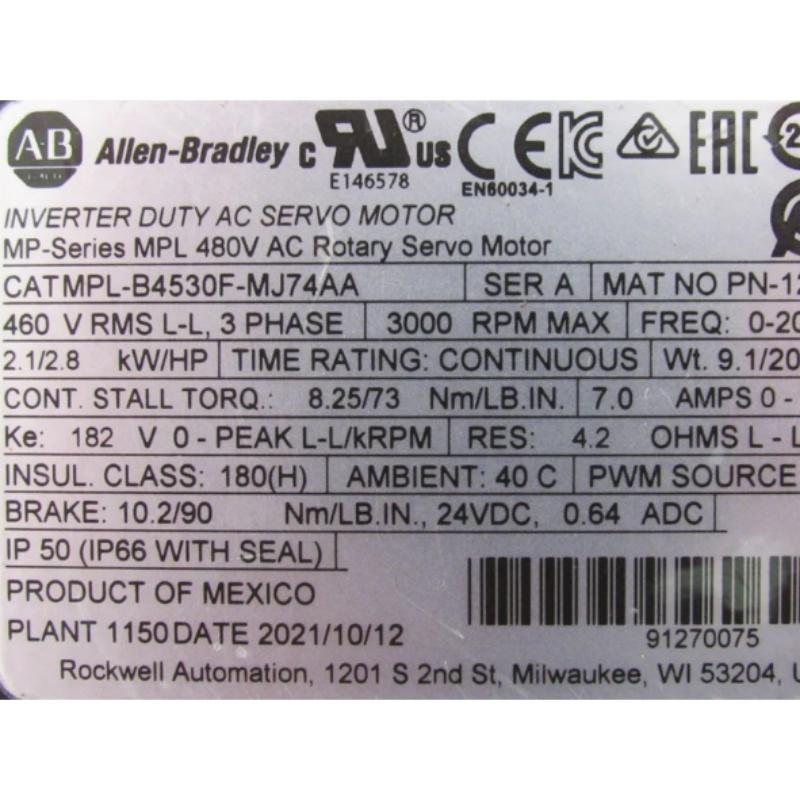

3. Main Technical Parameters
| Parameter | MPL-B4530F-MJ74AA |
|---|---|
| Model | MPL-B4530F-MJ74AA |
| Brand | Allen-Bradley |
| Series | MP-Series MPL |
| Motor Type | Low-inertia brushless AC servo motor |
| Voltage Class | 400 V AC class |
| Nominal Supply Class | 460 V AC |
| Rated Speed | 3000 rpm |
| Maximum Speed | Up to approximately 3000 rpm for the standard 3000 rpm configuration |
| Continuous Stall Torque | 8.25 N·m |
| Peak Torque | 20.3 N·m |
| Rated Power | Approximately 2.1 kW |
| Frame Size | 45 |
| Frame Diameter/Class | 130 mm |
| Magnet Stack Length | 76.2 mm |
| Encoder | Multi-turn high-resolution absolute encoder |
| Encoder Signal | 1024 Sin/Cos |
| Encoder Protocol | Hiperface |
| Feedback | Absolute multi-turn |
| Shaft Type | Keyed shaft |
| Shaft Seal | No shaft seal |
| Brake | 24 V DC holding brake |
| Connector | Circular SpeedTEC DIN connector |
| Connector Position | Right-angle |
| Connector Adjustment | 180° rotatable |
| Mounting | IEC metric flange |
| Flange Type | Free mounting holes / FF configuration |
| Motor Construction | Brushless permanent-magnet servo |
| Rotor Type | Low-inertia |
| Rotor Inertia | Approximately 0.00040 kg·m² |
| Housing Protection | IP50 standard motor housing configuration; higher shaft-end protection depends on sealing/cable configuration |
| Operating Temperature | Approximately 0 to 40 °C typical |
| Approximate Weight | 3.08 kg |
| Magnet Stack | 76.2 mm |
| Intended Drive System | Servo drive / motion-control system |
| Typical Use | Precision automation and dynamic motion control |
4. Dimensions and Weight
The dimensional structure of the MPL-B4530F-MJ74AA is based on a 130 mm frame class with a 76.2 mm magnet stack.
The frame size provides a useful balance between motor torque capability and installation space. The motor is compact enough for many machine-axis applications while still providing substantial continuous and peak torque.
| Mechanical Parameter | Specification |
|---|---|
| Model | MPL-B4530F-MJ74AA |
| Frame Size | 45 |
| Frame Dimension | 130 mm class |
| Magnet Stack Length | 76.2 mm |
| Flange Standard | IEC Metric |
| Mounting Style | FF free mounting holes |
| Shaft | Keyed |
| Shaft Seal | None in standard configuration |
| Connector | Right-angle DIN |
| Connector Rotation | 180° |
| Brake | Integrated 24 V DC holding brake |
| Approximate Motor Weight | 3.08 kg |
| Rotor Construction | Low inertia |
| Installation Orientation | Suitable for standard industrial servo mounting arrangements |
The 3.08 kg approximate weight makes this motor practical for machine axes where motor mass is an important consideration.
The 130 mm frame class also provides a relatively compact mounting envelope compared with larger servo motors delivering higher torque.
5. Electrical and Performance Characteristics
The MPL-B4530F-MJ74AA is designed around a 460 V AC class servo system and has a rated speed of 3000 rpm.
Its continuous stall torque is approximately 8.25 N·m, while the peak torque capability reaches approximately 20.3 N·m.
This torque range gives the motor a useful combination of continuous-load capability and short-duration acceleration performance.
| Performance Parameter | Specification |
|---|---|
| Model | MPL-B4530F-MJ74AA |
| Rated Voltage Class | 400 V AC |
| Nominal Voltage | 460 V AC |
| Rated Speed | 3000 rpm |
| Continuous Stall Torque | 8.25 N·m |
| Peak Torque | 20.3 N·m |
| Rated Power | Approx. 2.1 kW |
| Rotor Inertia | Approx. 0.00040 kg·m² |
| Frame | 130 mm |
| Stack Length | 76.2 mm |
| Weight | Approx. 3.08 kg |
The relatively low rotor inertia is one of the most important characteristics of this motor.
A low-inertia rotor can change speed more quickly because less rotational energy has to be accelerated or decelerated. In practical machine operation, this can help reduce settling time and improve cycle speed when the axis repeatedly changes direction.
6. Feedback System
One of the key features of the MPL-B4530F-MJ74AA is its multi-turn high-resolution absolute feedback system.
The motor uses a high-resolution encoder with 1024 Sin/Cos cycles per revolution and a Hiperface-type feedback interface.
The absolute multi-turn design is particularly useful for machines where the axis position needs to remain known after a power interruption or where repeated mechanical homing would reduce productivity.
| Feedback Parameter | Specification |
|---|---|
| Model | MPL-B4530F-MJ74AA |
| Feedback Type | Absolute feedback |
| Encoder Type | Multi-turn high-resolution encoder |
| Encoder Resolution | 1024 Sin/Cos cycles/revolution |
| Feedback Protocol | Hiperface |
| Position Information | Absolute multi-turn |
| Homing Requirement | Can reduce or eliminate routine mechanical homing depending on system configuration |
| Application Benefit | Accurate position tracking and repeatable machine positioning |
The absolute feedback arrangement is especially valuable on rotary axes, indexing systems, material handling equipment, packaging machinery, and vertical machine axes.
Instead of treating the motor simply as a source of rotation, the feedback system allows the servo controller to continuously understand the motor’s actual position and movement.
7. Integrated 24 V DC Holding Brake
The MJ74AA configuration includes a 24 V DC holding brake.
The brake is useful when the machine axis needs to remain mechanically held when the servo drive is disabled or when the machine is stopped.
This feature is especially useful for vertical axes, lifting mechanisms, positioning mechanisms, and equipment where an axis should not freely move when motor torque is removed.
| Brake Parameter | Specification |
|---|---|
| Model | MPL-B4530F-MJ74AA |
| Brake Type | Holding brake |
| Brake Voltage | 24 V DC |
| Brake Configuration | Integrated |
| Primary Function | Holding / maintaining axis position |
| Typical Application | Vertical axes, lifting systems, positioning axes |
| Control | Servo system brake control |
| Main Advantage | Helps prevent unwanted axis movement when servo torque is removed |
The brake should be regarded primarily as a holding device, rather than as a replacement for a dedicated machine stopping or emergency braking system.
The actual machine safety strategy should always consider load characteristics, gravity, stored energy, mechanical transmission, and the required safety architecture.
8. Shaft and Mechanical Configuration
The MPL-B4530F-MJ74AA uses a keyed shaft extension.
A keyed shaft is useful when the motor is connected to a compatible coupling, pulley, gearbox, belt mechanism, screw mechanism, or other rotary transmission component.
| Mechanical Feature | Specification |
|---|---|
| Model | MPL-B4530F-MJ74AA |
| Shaft Type | Keyed |
| Shaft Extension | Standard servo motor shaft configuration |
| Shaft Seal | No shaft seal in standard configuration |
| Mounting | IEC metric |
| Flange | Free mounting holes |
| Frame Size | 130 mm |
| Magnet Stack | 76.2 mm |
| Approx. Weight | 3.08 kg |
The absence of a standard shaft seal should be considered during machine design.
If the motor is installed in an environment where coolant, cutting fluid, washdown liquid, dust, or other contaminants can reach the shaft area, the complete motor and cable configuration should be selected with the environmental conditions in mind.

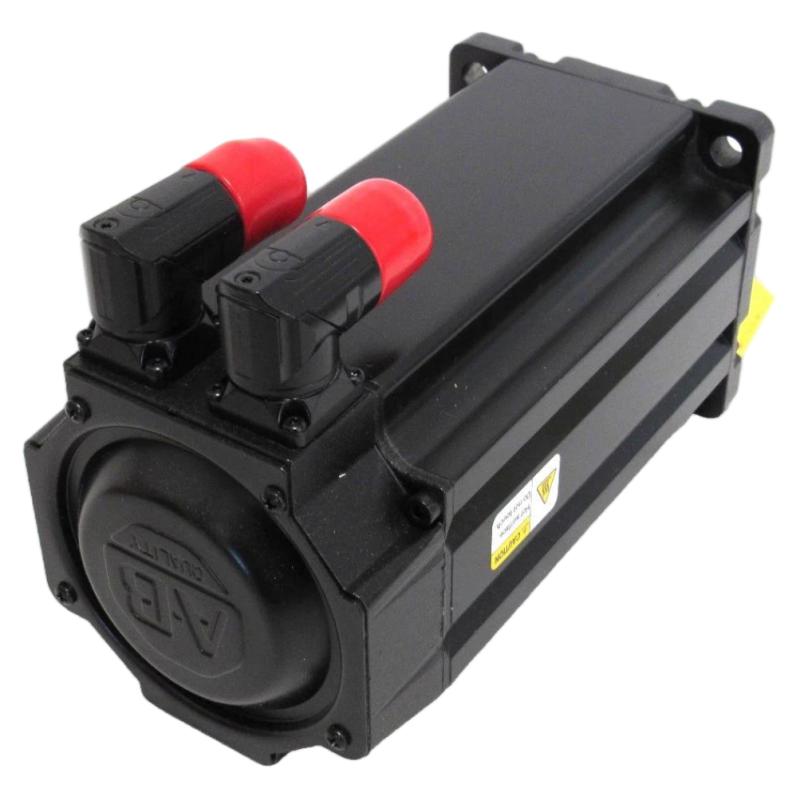

9. Connector Configuration
The motor uses a circular SpeedTEC DIN connector in a right-angle configuration.
The connector can be rotated through approximately 180 degrees, which can make a noticeable difference when the motor is installed in a compact machine.
| Connector Parameter | Specification |
|---|---|
| Model | MPL-B4530F-MJ74AA |
| Connector Type | Circular DIN |
| Connector Family | SpeedTEC |
| Configuration | Right-angle |
| Rotation | 180° adjustable |
| Connection Type | Quick-connect style |
| Main Benefit | Flexible cable routing |
| Typical Advantage | Easier installation in compact machine cabinets and machine frames |
The adjustable connector orientation helps installers avoid unnecessary cable bending and can make the final machine wiring cleaner.
This is particularly useful when several motors are mounted close together or when the machine frame limits the available cable-routing space.
10. Product Introduction
The MPL-B4530F-MJ74AA is a precision-oriented industrial servo motor designed for dynamic motion applications.
Its low-inertia design makes it suitable for machines that require frequent acceleration and deceleration.
Instead of being optimized only for maximum continuous power, the motor is designed to deliver a combination of torque density, speed response, feedback resolution, and mechanical integration.
The 3000 rpm rating is suitable for many general-purpose industrial motion axes, especially applications where the machine requires a balance between rotational speed and useful torque.
The 8.25 N·m continuous stall torque rating provides a substantial continuous torque level for its frame class, while the approximately 20.3 N·m peak torque capability provides additional short-term torque for acceleration and dynamic load changes.
The built-in 24 V DC holding brake adds another level of mechanical functionality, particularly for vertical or gravity-loaded machine axes.
11. Low-Inertia Motor Design
The low-inertia construction is one of the most important characteristics of the MPL family.
In a servo application, the motor does not simply rotate continuously at one speed. It may repeatedly accelerate, decelerate, stop, reverse, and reposition.
A high rotor inertia can make these transitions slower because the drive must overcome greater rotational inertia.
A low-inertia rotor allows the servo system to change motor speed more rapidly.
This can help improve:
- Acceleration response
- Deceleration response
- Position settling
- Reversal performance
- Cycle time
- Dynamic tracking
- High-frequency indexing
- Repeated start-stop operation
For this reason, low-inertia servo motors are frequently used in packaging, converting, assembly, indexing, material handling, and other high-cycle industrial machinery.
12. Main Product Advantages
12.1 Low Rotor Inertia
The low rotor inertia allows the motor to respond rapidly to speed and position commands.
This is especially valuable when the machine performs frequent motion changes.
12.2 Strong Torque Capability
The motor provides approximately 8.25 N·m continuous stall torque and approximately 20.3 N·m peak torque.
This gives the motor a useful combination of continuous load capability and dynamic acceleration performance.
12.3 3000 rpm Operating Class
A 3000 rpm rating provides a good compromise between speed and torque.
It is suitable for a broad range of industrial servo axes where extremely high motor speed is not the primary requirement.
12.4 Absolute Multi-Turn Feedback
The absolute multi-turn encoder provides detailed position feedback and helps maintain reliable position information across multiple motor revolutions.
This is especially useful for applications that require accurate positioning and repeatable motion.
12.5 Integrated 24 V DC Brake
The integrated brake is useful for applications where the motor axis needs to remain mechanically held when motor torque is removed.
Vertical machine axes are a particularly common example.
12.6 Compact 130 mm Frame
The 130 mm frame size provides a relatively compact mechanical package for the torque class.
This helps simplify installation where machine space is limited.
12.7 Flexible Connector Orientation
The 180° rotatable right-angle connector allows greater flexibility during installation.
Cable routing can be adjusted according to the available space around the motor.
12.8 Keyed Shaft
The keyed shaft provides a familiar mechanical connection for many industrial transmission arrangements.
It can be used with compatible couplings, pulleys, gears, and other mechanical components.
12.9 Suitable for High-Cycle Machinery
The low-inertia architecture and servo feedback system make this motor well suited to machinery that performs repeated motion cycles.
Typical examples include packaging equipment, indexing machinery, assembly systems, and automated production equipment.
13. Typical Applications
13.1 Packaging Machinery
The MPL-B4530F-MJ74AA can be used for packaging machine axes that require rapid indexing and accurate positioning.
Examples include:
- Filling machines
- Labeling equipment
- Cartoning machines
- Bagging equipment
- Sealing machines
- Product indexing systems
- Pick-and-place mechanisms
The low-inertia design is particularly helpful where the machine repeats the same motion cycle many times per minute.
13.2 Material Handling
The motor can be applied to automated material-handling equipment where controlled acceleration and accurate positioning are required.
Examples include:
- Conveyor positioning
- Transfer mechanisms
- Indexing conveyors
- Automated feeders
- Sorting mechanisms
- Pick-and-place equipment
13.3 Assembly Machinery
The servo motor is suitable for automated assembly equipment that requires repeatable positioning.
Typical applications include:
- Component insertion
- Rotary indexing tables
- Automated fastening
- Precision assembly stations
- Component transfer
- Machine-tool auxiliary axes
13.4 CNC and Precision Machinery
The 3000 rpm speed class and absolute feedback system make the motor suitable for various machine-tool and precision-motion applications.
Potential uses include:
- Auxiliary positioning axes
- Rotary positioning systems
- Feed mechanisms
- Automated tooling systems
- Material positioning axes
13.5 Robotics and Automated Motion
The motor can also be used in certain industrial robotic mechanisms and automated positioning equipment.
The low-inertia construction can be beneficial when the mechanical system requires rapid movement and controlled stopping.
13.6 Vertical Axes
The integrated 24 V DC holding brake makes this configuration particularly attractive for vertical applications.
Examples include:
- Vertical lifts
- Z-axis mechanisms
- Elevating platforms
- Vertical transfer systems
- Gravity-loaded positioning axes
The brake can help hold the axis when the servo motor is no longer actively producing torque.
14. Application Advantages by Machine Type
| Machine Type | Main Benefit |
|---|---|
| Packaging machine | Fast acceleration and repeated indexing |
| Labeling machine | Precise positioning and rapid cycling |
| Assembly machine | Repeatable motion and controlled positioning |
| Conveyor system | Accurate positioning and speed control |
| Indexing table | Fast start-stop operation |
| Material handling | Controlled acceleration and positioning |
| CNC auxiliary axis | Feedback-based motion control |
| Vertical axis | Integrated holding brake |
| Automated feeder | Rapid repetitive motion |
| Inspection equipment | Stable and repeatable positioning |
| Robotic mechanism | Low-inertia dynamic response |
| Production automation | Closed-loop motion control |
15. Important Installation Considerations
Correct installation is important for obtaining reliable servo performance.
The motor should be mounted on a rigid and properly aligned machine structure.
The mechanical coupling should be selected according to the actual shaft size, torque, speed, radial load, axial load, and alignment requirements.
Misalignment can increase bearing loading and mechanical vibration.
Cable routing should also be planned carefully.
The right-angle connector can be rotated to improve cable routing, but the cable should not be sharply bent or subjected to excessive mechanical stress.
The motor should also be protected from environmental conditions that exceed its intended configuration.
Special attention should be paid to coolant, water, oil, dust, cutting fluid, and washdown exposure, especially around the shaft area because the standard configuration does not use a shaft seal.
16. Selection Considerations
Before replacing an existing servo motor with the MPL-B4530F-MJ74AA, several parameters should be checked.
| Selection Item | Recommended Check |
|---|---|
| Motor Model | Confirm exact catalog number |
| Voltage | Confirm compatible servo drive voltage class |
| Rated Speed | Confirm 3000 rpm requirement |
| Continuous Torque | Confirm 8.25 N·m capability is sufficient |
| Peak Torque | Confirm approximately 20.3 N·m peak requirement |
| Power | Confirm approximately 2.1 kW rating |
| Feedback | Confirm absolute multi-turn feedback compatibility |
| Encoder | Confirm 1024 Sin/Cos / Hiperface compatibility |
| Brake | Confirm 24 V DC brake requirements |
| Shaft | Confirm keyed shaft compatibility |
| Flange | Confirm 130 mm frame and mounting dimensions |
| Connector | Confirm cable and connector compatibility |
| Environment | Confirm temperature, moisture, dust, and contamination conditions |
| Weight | Confirm approximately 3.08 kg installation load |
| Mechanical Load | Check radial and axial shaft loads |
| Drive | Confirm compatible servo amplifier/drive |
| Cable | Confirm feedback, power, and brake wiring requirements |
17. Five Same-Series or Closely Related Models
The following models are useful comparisons when selecting an MPL-family motor with similar construction, feedback, mounting, or performance characteristics.
| Model | Series / Type | Rated Speed | Continuous Torque | Peak Torque | Power | Frame / Size | Weight |
|---|---|---|---|---|---|---|---|
| MPL-B4530F-MJ74AA | MPL Low-Inertia | 3000 rpm | 8.25 N·m | 20.3 N·m | 2.1 kW | 130 mm / 76.2 mm stack | 3.08 kg |
| MPL-B4530F-MJ72AA | MPL Low-Inertia | 3000 rpm | 8.25 N·m | 20.3 N·m | 2.1 kW | 130 mm / 76.2 mm stack | Approx. 6.35 kg |
| MPL-B4530F-HJ72AA | MPL Low-Inertia | 3000 rpm class | Approx. 8.25 N·m | Approx. 20.3 N·m | Approx. 2.1 kW | 130 mm / 76.2 mm stack | Approx. 3–7 kg class |
| MPL-B4530F-HK72AA | MPL Low-Inertia | 3000 rpm class | Approx. 8.25 N·m | Approx. 20.3 N·m | Approx. 2.1 kW | 130 mm / 76.2 mm stack | Approx. 3–7 kg class |
| MPL-B4540F-MJ74AA | MPL Low-Inertia | 3000 rpm | 10.2 N·m | 27.1 N·m | 2.6 kW | 130 mm class / 101.6 mm stack | Approx. 8.6 kg |
Comparison Notes
The MPL-B4530F-MJ74AA and MPL-B4530F-MJ72AA are especially close in basic motor architecture. The main configuration difference is the brake arrangement.
The MPL-B4540F-MJ74AA is a useful higher-torque alternative. It uses a longer magnet stack and provides approximately 10.2 N·m continuous torque, making it a logical choice when the 4530F torque level is not sufficient.
The HJ/HK configurations are useful when comparing feedback or connector-related configurations within the same general motor family.
18. Five Popular Allen-Bradley Models for Comparison
The following models provide a broader comparison within the Allen-Bradley servo motor range.
| Model | Series | Rated Speed | Continuous Torque | Peak Torque | Power | Frame / Stack | Weight |
|---|---|---|---|---|---|---|---|
| MPL-B430P-MK74AA | MPL Low-Inertia | 5000 rpm | 6.55 N·m | 19.8 N·m | 2.2 kW | 115 mm class | Approx. 5.5 kg |
| MPL-B430P-MK72AA | MPL Low-Inertia | 5000 rpm | 6.55 N·m | 19.8 N·m | 2.2 kW | 115 mm class | Approx. 5.5 kg |
| MPL-B4530F-MK74AA | MPL Low-Inertia | 3000 rpm | 8.25 N·m | 20.3 N·m | 2.1 kW | 130 mm / 76.2 mm stack | Approx. 7.3 kg family class |
| MPL-B4540F-MJ74AA | MPL Low-Inertia | 3000 rpm | 10.2 N·m | 27.1 N·m | 2.6 kW | 130 mm class / longer stack | Approx. 8.6 kg |
| MPL-B4560F-MJ74AA | MPL Low-Inertia | 3000 rpm | 14.1 N·m | 34.4 N·m | 3.2 kW | Larger 130 mm-class frame / longer stack | Approx. 11.82 kg |
These models cover a useful range from relatively high-speed servo operation to higher-torque applications.
The MPL-B430P models are attractive when 5000 rpm operation is more important.
The MPL-B4530F family is a balanced option around 3000 rpm with substantial continuous torque.
The MPL-B4540F provides more torque and power for heavier machine axes.
The MPL-B4560F moves further toward high-torque applications where the machine requires greater continuous and peak torque.
19. Comparison: MPL-B4530F-MJ74AA vs. MPL-B430P-MK74AA
| Parameter | MPL-B4530F-MJ74AA | MPL-B430P-MK74AA |
|---|---|---|
| Motor Family | MPL | MPL |
| Rated Speed | 3000 rpm | 5000 rpm |
| Continuous Torque | 8.25 N·m | 6.55 N·m |
| Peak Torque | 20.3 N·m | 19.8 N·m |
| Rated Power | 2.1 kW | 2.2 kW |
| Frame Class | 130 mm | 115 mm class |
| Feedback | Multi-turn absolute | Multi-turn / configuration dependent |
| Brake | 24 V DC | 24 V DC configuration |
| Main Strength | Torque and dynamic balance | Higher rotational speed |
| Typical Application | General high-performance servo axis | High-speed motion axis |
The MPL-B430P is a better candidate when high rotational speed is a major requirement.
The MPL-B4530F-MJ74AA is more attractive when the machine needs a combination of useful torque, 3000 rpm operation, absolute feedback, and integrated brake functionality.
20. Comparison: MPL-B4530F-MJ74AA vs. MPL-B4540F-MJ74AA
| Parameter | MPL-B4530F-MJ74AA | MPL-B4540F-MJ74AA |
|---|---|---|
| Rated Speed | 3000 rpm | 3000 rpm |
| Continuous Torque | 8.25 N·m | 10.2 N·m |
| Peak Torque | 20.3 N·m | 27.1 N·m |
| Rated Power | 2.1 kW | 2.6 kW |
| Frame Class | 130 mm | 130 mm class |
| Stack Length | 76.2 mm | Longer stack |
| Weight | Approx. 3.08 kg | Approx. 8.6 kg |
| Main Advantage | Compact dynamic servo package | Higher torque capacity |
| Typical Use | Medium-duty precision motion | Higher-load servo axis |
If the existing machine can accept the additional motor size and weight, the MPL-B4540F can provide considerably more torque.
However, for applications where the existing mechanical envelope is already optimized around the MPL-B4530F, the 4530F remains an attractive choice.
21. Why the MPL-B4530F-MJ74AA Is Attractive for Automation
The biggest advantage of this motor is not a single specification.
Its value comes from the combination of:
- Low rotor inertia
- 3000 rpm rated speed
- 8.25 N·m continuous torque
- Approximately 20.3 N·m peak torque
- Multi-turn absolute feedback
- 24 V DC holding brake
- Keyed shaft
- 130 mm frame class
- 76.2 mm magnet stack
- Flexible right-angle connector
- Industrial servo construction
This combination makes the motor suitable for many applications where a machine requires controlled movement rather than simple continuous rotation.
22. Applications Where the Absolute Encoder Is Particularly Useful
The multi-turn absolute encoder is especially beneficial for applications where the machine position is important after power interruption.
Typical examples include:
Vertical Positioning
A vertical axis may need to know its exact position before normal production resumes.
Rotary Indexing
Indexing tables often need repeatable angular positioning.
Material Handling
Automated material-handling equipment can benefit from accurate position tracking.
Packaging
Packaging machines frequently require precise synchronization between multiple axes.
Assembly
Automated assembly machines require repeatable positioning for every production cycle.
Machine Tools
Servo positioning axes benefit from continuous feedback between the motor and drive.
23. Advantages of the 24 V DC Holding Brake
The integrated brake adds practical value in applications where the load must remain stationary when the motor is not energized.
Typical examples include:
- Vertical slides
- Lifting mechanisms
- Z-axis assemblies
- Elevators within automated equipment
- Gravity-loaded machine axes
- Positioning mechanisms
The brake can help prevent the axis from moving under gravity when servo torque is removed.
For machine safety applications, however, the brake should be integrated into the complete safety and stopping concept rather than being treated as the only protective measure.
24. Mechanical Advantages
The motor’s mechanical design offers several practical benefits.
The 130 mm frame provides a relatively compact mounting arrangement.
The keyed shaft provides a conventional mechanical interface.
The IEC metric flange supports common industrial machine construction methods.
The right-angle DIN connector helps reduce installation space around the motor.
The 180° connector rotation provides additional flexibility for cable routing.
Together, these features make the motor easier to integrate into many industrial machine designs.
25. Control-System Advantages
A servo motor is only one part of a complete motion system.
The MPL-B4530F-MJ74AA is intended to operate with a compatible servo drive and motion controller.
The motor feedback allows the drive to monitor actual motor behavior and continuously adjust the electrical output.
This closed-loop arrangement can provide:
- Accurate speed regulation
- Precise positioning
- Controlled acceleration
- Controlled deceleration
- Torque regulation
- Improved disturbance rejection
- Repeatable machine motion
- Better synchronization between multiple axes
26. Product Advantages at a Glance
| Advantage | Description |
|---|---|
| Low inertia | Fast response to acceleration and deceleration commands |
| High continuous torque | 8.25 N·m continuous stall torque |
| Strong peak torque | Approximately 20.3 N·m peak capability |
| 3000 rpm | Good balance between speed and torque |
| Absolute feedback | Accurate multi-turn position information |
| High-resolution encoder | 1024 Sin/Cos feedback |
| Hiperface feedback | Designed for closed-loop servo control |
| Integrated brake | 24 V DC holding brake |
| Keyed shaft | Convenient mechanical connection |
| 130 mm frame | Compact industrial servo package |
| 76.2 mm stack | Balanced torque-producing geometry |
| Rotatable connector | Easier machine wiring |
| Low-inertia design | Suitable for high-cycle machinery |
| Industrial construction | Designed for demanding automation environments |
27. Typical Machine Categories
The MPL-B4530F-MJ74AA can be considered for the following machine categories:
- Packaging equipment
- Filling machinery
- Labeling machinery
- Cartoning equipment
- Automated assembly systems
- Material-handling equipment
- Conveyor positioning systems
- Rotary indexing machines
- CNC auxiliary axes
- Precision positioning systems
- Automated inspection equipment
- Pick-and-place mechanisms
- Feeding systems
- Production-line automation
- Vertical lifting mechanisms
- Automated transfer equipment
- Industrial motion platforms
- Servo-controlled machine axes
28. Recommended Application Matching
| Application Requirement | Suitability |
|---|---|
| High-speed indexing | Very suitable |
| Repeated acceleration/deceleration | Very suitable |
| Precision positioning | Very suitable |
| Absolute position feedback | Very suitable |
| Vertical axis | Suitable |
| High continuous torque | Suitable |
| High peak acceleration torque | Suitable |
| Compact servo installation | Suitable |
| High-speed 5000 rpm applications | Not the primary choice |
| Very high torque applications | Consider larger MPL models |
| Simple constant-speed operation | Servo motor may be more than necessary |
| Heavy washdown environment | Requires careful sealing/environmental selection |
29. Replacement and Selection Checklist
When replacing another servo motor with the MPL-B4530F-MJ74AA, the following points should be checked before installation.
Electrical
- Confirm the drive voltage class.
- Confirm motor current requirements.
- Confirm the required power rating.
- Confirm the servo drive supports the motor feedback configuration.
Mechanical
- Confirm the 130 mm frame size.
- Confirm the 76.2 mm stack length.
- Confirm flange dimensions.
- Confirm shaft dimensions.
- Confirm key dimensions.
- Confirm shaft loading.
Feedback
- Confirm absolute multi-turn encoder compatibility.
- Confirm feedback connector configuration.
- Confirm feedback cable requirements.
Brake
- Confirm the servo drive or control system supports the 24 V DC holding brake.
- Confirm brake timing.
- Confirm the mechanical load can be safely held.
Environment
- Confirm operating temperature.
- Confirm dust and moisture conditions.
- Confirm coolant or washdown exposure.
- Confirm whether a shaft seal is required.
Motion
- Confirm continuous torque.
- Confirm peak torque.
- Confirm acceleration requirements.
- Confirm deceleration requirements.
- Confirm cycle time.
- Confirm maximum operating speed.
30. Technical Summary
| Category | Specification |
|---|---|
| Model | MPL-B4530F-MJ74AA |
| Brand | Allen-Bradley |
| Series | MP-Series MPL |
| Series Type | Low-Inertia Brushless Servo Motor |
| Voltage Class | 400/480 V AC class |
| Nominal Voltage | 460 V AC |
| Rated Speed | 3000 rpm |
| Continuous Stall Torque | 8.25 N·m |
| Peak Torque | 20.3 N·m |
| Rated Power | Approx. 2.1 kW |
| Frame Size | 45 |
| Frame Dimension | 130 mm |
| Magnet Stack | 76.2 mm |
| Feedback | Absolute multi-turn |
| Encoder | High-resolution Sin/Cos |
| Encoder Resolution | 1024 cycles/revolution |
| Protocol | Hiperface |
| Brake | 24 V DC holding brake |
| Shaft | Keyed |
| Shaft Seal | No shaft seal |
| Connector | Circular SpeedTEC DIN |
| Connector Style | Right-angle |
| Connector Rotation | 180° |
| Mounting | IEC metric |
| Flange | Free mounting holes |
| Rotor | Low inertia |
| Rotor Inertia | Approx. 0.00040 kg·m² |
| Approx. Weight | 3.08 kg |
| Typical Operating Temperature | 0 to 40 °C |
| Typical Application | Industrial servo motion control |
31. Final Product Description
The Allen-Bradley MPL-B4530F-MJ74AA is a compact, low-inertia industrial AC servo motor designed for demanding motion-control applications.
Its 130 mm frame, 76.2 mm magnet stack, 3000 rpm rated speed, 8.25 N·m continuous stall torque, and approximately 20.3 N·m peak torque provide a practical combination of speed, torque, and dynamic response.
The multi-turn high-resolution absolute encoder is a major advantage for precision positioning systems. It provides the feedback needed for accurate closed-loop motion control and can simplify machine recovery after power interruptions.
The integrated 24 V DC holding brake makes the motor particularly useful for vertical axes and other applications where the load needs to remain mechanically held when motor torque is removed.
The keyed shaft, IEC metric mounting arrangement, and rotatable right-angle DIN connector make the motor straightforward to integrate into many industrial machine designs.
For machines that require fast acceleration, repeatable positioning, reliable feedback, and controlled motion, the MPL-B4530F-MJ74AA is a strong choice within the MPL low-inertia servo motor family.
It is especially well matched to packaging machines, assembly equipment, indexing systems, material-handling equipment, automated production lines, precision positioning systems, and other industrial automation equipment where dynamic servo performance is important.
In short, the MPL-B4530F-MJ74AA combines low inertia, useful torque density, 3000 rpm operation, absolute multi-turn feedback, integrated holding brake functionality, and a compact industrial mechanical design into a servo motor intended for precise and repeatable machine motion.
