Product Overview

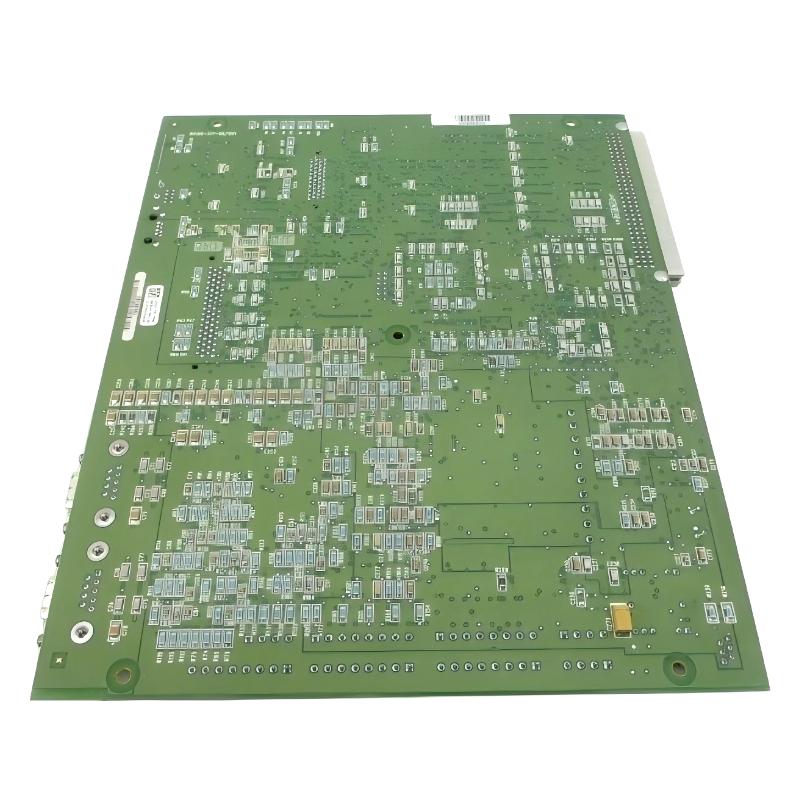

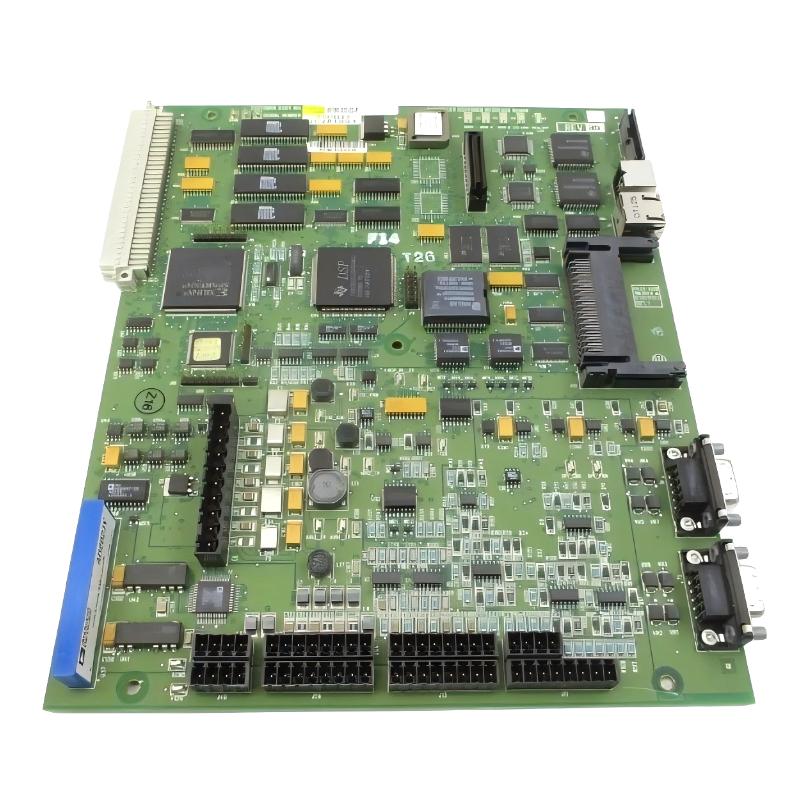

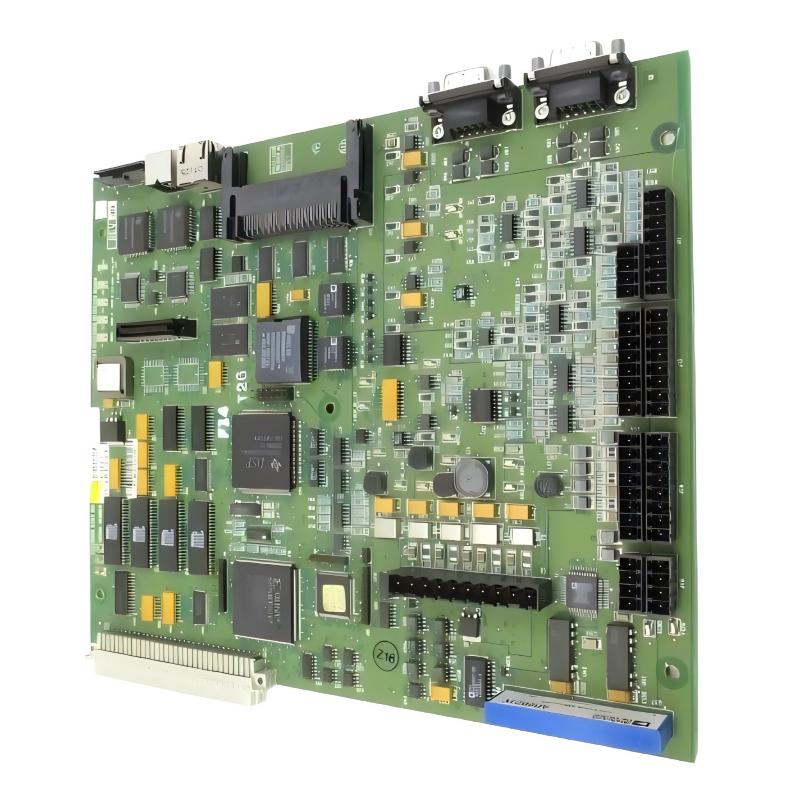

The Allen-Bradley 80190-320-03-R Customer Interface Board is a drive interface and user communication module commonly used in Rockwell Automation medium-voltage drive systems (notably PowerFlex 7000 platforms).
It functions as the main bridge between the drive’s internal control electronics and the external user/control environment, enabling configuration, monitoring, diagnostics, and command handling.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Model | 80190-320-03-R |
| Product Type | Customer Interface Board (CIB) |
| System Compatibility | PowerFlex 7000 / MV drive control systems |
| Function | User interface + drive communication interface |
| Signal Types | Digital I/O, analog signals, communication signals |
| Interface Role | Drive-to-user / drive-to-automation bridge |
| Installation Type | Plug-in PCB / drive cabinet module |
| Application | Drive monitoring, control, configuration |
| Dimensions | 180 × 25 × 150 mm |
| Weight | 0.36 kg |
Function and Working Principle
The 80190-320-03-R operates as a central interface layer inside industrial drive systems:
- Receives commands from external control systems (PLC / HMI / DCS)
- Sends operational data (speed, torque, alarms, status) back to operators
- Manages internal drive communication between control boards
- Provides a structured interface for configuration and diagnostics
- Supports real-time monitoring of drive performance
- Enables parameter adjustment and fault analysis
Essentially, it acts as the communication and control gateway for the drive system.
Role in Industrial Control Systems
Within PowerFlex-type architectures, this board plays a key role in:
- Coordinating communication between drive control layers
- Translating external control commands into internal drive logic
- Providing diagnostic feedback for maintenance and troubleshooting
- Supporting safe start/stop and operational control sequences
- Enabling integration with higher-level automation systems
Industrial Applications
The Allen-Bradley 80190-320-03-R is used in:
- Medium-voltage industrial drive systems
- Large motor control applications
- Oil and gas processing facilities
- Power generation plants
- Mining and heavy industry equipment
- Water pumping and treatment systems
- Industrial automation and process control environments
Installation and System Integration
For correct operation:
- Install inside compatible drive cabinet system
- Connect to drive backplane and control electronics
- Ensure secure seating of interface board connectors
- Verify communication with PLC/HMI systems during commissioning
- Perform system diagnostics after installation
- Maintain proper grounding and environmental protection
Compatible System Components
The 80190-320-03-R typically works with:
- PowerFlex 7000 drive systems
- Drive control CPU modules
- Operator interface panels (HMI systems)
- PLC systems (ControlLogix / CompactLogix)
- Communication modules (EtherNet/IP, Modbus gateways depending on setup)
- Internal drive power and control boards
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| 80190-320-03-R | Customer Interface Board | Drive interface and control gateway | PowerFlex 7000 systems |
| 80190-100-01-R | Fiber Optic Board | High-speed optical communication | Drive communication |
| PowerFlex HMI modules | Operator interface systems | User control and monitoring | Industrial drives |
| ControlLogix communication modules | PLC communication interface | System-level integration | Automation networks |
Key Advantages
- Centralized interface for drive control and monitoring
- Enables real-time diagnostics and status feedback
- Supports integration with external automation systems
- Improves maintainability and troubleshooting efficiency
- Robust design for industrial environments
- Enhances operational safety and control precision
- Supports complex medium-voltage drive applications
- Reliable long-term industrial performance
Technical FAQs
What is the main function of the 80190-320-03-R?
It acts as the customer interface between a drive system and external control/monitoring systems.
Is it a PLC module?
No. It is a drive interface board used inside medium-voltage drive systems.
Does it perform control logic?
It supports communication and interface functions; the main control logic is handled by dedicated drive controllers.
Where is it used?
Primarily in PowerFlex 7000 and similar industrial drive systems.
Conclusion
The Allen-Bradley 80190-320-03-R Customer Interface Board is a critical component in medium-voltage drive architectures, enabling seamless communication between drive systems and external automation equipment. It ensures reliable control, monitoring, and diagnostics in demanding industrial environments.
