Product Overview

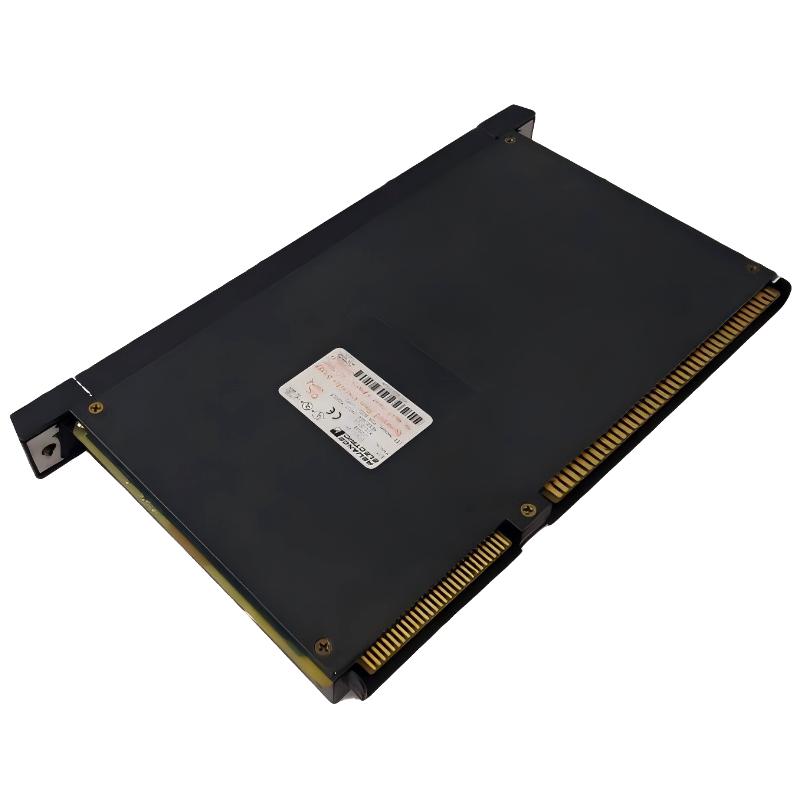

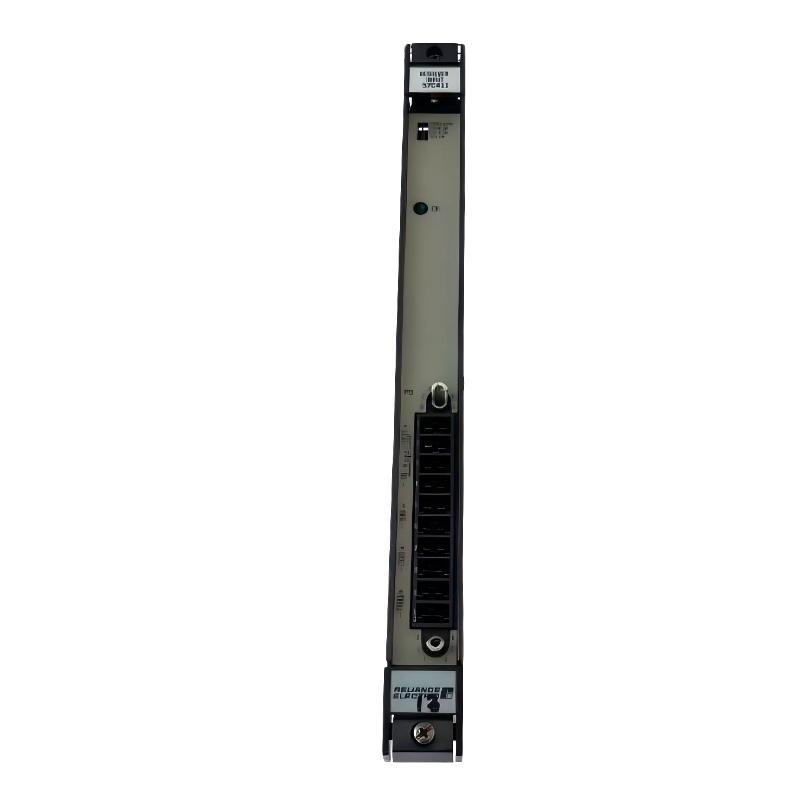

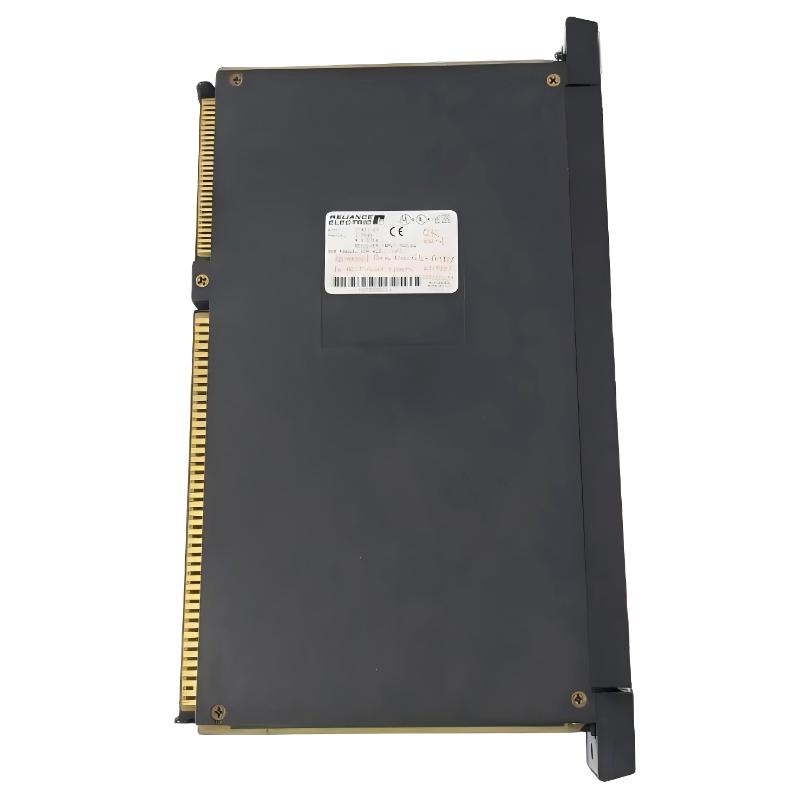

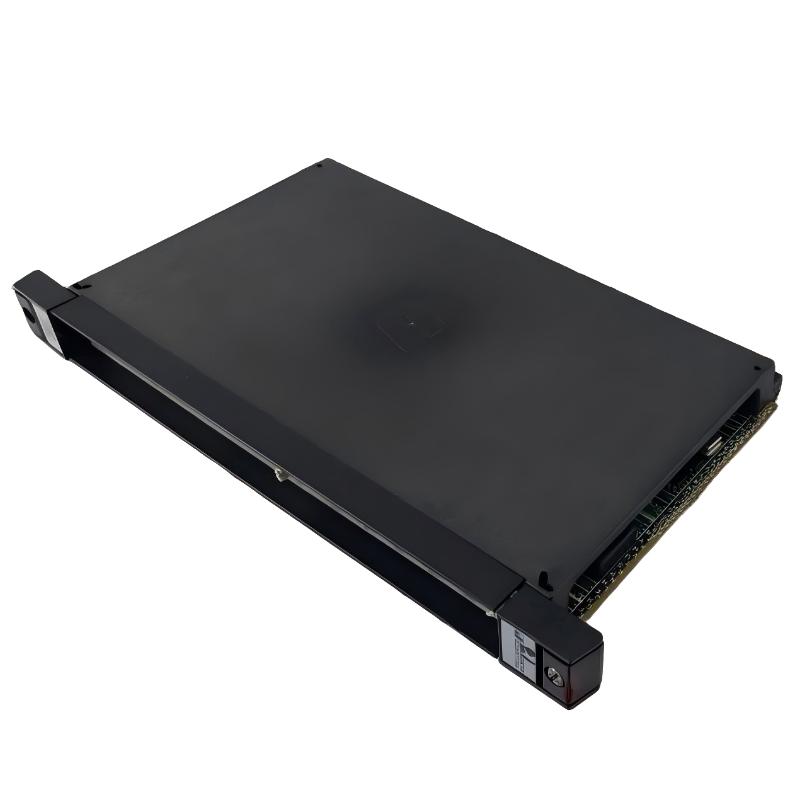

The Allen-Bradley 57C411 Rotary Transformer Input Module (also known as a resolver input module) is a motion feedback interface used in Reliance Electric AutoMax / DCS 5000 systems. It is designed to process signals from a rotary transformer (resolver) and convert them into digital position and velocity data for use in industrial control and motion systems.
This module is commonly applied in high-precision motor control and position feedback applications, where accurate shaft angle measurement is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley / Reliance Electric (AutoMax platform) |
| Model | 57C411 |
| Product Type | Rotary Transformer / Resolver Input Module |
| System Compatibility | AutoMax PLC / DCS 5000 |
| Function | Converts resolver signals into digital position data |
| Input Type | Resolver (sin/cos analog signals) |
| Output Data | Shaft position + rotational velocity |
| Signal Processing | Resolver-to-digital conversion |
| Installation Type | Rack-mounted module (backplane system) |
| Application | Motion control, feedback systems |
| Dimensions | 266 × 35 × 170 mm |
| Weight | 0.91 kg |
Function and Working Principle
The 57C411 module operates by interfacing with a rotary transformer (resolver) mounted on a motor or shaft.
Core working steps:
- Receives sin/cos analog signals from the resolver
- Excites the resolver reference winding
- Measures returned signals proportional to rotor position
- Converts analog resolver signals into digital angular position data
- Calculates rotational direction and speed (velocity)
- Sends processed data to PLC/DCS control system
This allows the control system to perform precise closed-loop motion control without relying on external encoders.
Role in Industrial Control Systems
Within the AutoMax / DCS 5000 architecture, the 57C411 functions as a high-speed feedback acquisition module:
- Provides real-time shaft position feedback
- Enables servo and motor control loops
- Supports synchronization of multi-axis systems
- Improves accuracy in high-speed rotating equipment
- Offloads resolver decoding from the main CPU
Industrial Applications
The 57C411 module is commonly used in:
- Industrial motor control systems
- CNC and motion control machinery
- Steel and metal processing lines
- Robotics and automation systems
- Conveyor and positioning systems
- Heavy industrial drive systems
- Process equipment requiring angular feedback
Installation and System Integration
For correct operation:
- Install in compatible AutoMax PLC rack system
- Connect resolver wiring: sin, cos, reference, excitation lines
- Ensure correct shielding for analog signal integrity
- Configure resolver scaling and direction settings
- Verify feedback alignment during commissioning
- Perform periodic calibration and diagnostics checks
Compatible System Components
The 57C411 typically works with:
- AutoMax PLC CPU modules
- Motion control drive systems
- Resolver sensors (rotary transformers)
- Backplane rack communication system
- I/O and feedback processing modules
- Industrial servo drive units
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| 57C411 | Resolver Input Module | High-resolution rotary feedback | Motion control systems |
| 57C410 | Resolver Interface Module | Similar feedback processing | AutoMax systems |
| 1756-HSC | High-speed counter module | Encoder-based position input | ControlLogix systems |
| 1788-RPA | Resolver feedback module | Modern resolver interface | Rockwell automation platforms |
Key Advantages
- High-precision rotary position measurement
- Reliable resolver-to-digital conversion
- Excellent noise immunity in industrial environments
- Supports high-speed motion control applications
- Reduces CPU processing load
- Robust design for harsh industrial conditions
- Stable long-term performance in continuous operation
Technical FAQs
What is the main function of the 57C411?
It converts resolver (rotary transformer) signals into digital position and velocity data.
What type of sensor does it use?
It uses a resolver (rotary transformer), not an optical encoder.
Is it a controller module?
No, it is a feedback input module used for motion sensing.
Where is it used?
In AutoMax PLC and DCS 5000 systems for industrial motion control.
Conclusion
The Allen-Bradley 57C411 Rotary Transformer Input Module is a specialized motion feedback interface designed for high-precision industrial control systems. By converting resolver signals into accurate digital position and velocity data, it enables stable and reliable closed-loop motion control in demanding industrial environments.
