- Allen Bradley
- 2711P-T6C20A

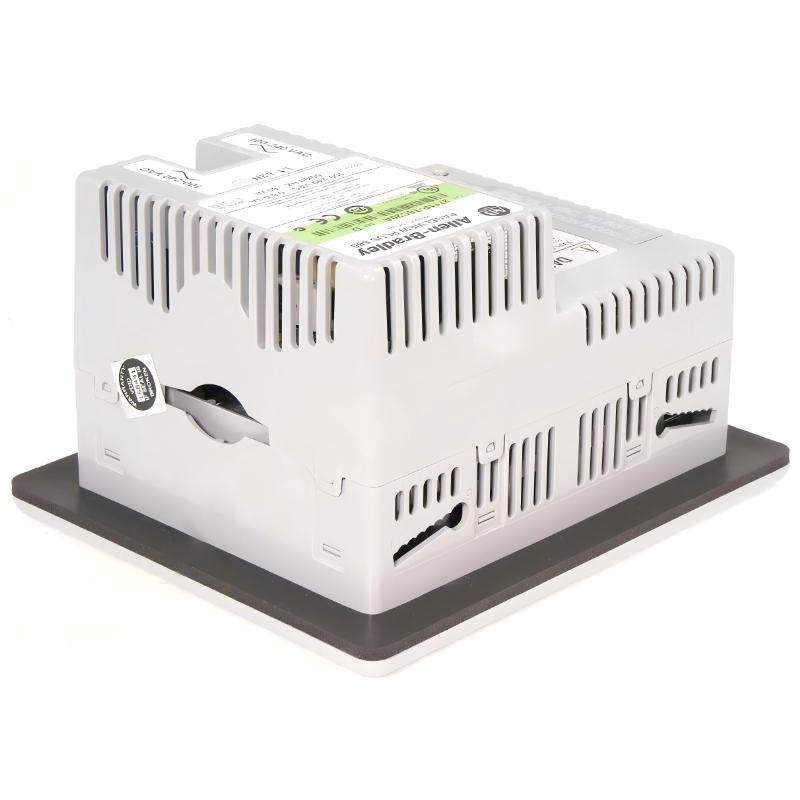

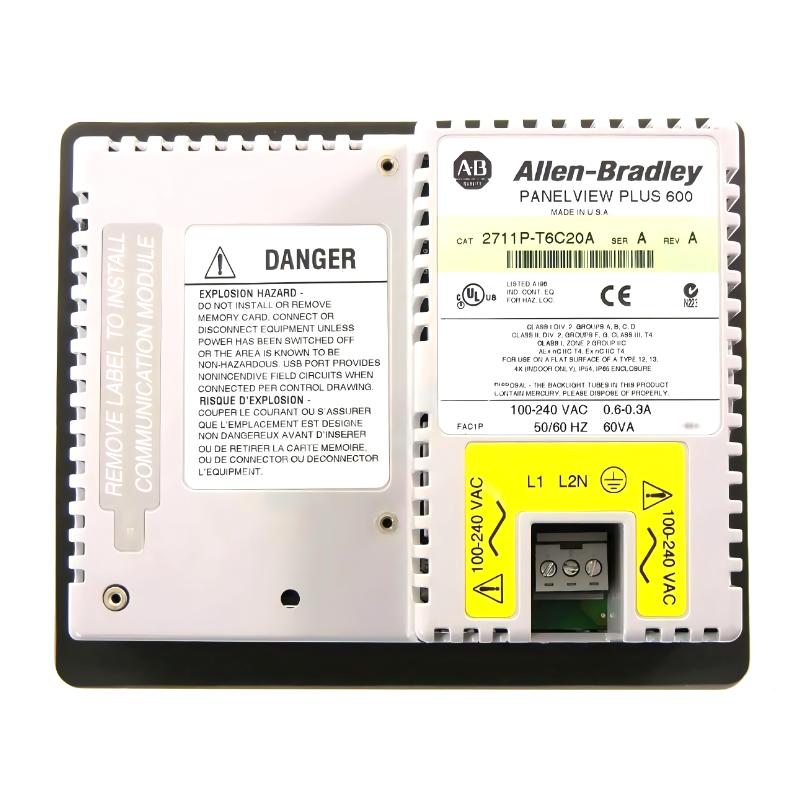

- PanelView Plus 600 Operator Interface
- USA
- 185 x 98 x 152 mm
- 0.789 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 12
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

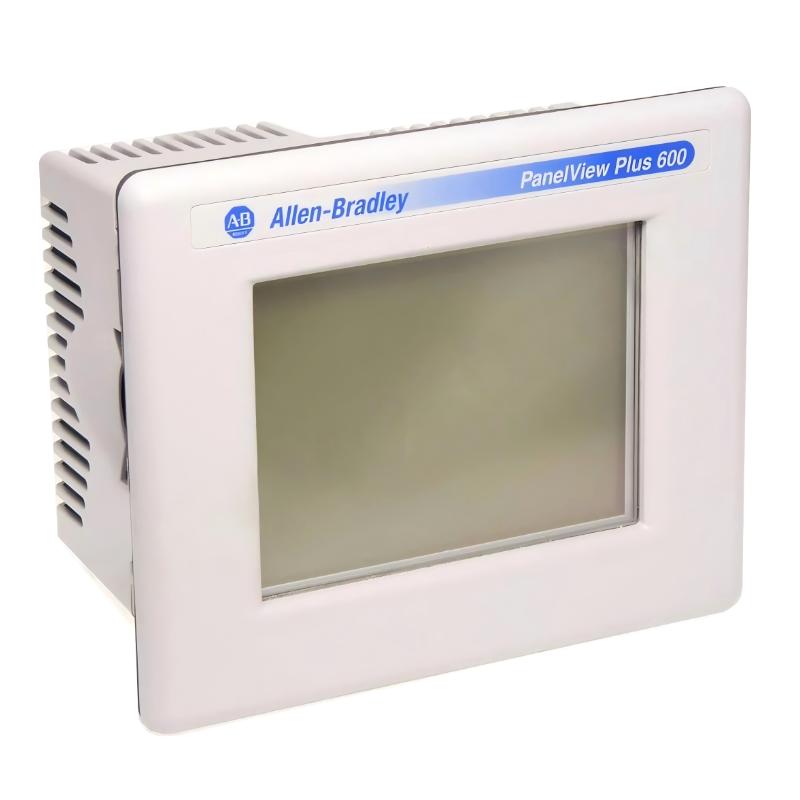

The Allen Bradley 2711P-T6C20A is a PanelView Plus 600 HMI (Human–Machine Interface) designed for industrial automation and machine-level operator control.
This compact terminal provides a 6.5-inch color touchscreen display, suitable for small to medium-sized control panels, offering visualization, monitoring, and basic control functionality.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Rockwell Automation (Allen Bradley) |
| Model | 2711P-T6C20A |
| Product Type | PanelView Plus 600 HMI |
| Display Size | 6.5-inch color TFT |
| Resolution | 640 × 480 (VGA) |
| Dimensions | 185 × 98 × 152 mm |
| Weight | 0.789 kg |
| Touch Type | Analog resistive touchscreen |

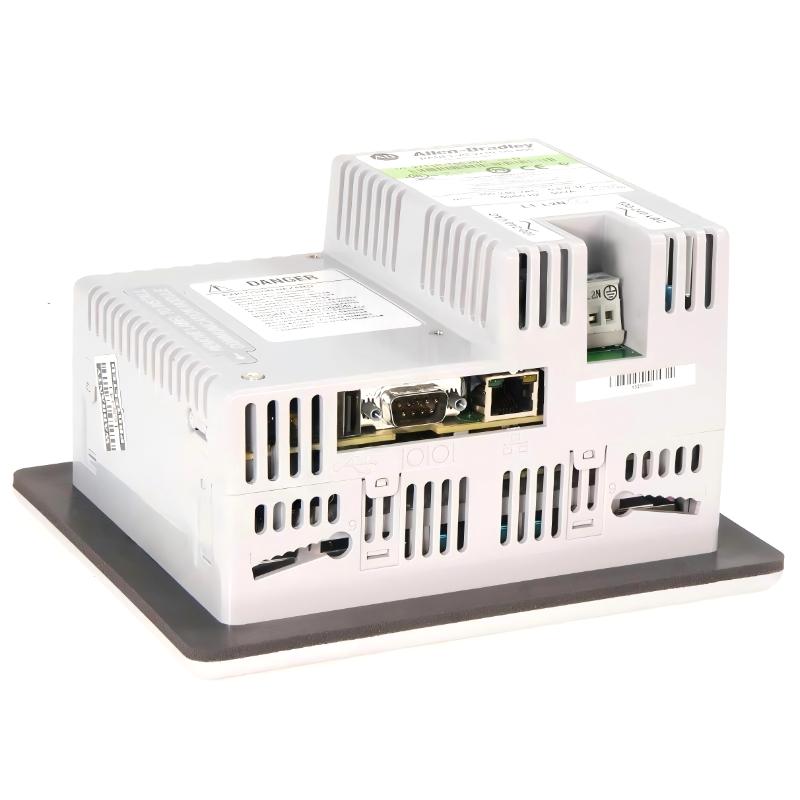

| Communication Ports | Ethernet, RS-232, USB |
| Power Supply | 24V DC |
| Operating System | Windows CE embedded |
| Enclosure Rating | Industrial NEMA/IP-rated front panel |
Function and Working Principle
The 2711P-T6C20A operates as a graphical interface between operators and PLCs:
- Connects to CompactLogix or ControlLogix PLCs via Ethernet or serial ports.
- Displays real-time machine/process data, alarms, and status screens.
- Allows operators to input commands, adjust setpoints, and interact with machine processes.
- Applications are developed using FactoryTalk View Machine Edition (ME) software.
It serves as a visualization and control interface; the PLC executes the actual control logic.
Key Features
- 6.5-inch compact touchscreen for small panels
- Rugged industrial design
- Ethernet and serial communication for PLC integration
- USB port for program transfer and maintenance
- Windows CE embedded system for reliable operation
- Suitable for continuous industrial use
- Compatible with Rockwell Automation HMI ecosystem
Industrial Applications
- Small to medium machinery
- Packaging and labeling equipment
- Pump and compressor monitoring
- Conveyor systems
- OEM industrial machines
- Auxiliary plant equipment visualization
Installation Overview
- Panel-mounted in small control enclosures
- Powered by 24V DC industrial supply
- Connects to PLC network via EtherNet/IP or RS-232
- Runs FactoryTalk View ME applications for operator interaction
- Compact design allows installation in tight spaces
Compatible Systems
- Allen Bradley CompactLogix PLCs
- Allen Bradley ControlLogix PLCs
- FactoryTalk View Machine Edition software
- EtherNet/IP networks
- USB/serial peripherals for program management
Alternative Models
| Model | Description |
|---|---|
| 2711P-T6C20D | Variant with different communication options |
| 2711P-T4W21D8S | Smaller PanelView Plus 7 4.3-inch terminal |
| 2711P-T10C22D9P | 10-inch PanelView Plus 7 HMI |
| 2711P-T12C22D9P | 12-inch PanelView Plus 7 HMI |
| 2711P-T15C22D9P | 15-inch PanelView Plus 7 Performance HMI |
Key Advantages
- Compact size fits tight panels
- Robust and industrial-grade construction
- Reliable Windows CE-based operation
- Multiple communication options for PLC integration
- Low maintenance, high durability
- Suitable for long-term industrial deployment
Conclusion
The Allen Bradley 2711P-T6C20A PanelView Plus 600 is a compact, reliable HMI terminal ideal for small to medium industrial machines.
It delivers intuitive operator visualization, monitoring, and basic control, making it a solid choice for space-constrained industrial automation applications.
