Product Overview

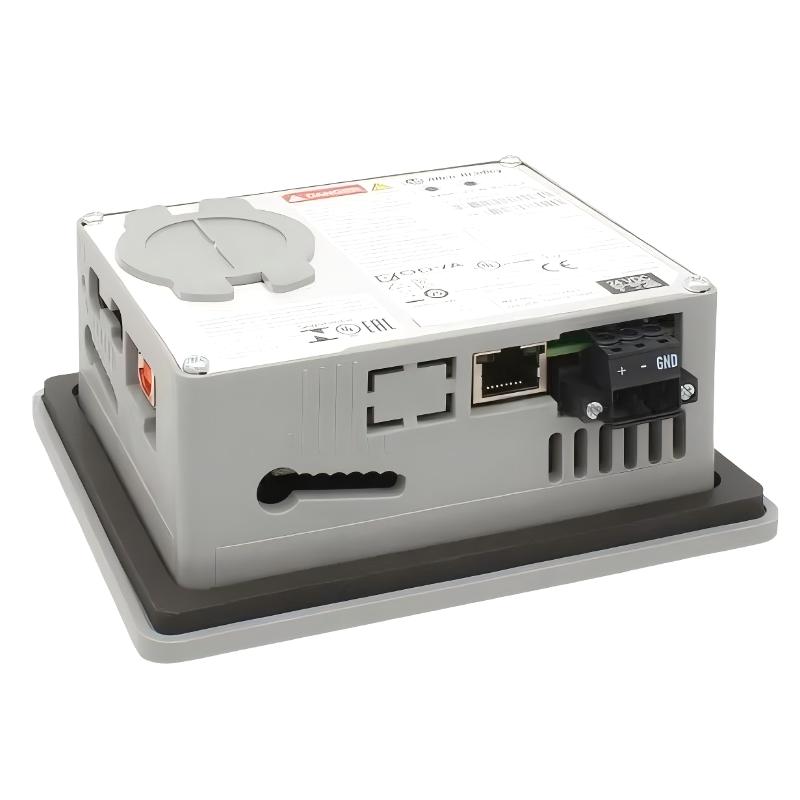

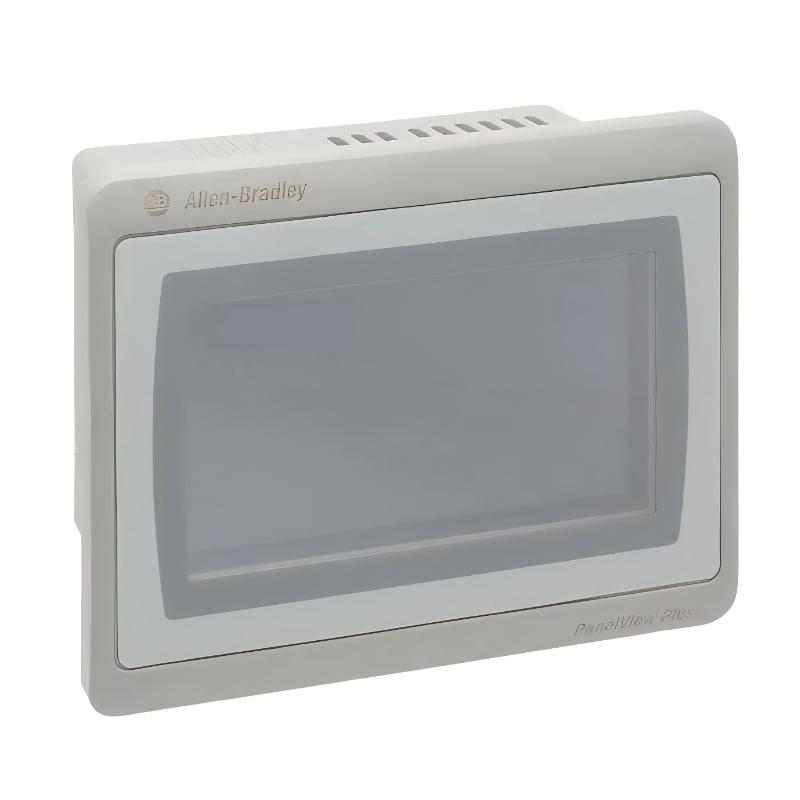

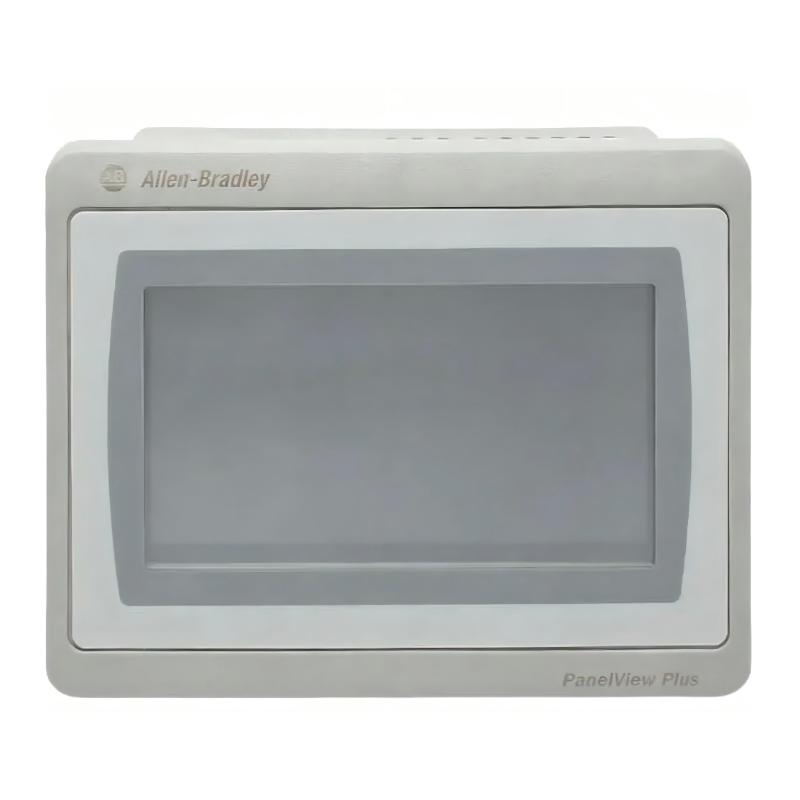

The Allen Bradley 2711P-T4W21D8S is a PanelView Plus 7 Standard compact HMI (Human–Machine Interface) designed for industrial machine control and visualization.
It is one of the smallest PanelView Plus 7 terminals, featuring a 4.3-inch widescreen touchscreen, making it suitable for tight panel spaces and simple machine interfaces.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Rockwell Automation (Allen Bradley) |
| Model | 2711P-T4W21D8S |
| Product Type | PanelView Plus 7 Standard HMI |
| Display Size | 4.3-inch widescreen TFT |
| Resolution | 480 × 272 (WQVGA) |
| Dimensions | 135 × 56.5 × 110 mm |
| Weight | 0.44 kg |
| Operating System | Windows CE embedded |
| Communication | EtherNet/IP (1 × Ethernet port) |
| Power Supply | 24V DC |
| Front Protection | IP66-rated (front panel) |
| Touch Type | Analog resistive touchscreen |
| USB Ports | 2 × USB host |
| Operating Temperature | 0 to 55 °C |
Function and Working Principle
The 2711P-T4W21D8S operates as a visual interface between operators and PLC systems:
- Connects to ControlLogix / CompactLogix PLCs via EtherNet/IP.
- Displays real-time machine data, alarms, and status screens.
- Allows operators to send basic control commands (start/stop, setpoints).
- Runs applications created in FactoryTalk View Machine Edition (ME).
It does not directly control equipment, but acts as a communication and visualization layer between operator and PLC.
Key Features
- Compact 4.3-inch widescreen display
- Rugged industrial IP66-rated front
- Single Ethernet port with EtherNet/IP support
- Dual USB ports for maintenance and file transfer
- Embedded Windows CE operating system
- Designed for small machine interfaces and tight panels
- High reliability for continuous industrial operation
Industrial Applications
- Small packaging machines
- Conveyor control panels
- Pump and compressor local interfaces
- OEM machine control systems
- Light industrial automation
- Utility and auxiliary equipment monitoring
Installation Overview
- Panel-mounted installation in compact control enclosures
- Powered by 24V DC industrial supply
- Ethernet connection to PLC network (EtherNet/IP)
- Application loaded via FactoryTalk View ME runtime
- Typically used in small machine-level automation systems
Compatible Systems
- Allen Bradley ControlLogix PLCs
- Allen Bradley CompactLogix PLCs
- FactoryTalk View Machine Edition software
- EtherNet/IP industrial networks
- Rockwell Automation Stratix switches
Alternative Models
| Model | Description |
|---|---|
| 2711P-T10C22D9P | 10-inch PanelView Plus 7 Performance |
| 2711P-T12W22D8S | 12.1-inch widescreen PanelView Plus 7 |
| 2711P-T12W22D9P | 12.1-inch widescreen, deeper enclosure variant |
| 2711P-T15C22D9P | 15-inch PanelView Plus 7 Performance |
| 2711P-T4W21D8S-B | Variant/revision of same 4.3-inch model |
Key Advantages
- Very compact footprint for tight installations
- Reliable EtherNet/IP communication with PLCs
- Simple and intuitive operator interface
- Rugged IP66 front for industrial environments
- Low power consumption and stable operation
- Ideal for OEM machines and small systems
Conclusion
The Allen Bradley 2711P-T4W21D8S PanelView Plus 7 is a compact industrial HMI terminal designed for small-scale machine control and operator interaction.
Its small size, industrial durability, and Rockwell PLC compatibility make it ideal for space-constrained automation applications requiring reliable visualization and control.
