Product Overview

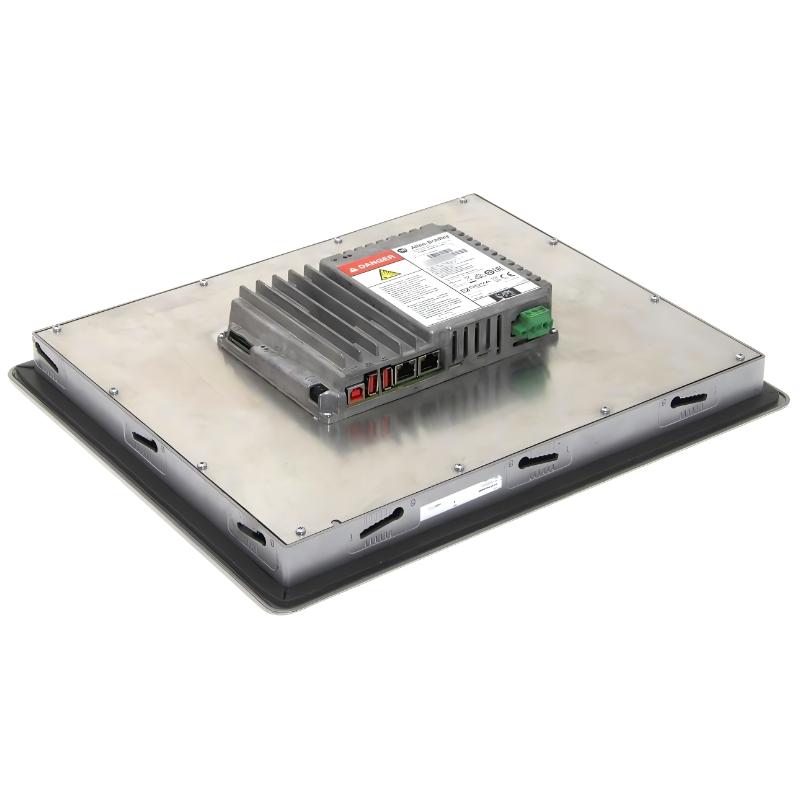

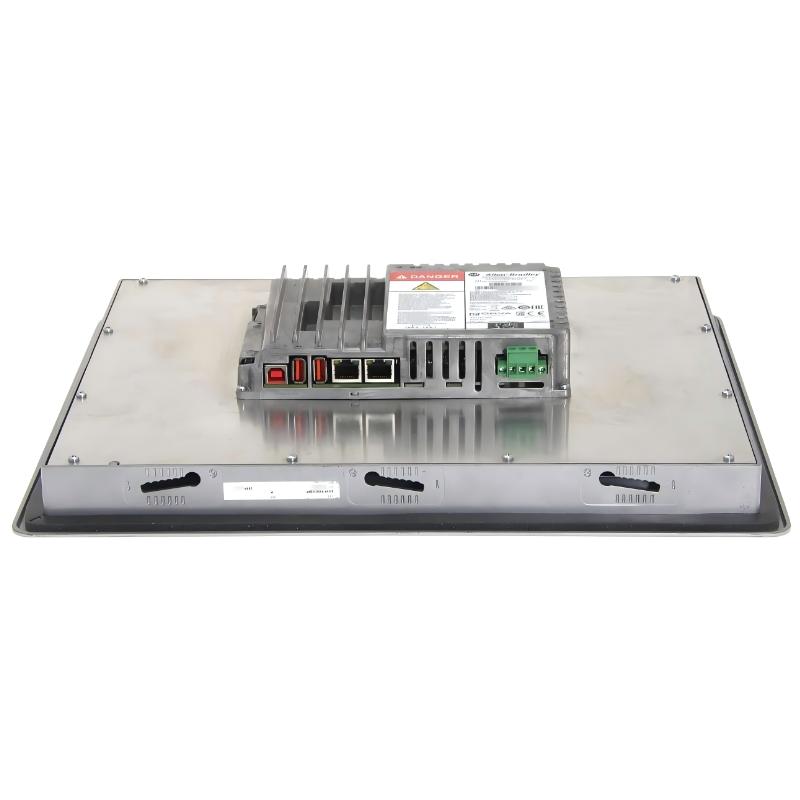

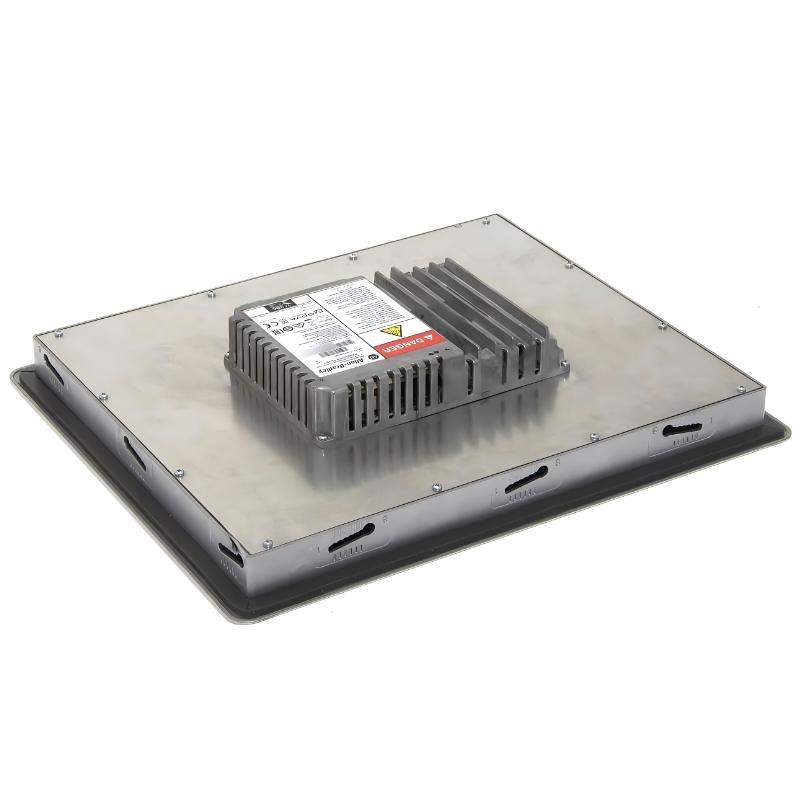

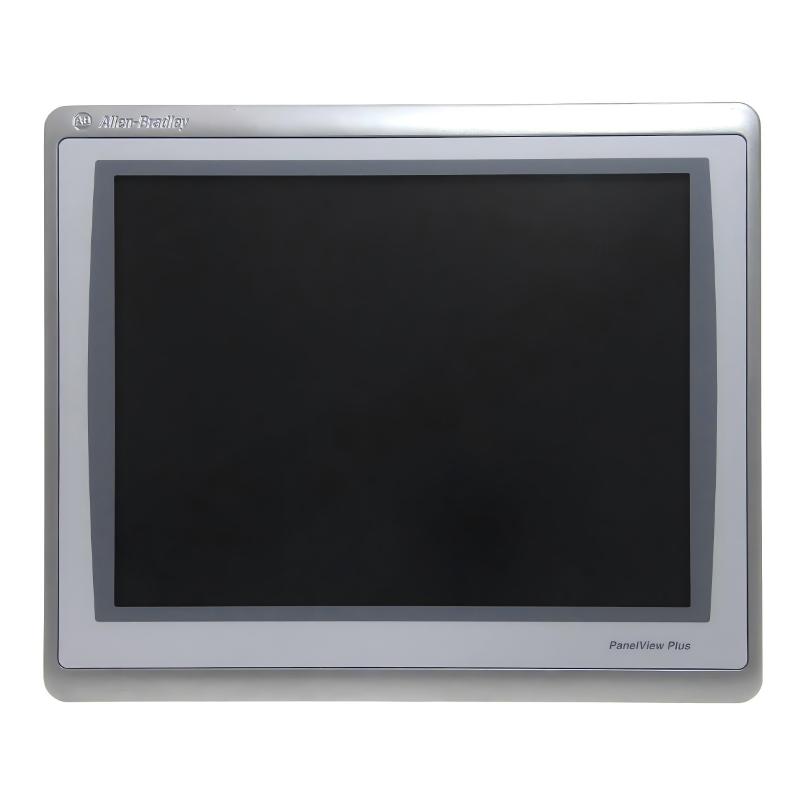

The Allen Bradley 2711P-T15C22D9P is a PanelView Plus 7 Performance operator interface terminal designed for industrial Human–Machine Interface (HMI) applications. It provides operators with a large 15-inch widescreen display for real-time monitoring, control, and visualization of industrial processes.
This model is widely used in factory automation, process control systems, and machine-level HMI applications, where high reliability and clear visualization are essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Rockwell Automation (Allen Bradley) |
| Model | 2711P-T15C22D9P |
| Product Type | PanelView Plus 7 Performance HMI |
| Display Size | 15-inch widescreen TFT |
| Resolution | 1024 × 768 XGA |
| Dimensions | 381 × 69.6 × 318 mm |
| Weight | 3.69 kg |
| Operating System | Windows CE / embedded industrial OS |
| Communication | EtherNet/IP (dual Ethernet ports) |
| Power Supply | 24V DC |
| Front Protection | IP66-rated |
| Touch Type | Analog resistive touchscreen |
| USB Ports | 2 × USB host ports |
| Operating Temperature | 0 to 55 °C |
Function and Working Principle
The 2711P-T15C22D9P operates as a visual interface between operators and PLC-based control systems:
- Connects to controllers such as ControlLogix and CompactLogix PLCs via EtherNet/IP.
- Displays real-time process data, alarms, trends, and machine status.
- Allows operators to send control inputs such as start/stop commands and setpoints.
- Applications are developed using FactoryTalk View Machine Edition (ME) software.
The terminal does not directly control machinery—it functions as an HMI layer between the operator and the PLC.
Key Features
- Large 15-inch widescreen display for improved operator visibility
- Rugged industrial design with IP66 front protection
- Dual Ethernet ports supporting EtherNet/IP networks
- High durability touchscreen suitable for glove operation
- USB ports for data transfer and application updates
- Designed for continuous industrial operation
- Wide support within Rockwell Automation ecosystems
Industrial Applications
- Manufacturing and assembly lines
- Packaging machinery
- Oil & gas processing systems
- Power generation control panels
- Water and wastewater treatment plants
- Conveyor and material handling systems
- Industrial automation and machine control systems
Installation Overview
- Panel-mounted installation in control cabinets
- Powered by 24V DC industrial supply
- Ethernet connection to PLC networks (EtherNet/IP)
- Requires FactoryTalk View ME runtime application
- Commonly integrated with Rockwell PLC platforms and industrial switches
Compatible Systems
- Rockwell Automation ControlLogix PLCs
- CompactLogix PLC systems
- FactoryTalk View ME software
- EtherNet/IP industrial networks
- Stratix industrial Ethernet switches
Alternative Models
| Model | Description |
|---|---|
| 2711P-T15C22D8S | Similar 15-inch PanelView Plus 7 variant |
| 2711P-T12W22D9P | 12.1-inch widescreen version |
| 2711P-T12W21D8S | 12.1-inch widescreen version |
| 2711P-T10C22D9P | 10-inch PanelView Plus 7 model |
| 2711P-T15C21D8S | 15-inch PanelView Plus 7 variant (different configuration) |
Key Advantages
- Large 15-inch display improves process visibility and usability
- Rugged IP66 design suitable for harsh environments
- Reliable EtherNet/IP communication with PLC systems
- Strong integration with Rockwell Automation ecosystem
- USB support for maintenance, backups, and updates
- Designed for continuous 24/7 industrial operation
Conclusion
The Allen Bradley 2711P-T15C22D9P PanelView Plus 7 is a high-performance industrial HMI terminal offering a combination of large-screen visualization, rugged construction, and reliable Ethernet-based communication. It is widely deployed in modern automation systems for operator control, monitoring, and industrial process visualization.
