Product Overview

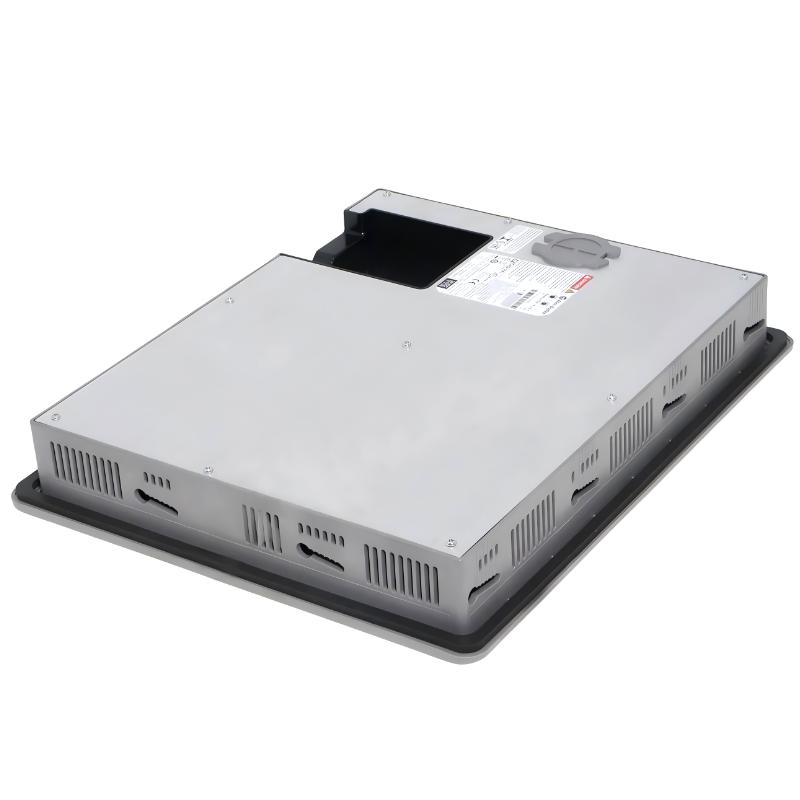

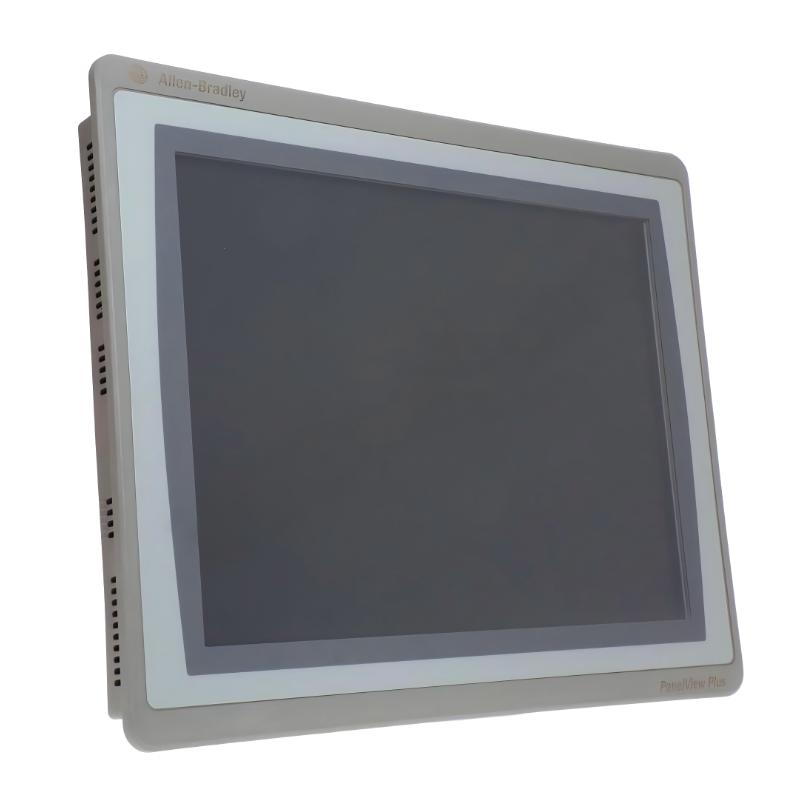

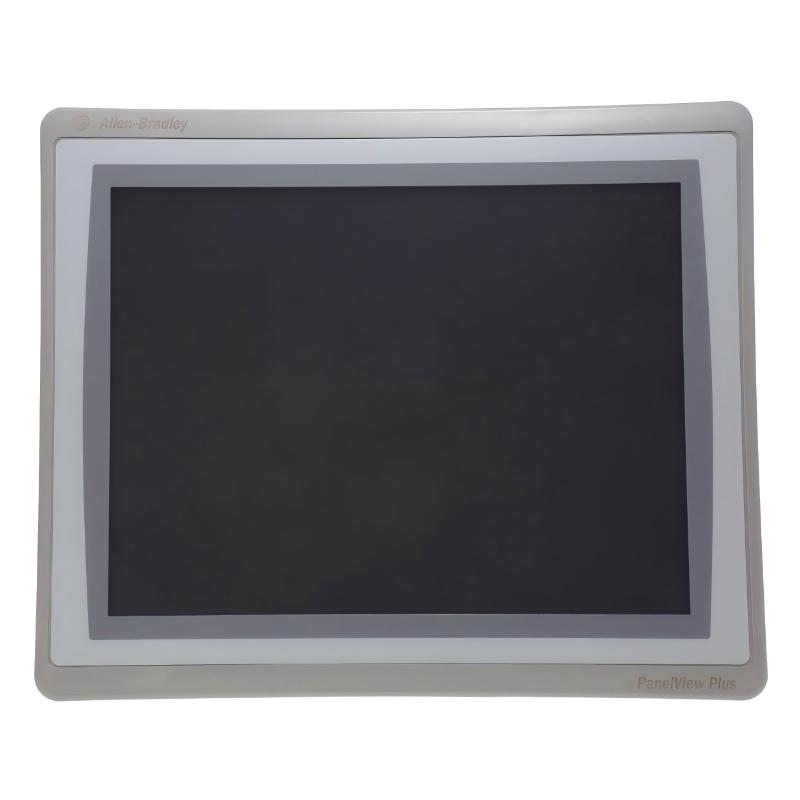

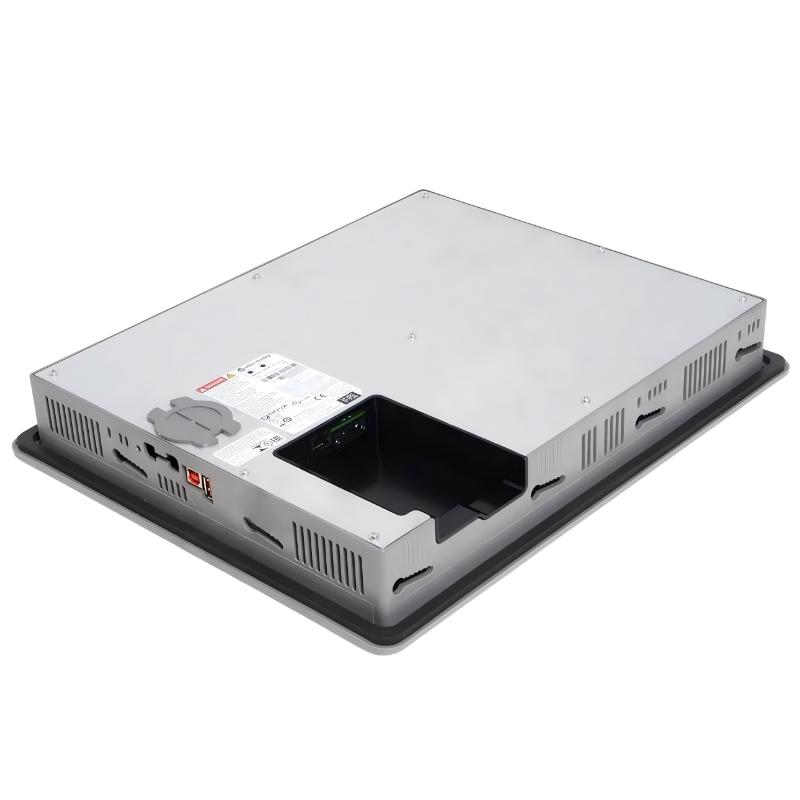

The Allen Bradley 2711P-T15C21D8S is a PanelView Plus 7 Standard operator interface terminal designed for industrial HMI (Human–Machine Interface) applications.
It features a 15-inch widescreen color display, providing operators with intuitive visualization, monitoring, and control of automated processes. This model is suitable for factory automation, process control, and machine-level monitoring, with a rugged design capable of withstanding harsh industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Rockwell Automation (Allen Bradley) |
| Model | 2711P-T15C21D8S |
| Product Type | PanelView Plus 7 Standard HMI |
| Display Size | 15-inch widescreen TFT |
| Resolution | 1024 × 768 XGA |
| Dimensions | 381 × 56.5 × 318 mm |
| Weight | 3.07 kg |
| Operating System | Windows CE embedded |
| Communication | Ethernet (EtherNet/IP supported) |
| Power Supply | 24V DC |
| Front Protection | IP66-rated (front panel) |
| Touch Type | Analog resistive touchscreen |
| USB Ports | 2 × USB ports |
| Operating Temperature | 0 to 55 °C |
Function and Working Principle
The 2711P-T15C21D8S serves as a graphical interface between operators and industrial controllers:
- Connects to ControlLogix or CompactLogix PLCs via EtherNet/IP.
- Displays real-time process data, machine status, alarms, and trends.
- Allows operators to input control commands (start/stop/setpoints) to machinery.
- Supports FactoryTalk View Machine Edition (ME) applications for customized HMI interfaces.
This device does not directly control machinery; it relies on PLCs for execution, acting as a visualization and operator input layer.
Key Features
- Large 15-inch widescreen display for enhanced usability
- Rugged design with IP66-rated front protection
- EtherNet/IP communication for real-time PLC integration
- Analog resistive touchscreen for precise input
- Embedded Windows CE operating system
- USB ports for data transfer, backups, and application updates
- Suitable for continuous industrial operation
Industrial Applications
- Manufacturing assembly lines
- Packaging machinery
- Oil & gas process monitoring
- Water and wastewater treatment systems
- Power generation panels
- Conveyor and material handling systems
- Factory automation and machine-level monitoring
Installation Overview
- Panel-mounted installation in control cabinets
- Powered by 24V DC industrial power supply
- Connects to PLCs via EtherNet/IP network
- Requires deployment of FactoryTalk View ME runtime applications
- Compatible with industrial network switches and infrastructure
Compatible Systems
- Rockwell Automation ControlLogix PLCs
- CompactLogix PLC platforms
- FactoryTalk View ME software
- EtherNet/IP industrial networks
- Stratix industrial switches
Alternative Models
| Model | Description |
|---|---|
| 2711P-T12C21D8S | PanelView Plus 7, 12-inch display, shallower enclosure |
| 2711P-T15C22D8P | PanelView Plus 7, 15-inch variant with enhanced configuration |
| 2711P-T10C22D9P | PanelView Plus 7, 10-inch display variant |
| 2711P-T12W22D8S | PanelView Plus 7, 12-inch widescreen variant |
| 2711P-T12W21D8S | PanelView Plus 7, 12-inch widescreen variant |
Key Advantages
- Large widescreen improves operator usability and process visualization
- Rugged IP66-rated construction for industrial environments
- Reliable EtherNet/IP connectivity with PLCs
- USB support for easy updates, backups, and data transfer
- Supports high-performance FactoryTalk View ME HMI applications
- Enables real-time process monitoring, control, and alarm management
Conclusion
The Allen Bradley 2711P-T15C21D8S PanelView Plus 7 is a robust and versatile HMI terminal designed for industrial automation. Its 15-inch widescreen display, durable IP66-rated construction, and Ethernet connectivity make it ideal for operator interface, monitoring, and control in demanding industrial applications.
