Product Overview

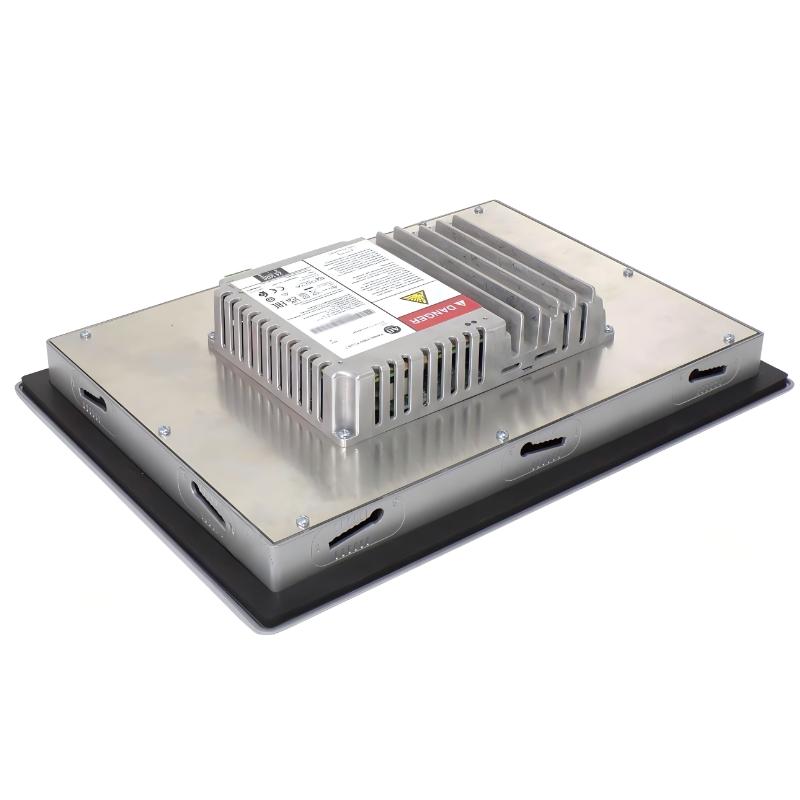

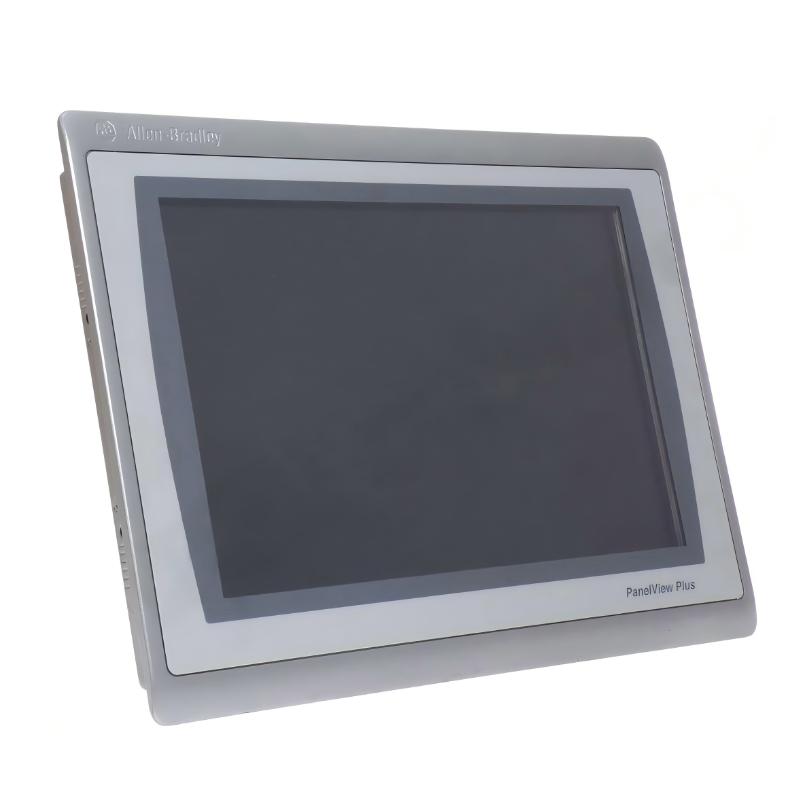

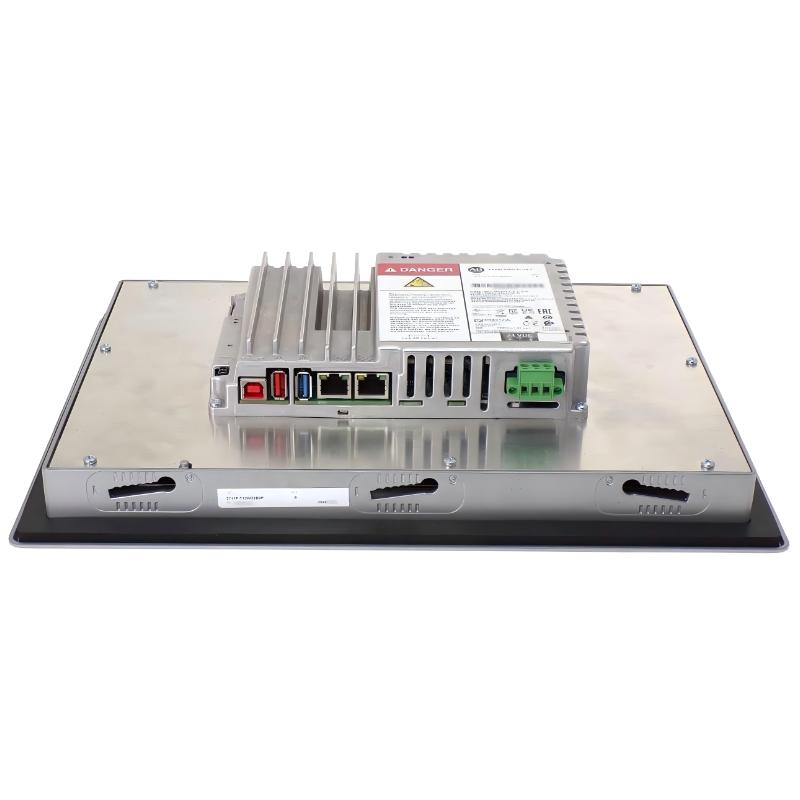

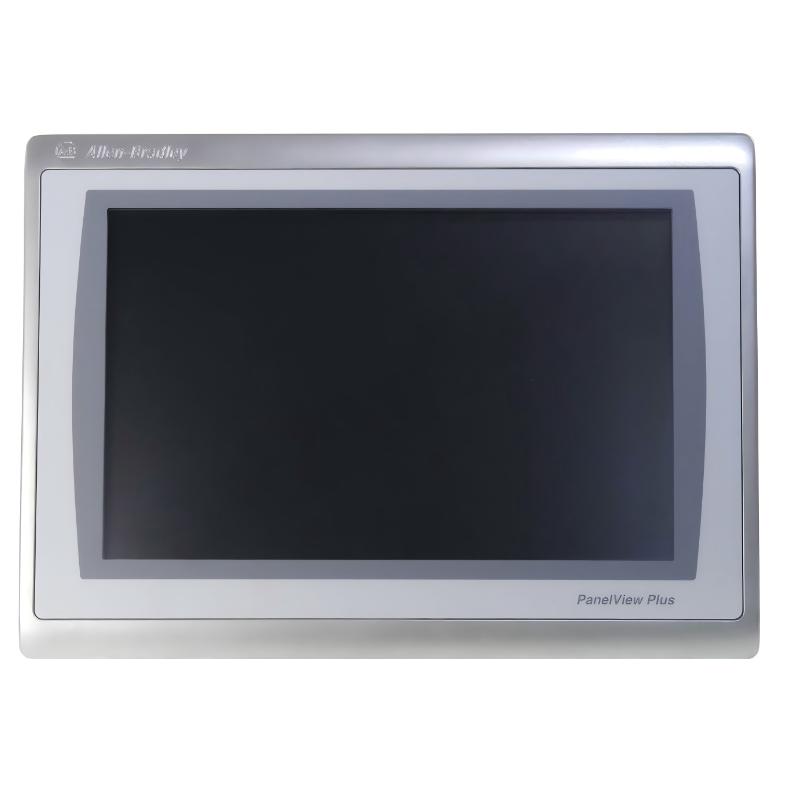

The Allen Bradley 2711P-T12W22D9P is a PanelView Plus 7 Standard operator interface designed for industrial HMI (Human–Machine Interface) applications. It enables operators to monitor, control, and visualize industrial processes with real-time feedback.
This model features a 12.1-inch widescreen display with enhanced depth (69.6 mm), offering a larger internal enclosure for expanded electronics, Ethernet connectivity, and rugged construction suitable for factory, plant, or industrial automation environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Rockwell Automation (Allen Bradley) |
| Model | 2711P-T12W22D9P |
| Product Type | PanelView Plus 7 Standard HMI |
| Display Size | 12.1-inch widescreen TFT |
| Resolution | 1280 × 800 WXGA |
| Dimensions | 340 × 69.6 × 240 mm |
| Weight | 2.54 kg |
| Operating System | Windows CE embedded |
| Communication | Ethernet (EtherNet/IP supported) |
| Power Supply | 24V DC |
| Front Protection | IP66-rated (front panel) |
| Touch Type | Analog resistive touchscreen |
| USB Ports | 2 × USB |
| Operating Temperature | 0 to 55 °C |
Function and Working Principle
The 2711P-T12W22D9P operates as a graphical interface between operators and PLCs:
- Connects to ControlLogix or CompactLogix PLCs via EtherNet/IP.
- Displays real-time process data, alarms, trends, and machine status.
- Allows operators to input commands (start/stop/setpoints) to control processes.
- Supports applications developed with FactoryTalk View ME software.
The HMI provides visualization and control capabilities, but does not directly control machinery; it relies on the PLC to execute commands.
Key Features
- Large 12.1-inch widescreen display for easy readability
- Rugged industrial construction with IP66-rated front panel
- Supports EtherNet/IP communication for seamless PLC integration
- High-resolution 1280 × 800 WXGA display
- Embedded Windows CE operating system
- USB ports for application updates, data logging, and peripherals
- Extended depth (69.6 mm) allows enhanced internal electronics and cooling
Industrial Applications
- Manufacturing production line monitoring
- Packaging and material handling machines
- Water and wastewater treatment systems
- Oil & gas processing equipment
- Power generation control panels
- Industrial automation and process monitoring
- Conveyor systems and machine-level control
Installation Overview
- Panel-mounted installation in control cabinets
- Powered by 24V DC industrial supply
- Ethernet connection to PLC or industrial network
- Requires deployment of FactoryTalk View ME runtime application
- Can integrate with Stratix switches and other EtherNet/IP devices
Compatible Systems
- Rockwell Automation ControlLogix PLCs
- CompactLogix PLC platforms
- FactoryTalk View Machine Edition (ME) software
- EtherNet/IP industrial networks
- Stratix industrial switches
Alternative Models
| Model | Description |
|---|---|
| 2711P-T12W22D8S | PanelView Plus 7, similar 12.1-inch display, shallower enclosure |
| 2711P-T12W21D8S | 12.1-inch widescreen HMI, slightly different configuration |
| 2711P-T15C22D9P | PanelView Plus 7, 15-inch display variant |
| 2711P-T10C22D9P | PanelView Plus 7, 10-inch display variant |
| 2711P-T12C4D8 | PanelView Plus 6, 12-inch model |
Key Advantages
- Clear high-resolution visualization of industrial processes
- Rugged IP66-rated construction for harsh industrial environments
- Reliable EtherNet/IP communication with PLCs
- Larger depth allows better internal electronics and thermal management
- Easy integration with Rockwell Automation control systems
- USB ports enable efficient updates, backups, and data transfer
Conclusion
The Allen Bradley 2711P-T12W22D9P PanelView Plus 7 is a high-performance, durable operator interface for industrial automation. Its 12.1-inch widescreen display, robust IP66-rated front, and Ethernet connectivity make it ideal for real-time process monitoring, operator control, and visualization in demanding industrial environments.
