Product Overview

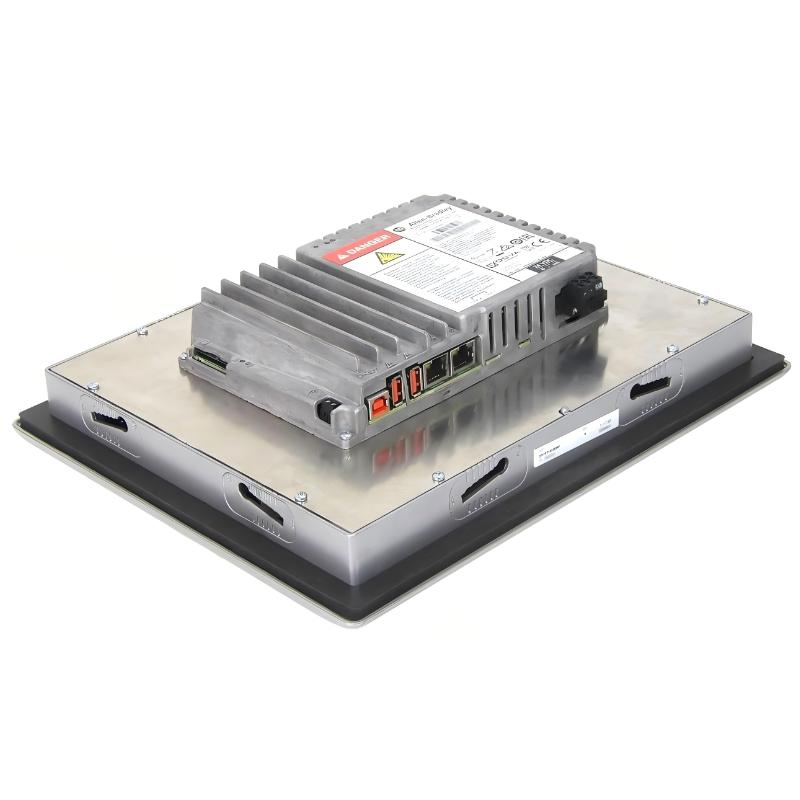

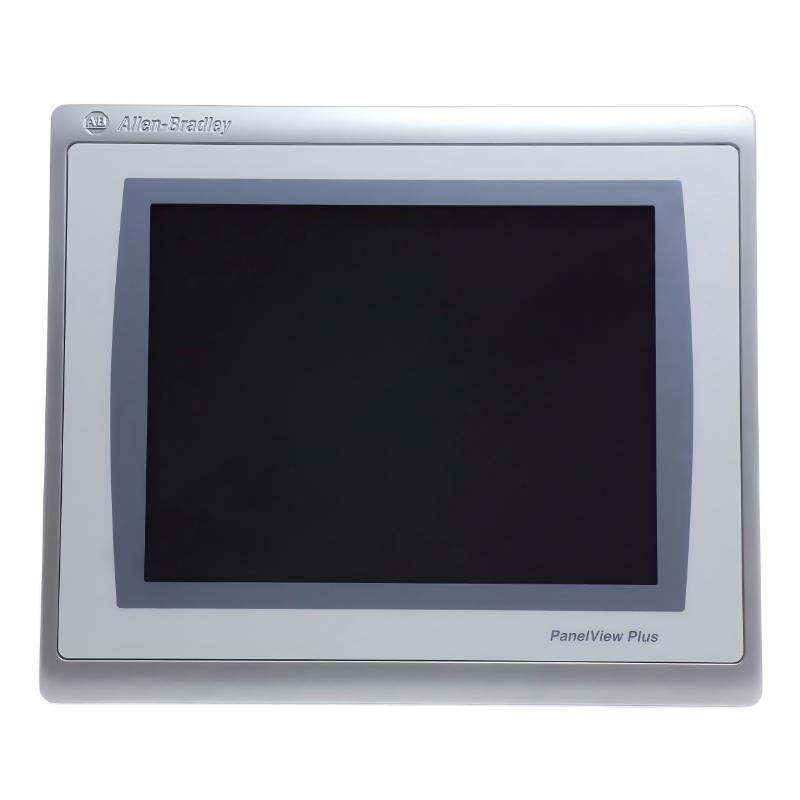

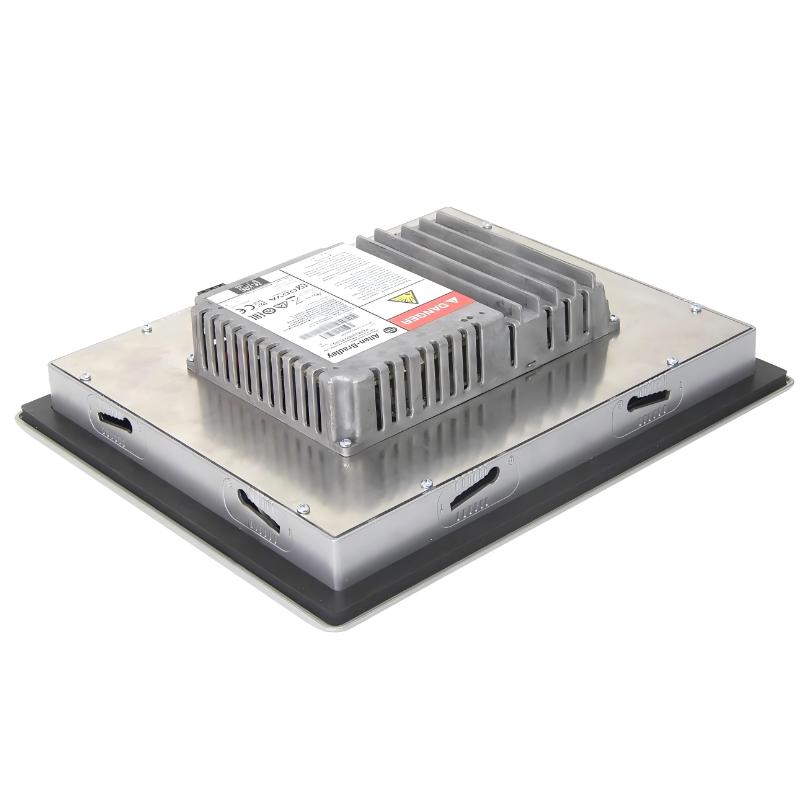

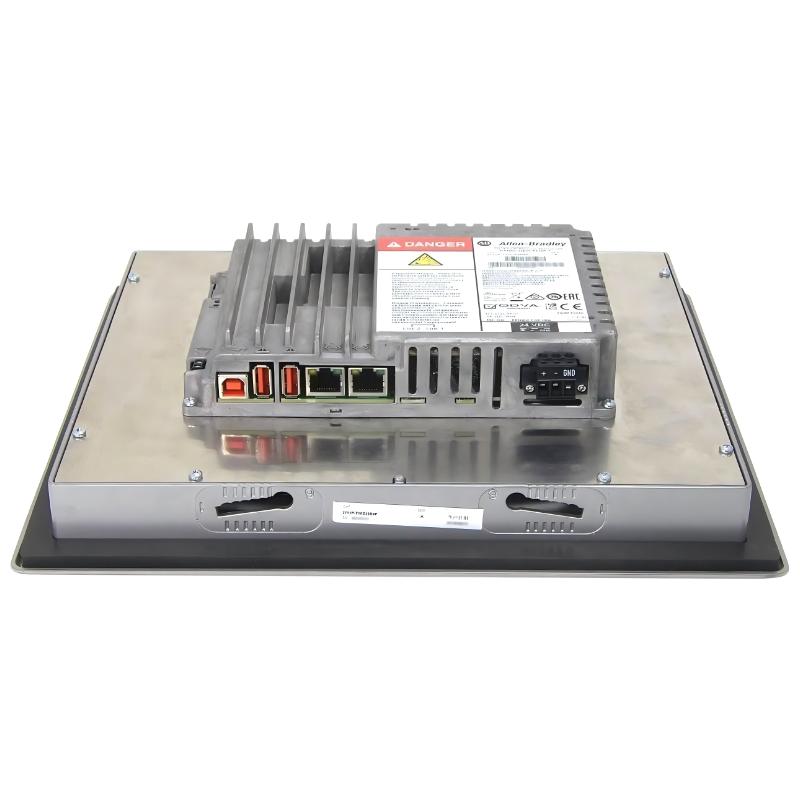

The Allen-Bradley 2711P-T10C22D9P is a PanelView Plus 7 HMI (Human Machine Interface) designed for industrial automation control and monitoring. It features a 10.4-inch color touchscreen that allows operators to interact with PLC-controlled systems, providing real-time process visualization, control, and alarm management.
This HMI model is widely used in manufacturing, process industries, packaging, and utilities, offering a robust and responsive interface for operators.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Model | 2711P-T10C22D9P |
| Product Type | PanelView Plus 7 Operator Interface |
| Display Size | 10.4-inch color TFT touchscreen |
| Resolution | 1024 × 768 (XGA) |
| Touch Input | Capacitive touchscreen |
| Power Supply | 24 VDC |
| Communication Ports | EtherNet/IP, USB, optional serial (RS-232/RS-485) |
| Memory | 256 MB Flash / 256 MB RAM |
| Dimensions | 297 × 69.6 × 252 mm |
| Weight | 2.28 kg |
| Software | FactoryTalk View Machine Edition (ME) runtime |
Function and Working Principle
The PanelView Plus 7 HMI acts as a graphical interface between operators and PLCs, enabling real-time monitoring and control of industrial processes.
Working Principle
- Connects to a PLC via EtherNet/IP or optional serial networks.
- Reads real-time process data such as temperatures, pressures, motor speeds, and alarms.
- Operators interact with the touchscreen to:
- Start/stop machines
- Adjust setpoints
- Acknowledge alarms
- Navigate process screens
- Commands are sent back to the PLC to perform control actions.
This creates a continuous operator-to-PLC feedback loop, ensuring safe and efficient operation.
Key Features
- 10.4-inch high-resolution color touchscreen
- Real-time PLC data visualization
- Alarm and event management
- Process trending and historical data display
- Recipe and parameter control for flexible operations
- Multi-protocol communication (EtherNet/IP, USB, optional serial)
- FactoryTalk View ME runtime support
- Rugged industrial panel-mount design
Industrial Applications
- Manufacturing automation and production lines
- Packaging machinery
- Chemical and petrochemical plants
- Oil and gas processing
- Water and wastewater treatment
- Food and beverage production
- Conveyor and material handling systems
- HVAC and utility systems
Installation Overview
- Panel-mounted installation in control cabinets
- Connects to PLCs via EtherNet/IP or optional serial networks
- Configured using FactoryTalk View Studio ME
- Runtime application downloaded via USB or network
- Ensure proper grounding and environmental protection for industrial environments
Compatible Systems
- Allen-Bradley ControlLogix PLCs
- CompactLogix PLCs
- PowerFlex drive systems
- FactoryTalk View ME software environment
- EtherNet/IP and serial industrial networks
Alternative Models
| Model | Description |
|---|---|
| 2711P-T10C22D9P | Standard 10.4″ PanelView Plus 7 (this model) |
| 2711P-T10C22D8S | Slightly lighter PanelView Plus 7 variant |
| 2711P-T7C22D8S | 7-inch PanelView Plus 7 variant |
| PanelView 5500 | Newer generation HMI with advanced features |
| PanelView Plus 6 | Previous generation HMI with similar functionality |
Key Advantages
- Responsive high-resolution touchscreen for clear visualization
- Robust and compact industrial design
- Reliable real-time communication with PLCs
- Supports alarms, trends, and recipes
- Flexible connectivity options
- Widely compatible with existing Allen-Bradley automation systems
Technical FAQs
What is the primary function of this HMI?
To provide a graphical interface for operators to monitor and control PLC-based industrial processes.
Can it operate without a PLC?
No, the HMI requires a PLC to execute control commands.
Which software is used for configuration?
FactoryTalk View Studio Machine Edition (ME).
What communication protocols are supported?
EtherNet/IP, USB, and optional serial (RS-232/RS-485).
Is this model suitable for harsh industrial environments?
Yes, it is designed for reliable operation in panel-mounted industrial environments.
Conclusion
The Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 is a high-performance HMI providing operators with intuitive touchscreen control, real-time visualization, and robust industrial reliability. Its design, connectivity, and FactoryTalk compatibility make it ideal for modern industrial automation applications, delivering precise control and efficient process monitoring.
