Product Overview

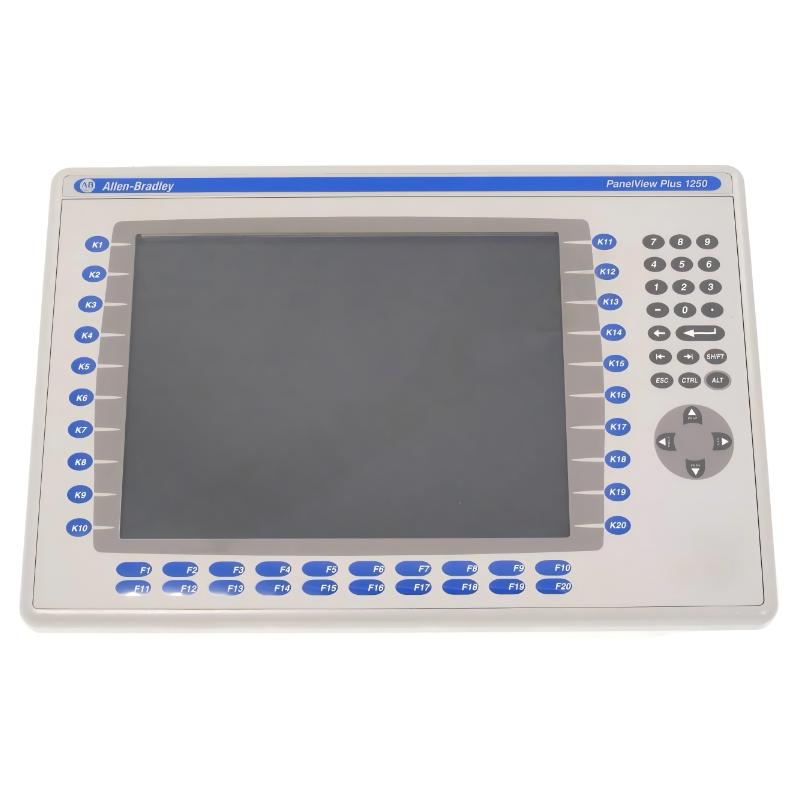

The Allen-Bradley 2711P-B12C4D8 is a PanelView Plus 6 1250 operator interface (HMI) designed for industrial automation visualization and control. It provides operators with real-time access to machine data, alarms, and process parameters through a large touchscreen combined with a physical keypad, making it suitable for demanding industrial environments.
This model is widely used in OEM machinery, process control systems, and factory automation where reliable human-machine interaction and stable PLC communication are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Model | 2711P-B12C4D8 |
| Product Type | Operator Interface (HMI) |
| Series | PanelView Plus 6 1250 |
| Display Size | 12.1-inch TFT color display |
| Resolution | 800 × 600 pixels |
| Input Type | Touchscreen + keypad |
| Operating System | Windows CE 6.0 |
| Memory | 512 MB RAM / 512 MB Flash |
| Communication Ports | Ethernet, RS-232, USB |
| Input Voltage | 18–32 V DC (24 V DC nominal) |
| Power Consumption | Approx. 39–70 W (typical/max depending on load) |
| Dimensions | 416 × 55 × 282 mm |
| Weight | 3.4 kg |
| Mounting Type | Panel mount |
| Protection Rating | NEMA 4X / IP65 front panel |
| Operating Temperature | 0°C to 50°C |
| Application | Industrial HMI / machine visualization |
Function and Working Principle
The 2711P-B12C4D8 acts as the primary operator interface between humans and PLC-controlled systems.
Main Functions
- Real-time machine and process visualization
- Operator control of PLC-driven equipment
- Alarm monitoring and event logging
- Parameter adjustment and recipe management
- Data display from industrial controllers
Working Principle
The HMI communicates with PLC systems via Ethernet or serial protocols. It continuously exchanges process data, displaying real-time system status on the screen while sending operator inputs back to the control system. This enables intuitive monitoring and direct machine control without accessing the PLC program itself.
Role in Industrial Automation Systems
The PanelView Plus 6 1250 plays a central role in automation architectures:
- Provides a visual interface for PLC systems
- Improves operator control efficiency and safety
- Reduces downtime through alarm visibility and diagnostics
- Enables centralized machine control at the panel level
- Supports complex production monitoring tasks
It is commonly deployed in systems requiring high reliability and continuous operation.
Industrial Applications
Typical applications include:
- Manufacturing production lines
- Packaging machinery
- Conveyor systems
- Material handling systems
- Food and beverage processing
- OEM machine control panels
- Process automation systems
Installation and System Integration
Proper installation ensures stable performance:
- Panel-mounted installation with secure cutout fitting
- 24 V DC power supply connection
- Ethernet or serial connection to PLC systems
- Configuration via FactoryTalk View ME software
- Ensure proper grounding and cabinet protection (NEMA/IP-rated enclosure)
- Maintain adequate ventilation in control cabinets
Compatible Components and Modules
- Allen-Bradley CompactLogix PLCs
- MicroLogix controllers
- ControlLogix systems (via Ethernet/IP)
- FactoryTalk View ME runtime software
- Industrial Ethernet switches
- Remote I/O and field devices
- PowerFlex drives (for integrated control systems)
Recommended Alternative Models
| Model | Product Type | Key Feature | Recommended Application |
|---|---|---|---|
| 2711P-T12C4D8 | PanelView Plus 6 1250 | Touch-only version | Modern HMI upgrades |
| 2711P-K12C4D8 | PanelView Plus 6 1250 | Keypad-only version | Harsh environments |
| 2711P-B10C4D8 | PanelView Plus 1000 | Smaller display size | Compact panels |
| 2711P-T15C4D8 | PanelView Plus 1500 | Larger display interface | Complex control systems |
| 2711C-T10C | PanelView Component | Entry-level HMI | Simple machine control |
Key Advantages
- Large 12.1-inch industrial-grade display
- Dual input: touchscreen + keypad for flexibility
- Robust industrial design (IP65 / NEMA 4X front)
- Reliable Windows CE-based platform
- Strong integration with Allen-Bradley PLC systems
- Suitable for continuous industrial operation
- Easy operator interaction and diagnostics
- Widely supported in legacy automation systems
Technical FAQs
What is the main function of the 2711P-B12C4D8?
It provides a human-machine interface for monitoring and controlling PLC-based industrial systems.
What systems is it compatible with?
It works with Allen-Bradley PLCs such as CompactLogix, ControlLogix, and MicroLogix.
Does it support Ethernet communication?
Yes, it includes Ethernet connectivity for industrial network integration.
Can it be used in harsh environments?
Yes, its front panel is rated IP65 / NEMA 4X for industrial environments.
Is it still commonly used?
Yes, it remains widely used in legacy and existing industrial automation systems.
Conclusion
The Allen-Bradley 2711P-B12C4D8 PanelView Plus 6 1250 Operator Interface is a robust and widely deployed industrial HMI designed for reliable machine control and process visualization. With its large display, dual input system, and strong PLC integration capability, it remains a dependable solution for industrial automation environments requiring stable and long-term operation.
