ProductPRODUCT
Featured products
Contact Us
- Allen Bradley
- 2711-T6C1L1

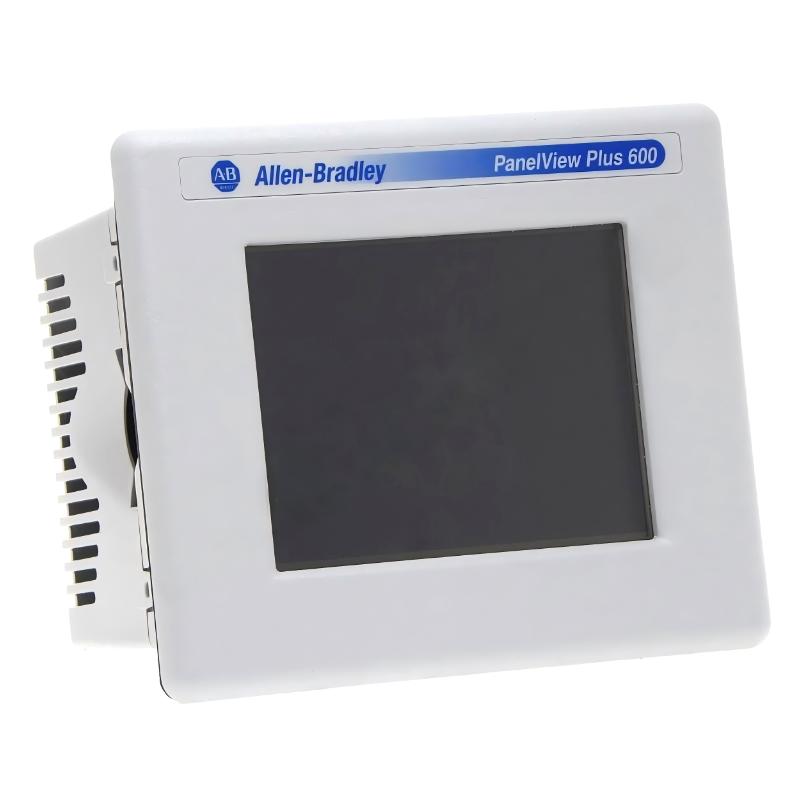

- PanelView Plus 600
- USA
- 176 mm × 137 mm × 60 mm
- 1.2kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Industrial HMI Technical Overview
Model: 2711-T6C1L1
1. Product Introduction
The 2711-T6C1L1 is a 6-inch industrial Human-Machine Interface (HMI) panel designed for compact machine control, process monitoring, and operator interaction in automation systems. It is widely used in small-to-medium industrial equipment where space is limited but stable visualization and control functions are still required.
This model provides a simple and reliable interface for displaying machine status, alarms, and basic process data. It is designed for continuous industrial operation and is commonly installed on control panels, machinery enclosures, and localized operator stations.
The 6-inch format provides a balance between compact installation and readable display area, making it suitable for single-machine control applications.
2. Product Technical Parameters
Main Specification Table
| Parameter | Specification |
|---|---|
| Model | 2711-T6C1L1 |
| Display Size | 6-inch TFT LCD |
| Resolution | 320 × 240 (QVGA industrial standard) |
| Touch Type | Resistive touchscreen |
| Backlight | CCFL backlight |
| Input Method | Touchscreen + function keys |
| Communication Ports | Ethernet, RS-232, RS-485, USB |
| Power Supply | 24V DC industrial input |
| Mounting Type | Panel mounting |
| Operating System | Embedded industrial HMI runtime system |
| Protection Level | Front panel IP65 equivalent protection |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Housing Material | Industrial metal frame + reinforced bezel |
| Dimensions (W × H × D) | 176 mm × 137 mm × 60 mm |
| Weight | 1.2 kg (approx.) |
| Cutout Size | Standard 6-inch industrial panel cutout |
3. Product Description (Extended)
The 2711-T6C1L1 is designed for compact industrial applications where basic visualization and control functions are required. The 6-inch screen provides essential process information such as machine status, alarms, and basic operational parameters.
The device combines a resistive touchscreen with physical function keys, allowing operators to interact with machines even in environments where gloves or harsh conditions are present.
Its rugged design ensures stable long-term operation in industrial environments with vibration, dust, and electrical interference.
4. Application Areas
This HMI panel is widely used in industrial automation systems, including:
- Small automated machinery
- Packaging equipment
- Pump control systems
- HVAC controllers
- Conveyor systems
- Labeling and printing machines
- Laboratory automation equipment
- Single-machine production units
- Light industrial control panels
It is particularly suitable for compact machines requiring basic operator interfaces.
5. Product Advantages
- Compact 6-inch design suitable for small control panels
- Combination of touchscreen and function keys improves usability
- Stable operation in continuous industrial environments
- Strong resistance to vibration and electrical noise
- Easy integration with PLC and controllers
- Reliable communication across multiple industrial protocols
- Durable industrial-grade housing structure
- Low power consumption for small systems
- Cost-effective solution for basic machine control
6. Brand and Series Information
- Brand Category: Industrial automation control systems manufacturer
- Product Type: Human-Machine Interface (HMI) terminal
- Series Type: Compact industrial HMI series (6-inch class)
- Technology Positioning: Entry-level machine visualization terminal
- Application Level: Single-machine automation control systems
This series is designed for compact industrial applications requiring reliable but simple operator interfaces.
7. Same Series Recommended Models
The following models belong to the same or closely related compact HMI family:
| Model | Display Size | Key Features | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 2711-T4C1 | 4-inch | Basic compact HMI terminal | 125 × 90 × 50 | 0.5 |
| 2711-T5C2 | 5-inch | Small industrial interface panel | 140 × 100 × 52 | 0.7 |
| 2711-T6C1L1 | 6-inch | Standard keypad + touchscreen HMI | 176 × 137 × 60 | 1.2 |
| 2711-T7C4 | 7-inch | Mid-size industrial HMI panel | 203 × 152 × 55 | 1.0 |
| 2711-T7C8 | 7-inch | Enhanced communication version | 203 × 152 × 55 | 1.1 |
8. Same Brand Popular Models (Related Portfolio)
These models are widely used in industrial automation systems across control, motion, and drive applications:
| Model | Product Type | Application | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 1756-L81E | PLC Controller | Large-scale automation systems | 230 × 180 × 150 | 1.8 |
| 1769-L33ER | Compact PLC | Machine-level control systems | 140 × 90 × 87 | 0.6 |
| 2198-H015-ERS | Servo Drive | Motion control systems | 180 × 120 × 90 | 1.3 |
| 25B-D012N114 | Frequency Drive | Motor speed control systems | 210 × 160 × 135 | 2.1 |
| 2711-K6C1L1 | HMI Panel | Compact operator interface system | 176 × 137 × 60 | 1.2 |
9. Summary
The 2711-T6C1L1 is a compact 6-inch industrial HMI designed for simple and reliable machine control applications.
Its combination of touchscreen input and function keys provides stable operation in demanding environments while maintaining ease of use.
With its compact size, durable construction, and stable communication performance, it is well suited for entry-level industrial automation systems and single-machine control applications.
