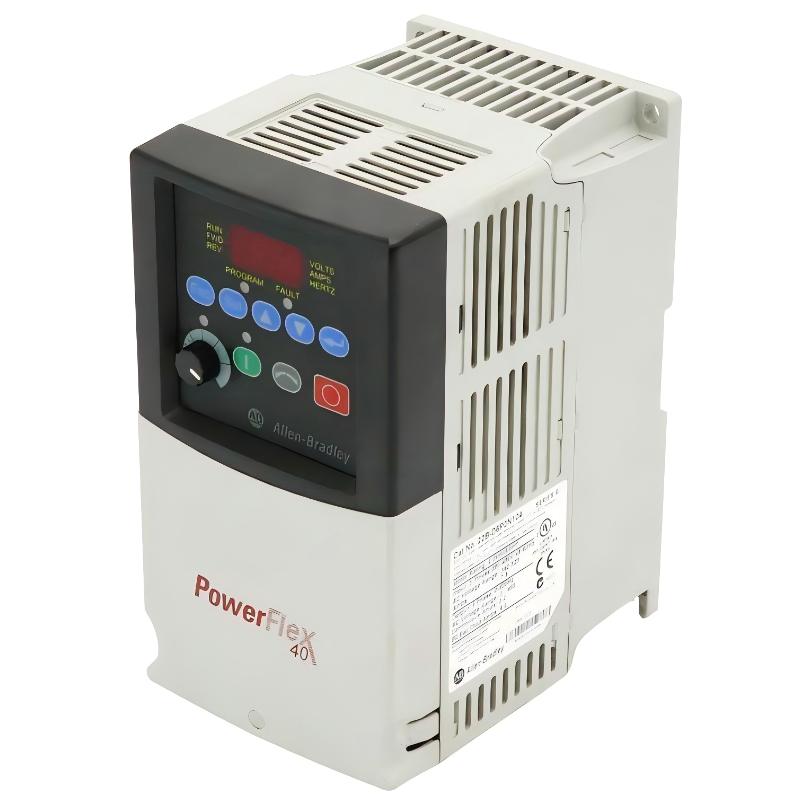

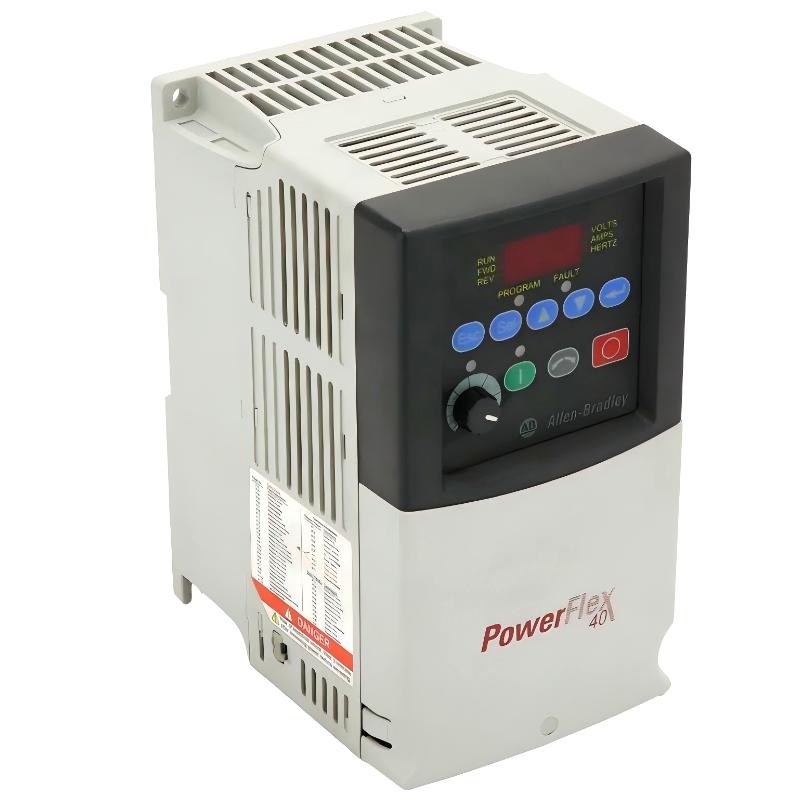

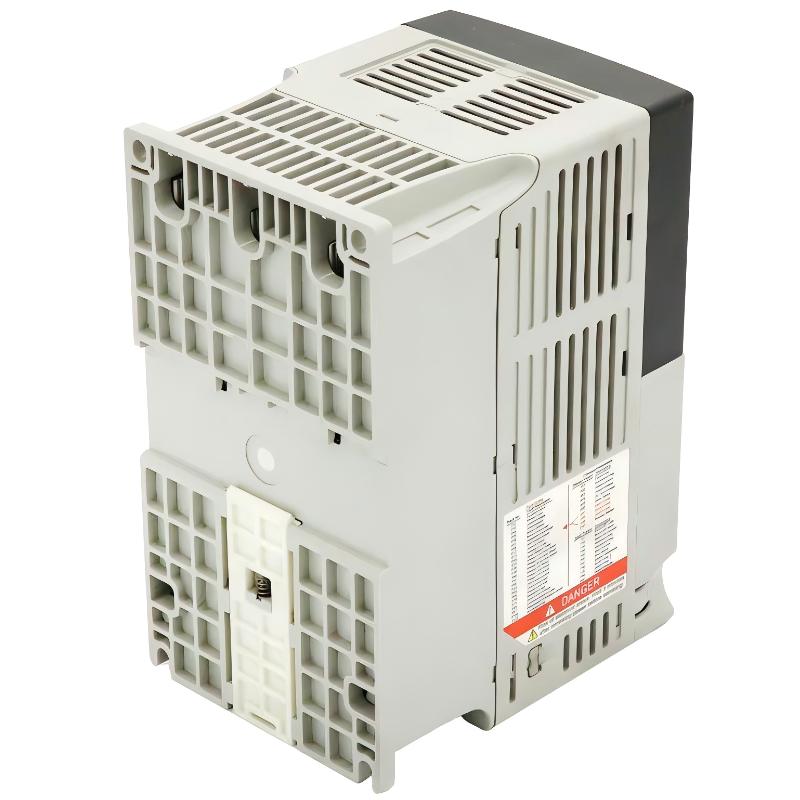

Industrial AC Drive Product Overview
Model: 22B-D6P0N104
1. Product Introduction
The 22B-D6P0N104 is a compact industrial AC variable frequency drive designed for precise speed and torque control of three-phase induction motors. It is widely used in industrial automation systems where stable motor performance, reliable continuous operation, and energy-efficient control are required.
This model belongs to a higher mid-range power segment within a compact drive platform, making it suitable for applications with moderate to high load demand while maintaining a small installation footprint.
It is designed for simple commissioning and straightforward integration into control cabinets, making it practical for OEM equipment and retrofit projects.
2. Brand Information
Brand Category: Global industrial automation and motor control systems manufacturer
This product is part of a widely adopted industrial automation ecosystem used across manufacturing, logistics, infrastructure, and process industries.
The brand is recognized for durable engineering design, standardized drive platforms, and long-term operational reliability in demanding industrial environments.
3. Product Series
Series: PowerFlex 40 Series
The PowerFlex 40 series is a compact AC drive family designed for general-purpose motor control applications.
It emphasizes simplicity, stable performance, and cost-efficient operation while maintaining essential protection functions and consistent motor control behavior.
This series is widely used in industrial machines requiring reliable speed regulation and continuous duty operation.
4. Technical Parameters
Main Specification Table
| Parameter | Specification |
|---|---|
| Model | 22B-D6P0N104 |
| Drive Type | AC Variable Frequency Drive (VFD) |
| Series | PowerFlex 40 |
| Input Voltage | 200–240V AC, three-phase |
| Output Voltage | Three-phase output (0–input voltage level) |
| Rated Power | Approx. 1.5 kW (2.0 HP) |
| Rated Current | Approx. 6.0 A |
| Control Method | V/f control (Voltage/Frequency) |
| Frequency Range | 0–400 Hz |
| Overload Capacity | Standard industrial overload protection |
| Cooling Method | Forced air cooling |
| Protection Level | IP20 (panel mounted type) |
| Communication | Basic serial communication support |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Installation Type | Cabinet / panel mounting |
| EMC Design | Industrial environment compliance |
| Dimensions (H × W × D) | 160 × 90 × 140 mm |
| Weight | 0.9 kg |
5. Product Applications
The 22B-D6P0N104 is widely used in industrial automation systems requiring medium-power motor control, including:
- Conveyor and logistics handling systems
- Industrial pumping stations
- HVAC ventilation and air circulation systems
- Packaging and filling production machinery
- Textile processing equipment
- Material transport automation systems
- Light-to-medium industrial machinery
- Retrofit upgrades of older drive systems
It is suitable for continuous operation environments where stable torque output is required.
6. Product Advantages
The main advantages of the 22B-D6P0N104 include:
- Compact structure suitable for standard industrial control cabinets
- Simple parameter configuration for fast commissioning
- Stable motor control with smooth acceleration and deceleration
- Reliable continuous operation under industrial load conditions
- Built-in protection functions including overload, undervoltage, and overvoltage protection
- Energy-efficient performance under variable load conditions
- Low maintenance requirement due to solid-state electronic structure
- High compatibility with standard industrial induction motors
- Suitable for OEM machine design and industrial modernization projects
7. Same Series or Closely Related Models (PowerFlex 40 Series)
| Model | Rated Power | Input Voltage | Rated Current | Frame Size | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 22B-D4P5N104 | 0.75 kW | 200–240V 3-phase | 4.5 A | A | 152 × 80 × 135 | 0.75 |
| 22B-D6P0N104 | 1.5 kW | 200–240V 3-phase | 6.0 A | B | 160 × 90 × 140 | 0.9 |
| 22B-D8P0N104 | 2.2 kW | 200–240V 3-phase | 8.0 A | B | 160 × 90 × 140 | 1.1 |
| 22B-D010N104 | 2.2 kW | 200–240V 3-phase | 10.0 A | C | 160 × 110 × 150 | 1.2 |
| 22B-B6P0N104 | 1.5 kW | 200–240V 3-phase | 6.0 A | B | 160 × 90 × 140 | 1.0 |
These models share the same control logic and parameter structure, with differences mainly in current capacity, power level, and frame size design.
8. Popular Models from Same Manufacturer (Across Drive Families)
| Model | Series | Rated Power | Input Voltage | Key Feature | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 22A-D6P0N104 | PowerFlex 4 | 1.5 kW | 200–240V 3-phase | Compact general-purpose drive | 150 × 70 × 130 | 0.75 |
| 22B-D6P0N114 | PowerFlex 40 | 1.5 kW | 200–240V | Standard industrial VFD | 160 × 90 × 140 | 0.9 |
| 25B-D015N114 | PowerFlex 525 | 2.0 HP class | 200–240V 3-phase | Advanced control + communication | 170 × 95 × 150 | 1.4 |
| 20G11NC120JA0NNNNN | PowerFlex 755 | Medium power | 400V class | High-performance industrial control | 260 × 180 × 220 | 4.2 |
| 20F1A-N-D-4P0-A0NNNNN | PowerFlex 753 | Medium power | 400V class | Modular scalable architecture | 240 × 170 × 210 | 3.3 |
9. Summary
The 22B-D6P0N104 is a reliable medium-power AC drive designed for industrial motor control applications requiring stable torque output and continuous operation capability.
It offers simple configuration, strong operational stability, and efficient energy performance across a wide range of automation systems.
As part of the PowerFlex 40 series, it maintains consistent control behavior and standardized design structure, making it suitable for OEM machinery, industrial equipment upgrades, and long-term system deployment.
