Industrial AC Drive Product Overview

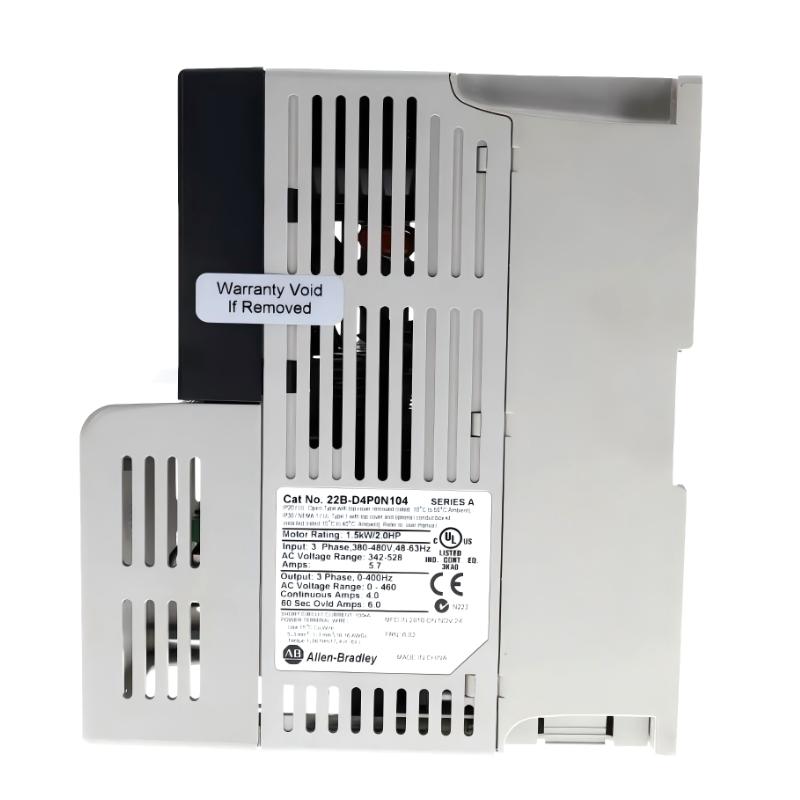

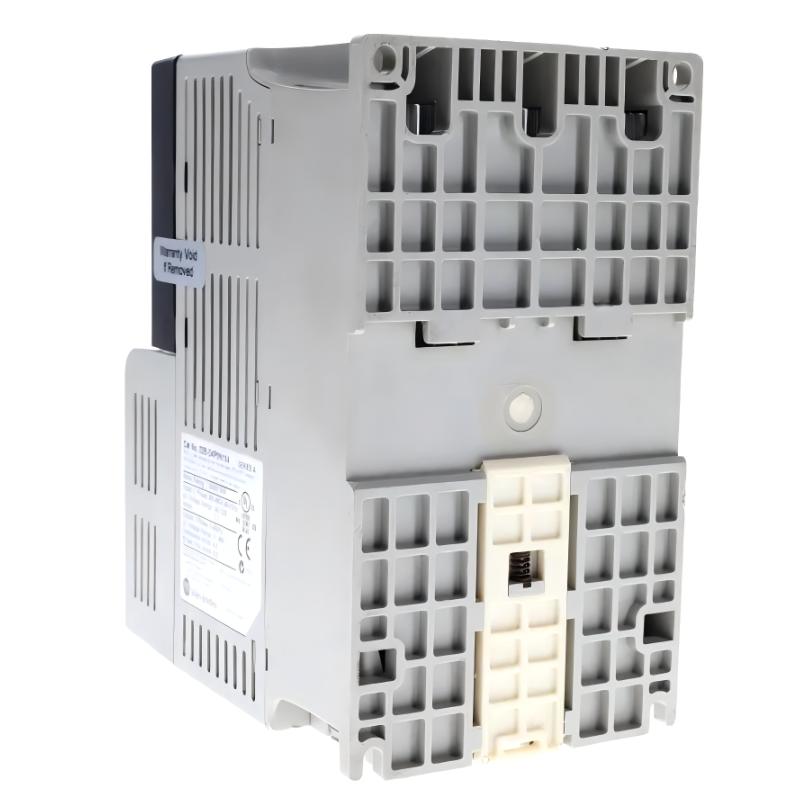

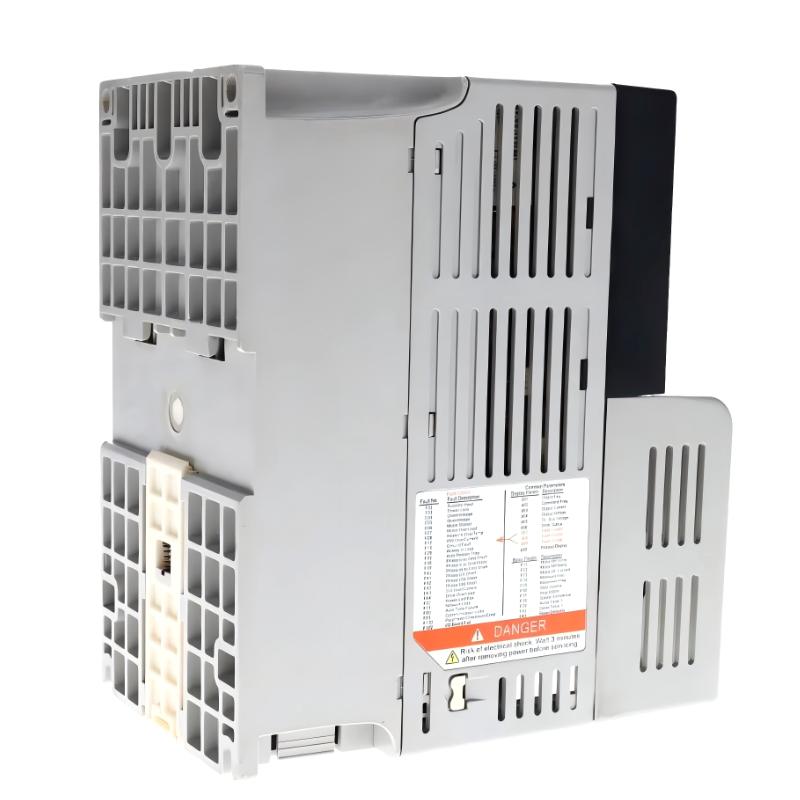

Model: 22B-D4P0N104
1. Product Introduction
The 22B-D4P0N104 is a compact industrial AC variable frequency drive designed for precise speed and torque control of three-phase induction motors. It is widely used in general-purpose automation systems where stable motor performance, smooth acceleration, and reliable long-term operation are required.
This model belongs to a mid-range power class within a compact drive platform and is suitable for applications requiring continuous operation under moderate load conditions.
It is designed for quick installation, simple parameter configuration, and stable integration into standard industrial control cabinets.
2. Brand Information
Brand Category: Global industrial automation and motor control systems manufacturer
This product is part of a widely applied industrial drive ecosystem used in manufacturing, logistics, infrastructure, and process automation industries.
The brand is recognized for durable engineering design, standardized drive architecture, and long-term operational stability in industrial environments.
3. Product Series
Series: PowerFlex 40 Series
The PowerFlex 40 series is a compact AC drive family designed for general-purpose motor control applications.
It focuses on simplicity, stable performance, and cost-efficient operation while maintaining essential protection functions and reliable motor control behavior.
This series is commonly used in machines requiring basic to medium-level speed regulation with stable industrial performance.
4. Technical Parameters
Main Specification Table
| Parameter | Specification |
|---|---|
| Model | 22B-D4P0N104 |
| Drive Type | AC Variable Frequency Drive (VFD) |
| Series | PowerFlex 40 |
| Input Voltage | 200–240V AC, three-phase |
| Output Voltage | Three-phase output (0–input voltage level) |
| Rated Power | Approx. 0.75 kW (1.0 HP) |
| Rated Current | Approx. 4.0 A |
| Control Method | V/f control (Voltage/Frequency) |
| Frequency Range | 0–400 Hz |
| Overload Capacity | Standard industrial overload protection |
| Cooling Method | Forced air cooling |
| Protection Level | IP20 (panel mounted type) |
| Communication | Basic serial communication support |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Installation Type | Cabinet / panel mounting |
| EMC Design | Industrial environment compliance |
| Dimensions (H × W × D) | 152 × 80 × 135 mm |
| Weight | 0.75 kg |
5. Product Applications
The 22B-D4P0N104 is widely used in industrial automation systems requiring stable low-to-medium power motor control, including:
- Conveyor belt systems
- Small industrial pump stations
- HVAC ventilation and air handling systems
- Packaging and light production machinery
- Textile auxiliary equipment
- Material handling automation systems
- OEM compact industrial machines
- Retrofit upgrades for older motor control systems
It is particularly suitable for applications requiring stable speed control and long operating cycles.
6. Product Advantages
The main advantages of the 22B-D4P0N104 include:
- Compact structure suitable for tight control cabinet installation
- Simple parameter configuration for fast commissioning
- Stable motor control with smooth acceleration and deceleration
- Reliable operation under continuous industrial workload
- Built-in protection functions including overload, undervoltage, and overvoltage protection
- Energy-efficient performance under variable load conditions
- Low maintenance requirements due to solid-state design
- Strong compatibility with standard induction motors
- Suitable for OEM equipment and system modernization projects
7. Same Series or Closely Related Models (PowerFlex 40 Series)
| Model | Rated Power | Input Voltage | Rated Current | Frame Size | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 22B-D2P3N104 | 0.55 kW | 200–240V 3-phase | 2.3 A | A | 152 × 80 × 135 | 0.7 |
| 22B-D4P0N104 | 0.75 kW | 200–240V 3-phase | 4.0 A | A | 152 × 80 × 135 | 0.75 |
| 22B-D4P5N104 | 0.75 kW | 200–240V 3-phase | 4.5 A | A | 152 × 80 × 135 | 0.75 |
| 22B-B4P0N104 | 0.75 kW | 200–240V 3-phase | 4.0 A | B | 160 × 90 × 140 | 0.95 |
| 22B-B4P5N104 | 0.75 kW | 200–240V 3-phase | 4.5 A | B | 160 × 90 × 140 | 1.0 |
These models share the same control platform and programming structure, with differences mainly in frame size, installation configuration, and current rating.
8. Popular Models from Same Manufacturer (Across Drive Families)
| Model | Series | Rated Power | Input Voltage | Key Feature | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 22A-D4P0N104 | PowerFlex 4 | 0.75 kW | 200–240V 3-phase | Compact general-purpose drive | 150 × 70 × 130 | 0.65 |
| 22B-D4P0N114 | PowerFlex 40 | 0.75 kW | 200–240V | Standard industrial VFD | 152 × 80 × 135 | 0.75 |
| 25B-D010N114 | PowerFlex 525 | 1.5 HP class | 200–240V 3-phase | Advanced control + communication | 170 × 95 × 150 | 1.3 |
| 20G11NC100JA0NNNNN | PowerFlex 755 | Low-medium power | 400V class | High-performance industrial control | 250 × 180 × 220 | 3.6 |
| 20F1A-N-D-3P7-A0NNNNN | PowerFlex 753 | Medium power | 400V class | Modular scalable architecture | 240 × 170 × 210 | 3.2 |
9. Summary
The 22B-D4P0N104 is a reliable and compact AC drive designed for general industrial motor control applications in the low-to-medium power range.
It provides stable operation, simple configuration, and efficient performance in a wide range of automation systems.
As part of the PowerFlex 40 series, it maintains consistent control logic and standardized structure, making it suitable for OEM machinery, compact equipment, and long-term industrial deployment.
