Industrial AC Drive Product Overview

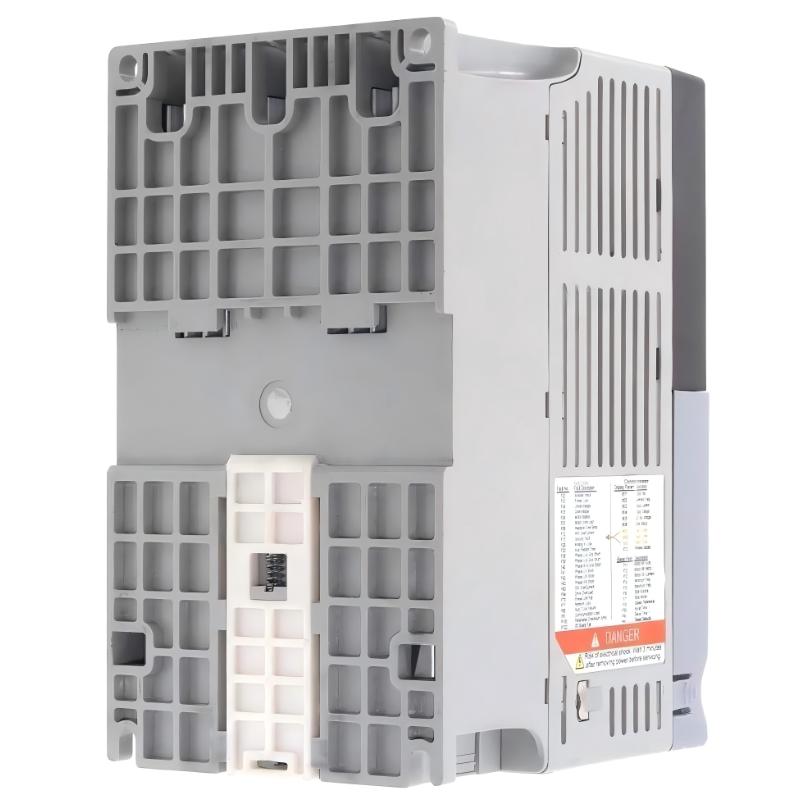

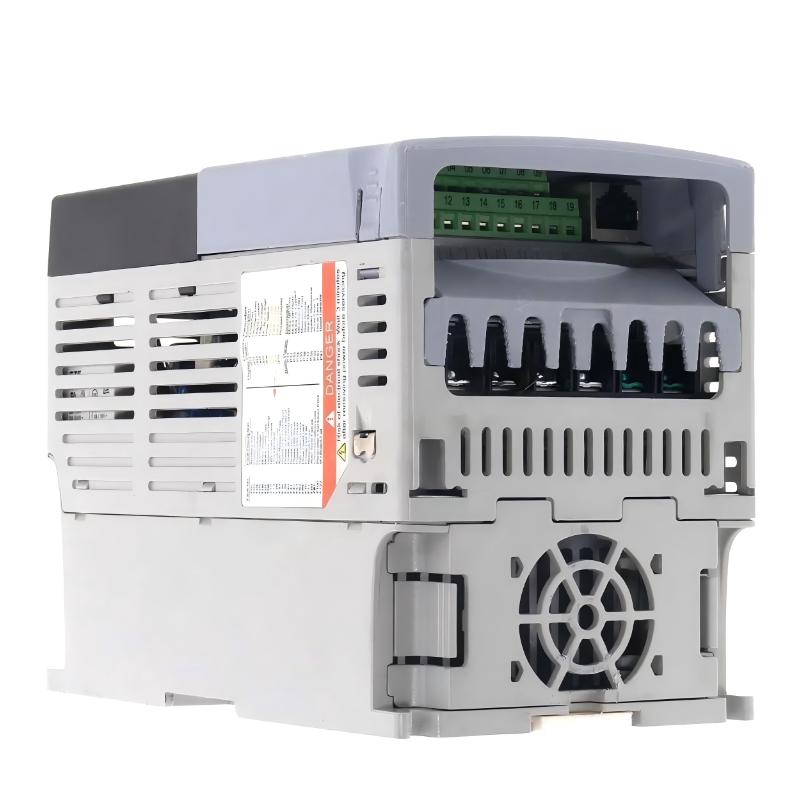

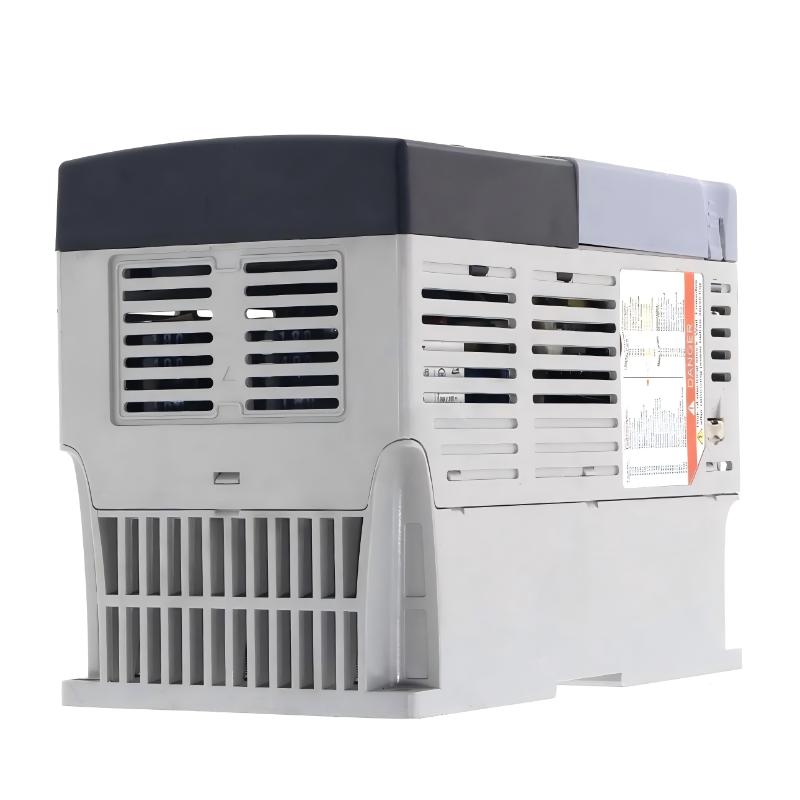

Model: 22B-D1P4N104
1. Product Introduction
The 22B-D1P4N104 is a compact industrial AC variable frequency drive designed for precise motor speed and torque control in small-power automation systems. It is used to control three-phase induction motors with stable performance, smooth acceleration, and reliable operation under continuous duty conditions.
This model is positioned in the low-power range of a compact drive platform and is widely applied in equipment that requires simple installation, stable speed regulation, and energy-efficient motor control.
It is designed for straightforward commissioning, making it suitable for both OEM machinery and replacement or retrofit applications in existing industrial systems.
2. Brand Information
Brand Category: Global industrial automation and motor control manufacturer
This product belongs to a widely adopted industrial automation ecosystem used in manufacturing, logistics, infrastructure, and process industries.
The brand is recognized for durable drive technology, standardized control systems, and long-term operational reliability.
3. Product Series
Series: PowerFlex 40 Series
The PowerFlex 40 series is a compact AC drive family designed for general-purpose motor control applications.
It focuses on simplicity, stable performance, and cost-efficient operation while maintaining essential protection functions and industrial-grade reliability.
This series is commonly used in machines requiring basic speed control with consistent operational behavior.
4. Technical Parameters
Main Specification Table
| Parameter | Specification |
|---|---|
| Model | 22B-D1P4N104 |
| Drive Type | AC Variable Frequency Drive (VFD) |
| Series | PowerFlex 40 |
| Input Voltage | 200–240V AC, three-phase |
| Output Voltage | Three-phase output (0–input voltage level) |
| Rated Power | Approx. 0.37 kW (0.5 HP) |
| Rated Current | Approx. 1.4 A |
| Control Method | V/f control (Voltage/Frequency) |
| Frequency Range | 0–400 Hz |
| Overload Capacity | Standard industrial overload protection |
| Cooling Method | Forced air cooling |
| Protection Level | IP20 (panel mounted type) |
| Communication | Basic serial communication support |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Installation Type | Cabinet / panel mounting |
| EMC Design | Industrial environment compliance |
| Dimensions (H × W × D) | 152 × 80 × 135 mm |
| Weight | 0.65 kg |
5. Product Applications
The 22B-D1P4N104 is widely used in light industrial automation systems, including:
- Small conveyor systems
- Light-duty pump control systems
- HVAC ventilation fans
- Packaging and labeling machines
- Textile auxiliary equipment
- Small material handling systems
- Laboratory and light industrial equipment
- OEM compact machinery
It is especially suitable for applications requiring stable low-power motor control with simple configuration.
6. Product Advantages
The main advantages of the 22B-D1P4N104 include:
- Ultra-compact structure suitable for tight control cabinet installations
- Simple configuration process for fast commissioning
- Stable motor control with smooth acceleration and deceleration
- Energy-efficient operation in low-load applications
- Built-in protection functions including overload and overvoltage protection
- Low maintenance requirements due to solid-state design
- High compatibility with standard small induction motors
- Suitable for OEM compact machine integration
- Cost-efficient solution for basic industrial automation needs
7. Same Series or Closely Related Models (PowerFlex 40 Series)
| Model | Rated Power | Input Voltage | Rated Current | Frame Size | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 22B-D0P75N104 | 0.18 kW | 200–240V 3-phase | 0.75 A | A | 152 × 80 × 135 | 0.6 |
| 22B-D1P4N104 | 0.37 kW | 200–240V 3-phase | 1.4 A | A | 152 × 80 × 135 | 0.65 |
| 22B-D2P3N104 | 0.55 kW | 200–240V 3-phase | 2.3 A | A | 152 × 80 × 135 | 0.7 |
| 22B-D4P5N104 | 0.75 kW | 200–240V 3-phase | 4.5 A | A | 152 × 80 × 135 | 0.75 |
| 22B-B1P4N104 | 0.37 kW | 200–240V 3-phase | 1.4 A | B | 160 × 90 × 140 | 0.9 |
These models share the same control platform and programming logic, with differences mainly in power rating, current level, and frame size.
8. Popular Models from Same Manufacturer (Across Drive Families)
| Model | Series | Rated Power | Input Voltage | Key Feature | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 22A-D1P4N104 | PowerFlex 4 | 0.37 kW | 200–240V 3-phase | Compact general-purpose drive | 150 × 70 × 130 | 0.6 |
| 22B-D1P4N114 | PowerFlex 40 | 0.37 kW | 200–240V | Standard compact VFD | 152 × 80 × 135 | 0.65 |
| 25B-D004N114 | PowerFlex 525 | 0.5 HP class | 200–240V 3-phase | Advanced control & communication | 170 × 95 × 150 | 1.1 |
| 20G11NC072JA0NNNNN | PowerFlex 755 | Low-medium power | 400V class | High-performance industrial control | 250 × 180 × 220 | 3.5 |
| 20F1A-N-D-2P3-A0NNNNN | PowerFlex 753 | Medium power | 400V class | Modular scalable architecture | 240 × 170 × 210 | 3.0 |
9. Summary
The 22B-D1P4N104 is a compact and efficient low-power AC drive designed for general industrial motor control applications.
It provides stable operation, simple configuration, and reliable performance in small automation systems.
As part of the PowerFlex 40 series, it maintains consistent control behavior and standardized structure, making it suitable for OEM equipment, compact machinery, and long-term industrial use.
