Industrial AC Drive Product Overview

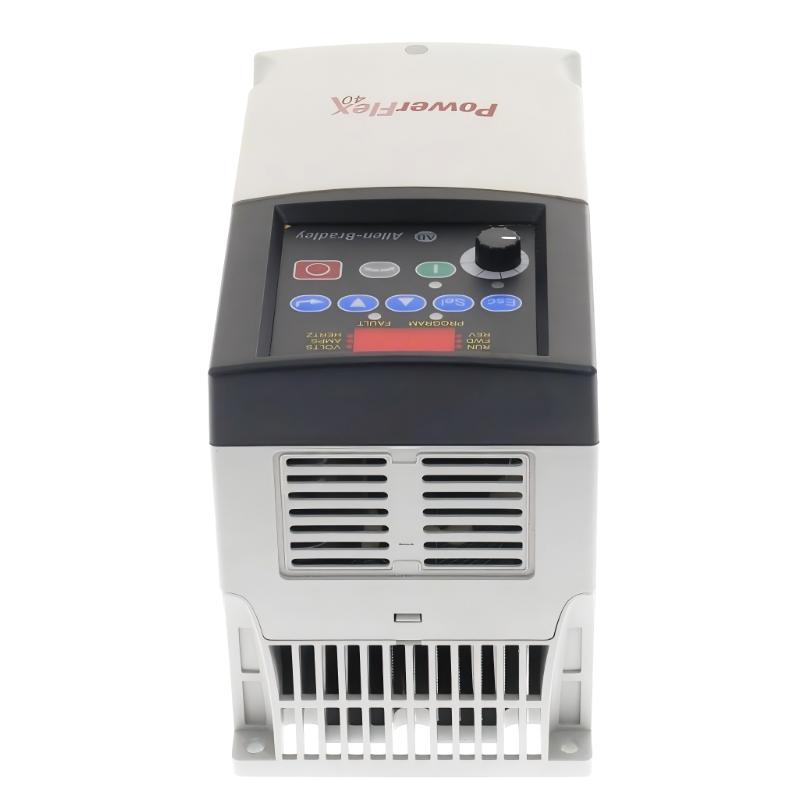

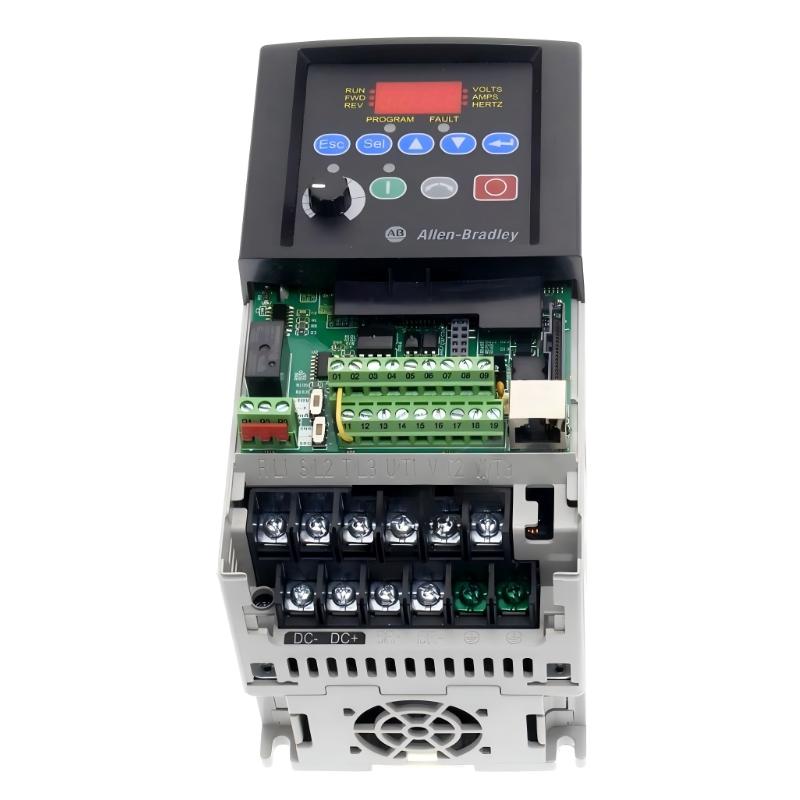

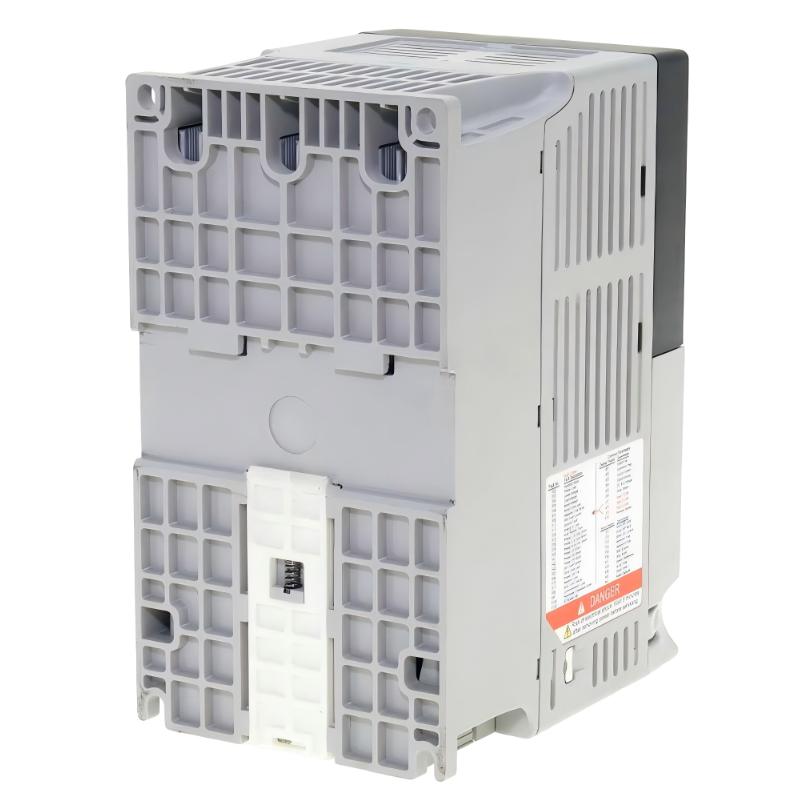

Model: 22B-B5P0N104
1. Product Introduction
The 22B-B5P0N104 is a compact industrial AC variable frequency drive designed for precise motor speed and torque control in general-purpose automation systems. It is used to regulate three-phase induction motors with stable output performance and smooth operating characteristics.
This model is typically applied in light to medium industrial environments where reliability, simple configuration, and compact installation are required.
It is built for applications that need consistent speed control, energy-saving operation, and straightforward parameter setup without complex commissioning procedures.
2. Brand Information
Brand Category: Global industrial automation manufacturer
This product belongs to a well-established automation technology ecosystem widely used in manufacturing, process control, material handling, and infrastructure systems.
The brand is known for industrial-grade durability, standardized control architecture, and long service life in demanding environments.
3. Product Series
Series: PowerFlex 40 Series
The PowerFlex 40 series is a compact AC drive platform designed for general-purpose motor control applications.
It focuses on simplicity, reliability, and cost-effective performance while maintaining stable speed regulation and built-in protection functions.
This series is commonly used in systems where space-saving installation and stable operation are important design requirements.
4. Technical Parameters
Main Specification Table
| Parameter | Specification |
|---|---|
| Model | 22B-B5P0N104 |
| Drive Type | AC Variable Frequency Drive (VFD) |
| Series | PowerFlex 40 |
| Input Voltage | 200–240V AC, three-phase input |
| Output Voltage | Three-phase output (0–input voltage level) |
| Rated Power | Approx. 0.75 kW (1.0 HP) |
| Rated Current | Approx. 5.0 A |
| Control Method | V/f control (Voltage/Frequency) |
| Frequency Range | 0–400 Hz |
| Overload Capacity | Standard industrial overload protection |
| Cooling Method | Forced air cooling |
| Protection Level | IP20 (panel installation) |
| Communication | Basic serial communication support |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Installation Type | Cabinet / panel mounting |
| EMC Design | Industrial environment compliance |
| Dimensions (H × W × D) | 160 × 90 × 140 mm |
| Weight | 1.0 kg |
5. Product Applications
The 22B-B5P0N104 is widely used in industrial automation environments requiring stable motor control under moderate load conditions, including:
- Conveyor belt systems in production lines
- Industrial pump and fluid handling systems
- HVAC ventilation and air circulation systems
- Packaging and labeling machinery
- Textile processing equipment
- Light manufacturing automation systems
- Warehouse material transport systems
- General industrial retrofit upgrades
It is suitable for applications requiring consistent speed control and energy-efficient operation under variable load conditions.
6. Product Advantages
The main advantages of the 22B-B5P0N104 include:
- Compact structure suitable for dense control cabinet layouts
- Simple parameter configuration for fast commissioning and replacement
- Stable motor operation with smooth acceleration and deceleration performance
- Energy-efficient operation in variable load conditions
- Built-in protection functions including overload, overvoltage, and undervoltage protection
- Reliable solid-state design with low maintenance requirements
- Strong compatibility with standard industrial induction motors
- Suitable for OEM equipment integration and system modernization projects
7. Same Series or Closely Related Models (PowerFlex 40 Series)
| Model | Rated Power | Input Voltage | Rated Current | Frame Size | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 22B-A5P0N104 | 0.75 kW | 200–240V 1-phase | 5.0 A | A | 152 × 80 × 135 | 0.75 |
| 22B-A8P0N104 | 1.5 kW | 200–240V 1-phase | 8.0 A | A | 152 × 80 × 135 | 0.85 |
| 22B-B5P0N104 | 0.75 kW | 200–240V 3-phase | 5.0 A | B | 160 × 90 × 140 | 1.0 |
| 22B-B8P0N104 | 1.5 kW | 200–240V 3-phase | 8.0 A | B | 160 × 90 × 140 | 1.1 |
| 22B-B4P0N104 | 0.75 kW | 200–240V 3-phase | 4.0 A | B | 160 × 90 × 140 | 0.95 |
These models share the same control structure and programming logic, with differences mainly in input phase type, current rating, and frame size configuration.
8. Popular Models from Same Manufacturer (Across Drive Families)
| Model | Series | Rated Power | Input Voltage | Key Feature | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 22A-B5P0N104 | PowerFlex 4 | 0.75 kW | 200–240V 3-phase | Compact basic industrial drive | 150 × 70 × 130 | 0.65 |
| 22B-D5P0N104 | PowerFlex 40 | 0.75 kW | 200–240V | General-purpose VFD platform | 160 × 90 × 140 | 0.85 |
| 25B-D017N114 | PowerFlex 525 | 1.5 HP class | 200–240V 3-phase | Advanced communication and control | 170 × 95 × 150 | 1.3 |
| 20G11NC105JA0NNNNN | PowerFlex 755 | Medium-high power | 400V class | High-performance motion control | 250 × 180 × 220 | 3.6 |
| 20F1A-N-D-3P0-A0NNNNN | PowerFlex 753 | Medium power | 400V class | Modular scalable drive system | 240 × 170 × 210 | 3.1 |
9. Summary
The 22B-B5P0N104 is a reliable and compact AC drive designed for general industrial motor control applications. It provides stable performance, simple configuration, and efficient energy operation in a wide range of automation systems.
As part of the PowerFlex 40 platform, it maintains consistent control behavior across different power ratings, making it suitable for standardized machine design and long-term industrial use.
