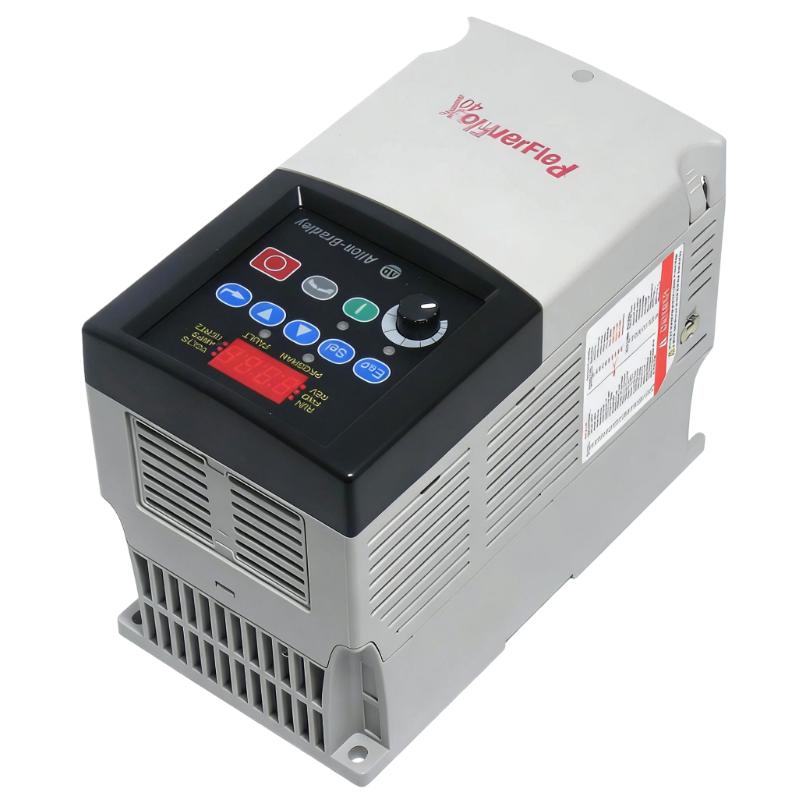

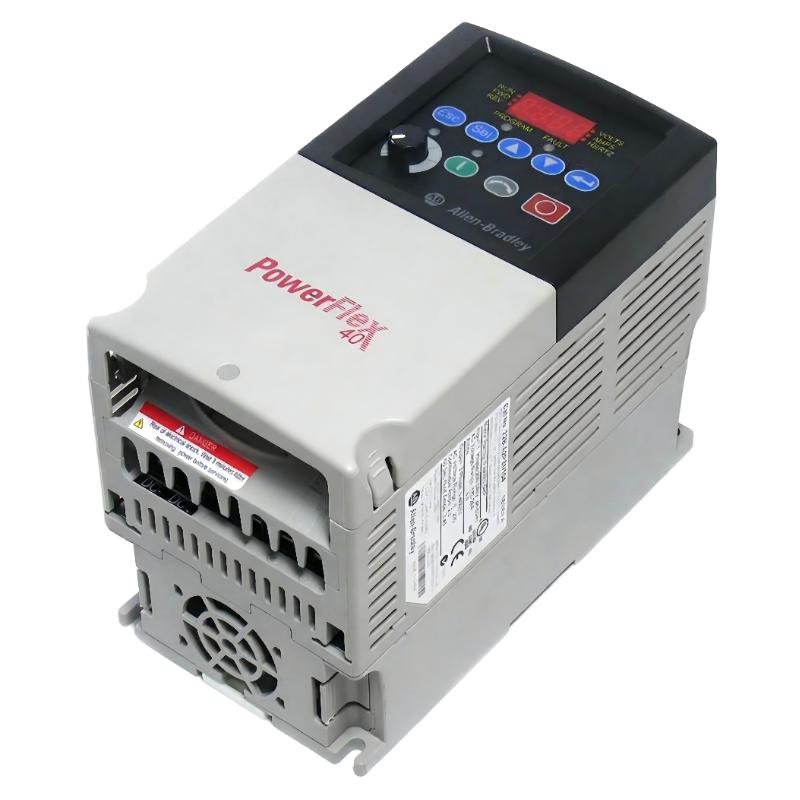

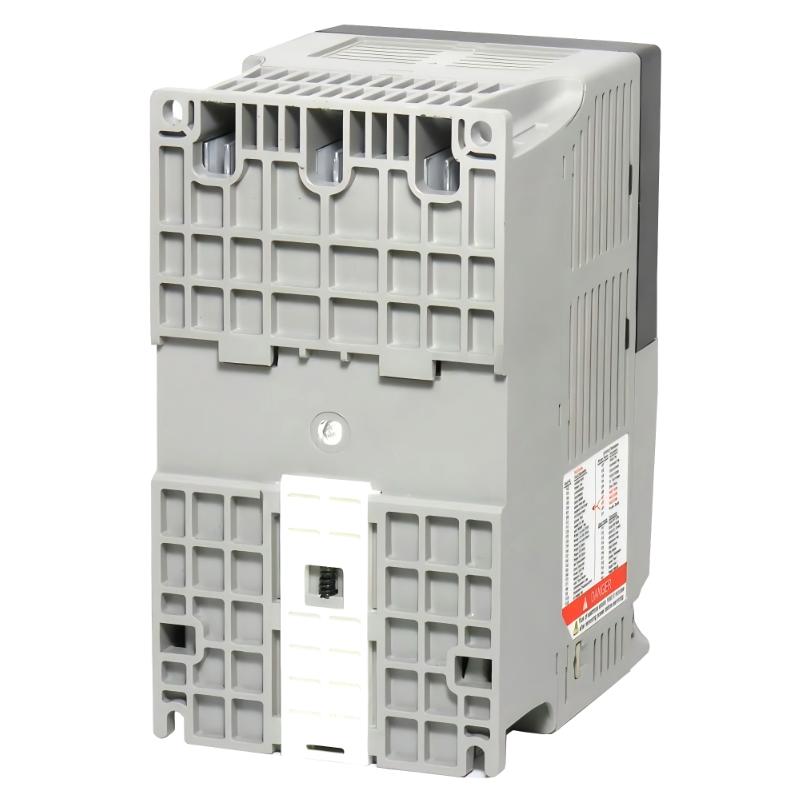

Industrial AC Drive Product Overview – Model 22B-A2P3N104
1. Product Introduction
The model 22B-A2P3N104 is a compact low-voltage AC variable frequency drive designed for controlling the speed and torque of three-phase induction motors. It belongs to a widely used industrial drive platform known for compact design, ease of integration, and reliable motor control performance.
This unit is typically applied in small to medium industrial automation systems where precise motor speed regulation is required, such as conveyor systems, pumps, fans, packaging equipment, and light manufacturing machinery.
It supports basic parameter programming, simple installation, and fast commissioning, making it suitable for both OEM applications and retrofit projects.
2. Brand Information
Brand: Allen-Bradley
This brand is globally recognized in industrial automation and control systems, offering a broad portfolio of PLCs, motor drives, sensors, and industrial control components.
3. Product Series
Series: PowerFlex 40 Series
The PowerFlex 40 series is designed as a cost-effective compact drive platform focused on simplicity, reliability, and flexible motor control for general-purpose applications.
4. Key Technical Parameters
Main Specification Table
| Parameter | Specification |
|---|---|
| Model | 22B-A2P3N104 |
| Drive Type | AC Variable Frequency Drive (VFD) |
| Series | PowerFlex 40 |
| Input Voltage | 200–240V AC, single-phase |
| Output Voltage | 3-phase, 0–input voltage level |
| Rated Output Current | Approx. 2.3 A |
| Rated Power | Approx. 0.37 kW (0.5 HP) |
| Control Method | V/Hz control |
| Frequency Range | 0–400 Hz |
| Enclosure Rating | IP20 (panel-mounted) |
| Cooling Method | Forced air cooling |
| Installation Type | Panel mounting |
| Communication | Basic serial communication (depending on module) |
| Protection Functions | Overcurrent, overvoltage, undervoltage, overload, overheating |
| Operating Temperature | -10°C to +50°C |
| Dimensions (H × W × D) | Approx. 152 × 80 × 135 mm |
| Weight | Approx. 0.7 kg |
5. Product Applications
This model is widely used in general industrial automation environments, including:
- Conveyor belt systems
- Small pumps and water supply systems
- HVAC fan control systems
- Packaging machinery
- Textile production equipment
- Light-duty manufacturing machines
- Material handling systems
It is especially suitable for applications that require stable speed control rather than high dynamic performance.
6. Product Advantages
The 22B-A2P3N104 offers several practical advantages:
- Compact structure suitable for tight control cabinets
- Simple parameter setup for fast commissioning
- Stable and reliable motor speed regulation
- Cost-effective solution for general-purpose applications
- Built-in protection functions to improve system safety
- Low maintenance requirements
- Compatible with standard industrial motors
- Suitable for both OEM integration and retrofit projects
7. Same Series or Related Models (PowerFlex 40 Series)
| Model | Rated Power | Input Voltage | Output Current | Frame Size | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 22B-A1P5N104 | 0.2 kW | 200–240V 1-phase | ~1.5 A | A | 152 × 80 × 135 | 0.65 |
| 22B-A2P3N104 | 0.37 kW | 200–240V 1-phase | ~2.3 A | A | 152 × 80 × 135 | 0.7 |
| 22B-A4P5N104 | 0.75 kW | 200–240V 1-phase | ~4.5 A | A | 152 × 80 × 135 | 0.75 |
| 22B-B1P5N104 | 0.2 kW | 200–240V 3-phase | ~1.5 A | B | 160 × 90 × 140 | 0.9 |
| 22B-B2P3N104 | 0.37 kW | 200–240V 3-phase | ~2.3 A | B | 160 × 90 × 140 | 0.95 |
These models differ mainly in input phase type, output power level, and frame size, while maintaining the same control platform and programming structure.
8. Same Brand Popular Models (Across Drive Families)
| Model | Series | Rated Power | Input Voltage | Key Feature | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 22A-B2P3N104 | PowerFlex 4 | 0.37 kW | 200–240V 1-phase | Ultra-compact drive | 150 × 70 × 130 | 0.6 |
| 22B-D4P0N104 | PowerFlex 40 | 0.75 kW | 200–240V 1/3-phase | General-purpose control | 160 × 90 × 140 | 0.8 |
| 25B-D013N114 | PowerFlex 525 | 1.0 HP | 200–240V 3-phase | Advanced control & Ethernet | 170 × 95 × 150 | 1.2 |
| 20G11NC072JA0NNNNN | PowerFlex 755 | High power class | 400V class | High-performance industrial control | 250 × 180 × 220 | 3.5 |
| 20F1A-N-D-2P3-A0NNNNN | PowerFlex 753 | Medium-high power | 400V class | Modular architecture design | 240 × 170 × 210 | 3.0 |
9. Summary
The 22B-A2P3N104 is a compact, entry-level industrial AC drive designed for reliable motor speed control in general automation environments. Its balance of size, simplicity, and functionality makes it a widely used solution in light industrial applications.
The PowerFlex 40 series it belongs to provides a consistent control platform, making it easy to scale across different power levels without changing system design logic.
