Product Overview

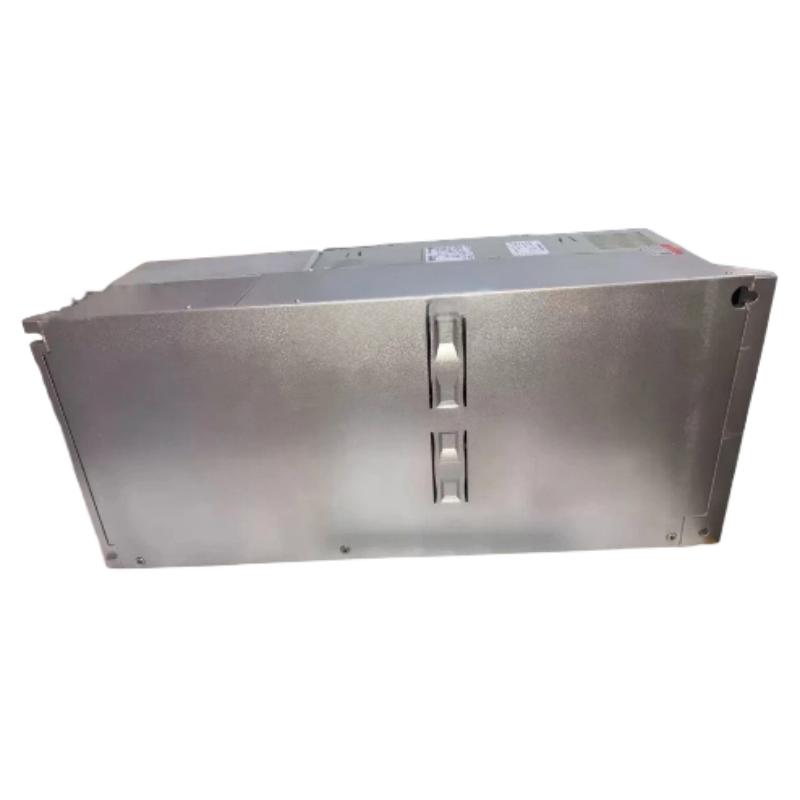

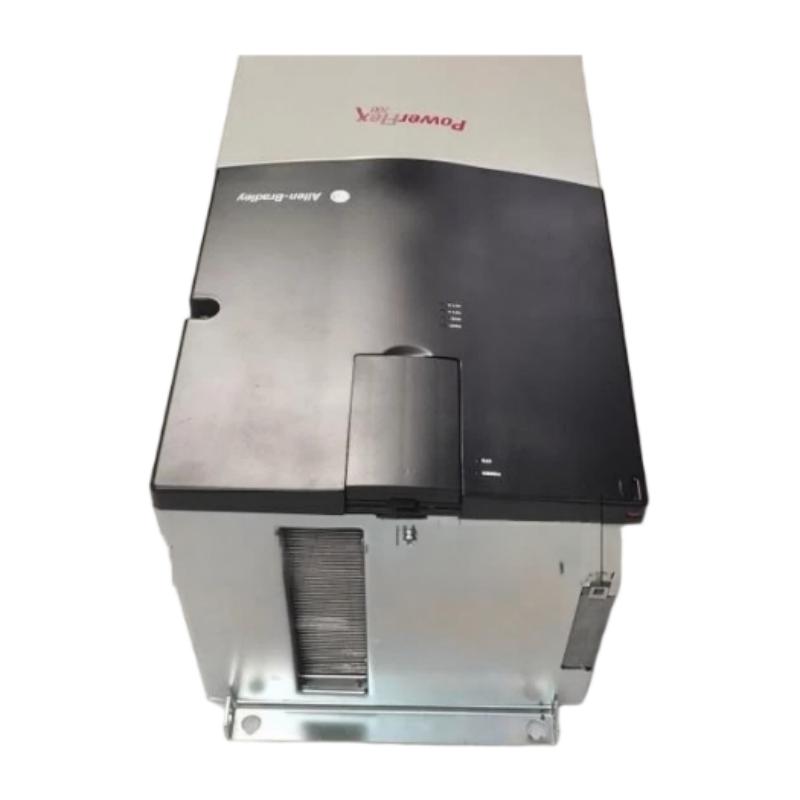

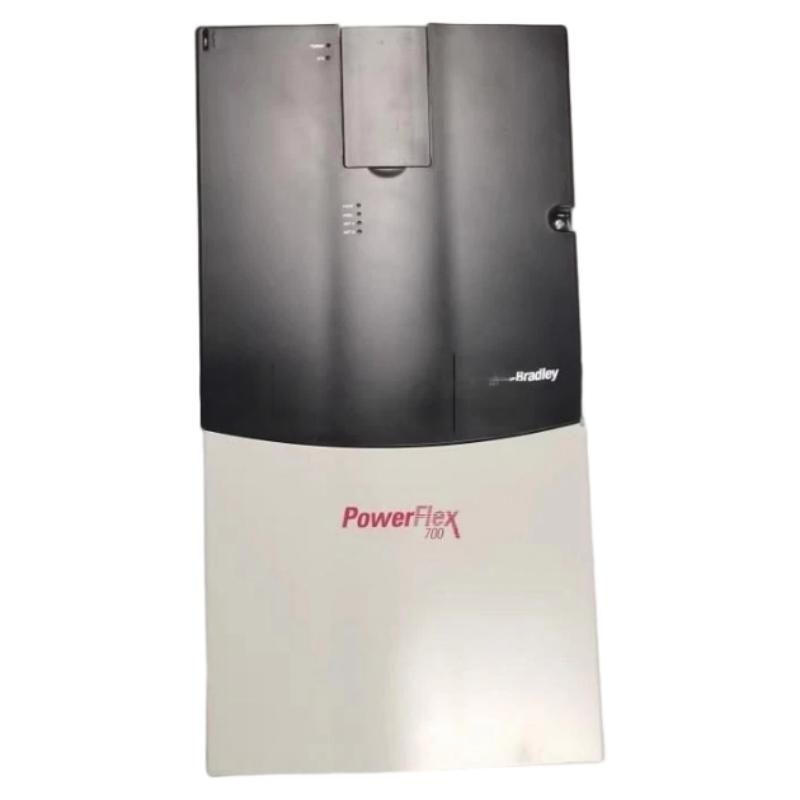

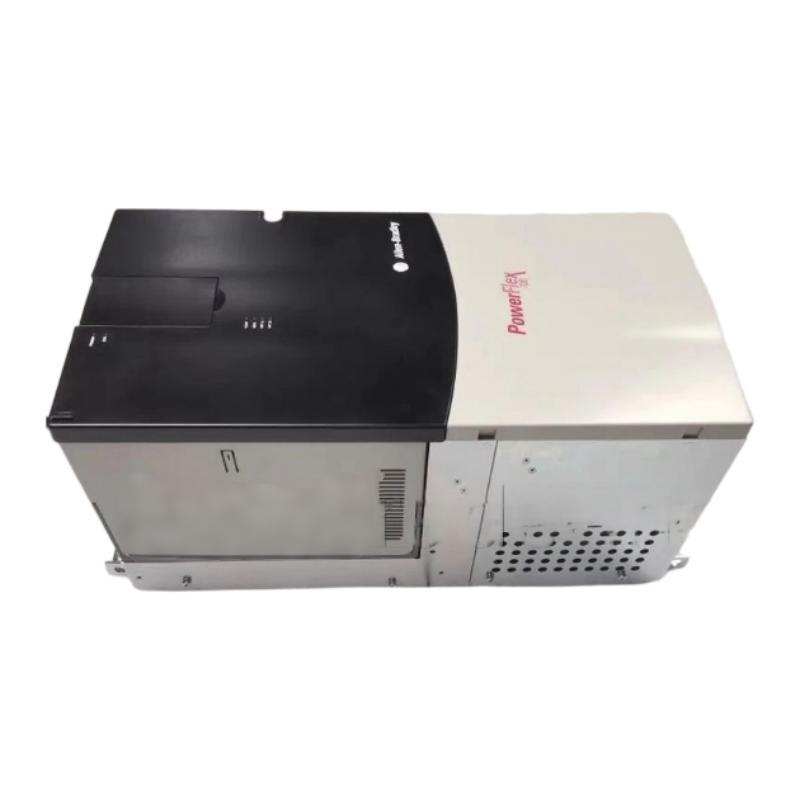

The Allen-Bradley 20BC125A0AYNANC0 PowerFlex 700 AC Drive is a high-capacity industrial variable frequency drive designed to control the speed and operation of compatible three-phase AC motors. Manufactured by Rockwell Automation under the Allen-Bradley brand, this drive is intended for industrial systems that require reliable motor control, adjustable operating speeds, and integration with automated production equipment.

As part of the PowerFlex 700 family, the 20BC125A0AYNANC0 provides variable-speed control for applications involving pumps, fans, conveyors, and other motor-driven machinery. By regulating the frequency and voltage supplied to the motor, the drive allows equipment to respond to changing process requirements without relying exclusively on fixed-speed operation.

This model is rated for a nominal 400 V AC three-phase supply and provides a continuous output current of 125 A. Its documented power ratings are 55 kW under normal-duty conditions and 45 kW under heavy-duty conditions. These ratings make it suitable for appropriately sized industrial motors when the electrical supply, load profile, and application requirements match the drive’s specifications.

The 20BC125A0AYNANC0 configuration includes vector control with 24 V DC I/O, conformal coating, an installed braking IGBT, and an EMC filter with a common-mode choke. It does not include an installed human interface module (HIM), an internal braking resistor, an internal communication module, or a feedback option.

These configuration details are important when purchasing replacement equipment or maintaining an existing installation. A drive with the same power rating may have different control functions, braking hardware, communication interfaces, or environmental features.

The PowerFlex 700 20B series was discontinued on November 30, 2023. Consequently, this model is primarily relevant to existing installations, industrial spare-parts procurement, repair projects, and carefully assessed replacement applications.

Technical Specifications

Dimensions and weight are the supplied listing values. Confirm the exact frame, mounting configuration, dimensional drawing, and shipping weight before finalizing installation or logistics arrangements.

Function and Working Principle

The PowerFlex 700 AC drive regulates the electrical power supplied to a connected AC motor. It converts the incoming AC supply through an internal power-conversion stage and produces a controlled output that allows the motor to operate at the required speed and torque.

1. Variable-Frequency Motor Control

Motor speed is related to the frequency of the electrical supply and the motor’s design. By changing the output frequency, the drive can adjust motor speed to suit different operating conditions.

For example, a pump may need to operate at different speeds according to process demand, while a conveyor may require gradual acceleration when material enters the production line. The drive allows these adjustments to be coordinated with the wider control system.

The available speed range depends on motor characteristics, load conditions, drive parameters, and cooling requirements.

2. Vector Control

The 20BC125A0AYNANC0 uses vector control, which provides more advanced motor regulation than a basic frequency-only control approach.

When configured correctly, vector control can improve torque response and speed regulation under changing loads. This is useful in industrial applications where a motor must maintain stable operation during acceleration, deceleration, or variations in mechanical resistance.

Performance depends on correct motor data, commissioning, and the characteristics of the connected equipment. The absence of a feedback option in this configuration should also be considered when evaluating applications that require closed-loop feedback.

3. Acceleration and Deceleration Control

The drive allows acceleration and deceleration settings to be configured for the application. Appropriate ramp times can reduce sudden changes in motor speed and help limit mechanical stress on couplings, gearboxes, belts, and driven machinery.

For large or high-inertia loads, deceleration requires particular attention. Regenerated energy can increase the DC bus voltage during braking. Although this model includes a braking IGBT, it does not include an internal braking resistor. Engineers must therefore determine whether an approved external braking resistor or another braking method is required.

4. Motor Protection and Diagnostics

The PowerFlex 700 family provides protection and diagnostic functions designed to help detect abnormal electrical and thermal operating conditions.

Depending on the application and configured parameters, relevant conditions may include overcurrent, voltage abnormalities, overheating, and motor overload. Correct motor data and drive settings are necessary for appropriate protection.

The drive’s built-in functions do not replace correctly selected upstream circuit protection, grounding, electrical isolation, or machine safety systems.

5. Electromagnetic Compatibility

This configuration includes an EMC filter with a common-mode choke. These components help manage conducted electromagnetic interference when the drive is installed according to the manufacturer’s instructions.

Proper grounding, cable shielding, wiring separation, and cabinet design remain important. Actual EMC performance depends on the complete installation rather than the filter alone.

Role in Industrial Control Systems

The 20BC125A0AYNANC0 typically operates as part of an industrial motor-control architecture. It receives electrical power from the supply and delivers controlled power to the motor, while operating commands and process information are handled through the configured control system.

PLC Integration

A programmable logic controller can coordinate drive operation with sensors, actuators, interlocks, and other machinery. Depending on the installation, the PLC may issue start and stop commands, select speed references, and respond to drive status or fault conditions.

This model uses 24 V DC I/O but does not include an internal communication module. Engineers should confirm the available terminals and intended control method before planning PLC integration.

HMI and Operator Control

A human-machine interface can provide centralized monitoring and operator control. In many installations, the HMI communicates with the PLC, which manages drive commands and system interlocks.

The 20BC125A0AYNANC0 is supplied without an installed HIM. If local parameter access is required, confirm the appropriate interface and commissioning method for the installed drive configuration.

Process Coordination

The drive can support coordinated operation across multiple machines or process stages. For example, a PLC may adjust pump speed in response to a process signal or synchronize a conveyor with upstream and downstream equipment.

The effectiveness of this arrangement depends on appropriate drive selection, process logic, sensing, and commissioning.

Industrial Applications

The 20BC125A0AYNANC0 is designed for industrial motor-control applications requiring output current and power ratings compatible with its 125 A continuous output and documented normal-duty and heavy-duty ratings.

1. Industrial Pumping Systems

Large industrial pumping systems often experience changing flow and pressure requirements. A variable frequency drive can adjust motor speed to match process demand and may reduce unnecessary energy consumption in suitable applications.

Engineers should evaluate pump curves, minimum operating speed, fluid properties, motor current, and system pressure requirements before selecting the drive.

2. Fans and Ventilation Equipment

Industrial ventilation systems may require adjustable airflow according to temperature, occupancy, or process demand. Variable-speed operation can improve process control and reduce energy consumption where the fan load and operating conditions support it.

The installation must provide adequate cooling and environmental protection for the drive and associated electrical equipment.

3. Conveyor and Material-Handling Systems

Industrial conveyors require controlled acceleration, stable speed, and coordinated movement of materials. The drive can regulate compatible motors used in manufacturing lines, distribution systems, and material-handling equipment.

For high-inertia conveyors or applications involving frequent stops, the braking requirements and mechanical load characteristics must be evaluated carefully.

4. Process Machinery

Mixers, material-processing equipment, and other industrial machines may require adjustable motor speed to maintain production consistency. The drive can provide a configurable motor-control interface when its ratings and control functions match the application.

Applications with demanding torque requirements, rapid stopping, or specialized feedback requirements need a detailed engineering review.

5. Manufacturing and Production Lines

The drive may be used in automated production environments where motor speed must be coordinated with PLC logic and other equipment. It can form part of a larger control system that manages machine sequencing, process timing, and equipment status.

Its suitability depends on the actual motor rating, overload requirements, installation environment, and required control architecture.

Installation and System Integration

Correct installation is essential for safe operation, reliable motor performance, and equipment service life.

1. Verify Electrical Compatibility

Confirm that the incoming supply is appropriate for the drive’s 380–480 V AC voltage class and three-phase configuration. Check the motor nameplate, rated current, power, frequency, and operating duty.

Do not select a drive based only on kilowatt ratings. Output current, overload capability, load inertia, and starting requirements are also important.

2. Confirm Mounting Dimensions and Clearance

The supplied dimensions are 689.6 × 308.9 × 275.4 mm. These values should be verified against the exact unit and its manufacturer drawing before designing a control cabinet or replacement mounting arrangement.

The mounting configuration may affect overall height and depth. Allow adequate space for cooling airflow, power wiring, control wiring, inspection, and maintenance.

The IP20 / NEMA Type 1 enclosure classification does not indicate a sealed, water-resistant enclosure. Where dust, moisture, or corrosive contaminants are present, install the drive in an appropriately rated cabinet and follow the environmental requirements.

3. Power Wiring and Grounding

Use conductors and protective devices selected according to the drive’s installation instructions, motor current, local electrical codes, and system fault-current requirements.

Keep power and sensitive control wiring appropriately separated. Follow the manufacturer’s grounding and shielding recommendations to help manage electrical interference.

Before installation or maintenance, isolate the supply, follow lockout procedures, and verify that hazardous voltage has been removed.

4. Parameter Configuration

Configure the motor nameplate data, control method, speed references, command sources, acceleration and deceleration times, and protection settings.

For vector-control operation, follow the applicable motor setup and tuning procedures. Incorrect settings can lead to poor speed regulation, reduced torque performance, or nuisance faults.

5. Braking-System Assessment

The drive includes a braking IGBT but has no internal braking resistor. The IGBT is part of the braking circuit; it does not itself dissipate all regenerated energy.

Applications involving high inertia, frequent deceleration, or rapid stopping may require an external braking resistor or another approved braking arrangement. Confirm resistor sizing, duty cycle, wiring, and protection requirements before commissioning.

6. Commissioning and Functional Testing

Before returning the system to service, inspect the electrical connections, grounding, cooling arrangements, and motor wiring.

Test start and stop commands, direction, speed references, acceleration and deceleration, process interlocks, and fault responses. Record the final parameters and retain the configuration information for future maintenance or replacement.

Compatible System Components

The 20BC125A0AYNANC0 can be incorporated into an appropriately engineered motor-control system. Component compatibility must be evaluated according to the electrical ratings and control requirements of the complete installation.

These are typical system components, not a list of accessories supplied with the drive. Confirm the actual bill of materials before procurement.

Alternative Models and Replacement Considerations

The PowerFlex 700 20B series is discontinued. For maintenance and replacement projects, the original configuration should be documented before selecting another drive.

Before approving a replacement, compare the following:

• Input voltage and phase configuration.
• Continuous output current and overload capacity.
• Normal-duty and heavy-duty motor ratings.
• Control method and speed-regulation requirements.
• I/O voltage, terminal assignments, and command sources.
• Communication and feedback requirements.
• Braking IGBT and braking-resistor arrangements.
• EMC filtering and environmental protection.
• Mounting dimensions, cooling, and cable access.
• PLC logic, parameter settings, and commissioning procedures.

A replacement drive with a similar power rating is not necessarily a direct substitute. Changes to electrical connections, braking hardware, control interfaces, and software configuration may require engineering modifications.

Key Advantages

High-Current Motor Control

The 125 A continuous output rating supports compatible industrial motors within the drive’s published electrical and duty limits.

Vector-Control Capability

The specified vector-control configuration supports advanced motor regulation when correctly configured for the motor and application.

Adjustable Operating Speed

Variable-frequency operation allows machinery to respond to changing production requirements rather than operating at a single fixed speed.

Integrated Braking IGBT

The installed braking IGBT supports a braking-circuit arrangement, although external braking hardware may still be required.

EMC Filtering

The EMC filter and common-mode choke help manage electromagnetic interference when the complete installation follows the applicable wiring and grounding practices.

Conformal Coating

The specified conformal coating provides additional protection for electronic assemblies under suitable environmental conditions. It does not make the drive suitable for unrestricted exposure to water or corrosive substances.

Suitable for Legacy Equipment Support

The PowerFlex 700 remains relevant to maintenance and retrofit work involving existing installations. Accurate catalog identification can help reduce the risk of sourcing an incompatible replacement.

Technical FAQs

1. What is the Allen-Bradley 20BC125A0AYNANC0?

It is a PowerFlex 700 variable frequency drive designed for industrial motor control. It has a nominal 400 V AC three-phase input, 125 A continuous output, and a 55 kW normal-duty rating.

2. What is its heavy-duty power rating?

The documented heavy-duty power rating is 45 kW. The appropriate rating depends on the connected motor, load profile, and required overload performance.

3. What input voltage does this drive use?

It belongs to the 380–480 V AC drive class, with a nominal 400 V AC supply rating. Verify the unit’s nameplate and installation documentation before connection.

4. Does the model include a braking resistor?

No. It has a braking IGBT installed but does not include an internal braking resistor. The application may require an external resistor or another braking solution.

5. Does it have an internal communication module?

No internal communication module is included in this catalog configuration. Confirm the intended PLC interface and any required communication hardware before installation.

6. Can it work with a PLC?

Yes. It can be integrated into a suitable PLC-based control system using its available 24 V DC I/O or another properly engineered control arrangement. The exact wiring and control method must be verified.

7. Is the PowerFlex 700 20B series still in production?

No. The series was discontinued on November 30, 2023. Availability of the specific catalog number depends on remaining inventory and the industrial spare-parts market.

8. Can it replace another PowerFlex 700 drive?

Not automatically. Models within the family can differ in voltage, output current, control configuration, communication options, braking hardware, and feedback capability. Compare the full catalog number before substitution.

9. What should buyers check before purchasing a used unit?

Verify the complete catalog number, series, nameplate ratings, physical condition, terminals, cooling components, available test results, and included accessories. For critical applications, request appropriate functional testing and confirm warranty and return conditions.

10. How should the listed dimensions and weight be verified?

Compare the supplied dimensions of 689.6 × 308.9 × 275.4 mm and weight of 37.19 kg with the actual drive, mounting hardware, and manufacturer dimensional drawing. Distinguish unit weight from packaged shipping weight when preparing logistics documentation.

Procurement and Maintenance Recommendations

Because the PowerFlex 700 20B series has been discontinued, procurement should begin with the complete catalog number and the configuration of the existing installation.

When sourcing the 20BC125A0AYNANC0, confirm the 400 V AC voltage class, 125 A continuous output, normal-duty and heavy-duty ratings, vector control, 24 V I/O, conformal coating, EMC filtering, and braking configuration.

For new-old-stock, used, or refurbished equipment, request clear photographs of the nameplate and terminals, confirm the unit’s condition, and ask for available test information. Verify whether accessories are included and establish the applicable warranty and return terms.

For maintenance, keep cooling paths clear, inspect terminals and grounding connections, and follow the manufacturer’s maintenance guidance. Preserve drive parameters and record changes made during troubleshooting or commissioning.

When planning a replacement, evaluate whether the existing motor, PLC program, control wiring, braking circuit, and mounting arrangement can be retained. A newer drive may require engineering changes, parameter conversion, wiring modifications, or recommissioning.

Conclusion

The Allen-Bradley 20BC125A0AYNANC0 PowerFlex 700 AC Drive is a high-current industrial variable frequency drive rated for 400 V AC three-phase operation, 125 A continuous output, 55 kW normal-duty operation, and 45 kW heavy-duty operation. Its specified configuration includes vector control with 24 V DC I/O, conformal coating, an installed braking IGBT, and EMC filtering.

The model does not include an internal braking resistor, an installed HIM, or an internal communication module. Since the PowerFlex 700 20B series has been discontinued, careful catalog-number verification, condition assessment, and compatibility review are essential when sourcing the drive for industrial maintenance or replacement projects.
