Product Overview

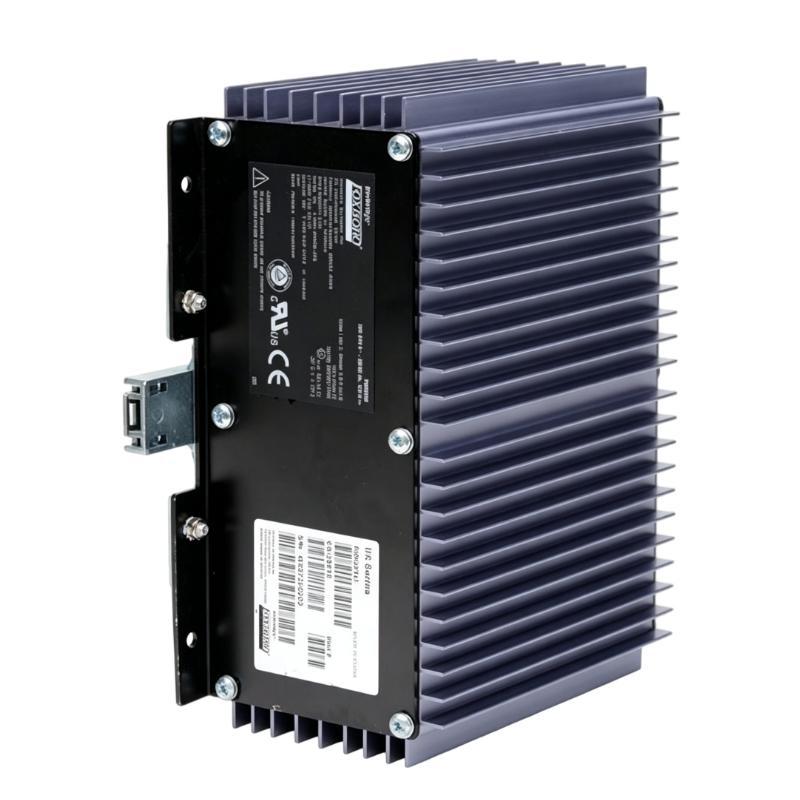

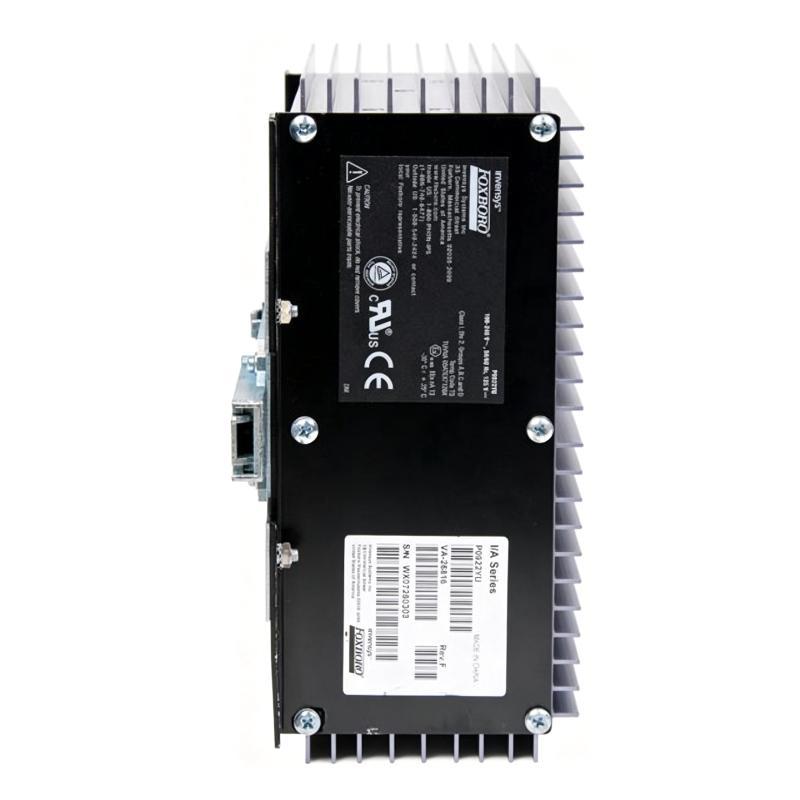

The Foxboro FPS400-24 P0922YU DIN Rail Mount Power Supply is an industrial power supply designed to provide regulated 24 V DC power to compatible Foxboro I/A Series and 200 Series distributed control system (DCS) equipment. It is used in industrial automation cabinets where stable DC power is required for control-system baseplates and associated electronic modules.

Manufactured for industrial process-control applications, the FPS400-24 combines a wide-range AC/DC input design with a regulated DC output. Its 400 W power rating makes it suitable for supplying compatible control-system equipment when the total load remains within the specified electrical limits.

The P0922YU version accepts an AC input range of 85–265 V AC or a DC input range of 108–145 V DC. Its factory-set output is 24 V DC, and its rated output power is 400 W. The unit is designed for DIN rail mounting and uses convection cooling, eliminating the need for an internal cooling fan.

In a DCS installation, reliable power is essential because controllers, fieldbus modules, communication equipment, and associated electronics depend on a stable supply. The FPS400-24 provides a dedicated power source for compatible Foxboro system components, helping maintain normal operation when the supply, installation, and connected load are properly designed.

The P0922YU model should not be confused with the P0922YC version. Although both belong to the FPS400-24 family, the P0922YU accepts a wide range of AC or higher-voltage DC input, whereas the P0922YC is designed for a 24 V DC input. Confirming the complete part number is therefore essential when selecting a replacement.

Technical Specifications

The dimensions above follow the supplied product listing. Confirm the unit’s dimensional drawing, input configuration, and required mounting accessories before installation.

Function and Working Principle

The FPS400-24 converts incoming AC or DC electrical power into a regulated 24 V DC output. Its internal power-conversion circuitry is designed to maintain the required output voltage as the input supply and connected load vary within the specified operating range.

1. AC/DC Input Conversion

The P0922YU accepts a wide range of AC input voltages and a specified range of higher-voltage DC inputs. This flexibility supports installations with different electrical supply arrangements.

For AC operation, the supported input frequency range is 47–63 Hz. Before energizing the unit, technicians should verify the available supply voltage, frequency, polarity where applicable, and wiring arrangement against the manufacturer’s instructions.

2. Regulated 24 V DC Output

The power supply provides a factory-set output of 24 V DC. This output is used to power compatible control-system baseplates and associated electronic equipment.

Stable output voltage is important because fluctuations can affect electronic modules, communication interfaces, and control-system availability. The connected load must remain within the power supply’s current and power limits to maintain reliable operation.

At the rated 400 W output, the theoretical output current at 24 V DC is approximately 16.7 A. Actual system loading must account for module consumption, connected accessories, environmental conditions, and any applicable derating requirements.

3. Current Limiting and Overload Protection

The FPS400-24 includes current-limiting behavior designed to protect the power supply when the connected load exceeds the permitted level. Under specified overload conditions, the output voltage decreases as the unit limits the delivered current.

When the overload is removed, normal output operation can resume according to the manufacturer’s specifications.

Current limiting should not be treated as a substitute for correct system sizing. Engineers should calculate the combined power requirements of all connected modules and field devices before commissioning.

4. Overvoltage Protection

The power supply incorporates an overvoltage shutdown function. This protection is intended to prevent abnormal output voltage from continuing to be supplied to connected equipment.

If an overvoltage shutdown occurs, the cause should be investigated before the supply is restarted. Follow the manufacturer’s reset procedure and verify that the fault condition has been eliminated.

5. Status Indication

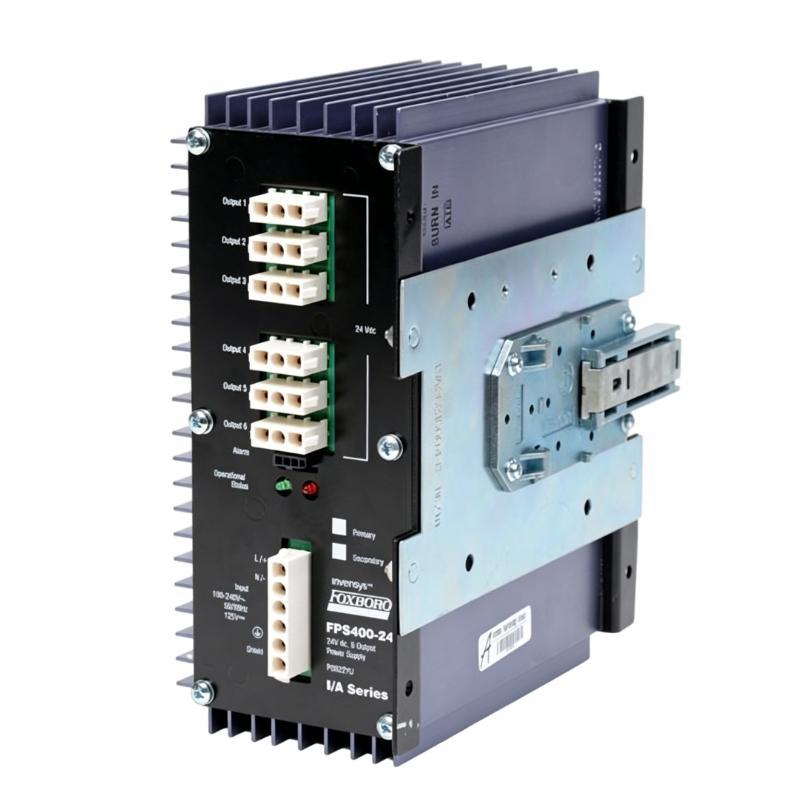

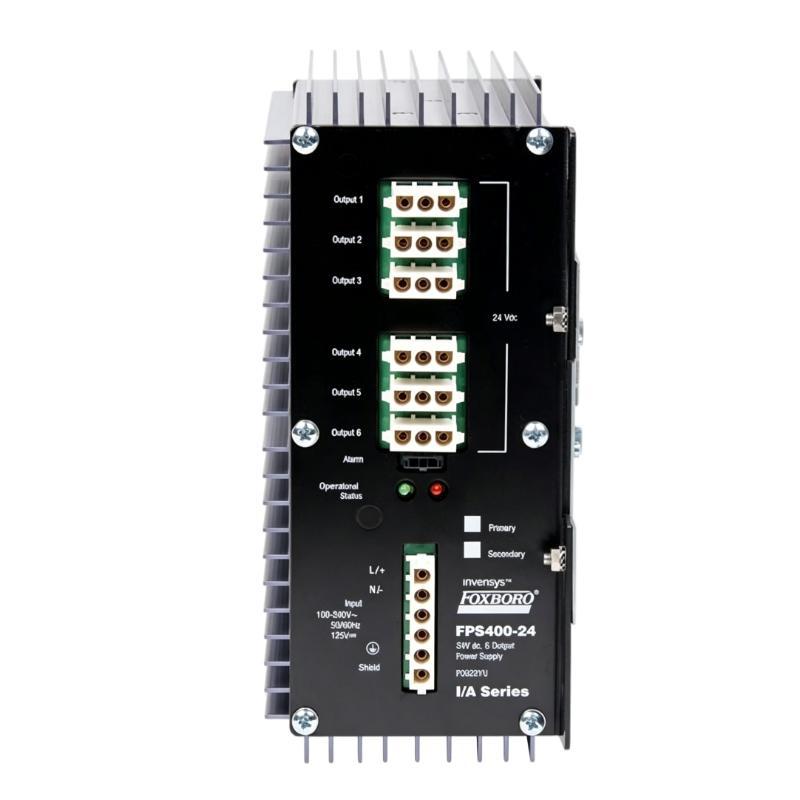

The unit uses front-panel LED indicators to provide basic output-status information. The green LED indicates that the output is within its specified operating range, while the red LED indicates an output undervoltage condition.

These indicators help technicians perform initial troubleshooting, but they do not replace electrical measurements or a systematic investigation of the connected load and input supply.

Role in Foxboro DCS Architecture

The FPS400-24 is a power component rather than a controller or signal-processing module. Its role is to provide DC power to compatible Foxboro control-system hardware.

Powering System Baseplates

Foxboro DCS installations use baseplates and electronic modules to perform process monitoring, signal acquisition, control, and communication. The FPS400-24 supplies power to compatible standard 200 Series baseplates and approved configurations.

The number and type of modules supported depend on their individual power consumption and the applicable system design. A 400 W rating does not automatically mean that every possible baseplate configuration can be powered by one supply.

Supporting Fieldbus Modules

Fieldbus modules perform functions such as acquiring process signals, interfacing with field devices, and exchanging information with the wider control system. Their power requirements must be included in the power-budget calculation.

A correctly selected supply helps provide the electrical conditions required for these modules to operate within their specifications.

Supporting Control-System Availability

An unstable power supply can cause module resets, communication interruptions, or unexpected control-system behavior. A properly sized and maintained FPS400-24 can help reduce power-related disruptions in compatible installations.

For applications requiring redundant power, engineers must verify the complete redundancy architecture and the approved hardware arrangement. The presence of one FPS400-24 does not by itself establish a redundant power configuration.

Industrial Applications

1. Process Automation

Chemical processing, refining, and other continuous-process facilities use DCS platforms to monitor process variables and coordinate control operations. The FPS400-24 can provide DC power to compatible Foxboro system hardware used in these installations.

2. Oil and Gas Facilities

Oil and gas facilities often contain distributed control cabinets that operate under demanding environmental and availability requirements. The power supply can support compatible control-system baseplates where its input, output, and environmental ratings are appropriate.

3. Chemical and Petrochemical Plants

Chemical and petrochemical operations use electronic control equipment for process monitoring, equipment sequencing, and alarm handling. A properly sized 24 V DC power source helps supply the compatible DCS electronics used in these functions.

4. Power Generation

Power plants use industrial control systems to monitor equipment and manage process operations. The FPS400-24 may be used in compatible Foxboro DCS installations to supply the required DC power to control-system hardware.

5. Industrial Utility Systems

Water treatment, utility distribution, and other industrial infrastructure facilities may use DCS equipment for monitoring and control. The FPS400-24 can support compatible installations when the total electrical load and environmental conditions fall within its specifications.

Installation and System Integration

1. Verify the Input Supply

Confirm whether the installation uses AC or DC input. For the P0922YU version, the specified ranges are 85–265 V AC or 108–145 V DC.

The AC input frequency must remain within the specified 47–63 Hz range. Do not connect a 24 V DC input directly to the P0922YU simply because the output is 24 V DC; the P0922YC is the version designed for a 24 V DC input.

2. Install the DIN Rail Mounting Hardware

The FPS400-24 is designed for DIN rail installation. Confirm the mounting arrangement, rail compatibility, retaining hardware, and required clearances before fitting the unit into the cabinet.

The manufacturer’s instructions also describe panel mounting with the appropriate mounting hardware. Use the approved configuration for the installation rather than improvising mounting arrangements.

3. Provide Adequate Ventilation

The unit uses natural convection cooling rather than a fan. Air must be able to circulate around the power supply to remove the heat generated during operation.

Avoid blocking ventilation paths or installing heat-producing components too close to the unit. The surrounding cabinet temperature and installation clearances should meet the manufacturer’s requirements.

4. Calculate the Total Load

Before connecting the power supply to a DCS baseplate, determine the combined power consumption of the installed modules and connected equipment.

The load calculation should include:

• Fieldbus modules and communication modules.
• Baseplate power requirements.
• Approved external devices powered by the supply.
• Startup and operating load conditions.
• Applicable ambient-temperature derating.

Do not exceed the rated output power or current. If the calculated load is too high, review the power-distribution design and consider an appropriately approved alternative arrangement.

5. Connect the Output Correctly

Follow the terminal assignments and wiring instructions for the exact unit. Verify output polarity, conductor sizing, terminal tightness, and grounding requirements before applying power.

Incorrect wiring may damage the power supply or connected electronics. Electrical work should be performed by qualified personnel following applicable safety procedures.

6. Commission the Power Supply

After installation, energize the unit under controlled conditions and check the status indicators. Measure the output voltage where appropriate and verify that it remains within the specified range under the expected load.

If the red undervoltage indicator appears or the output voltage drops, investigate input conditions, wiring resistance, overload, and connected equipment before returning the system to normal service.

Compatible System Components

Not all listed components are included with the FPS400-24. Check the required accessories and the exact Foxboro system configuration before ordering.

Alternative Models and Replacement Considerations

When maintaining an existing Foxboro installation, the replacement must match the input supply, output requirements, mounting arrangement, and connected system hardware.

Before selecting an alternative, verify the following:

• AC or DC input type and permitted voltage range.
• Output voltage, current, and power rating.
• Connected baseplate and module compatibility.
• Required mounting hardware and cable assemblies.
• Operating temperature and ventilation requirements.
• Protection and status-indication functions.
• Redundancy requirements, if applicable.
• Applicable industrial certification and environmental requirements.

A generic 24 V DC power supply should not be assumed to be a direct replacement for a Foxboro-qualified unit. System compatibility and electrical performance must be assessed before installation.

Key Advantages

Wide-Range Input

The P0922YU accepts a broad AC input range and a specified higher-voltage DC input range, allowing it to support different industrial power arrangements.

Regulated 24 V DC Output

Its 24 V DC output supplies compatible control-system electronics when the total load remains within the rated capacity.

400 W Power Capacity

The rated output capacity supports suitably configured Foxboro DCS baseplates and associated equipment.

DIN Rail Mounting

DIN rail installation supports organized cabinet layouts and simplifies mechanical integration into compatible industrial control panels.

Fanless Convection Cooling

Natural convection eliminates the need for an internal cooling fan. Adequate clearance and cabinet ventilation remain essential.

Status LEDs

The output-status indicators assist maintenance personnel with initial checks and troubleshooting.

Industrial System Compatibility

The FPS400-24 is designed for compatible Foxboro 200 Series control-system hardware, making correct model identification important for maintenance and spare-parts procurement.

Technical FAQs

1. What is the Foxboro FPS400-24 P0922YU?

It is a 400 W industrial power supply designed to provide regulated 24 V DC power to compatible Foxboro I/A Series and standard 200 Series control-system equipment.

2. What is the input voltage range?

The P0922YU accepts 85–265 V AC or 108–145 V DC. Its nominal input options are 120/240 V AC or 125 V DC.

3. What is the output voltage?

The factory-set output is 24 V DC.

4. What is the maximum rated output current?

At 400 W and 24 V DC, the corresponding rated current is approximately 16.7 A. Actual permissible loading must follow the manufacturer’s output ratings and derating requirements.

5. Is the FPS400-24 fan-cooled?

No. It uses natural convection cooling. Sufficient space must be provided around the unit to maintain airflow and remove heat.

6. What is the difference between P0922YU and P0922YC?

P0922YU accepts 85–265 V AC or 108–145 V DC input. P0922YC is designed for an 18–35 V DC input, with 24 V DC nominal. These input configurations are different and should not be interchanged without confirming the electrical design.

7. Can it power Foxboro FBMs?

It is designed for compatible Foxboro 200 Series baseplates and associated equipment, including supported FBM configurations. Confirm the exact baseplate and calculate the total connected load before installation.

8. Can it be installed vertically on a DIN rail?

The manufacturer specifies horizontal or vertical DIN rail mounting. A DIN rail clamp is required below the power supply for vertical mounting. Follow the specified mounting instructions.

9. What does the red LED indicate?

The red LED indicates an output undervoltage condition. Check the input supply, connected load, wiring, and power-distribution arrangement to identify the cause.

10. What should be checked before purchasing a replacement?

Confirm the complete part number, input type, input voltage range, 24 V DC output rating, physical condition, mounting hardware, and required cable assemblies. Also verify whether the unit is being supplied with the necessary accessories.

Procurement and Maintenance Recommendations

When sourcing the Foxboro FPS400-24 P0922YU, verify the complete part number rather than relying only on the FPS400-24 family designation. The input configuration is particularly important because the P0922YU and P0922YC versions use different input voltage ranges.

For replacement purchases, check the unit’s condition, terminal integrity, mounting hardware, and included cable assemblies. If the power supply is intended for a critical process-control application, request suitable functional-test information and confirm the supplier’s warranty and return conditions.

During routine maintenance, inspect wiring, terminal tightness, ventilation clearances, mounting hardware, and status indicators. Keep the surrounding cabinet clean and ensure that dust or other contaminants do not obstruct natural airflow.

If an undervoltage or overvoltage condition occurs, investigate the cause instead of repeatedly resetting the unit. Check the input supply, connected load, cable condition, and output wiring before returning the equipment to service.

For systems with strict availability requirements, evaluate whether the existing power architecture meets the plant’s redundancy and recovery requirements. Any modification to the power supply arrangement should be checked against the relevant Foxboro system documentation.

Conclusion

The Foxboro FPS400-24 P0922YU DIN Rail Mount Power Supply is a 400 W industrial power supply that provides regulated 24 V DC output for compatible Foxboro I/A Series and standard 200 Series control-system equipment. Its wide-range AC/DC input, DIN rail mounting, natural convection cooling, and status indicators make it suitable for appropriately designed industrial control cabinets.

Correct selection depends on verifying the input voltage range, output load, mounting arrangement, and compatibility with the installed baseplate and modules. For maintenance and replacement projects, checking the complete P0922YU part number and associated accessories helps ensure a suitable fit for the intended DCS installation.
