Industrial AC Drive Technical Profile

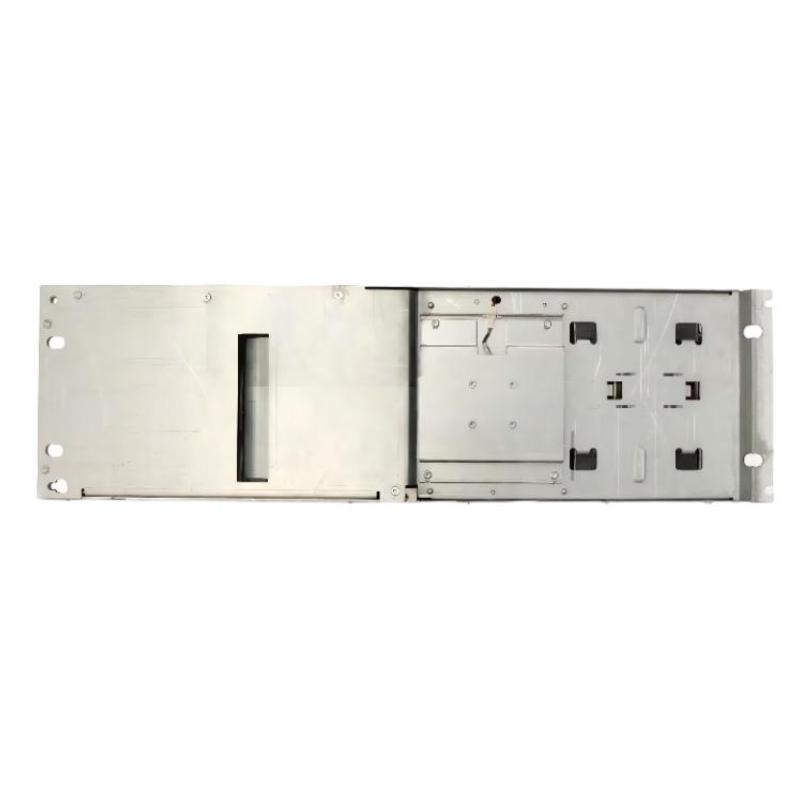

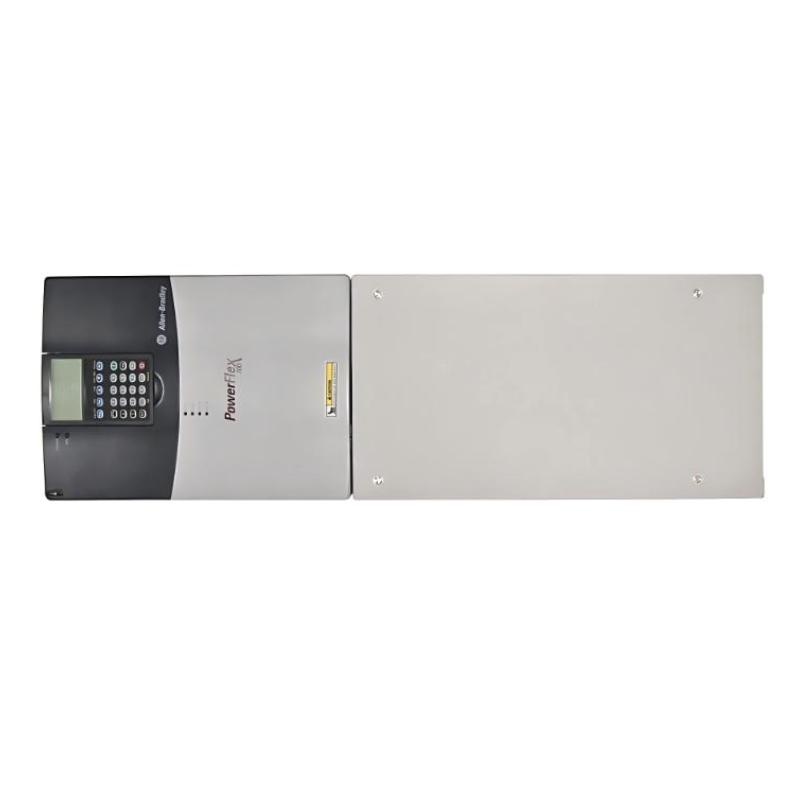

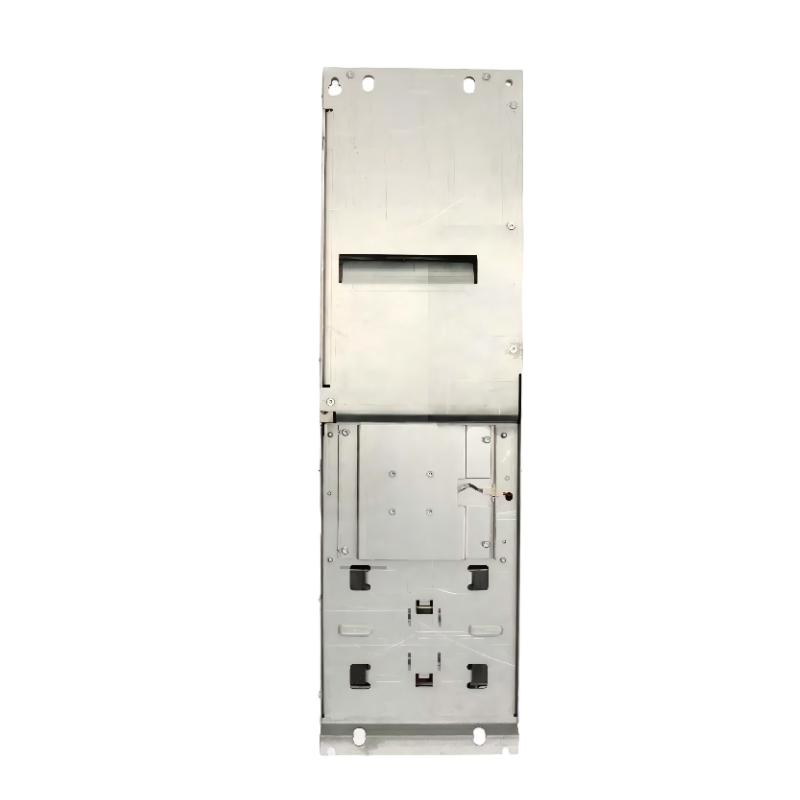

Model: 20BC085A0AYNANC0
1. Product Introduction
The model 20BC085A0AYNANC0 is a high-power industrial AC drive designed for demanding motor control applications requiring strong torque output, stable speed regulation, and long-term operational reliability.
It is used in three-phase induction motor systems where load conditions are variable and continuous operation is required. The drive is commonly installed in industrial control cabinets and integrated into automation systems such as heavy conveyors, large pumps, compressors, and processing machinery.
The design focuses on durability, energy efficiency, and system stability. It is engineered to perform reliably in harsh industrial environments where electrical fluctuations, mechanical stress, and long duty cycles are common.
2. Brand Information
| Item | Description |
|---|---|
| Brand | Industrial Automation Drive Manufacturer |
| Product Category | AC Variable Frequency Drive |
| Device Type | High-Power Motor Control System |
| Application Level | Industrial Automation Equipment |
| Installation Type | Panel Mounted Drive |
| Function | Motor Speed and Torque Regulation |
3. Product Series Overview
PowerFlex 700 Series
The PowerFlex 700 series is designed for industrial applications requiring higher power capacity and advanced motor control performance. It is widely used in heavy-duty environments where stable torque and precise speed control are essential.
Key features include:
- Sensorless vector control technology
- High torque output at low speed
- Strong overload capacity for industrial duty
- Modular communication expansion capability
- Advanced protection and diagnostic functions
- Stable performance under heavy load conditions
This series is commonly used in mining systems, water treatment plants, HVAC infrastructure, and heavy industrial production lines.
4. Technical Specifications of 20BC085A0AYNANC0
| Parameter | Specification |
|---|---|
| Model | 20BC085A0AYNANC0 |
| Series | PowerFlex 700 |
| Input Voltage | 480V AC |
| Phase | Three-phase |
| Rated Power | 75 HP / 55 kW |
| Output Current | 85A |
| Frequency Range | 0–400 Hz |
| Control Method | V/Hz + Sensorless Vector Control |
| Overload Capacity | Heavy Duty Industrial Grade |
| Cooling Method | Forced Air Cooling |
| Enclosure Type | IP20 Cabinet Mount |
| Communication Options | Optional Expansion Modules |
| Control Interface | Digital + Analog Inputs |
| Protection Functions | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity Range | 5%–95% non-condensing |
| EMC Compliance | Industrial Standard |
| Mounting Type | Panel Installation |
| Dimensions | 560 × 320 × 300 mm |
| Weight | 22.8 kg |
5. Structural Design Features
The internal architecture separates power and control circuits to reduce electromagnetic interference and improve operational stability.
The cooling system uses high-efficiency forced airflow design to ensure stable thermal performance during continuous high-load operation.
The enclosure is reinforced for industrial environments, providing resistance against vibration, dust, and electrical noise.
6. Functional Characteristics
6.1 Motor Control Performance
The drive ensures stable torque output and smooth speed transitions across a wide operating range, reducing mechanical stress on equipment.
6.2 Energy Efficiency
Motor speed is adjusted dynamically based on load demand, reducing unnecessary energy consumption and improving overall system efficiency.
6.3 Protection System
Multiple protection layers are integrated, including overload protection, voltage instability protection, and thermal monitoring functions.
6.4 System Integration
The drive supports flexible integration into automation systems through optional communication modules, enabling centralized monitoring and control.
6.5 Maintenance Efficiency
Built-in diagnostic functions allow fast fault detection, reducing downtime and improving maintenance efficiency.
7. Application Fields
7.1 Heavy Industrial Automation
Used in production lines requiring high-power motor control such as large conveyors, crushers, and material processing systems.
7.2 Water and Wastewater Systems
Applied in pumping stations, treatment plants, and pressure control systems requiring stable high-capacity flow regulation.
7.3 HVAC and Ventilation Systems
Used in large air handling units, industrial ventilation systems, and cooling infrastructure.
7.4 Mining and Material Handling
Suitable for heavy-duty conveyors, crushers, and transport systems requiring high torque output.
7.5 Industrial Processing Equipment
Used in mixers, extruders, compressors, and other high-load continuous-duty machinery.
8. Product Advantages
| Advantage | Description |
|---|---|
| High Power Stability | Maintains reliable performance under heavy load conditions |
| Strong Torque Output | Ensures stable operation in demanding applications |
| Energy Efficiency | Optimizes motor speed to reduce energy consumption |
| Industrial Reliability | Designed for continuous harsh-environment operation |
| Flexible Configuration | Supports modular expansion options |
| Compact Industrial Design | Optimized for cabinet installation |
| Strong Protection System | Built-in electrical and thermal safeguards |
| Easy Maintenance | Fast fault detection and diagnosis |
| Wide Application Range | Suitable for multiple heavy industries |
| Long Service Life | Durable components for extended operation |
9. Recommended Models (Same Series / Related Series)
| Model | Series | Power Rating | Voltage | Current | Dimensions | Weight |
|---|---|---|---|---|---|---|
| 20BC052A0AYNANC0 | PowerFlex 700 | 40 HP / 30 kW | 480V AC | 52A | 460 × 270 × 250 mm | 14.6 kg |
| 20BC065A0AYNANC0 | PowerFlex 700 | 50 HP / 37 kW | 480V AC | 65A | 500 × 300 × 260 mm | 16.8 kg |
| 20BC075A0AYNANC0 | PowerFlex 700 | 60 HP / 45 kW | 480V AC | 75A | 540 × 310 × 280 mm | 19.5 kg |
| 20BC100A0AYNANC0 | PowerFlex 700 | 100 HP / 75 kW | 480V AC | 100A | 620 × 360 × 320 mm | 28.0 kg |
| 20BD085A0AYNANC0 | PowerFlex 700 | 75 HP / 55 kW | 480V AC | 85A | 560 × 320 × 300 mm | 22.5 kg |
10. Recommended Popular Models (Same Brand)
| Model | Series | Power Rating | Voltage | Current | Dimensions | Weight |
|---|---|---|---|---|---|---|
| 25B-D017N104 | PowerFlex 525 | 10 HP | 480V AC | 17A | 260 × 180 × 190 mm | 4.8 kg |
| 25B-D030N114 | PowerFlex 525 | 20 HP | 480V AC | 30A | 340 × 220 × 210 mm | 8.5 kg |
| 22F-D4P2N103 | PowerFlex 4M | 2 HP | 480V AC | 4.2A | 180 × 100 × 140 mm | 1.9 kg |
| 20G11ND260AA0NNNNN | PowerFlex 755 | 200 HP | 480V AC | 260A | 920 × 480 × 400 mm | 75 kg |
| 20F11ND200AA0NNNNN | PowerFlex 753 | 150 HP | 480V AC | 200A | 880 × 450 × 380 mm | 70 kg |
11. Engineering Summary
The 20BC085A0AYNANC0 is a high-capacity industrial AC drive designed for heavy-duty motor control applications requiring stable performance and strong torque output.
It delivers reliable speed regulation, efficient energy usage, and strong adaptability across demanding industrial environments.
The structural design ensures thermal stability and electrical reliability, while modular architecture enhances system integration flexibility.
This model is widely used in heavy industrial automation systems where continuous operation, high load capacity, and long-term reliability are critical.
