Product Overview

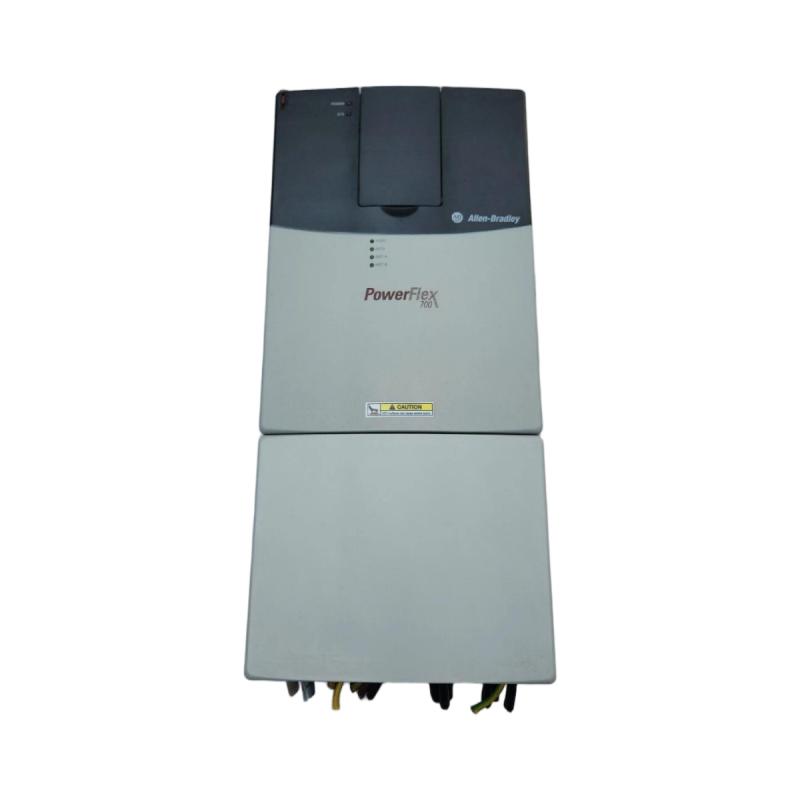

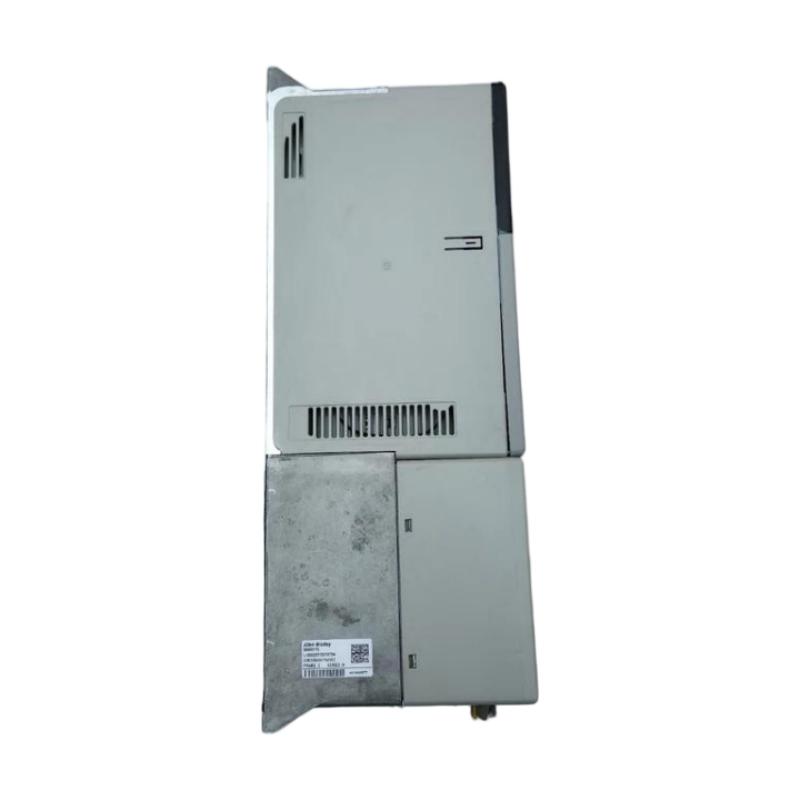

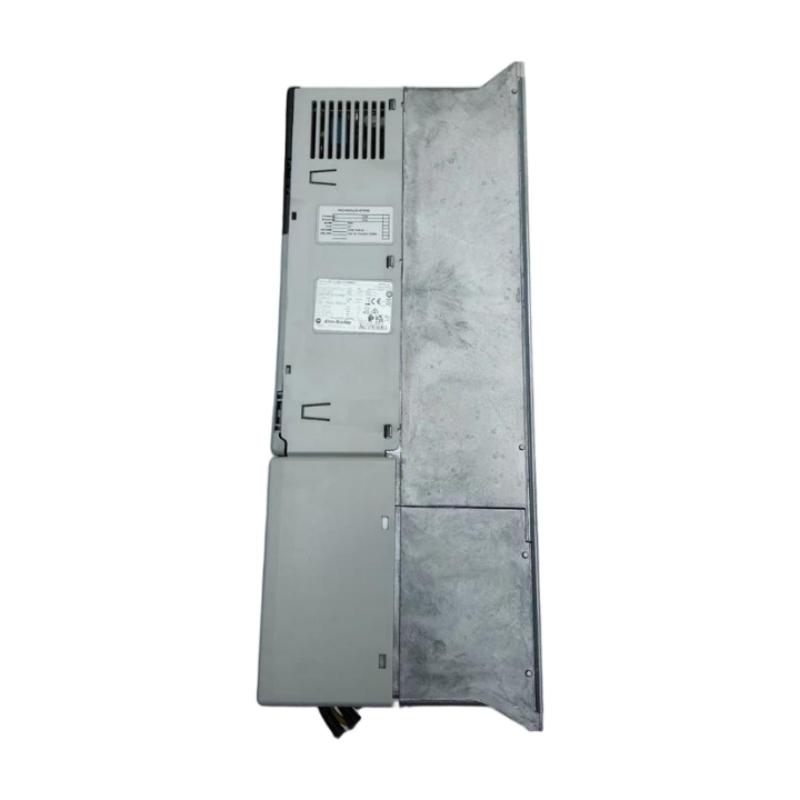

The Allen-Bradley 20BC056A0AYNANC0 PowerFlex 700 AC Drive is an industrial variable frequency drive designed to control the speed, torque, and operation of compatible three-phase AC motors. Manufactured by Rockwell Automation under the Allen-Bradley brand, this drive is part of the PowerFlex 700 family, which has been widely used in industrial motor-control systems.

Variable frequency drives regulate motor speed by adjusting the frequency and voltage delivered to the motor. This enables industrial equipment to respond to changing production requirements while supporting controlled acceleration, deceleration, and motor operation. In appropriately designed applications, variable-speed control can also help reduce mechanical stress and improve process coordination.

The 20BC056A0AYNANC0 is designed for a nominal 400 V AC three-phase supply and provides a continuous output current of 56 A. Its rated power is 30 kW under normal-duty conditions and 22 kW under heavy-duty conditions. These ratings make it suitable for appropriately sized industrial motors used in conveyors, pumps, fans, processing machinery, and other motor-driven equipment.

This configuration features vector control with 24 V I/O, conformal coating, an installed braking IGBT, and an EMC filter with a common-mode choke. It does not include an installed human interface module (HIM), an internal braking resistor, an internal communication module, or a feedback option.

The complete catalog number is important when selecting this drive for an existing installation. Different PowerFlex 700 configurations can have different voltage ratings, control interfaces, communication options, feedback capabilities, and braking arrangements.

The PowerFlex 700 20B series has been discontinued. Consequently, this model is particularly relevant to industrial maintenance, spare-parts procurement, and replacement projects involving existing automation systems. Before purchasing a replacement, engineers should confirm the full catalog number and assess electrical and control-system compatibility.

Technical Specifications

Specifications should be verified against the unit’s nameplate and the applicable manufacturer’s documentation before installation or replacement.

Function and Working Principle

The PowerFlex 700 AC drive converts incoming electrical power into a controlled output for a three-phase AC motor. Its power-conversion circuitry and control functions regulate motor operation according to programmed parameters and the selected operating commands.

1. Variable-Frequency Motor Control

Motor speed is related to the frequency of the electrical supply and the motor’s design. By changing the output frequency, the drive can adjust motor speed to match the requirements of the driven equipment.

For example, a conveyor may need to run slowly during product positioning and faster during normal transportation. A variable frequency drive allows the motor speed to change according to the production sequence rather than remaining fixed.

The achievable operating range depends on motor characteristics, load conditions, cooling requirements, and drive configuration.

2. Vector Control

The 20BC056A0AYNANC0 uses vector control with 24 V I/O. Vector control provides more advanced management of motor torque and speed than basic frequency-only control.

When correctly configured for the connected motor, this control method can improve torque response and speed regulation under changing load conditions. It is useful in applications where the motor must respond predictably to changes in mechanical resistance or production demand.

Motor nameplate data, tuning procedures, and control parameters must be configured correctly to obtain the intended performance.

3. Acceleration and Deceleration Management

The drive supports programmable acceleration and deceleration settings. These determine how quickly the motor moves between operating speeds.

Appropriate ramp settings can help reduce sudden mechanical loads on couplings, belts, gears, and connected machinery. They can also help coordinate equipment starts and stops within an automated production process.

The correct settings depend on load inertia, cycle-time requirements, and the braking capability of the installation. Rapid deceleration may generate regenerative energy, so the braking arrangement must be evaluated before applying aggressive stopping profiles.

4. Motor Protection and Fault Diagnostics

The PowerFlex 700 includes drive protection and diagnostic functions designed to help identify abnormal operating conditions. Depending on the configured system, monitored conditions may include overcurrent, DC bus voltage abnormalities, overheating, and motor overload.

These functions support troubleshooting and equipment protection, but they do not replace properly selected upstream protective devices, suitable grounding, or machine-level safety measures.

5. Braking Circuit Operation

This model includes a braking IGBT but does not include an internal braking resistor. The IGBT is a switching component used in a braking circuit, whereas the resistor dissipates regenerated electrical energy as heat.

Applications involving frequent deceleration, high-inertia loads, or short stopping times may require an appropriately rated external braking resistor or another suitable braking solution. Selection must follow the manufacturer’s requirements for resistance, power rating, duty cycle, and protection.

Role in Industrial Control Systems

The 20BC056A0AYNANC0 can serve as the motor-control component in a larger industrial automation system. It is installed between the electrical supply and a compatible motor and operates according to commands from the configured control system.

PLC Integration

A programmable logic controller can coordinate the drive with sensors, actuators, interlocks, and other machinery. Depending on the application, the PLC may issue start and stop commands, select operating speeds, or adjust motor operation in response to process conditions.

This model has 24 V I/O but does not include an internal communication module in the specified configuration. Engineers should verify the available control interfaces and wiring requirements instead of assuming that a particular industrial network is installed.

HMI and Operator Monitoring

A human-machine interface can display equipment status, alarms, operating speeds, and process information. In many installations, the HMI communicates with the PLC, which manages the drive and the rest of the machine.

The 20BC056A0AYNANC0 has a blank HIM position and no installed local human-interface module. If direct local access is required during commissioning or maintenance, confirm the supported interface and programming method for the actual drive configuration.

Coordinated Motor Operation

The drive can participate in coordinated machine-control strategies. For example, a PLC may adjust conveyor speed according to product flow, synchronize motors across production stages, or regulate auxiliary machinery based on process demand.

Reliable operation depends on correct integration of the drive, motor, PLC logic, sensors, and mechanical equipment.

Industrial Applications

The PowerFlex 700 family is intended for industrial motor-control applications. With a 30 kW normal-duty rating and a 22 kW heavy-duty rating, the 20BC056A0AYNANC0 can be considered for suitable medium-power industrial equipment, provided the motor and load requirements fall within the drive’s ratings.

1. Conveyor and Material-Handling Systems

Conveyors, transfer systems, and material-handling machinery often require adjustable speed and controlled acceleration. The drive can help coordinate product movement with packaging lines, inspection stations, and other production equipment.

For conveyor applications, engineers should assess starting torque, load inertia, operating cycles, and stopping requirements before selecting the drive and setting its parameters.

2. Pumping Systems

Industrial pumps may operate under changing flow or pressure demands. A compatible drive can adjust motor speed to match process requirements and may help reduce unnecessary throttling in suitable applications.

The pump’s operating range, fluid characteristics, motor cooling, and minimum speed requirements should be evaluated. Pump control logic and process protection must also be designed appropriately.

3. Industrial Fans and Blowers

Fans and blowers may require variable airflow as production conditions change. By adjusting motor speed, a drive can support airflow regulation and potentially improve energy use where variable-speed operation is appropriate.

The drive’s installation must provide sufficient ventilation and thermal management. The motor’s operating limits and the fan’s load characteristics should be considered when setting the control range.

4. Processing and Manufacturing Machinery

Processing equipment may use variable-speed motors to operate mixers, feeders, transfer mechanisms, and other auxiliary machinery. The drive can help adjust operating speed to match production requirements.

For high-inertia or high-torque loads, confirm that the drive’s heavy-duty rating and overload capability are suitable for the intended duty cycle.

5. Industrial Production Lines

In automated production lines, motor speed affects throughput, product handling, and coordination between machines. The drive can be integrated into a PLC-based system to help synchronize compatible motor-driven equipment.

The exact implementation depends on the process sequence, control interfaces, and required feedback. Applications requiring closed-loop feedback should be reviewed carefully because this catalog configuration does not include a feedback option.

Installation and System Integration

Correct installation supports electrical safety, stable motor operation, and reliable drive performance.

1. Verify Supply and Motor Ratings

Confirm that the incoming supply matches the drive’s 400 V AC three-phase rating. Check the motor’s rated voltage, current, power, speed, and duty requirements.

The motor should not be selected solely by comparing kilowatt ratings. Output current, overload requirements, starting torque, and the operating environment are also important.

2. Confirm Panel Dimensions and Ventilation

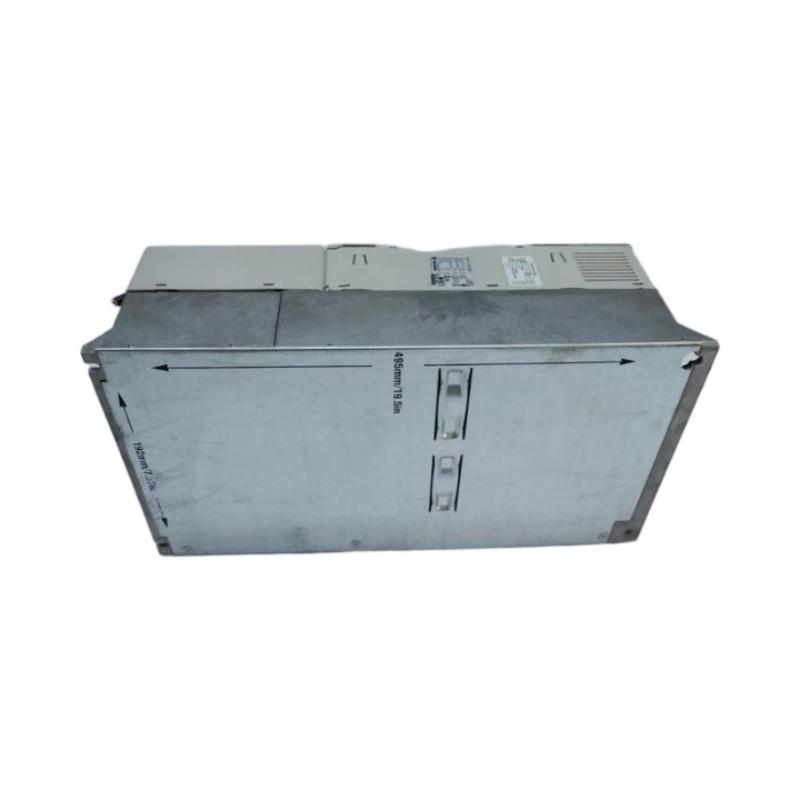

The supplied dimensions are 517.5 × 222 × 200 mm, and the listed drive weight is 18.55 kg. Verify the actual mechanical drawing and mounting requirements before designing the control cabinet.

Allow the required clearance for cooling airflow, power wiring, control wiring, maintenance access, and heat dissipation. Avoid obstructing the drive’s cooling path or placing it where conductive debris or moisture could compromise operation.

The IP20 / NEMA Type 1 configuration does not provide a sealed, water-resistant enclosure. A suitable cabinet may be necessary where environmental protection is required.

3. Wiring and Grounding

Power conductors, motor cables, control wiring, and grounding connections must comply with the manufacturer’s instructions and applicable electrical codes.

Keep sensitive control wiring separated from power conductors where required. Use suitable cable shielding and grounding practices to manage electromagnetic interference.

Before servicing, isolate the power supply and follow the required lockout procedures. Verify that hazardous voltage has been removed before touching electrical connections.

4. Configure the Drive

Enter the motor nameplate information and configure the control mode, command sources, speed references, acceleration and deceleration times, and applicable protection settings.

For vector control, follow the manufacturer’s motor setup and tuning procedures. Incorrect settings can result in poor speed regulation, inadequate torque response, or unnecessary drive trips.

5. Evaluate Braking Requirements

The installed braking IGBT does not mean that an internal braking resistor is included. If the application requires rapid deceleration or frequent stopping of a high-inertia load, determine whether an external braking resistor or another suitable arrangement is needed.

Confirm resistor compatibility, resistance value, power rating, duty cycle, thermal requirements, and protective measures using the manufacturer’s guidance.

6. Commission and Test

Before returning the equipment to service, inspect wiring and grounding, confirm motor connections, and verify that the motor can operate safely.

Test start and stop commands, rotation direction, speed references, ramp settings, interlocks, and fault responses. Record the final drive parameters to support future troubleshooting and replacement.

Compatible System Components

The 20BC056A0AYNANC0 is normally used within an engineered motor-control installation. The following components may be used alongside the drive, depending on system requirements.

The components listed above are examples of equipment that may be used in a complete installation. They are not necessarily included with the drive.

Alternative Models and Replacement Considerations

The PowerFlex 700 20B series has been discontinued. When maintaining an existing installation, replacement selection should account for the original electrical ratings, control configuration, and application requirements.

Before approving a replacement, compare:

• Input voltage and phase configuration.
• Continuous output current and overload capability.
• Normal-duty and heavy-duty power ratings.
• Vector-control and speed-regulation requirements.
• Control I/O voltage and terminal assignments.
• Communication and feedback requirements.
• Braking IGBT and braking-resistor arrangements.
• EMC filtering and enclosure requirements.
• Mounting dimensions, ventilation, and wiring access.
• PLC logic, parameter settings, and commissioning procedures.

A replacement with the same nominal power rating is not necessarily a direct substitute. Differences in control interfaces, feedback, braking, and protection can require engineering modifications.

Key Advantages

High-Capacity Motor Control

The 56 A continuous output rating and 30 kW normal-duty rating support compatible industrial motors within the specified electrical limits.

Vector-Control Capability

Vector control can provide improved torque response and speed regulation when the motor and drive are configured correctly for the application.

Adjustable Speed and Ramping

Programmable operating speeds and acceleration or deceleration settings allow the drive to adapt motor operation to production requirements.

Integrated Braking IGBT

The installed braking IGBT provides a braking-circuit capability, although an external braking resistor may be required depending on the application.

EMC Filtering

The included EMC filter with common-mode choke supports electromagnetic compatibility when installed and wired according to the manufacturer’s requirements.

Conformal Coating

The specified configuration includes conformal coating on electronic assemblies. This can provide additional protection in suitable environments but does not make the drive suitable for unrestricted exposure to moisture or corrosive substances.

Support for Legacy Equipment Maintenance

The PowerFlex 700 series remains relevant to existing industrial installations. Accurate identification of the 20BC056A0AYNANC0 helps maintenance teams assess spare-part requirements and plan technically appropriate replacements.

Technical FAQs

1. What is the Allen-Bradley 20BC056A0AYNANC0?

It is a PowerFlex 700 AC drive designed for variable-speed control of compatible three-phase AC motors. It has a 400 V AC nominal input, 56 A continuous output rating, and 30 kW normal-duty power rating.

2. What is its heavy-duty power rating?

The documented heavy-duty rating is 22 kW. The correct operating rating depends on the load, required overload performance, and application duty cycle.

3. What input voltage does this drive require?

The nominal input is 400 V AC, three-phase. Confirm the nameplate and applicable technical documentation before connecting the drive.

4. Does the drive include a braking resistor?

No. It includes a braking IGBT but does not include an internal braking resistor. Applications that regenerate energy during deceleration may require an external braking solution.

5. Does the 20BC056A0AYNANC0 include an operator panel?

No. This configuration has a blank HIM position and no installed human interface module. Confirm the supported programming and operator-access method before commissioning.

6. Can this drive be integrated with a PLC?

Yes. It can be incorporated into a suitable PLC-based control system using its available control I/O and an appropriately designed control arrangement. The exact interface and wiring should be confirmed for the installation.

7. Is this model still manufactured?

The PowerFlex 700 20B series was discontinued on November 30, 2023. Availability of the specific catalog number may vary across surplus, refurbished, and spare-parts suppliers.

8. Can it replace another 30 kW drive?

Not automatically. Voltage class, output current, duty rating, control method, braking hardware, communication options, and physical dimensions must all be checked before substitution.

9. What should buyers check when purchasing a used unit?

Verify the complete catalog number, series, nameplate ratings, terminal condition, cooling system, physical condition, and available test records. Confirm whether accessories are included and review the supplier’s warranty and return terms.

10. What are the dimensions and weight of this drive?

The supplied listing values are 517.5 × 222 × 200 mm and 18.55 kg. The physical unit and its mounting configuration should be checked before finalizing cabinet layouts or shipment arrangements.

Procurement and Maintenance Recommendations

Because the PowerFlex 700 20B series has been discontinued, procurement should begin by verifying the exact catalog number and configuration.

When sourcing the 20BC056A0AYNANC0, compare the nameplate with the original equipment documentation. Confirm the input voltage, output current, power rating, control I/O, braking configuration, EMC filter, and feedback requirements. Do not assume that another PowerFlex 700 drive with a similar rating will provide identical functionality.

For new-old-stock, used, or refurbished equipment, request clear photographs of the nameplate and terminals, verify the unit’s condition and test status, and confirm the warranty and return policy. Check whether accessories are included and distinguish the drive’s own weight from its packaged shipping weight.

During maintenance, keep the cabinet clean, maintain the specified airflow, and inspect terminals, grounding, cooling components, and wiring according to the applicable maintenance schedule. Back up parameter settings and document any changes made during commissioning or troubleshooting.

When planning an upgrade, assess whether the existing motor, PLC program, control wiring, braking circuit, and cabinet layout can be retained. A newer drive may require control-system modifications, parameter conversion, wiring changes, or recommissioning.

Conclusion

The Allen-Bradley 20BC056A0AYNANC0 PowerFlex 700 AC Drive is a 400 V AC three-phase variable frequency drive with a 56 A continuous output rating, a 30 kW normal-duty rating, and a 22 kW heavy-duty rating. Its specified configuration includes vector control with 24 V I/O, conformal coating, an installed braking IGBT, and EMC filtering.

The model does not include an internal braking resistor, an installed HIM, an internal communication module, or a feedback option. Since the PowerFlex 700 20B series has been discontinued, accurate catalog-number verification and compatibility assessment are essential when sourcing spare parts or planning industrial drive replacements.
