Product Overview

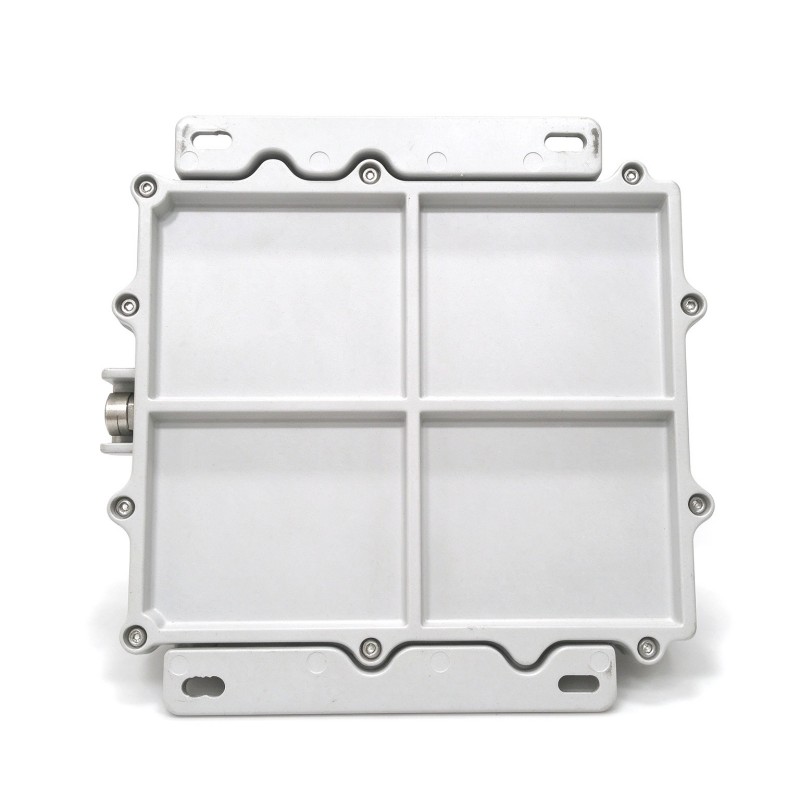

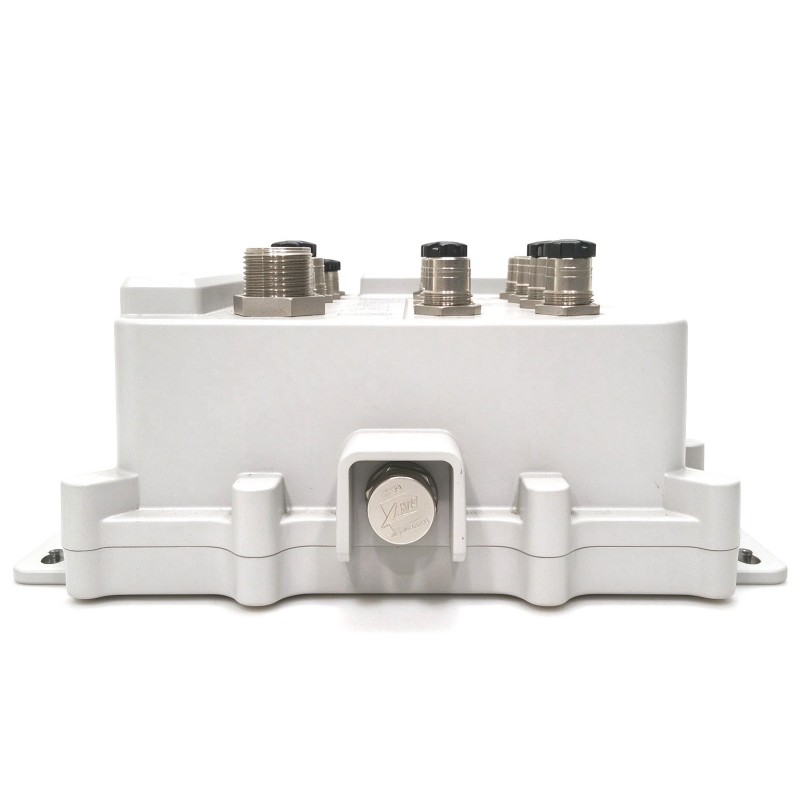

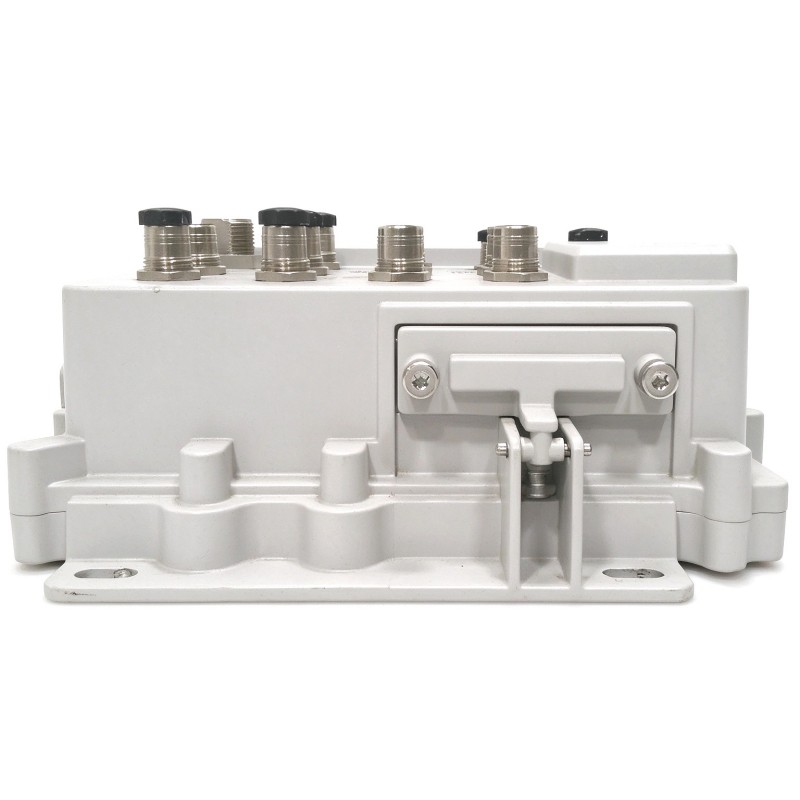

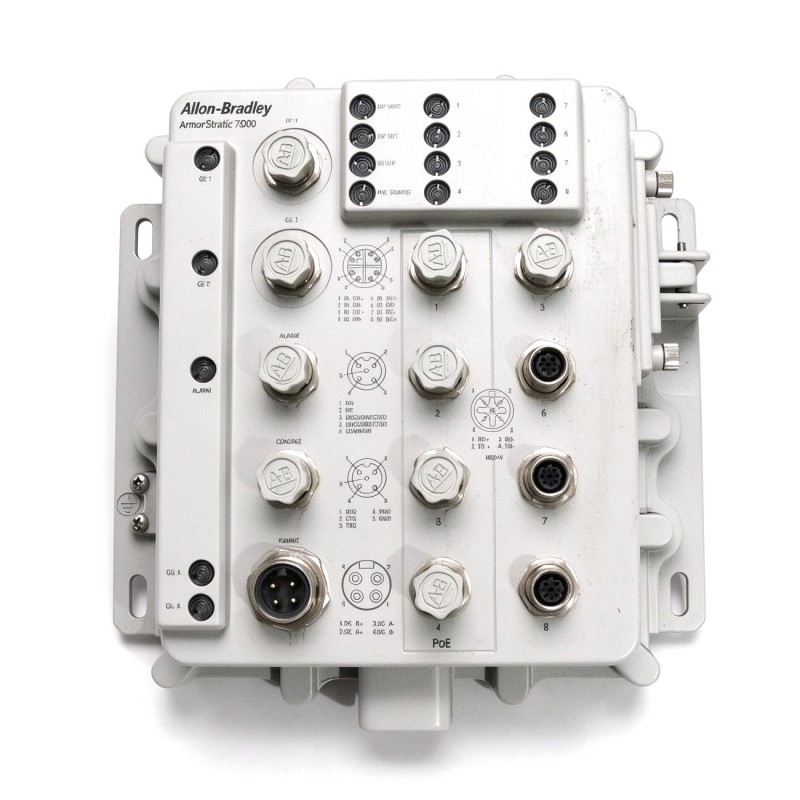

The Allen-Bradley 1783-ZMS4T4E2TGN is a 10-port managed industrial Ethernet switch from the ArmorStratix 5700 family. It is developed for industrial environments where network connectivity, device-level communication, and Ethernet-based control systems must operate together.
The switch combines four M12 D-code Fast Ethernet ports, two M12 X-code Gigabit Ethernet ports, and four PoE-capable Fast Ethernet ports. This configuration supports connections to industrial controllers, distributed I/O equipment, network-enabled sensors, and other automation devices.
Unlike basic unmanaged switches, the 1783-ZMS4T4E2TGN supports advanced network management functions. Its full firmware configuration includes Network Address Translation (NAT), Device Level Ring (DLR), and CIP Sync based on IEEE 1588. These functions make it suitable for applications involving distributed machine networks, synchronized control devices, and industrial network segmentation.
The M12 connector arrangement supports industrial Ethernet connections where secure mechanical connections are required. Its combination of copper Ethernet, Gigabit communication, PoE connectivity, and managed network functions makes it suitable for machine-level and distributed automation installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Type | ArmorStratix 5700 Managed Ethernet Switch |
| Model | 1783-ZMS4T4E2TGN |
| Product Series | ArmorStratix 5700 |
| Switch Type | Managed Industrial Ethernet Switch |
| Total Number of Ports | 10 |
| M12 D-code Ports | 4 × 10/100 Mbps Fast Ethernet |
| M12 X-code Ports | 2 × 10/100/1000 Mbps Gigabit Ethernet |
| PoE Ports | 4 × 10/100 Mbps Fast Ethernet |
| PoE Standard | IEEE 802.3af |
| Maximum PoE Power | 62 W |
| Firmware Type | Full |
| NAT Support | Yes |
| DLR Support | Yes |
| CIP Sync | IEEE 1588 |
| Power Input | 9.6–60 V DC |
| Maximum Non-PoE Input Current | 2.9 A |
| Mounting | DIN Rail |
| Ethernet Connectors | M12 D-code / X-code |
| Dimensions | 248.4 × 99 × 237.5 mm |
| Weight | 3 kg |
Product Features
- Managed Ethernet switching: Supports advanced network management functions for industrial Ethernet installations.
- Ten-port configuration: Combines four M12 D-code Fast Ethernet ports, two M12 X-code Gigabit ports, and four PoE ports.
- Gigabit Ethernet connectivity: Provides two 10/100/1000 Mbps interfaces for higher-speed communication with compatible industrial equipment.
- Power over Ethernet: Supports IEEE 802.3af PoE for powering compatible network devices through Ethernet connections.
- Network Address Translation: Supports NAT functionality for separating machine-level networks and simplifying communication between network segments.
- Device Level Ring: Supports DLR technology for ring-based industrial network topologies.
- CIP Sync synchronization: Supports IEEE 1588-based time synchronization for compatible industrial automation devices.
- Full firmware configuration: Provides the managed functionality required for industrial network administration.
- Industrial M12 connections: Uses M12 D-code and X-code interfaces for industrial Ethernet cabling.
- DIN rail installation: Supports integration into industrial control and machine installation arrangements.
Working Principle
The 1783-ZMS4T4E2TGN operates as a managed industrial Ethernet switch. It receives Ethernet frames from connected devices, processes network information, and forwards traffic according to its configured switching and network management functions.
The four M12 D-code Fast Ethernet ports support 10/100 Mbps communication. These connections can be used for industrial controllers, distributed I/O devices, and other compatible Ethernet equipment.
The two M12 X-code Gigabit Ethernet ports support 10/100/1000 Mbps communication. They provide higher-speed network connections for compatible industrial devices and network infrastructure.
The four PoE ports support IEEE 802.3af, allowing compatible powered devices to receive electrical power through their Ethernet connections. This can reduce the need for separate power connections at supported network endpoints.
NAT functionality allows the switch to manage communication between different IP address spaces. In machine automation, this can help separate equipment-level networks from the plant network and reduce IP address conflicts.
DLR support allows compatible devices to participate in a ring-based Ethernet topology. If a network connection is interrupted, the ring recovery mechanism can help restore communication through the remaining network path.
CIP Sync uses IEEE 1588 time synchronization to coordinate compatible devices across an EtherNet/IP network. This is particularly relevant to applications requiring consistent timestamps and coordinated control operations.
A typical communication arrangement is:
PLC / Distributed I/O / PoE Devices → 1783-ZMS4T4E2TGN → Industrial Ethernet Network → Supervisory Control System
The switch handles network communication and management, while connected controllers and automation devices execute their assigned control functions.
Role in the ArmorStratix 5700 Industrial Ethernet Architecture
The 1783-ZMS4T4E2TGN serves as a managed network distribution device within the ArmorStratix 5700 industrial Ethernet architecture.
Its combination of Fast Ethernet, Gigabit Ethernet, and PoE interfaces allows different types of industrial equipment to communicate through one managed switching platform.
NAT can be used when connecting machine-level networks with plant-level infrastructure. DLR provides support for compatible ring network arrangements, while CIP Sync helps coordinate time-sensitive communication between supported automation devices.
A typical network arrangement is:
ControlLogix / CompactLogix Controller → 1783-ZMS4T4E2TGN → Distributed I/O / PoE Devices / Industrial Ethernet Network
| System Component | Function |
|---|---|
| 1783-ZMS4T4E2TGN | Provides managed industrial Ethernet switching |
| ControlLogix Controller | Executes automation logic and manages machine processes |
| CompactLogix Controller | Provides machine-level control and EtherNet/IP communication |
| Distributed I/O Modules | Collect field signals and execute output commands |
| PoE-Compatible Devices | Receive power and network communication through PoE connections |
| Industrial Ethernet Network | Connects distributed automation equipment |
| Engineering Workstation | Supports network configuration and diagnostics |
| Supervisory Control System | Monitors industrial processes and equipment status |
The switch manages network traffic and supported industrial Ethernet functions, while the connected controllers maintain the actual automation sequences.
Industrial Applications
| Application | Typical Use |
|---|---|
| Factory Automation | Connecting PLCs, distributed I/O, and industrial network devices |
| Machine Automation | Managing Ethernet communication between machine-level equipment |
| Automotive Manufacturing | Connecting distributed production equipment and control devices |
| Packaging Systems | Supporting communication between controllers and network-enabled equipment |
| Process Automation | Linking field-level devices with industrial control networks |
| Material Handling | Connecting conveyor controllers and distributed automation equipment |
| Industrial Ethernet Rings | Supporting DLR-based network topologies |
| Remote Machine Networks | Using NAT to manage communication between separate IP networks |
| Synchronized Motion Systems | Supporting CIP Sync communication with compatible devices |
| Industrial Equipment Monitoring | Connecting compatible PoE-powered network devices |
Installation and Maintenance
- Verify the switch model: Confirm that 1783-ZMS4T4E2TGN is the required ArmorStratix 5700 managed switch and check its port configuration before installation.
- Select the installation location: Choose a suitable industrial mounting position with adequate ventilation and access for wiring and maintenance.
- Check DIN rail mounting: Ensure that the mounting rail and mechanical installation arrangements are appropriate for the switch.
- Verify the DC power supply: Confirm that the supply voltage is within the specified 9.6–60 V DC input range and that the power source can support the connected equipment.
- Inspect M12 connectors: Check D-code and X-code connectors for contamination, damaged contacts, and mechanical deformation before connecting cables.
- Verify port assignments: Identify the Fast Ethernet, Gigabit Ethernet, and PoE interfaces before connecting field devices.
- Check PoE compatibility: Confirm that connected powered devices support IEEE 802.3af and that the total power demand remains within the available PoE budget.
- Configure network addressing: Establish suitable IP addressing and NAT settings according to the machine network and plant network architecture.
- Configure DLR topology: When using a Device Level Ring, verify the ring supervisor configuration and check that connected devices support the required DLR functionality.
- Verify CIP Sync settings: Check the time synchronization configuration of compatible controllers and network devices when synchronized communication is required.
- Monitor network diagnostics: Review port status, communication errors, PoE operation, and network topology information during commissioning and routine operation.
- Document maintenance activities: Record the switch model, port assignments, power connections, IP configuration, NAT settings, DLR topology, and maintenance history.
Compatible System Components
| Component | Product Type | Function |
|---|---|---|
| Allen-Bradley ControlLogix | Programmable Automation Controller | Executes industrial control programs and EtherNet/IP communication |
| Allen-Bradley CompactLogix | Programmable Automation Controller | Provides machine-level automation control |
| Allen-Bradley POINT I/O | Distributed I/O System | Collects field signals and controls output devices |
| Allen-Bradley ArmorBlock I/O | Distributed I/O Module | Provides machine-level field I/O connectivity |
| Allen-Bradley Stratix Switches | Managed Industrial Ethernet Switch | Extends industrial network infrastructure |
| M12 D-code Ethernet Cable | Industrial Ethernet Cable | Connects compatible Fast Ethernet devices |
| M12 X-code Ethernet Cable | Industrial Gigabit Ethernet Cable | Connects Gigabit Ethernet equipment |
| PoE-Compatible Network Devices | Powered Ethernet Devices | Receive power and network communication through PoE |
Key Advantages
- Supports managed industrial Ethernet communication.
- Combines Fast Ethernet, Gigabit Ethernet, and PoE connectivity.
- Provides NAT functionality for machine network segmentation.
- Supports Device Level Ring network architectures.
- Includes CIP Sync functionality based on IEEE 1588.
- Uses industrial M12 Ethernet connections.
- Supports DIN rail installation in automation environments.
Recommended Related Models
- 1783-ZMS4T4E2TGP – ArmorStratix 5700 10-Port Managed Ethernet Switch with PoE
- 1783-ZMS8T8E2TGN – ArmorStratix 5700 18-Port Managed Ethernet Switch with NAT
- 1783-ZMS8T8E2TGP – ArmorStratix 5700 18-Port Managed Ethernet Switch with PoE
- 1783-ZMS8TA – ArmorStratix 5700 8-Port Managed Ethernet Switch
- 1783-ZMS16TA – ArmorStratix 5700 16-Port Managed Ethernet Switch
- 1783-ZMS24TA – ArmorStratix 5700 24-Port Managed Ethernet Switch
Technical FAQs
What is the difference between the 1783-ZMS4T4E2TGN and 1783-ZMS4T4E2TGP?
Both models have a ten-port configuration with four M12 D-code Fast Ethernet ports, two M12 X-code Gigabit Ethernet ports, and four PoE ports. The main difference is that the 1783-ZMS4T4E2TGN includes NAT functionality, while the 1783-ZMS4T4E2TGP does not list NAT support.
How does NAT help when using the 1783-ZMS4T4E2TGN in machine networks?
NAT allows devices on different IP address spaces to communicate through address translation. This is useful when multiple machines use overlapping IP addresses or when machine-level networks need to communicate with a plant-level network without changing every device address.
Can the 1783-ZMS4T4E2TGN support a Device Level Ring network?
Yes. The switch supports DLR functionality, allowing it to participate in compatible EtherNet/IP ring network arrangements. The ring topology and supervisor configuration must be established according to the connected equipment and network design.
What should be considered when connecting PoE equipment to this switch?
Connected devices must support IEEE 802.3af PoE, and the available PoE power budget must be considered during system planning. The switch has a specified maximum PoE power capacity of 62 W, so the combined demand of connected powered devices should remain within this limit.
