Product Overview

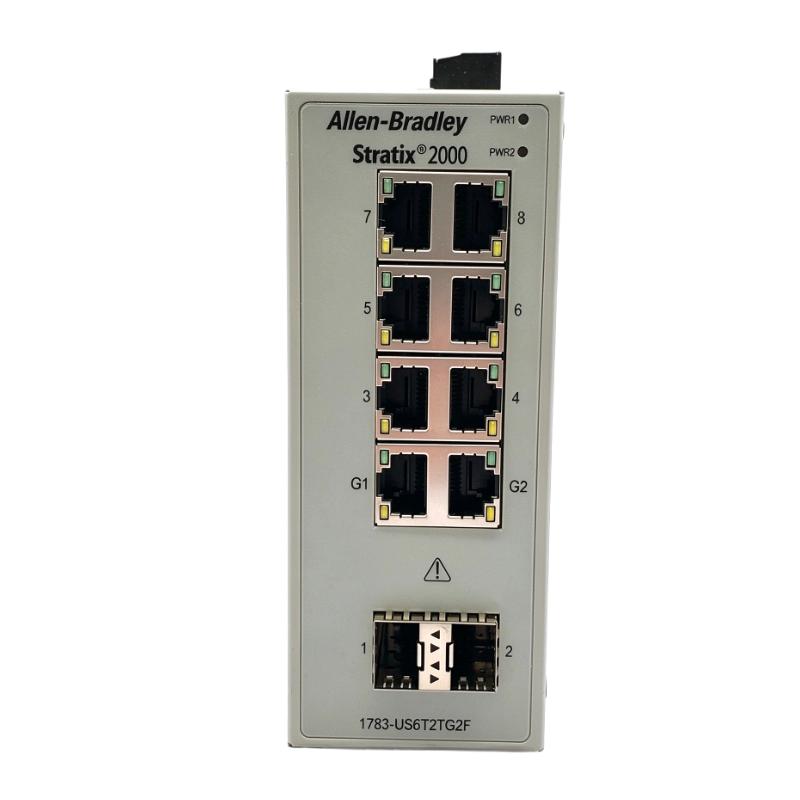

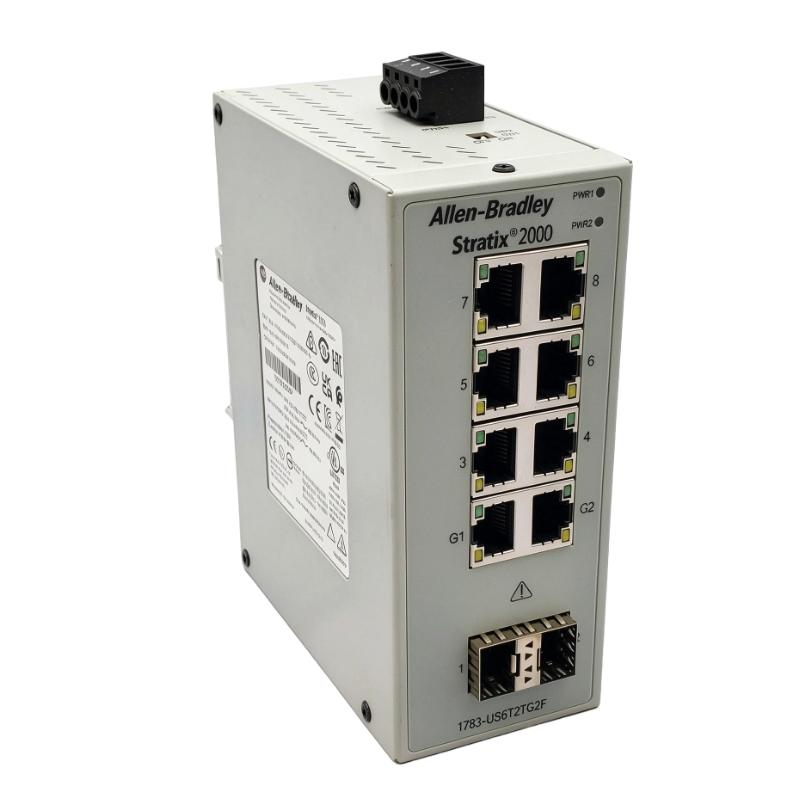

The Allen-Bradley 1783-US6T2TG2F is a 10-port unmanaged Ethernet switch from the Rockwell Automation Stratix 2000 family. It combines six 10/100 Mbps Fast Ethernet copper ports, two 10/100/1000 Mbps Gigabit Ethernet copper ports, and two preinstalled 100 Mbps multimode fiber interfaces.
This combination allows the switch to connect conventional industrial Ethernet equipment alongside devices requiring higher-speed network communication. The two optical interfaces provide additional connectivity between separate network locations through multimode fiber.
Unlike models that require separately purchased SFP transceivers, the 1783-US6T2TG2F includes two preinstalled multimode fiber modules with LC connectors. This simplifies fiber network integration and reduces the need for additional optical interface components.
As an unmanaged switching device, it forwards Ethernet traffic without requiring advanced network configuration. Its mixed-speed and mixed-media port arrangement makes it suitable for industrial control cabinets, manufacturing networks, and distributed automation installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Type | Stratix 2000 Unmanaged Ethernet Switch |
| Model | 1783-US6T2TG2F |
| Product Series | Stratix 2000 |
| Switch Type | Unmanaged Ethernet Switch |
| Total Number of Ports | 10 |
| Fast Ethernet Copper Ports | 6 × RJ45 |
| Fast Ethernet Port Speed | 10/100 Mbps |
| Gigabit Ethernet Copper Ports | 2 × RJ45 |
| Gigabit Ethernet Port Speed | 10/100/1000 Mbps |
| Fiber Ports | 2 × Multimode Fiber |
| Fiber Port Speed | 100 Mbps |
| Fiber Connector | LC |
| Fiber Transceivers | 2 Preinstalled SFP Modules |
| Network Type | Ethernet |
| Configuration | Unmanaged / Plug and Play |
| Dimensions | 134 × 53.6 × 114.8 mm |
| Weight | 0.45 kg |
Product Features
- Ten-port connectivity: Combines six Fast Ethernet ports, two Gigabit Ethernet ports, and two multimode fiber interfaces.
- Fast Ethernet connections: Provides six RJ45 ports supporting 10/100 Mbps communication with conventional industrial devices.
- Gigabit Ethernet connectivity: Includes two RJ45 ports supporting 10/100/1000 Mbps communication for higher-bandwidth network connections.
- Multimode fiber interfaces: Provides two 100 Mbps optical connections for linking separate network locations.
- Preinstalled SFP modules: Includes two multimode fiber transceivers with LC connectors.
- Mixed-speed architecture: Allows Fast Ethernet and Gigabit Ethernet equipment to operate within the same switching infrastructure.
- Unmanaged operation: Handles Ethernet frame forwarding without requiring advanced configuration software.
- Industrial network integration: Supports communication between PLCs, HMIs, industrial computers, and other Ethernet-enabled devices.
Working Principle
The 1783-US6T2TG2F operates as an unmanaged Ethernet switch, receiving network frames from connected equipment and forwarding them through the appropriate interfaces according to their destination MAC addresses.
Its six Fast Ethernet RJ45 ports support 10/100 Mbps communication. These ports are suitable for conventional industrial devices that do not require Gigabit bandwidth.
The two additional Gigabit Ethernet RJ45 ports support 10/100/1000 Mbps communication. They can connect compatible high-speed network equipment, including other Ethernet switches and industrial computers.
The two preinstalled multimode fiber interfaces provide 100 Mbps optical communication. The transceivers convert electrical Ethernet signals into optical signals for transmission over fiber and convert incoming optical signals back into electrical data.
A typical communication arrangement is:
PLC / HMI / Industrial PC → 1783-US6T2TG2F → Copper Ethernet or Multimode Fiber → Remote Network Devices
The switch performs Ethernet frame forwarding automatically. No manual routing or advanced switching configuration is required for its basic unmanaged operation.
The combination of three interface types allows network engineers to connect different industrial devices according to their communication speed and physical connection requirements.
Role in the Stratix 2000 Industrial Ethernet Architecture
The 1783-US6T2TG2F serves as a mixed-speed network switching device within the Stratix 2000 industrial Ethernet architecture.
Its six Fast Ethernet ports support conventional automation equipment, while the two Gigabit Ethernet ports provide higher-speed copper connections. The two multimode fiber interfaces extend network connectivity to separate equipment locations.
A typical network arrangement is:
Industrial Controller → 1783-US6T2TG2F → Local Ethernet Devices / Gigabit Network / Multimode Fiber Network
| System Component | Function |
|---|---|
| 1783-US6T2TG2F | Provides ten-port unmanaged Ethernet switching |
| PLC Controller | Executes automation logic and exchanges process data |
| HMI Panel | Provides operator interaction and equipment monitoring |
| Industrial Computer | Supports engineering and industrial data processing |
| Gigabit Ethernet Device | Uses high-speed copper network connectivity |
| Multimode Fiber Interface | Establishes optical Ethernet connections |
| LC Fiber Cable | Connects remote network equipment |
| RJ45 Ethernet Cable | Connects local automation devices |
The switch manages Ethernet frame forwarding, while the connected controllers and automation equipment perform their respective control and communication functions.
Industrial Applications
| Application | Typical Use |
|---|---|
| Factory Automation | Connecting PLCs, HMIs, and industrial computers |
| Manufacturing Networks | Linking equipment with different Ethernet speed requirements |
| Industrial Control Cabinets | Providing copper and fiber network connections |
| Packaging Machinery | Connecting machine controllers and operator interfaces |
| Process Automation | Supporting communication between distributed control devices |
| Material Handling | Connecting conveyor controllers and monitoring equipment |
| SCADA Networks | Linking local Ethernet devices with remote network segments |
| Industrial Network Expansion | Adding Gigabit and fiber connectivity to existing infrastructure |
| Machine Communication | Connecting automation equipment through mixed-speed Ethernet |
| Distributed Manufacturing | Establishing fiber connections between separate production areas |
Installation and Maintenance
- Verify the switch model: Confirm that 1783-US6T2TG2F is the required ten-port Stratix 2000 switch with six Fast Ethernet ports, two Gigabit Ethernet ports, and two multimode fiber interfaces.
- Select the installation location: Choose a suitable position inside the industrial control cabinet with adequate ventilation and maintenance access.

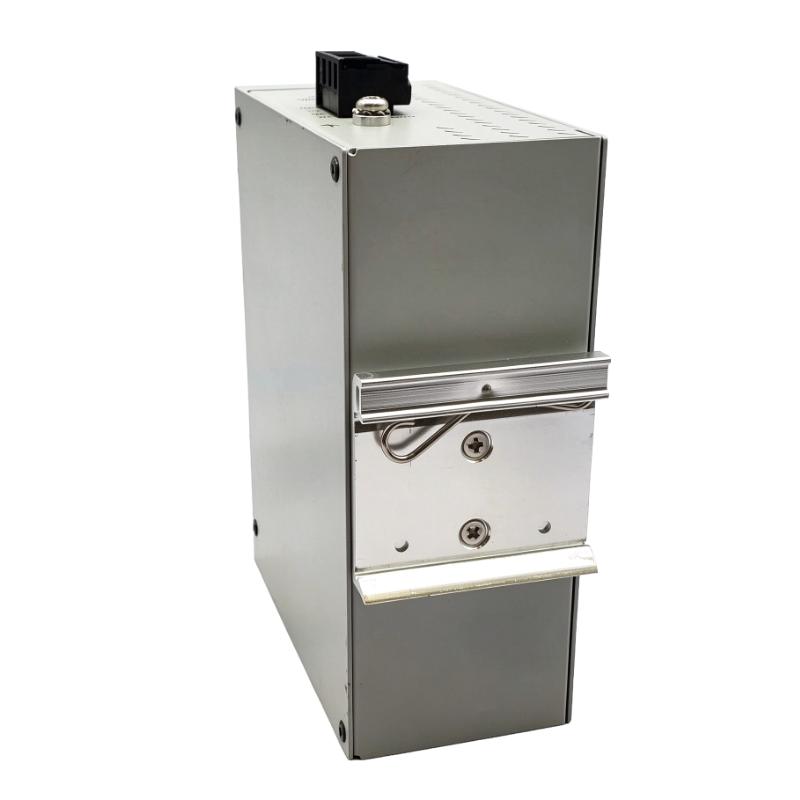

- Check mounting arrangements: Ensure that the mounting rail and installation hardware are suitable for the switch.

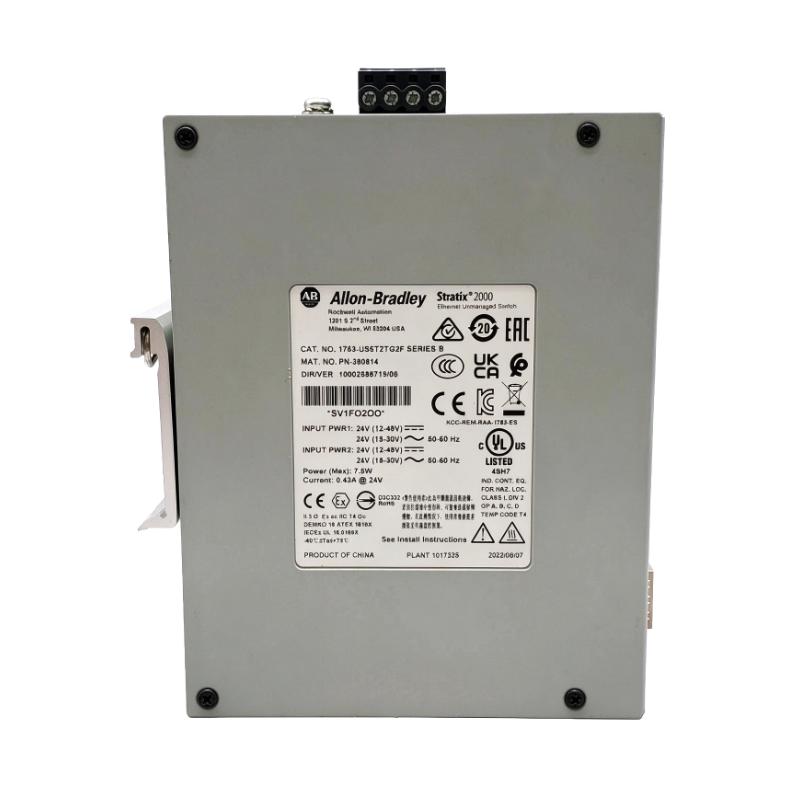

- Verify power requirements: Check the equipment nameplate and applicable installation instructions before connecting the power supply.
- Inspect RJ45 interfaces: Examine the copper Ethernet ports for contamination, damaged contacts, or physical deformation.
- Inspect fiber interfaces: Check the two preinstalled optical interfaces and LC connectors for contamination or mechanical damage.
- Verify fiber compatibility: Use suitable multimode fiber cables compatible with the installed optical transceivers.
- Check optical polarity: Ensure that transmit and receive fiber paths are correctly connected between the local and remote network devices.
- Connect network equipment: Assign suitable Fast Ethernet or Gigabit Ethernet ports according to the communication requirements of connected devices.
- Verify link indicators: Inspect the port status LEDs to confirm that copper and fiber connections establish the expected network links and operating speeds.
- Monitor network communication: Test data exchange between connected devices and investigate unexpected link interruptions or communication errors.
- Document maintenance activities: Record the switch model, port assignments, fiber connections, connected equipment, and maintenance history.
Compatible System Components
| Component | Product Type | Function |
|---|---|---|
| Allen-Bradley ControlLogix | Programmable Automation Controller | Executes industrial automation control programs |
| Allen-Bradley CompactLogix | Programmable Automation Controller | Provides machine-level automation control |
| Allen-Bradley PanelView Plus | Operator Interface Terminal | Provides machine monitoring and operator interaction |
| Stratix 2000 Ethernet Switch | Unmanaged Ethernet Switch | Extends industrial Ethernet connectivity |
| Gigabit Ethernet Switch | Industrial Ethernet Switch | Connects high-speed Ethernet network segments |
| Multimode Fiber Cable | Optical Network Cable | Connects remote equipment through optical interfaces |
| RJ45 Ethernet Cable | Copper Network Cable | Connects local industrial automation devices |
Key Advantages
- Provides ten Ethernet interfaces with three connection types.
- Combines six 10/100 Mbps Fast Ethernet ports and two Gigabit Ethernet ports.
- Supports two preinstalled 100 Mbps multimode fiber interfaces.
- Uses LC connectors for optical network communication.
- Allows mixed-speed industrial Ethernet connections.
- Provides plug-and-play unmanaged switching operation.
- Supports integration into distributed automation networks.
Recommended Related Models
- 1783-US6T2TG2H – Stratix 2000 6T2TG2H Port Unmanaged Switch with Single-Mode Fiber
- 1783-US8TG2GX – Stratix 2000 8-Port Gigabit Copper and 2-Port Gigabit SFP Unmanaged Switch
- 1783-US6T2F – Stratix 2000 6T+2F Port Unmanaged Switch
- 1783-US6T2H – Stratix 2000 6T+2H Port Unmanaged Switch
- 1783-US16T2S – Stratix 2000 16T+2S Port Unmanaged Switch
- 1783-US14T2S – Stratix 2000 14T+2S Port Unmanaged Switch
Technical FAQs
What is the difference between the 1783-US6T2TG2F and the 1783-US6T2F?
The 1783-US6T2TG2F provides ten network ports, including six Fast Ethernet copper ports, two Gigabit Ethernet copper ports, and two multimode fiber ports. The 1783-US6T2F has eight ports consisting of six Fast Ethernet copper ports and two multimode fiber ports. The additional Gigabit connections are the main distinction.
Are the two multimode fiber transceivers included with the 1783-US6T2TG2F?
Yes. The two 100 Mbps multimode fiber SFP modules are preinstalled. They provide LC optical connections without requiring separate SFP purchases for the specified fiber interfaces.
Can the Gigabit Ethernet ports communicate with 10/100 Mbps devices?
Yes. The two Gigabit RJ45 ports support 10/100/1000 Mbps Ethernet communication and can establish connections with compatible equipment operating at lower Ethernet speeds through automatic speed negotiation.
Can the copper and fiber ports operate within the same network?
Yes. The switch supports connections through its copper Ethernet and multimode fiber interfaces. This allows local automation equipment and remote fiber-connected network devices to exchange Ethernet traffic through the same switching device.
