Product Overview

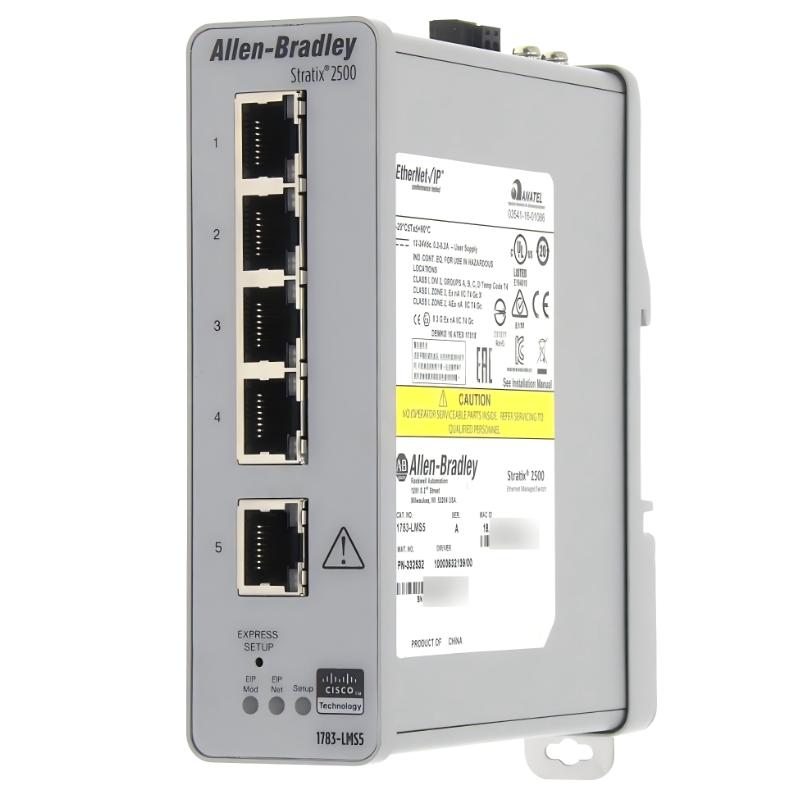

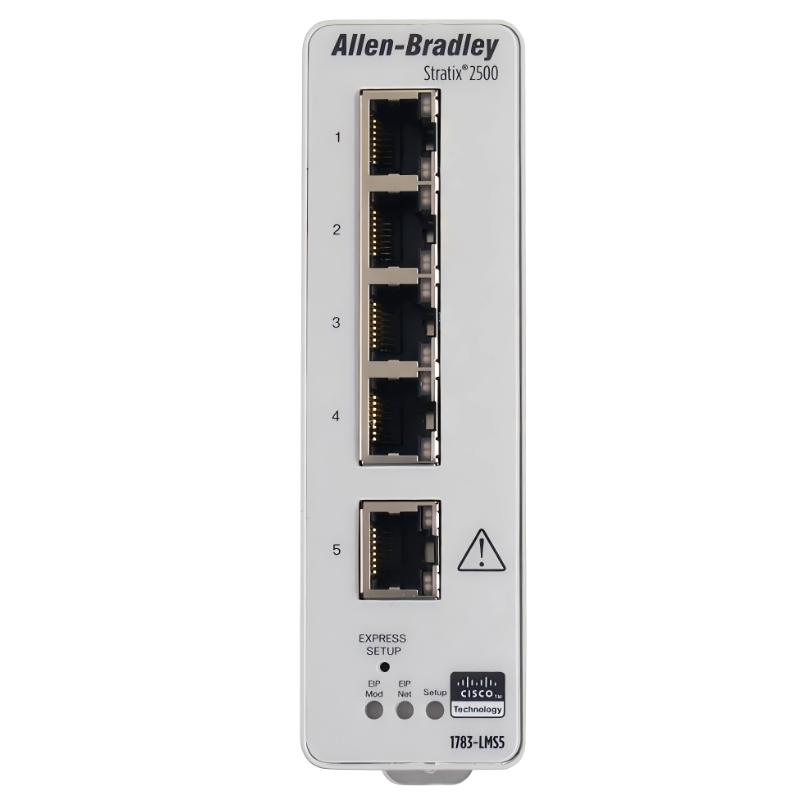

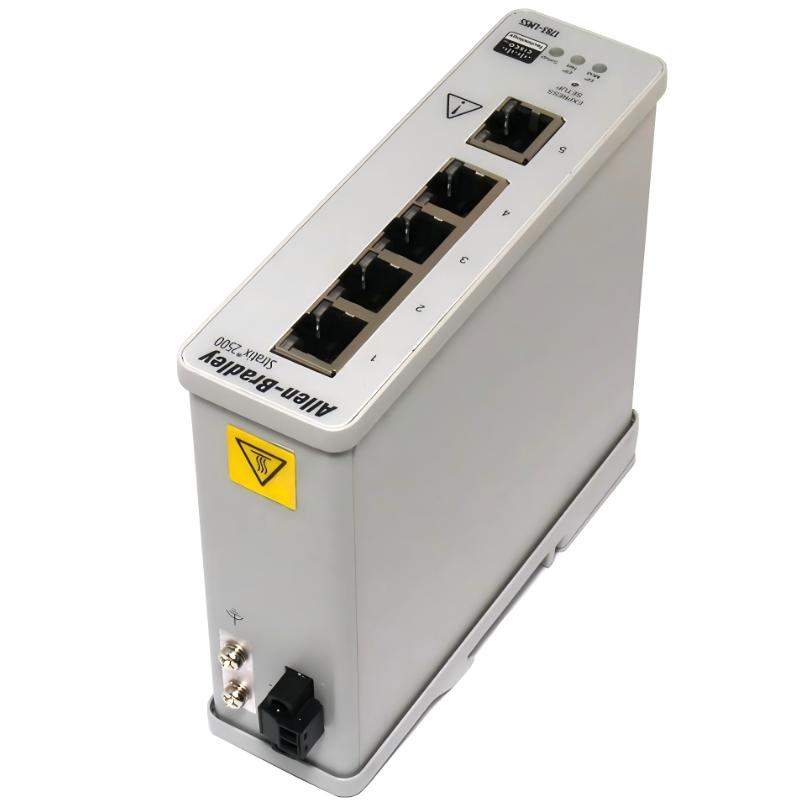

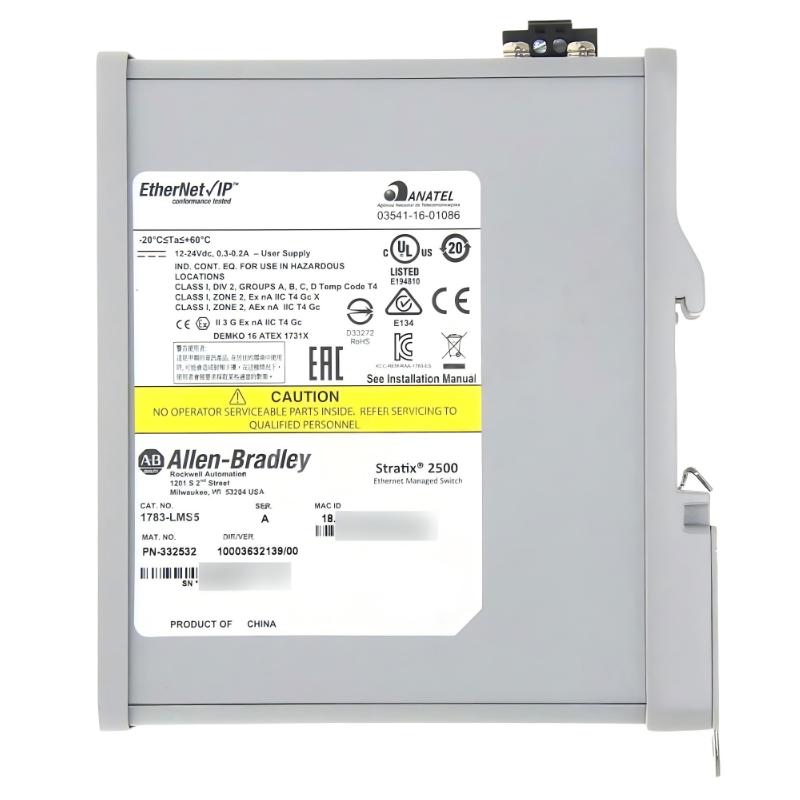

The Allen-Bradley 1783-LMS5 is a Stratix 2500 Lightweight Managed Ethernet Switch designed for small-scale industrial networks. It provides managed Ethernet connectivity with essential monitoring and configuration features, enabling reliable communication between PLCs, HMIs, drives, and other industrial devices.
This switch is ideal for applications where space is limited and cost-effective managed networking is needed.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1783-LMS5 |
| Product Type | Stratix 2500 Lightweight Managed Ethernet Switch |
| Ports | Managed Ethernet ports (10/100 Mbps) |
| Function | Provides lightweight managed Ethernet connectivity for industrial devices |
| Network Protocols | EtherNet/IP, TCP/IP, industrial Ethernet standards |
| Management | Web interface, SNMP, VLAN support |
| Compatibility | Allen-Bradley devices and standard Ethernet-enabled industrial equipment |
| Operating Environment | Factory automation, process control, small industrial networks |
Function and Working Principle
The 1783-LMS5 operates by:
- Receiving Ethernet signals from controllers or other devices
- Providing managed connectivity to multiple devices within the network
- Supporting VLANs and QoS for optimized network performance
- Enabling network monitoring via SNMP or web interface
- Maintaining reliable, high-speed communication in small to medium industrial networks
It functions as a compact and efficient managed switch for industrial automation.
Role in Industrial Automation
The 1783-LMS5 is crucial for small-scale industrial networking:
- Connects PLCs, HMIs, drives, and Ethernet-enabled devices
- Provides managed network features for monitoring and diagnostics
- Ensures network reliability and efficient data transfer
- Supports modular and scalable network expansion
- Ideal for space-constrained control panels or cabinets
Industrial Applications
Common applications include:
- Small factory automation networks
- Process control systems requiring lightweight managed switches
- Machine-to-machine (M2M) communication
- Industrial IoT networks
- Compact network setups with multiple Ethernet-enabled devices
Installation and System Integration
Installation steps:
- Mount the switch in a control cabinet or small network panel
- Connect Ethernet cables from PLCs, HMIs, drives, and other devices
- Configure the switch using web interface or SNMP tools
- Enable VLANs and QoS as needed for network optimization
- Test the network for connectivity, reliability, and performance
Proper installation ensures efficient and reliable industrial network communication.
Compatible System Components
- Allen-Bradley PLCs, HMIs, and drives
- Ethernet-enabled industrial controllers and I/O devices
- Network monitoring tools and software
- Compact control panels and network enclosures
This ensures robust and scalable industrial networking in small systems.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Allen-Bradley 1783-LMS5 | Stratix 2500 Switch | Lightweight managed switch | Small industrial networks |
| Allen-Bradley 1783-BMS06SL | Stratix 5700 Switch | 6-port managed Ethernet switch | Compact factory networks |
| Allen-Bradley 1783-EMS04T | Stratix 6000 Switch | Managed 4-port Ethernet switch | Small modular networks |
| Cisco IE2000 | Industrial Ethernet Switch | Rugged and managed | Small to medium industrial networks |
Key Advantages
- Compact, lightweight managed Ethernet switch
- Provides reliable connectivity for industrial automation devices
- Supports network management features such as VLANs and QoS
- Ideal for space-constrained installations
- Ensures scalable, modular, and reliable industrial networking
Technical FAQs
What is the primary function of the 1783-LMS5?
It provides lightweight managed Ethernet connectivity for multiple industrial devices.
Can it connect Allen-Bradley PLCs and HMIs?
Yes, it integrates seamlessly with Allen-Bradley and standard Ethernet-enabled devices.
Does it support VLANs and network management?
Yes, it supports VLANs, QoS, and SNMP monitoring.
Is it suitable for compact control panels?
Absolutely, it is designed for space-constrained industrial networks.
Conclusion
The Allen-Bradley 1783-LMS5 Stratix 2500 Lightweight Managed Ethernet Switch is a compact, reliable solution for small-scale industrial networking, providing managed connectivity, essential network monitoring, and reliable communication for PLCs, HMIs, drives, and other Ethernet-enabled devices. It is ideal for factory automation and modular network installations.
