Product Overview

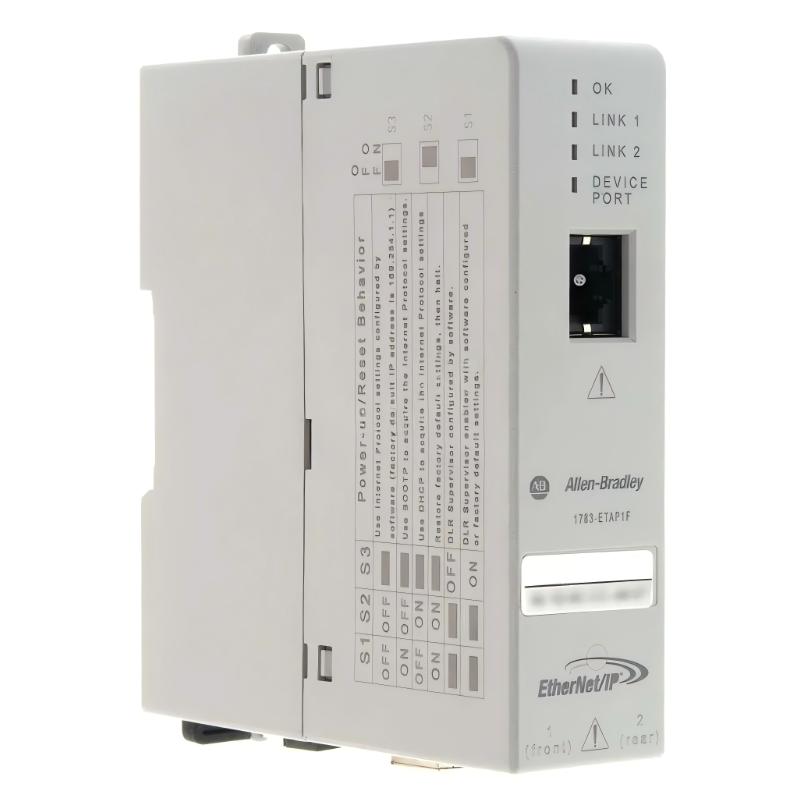

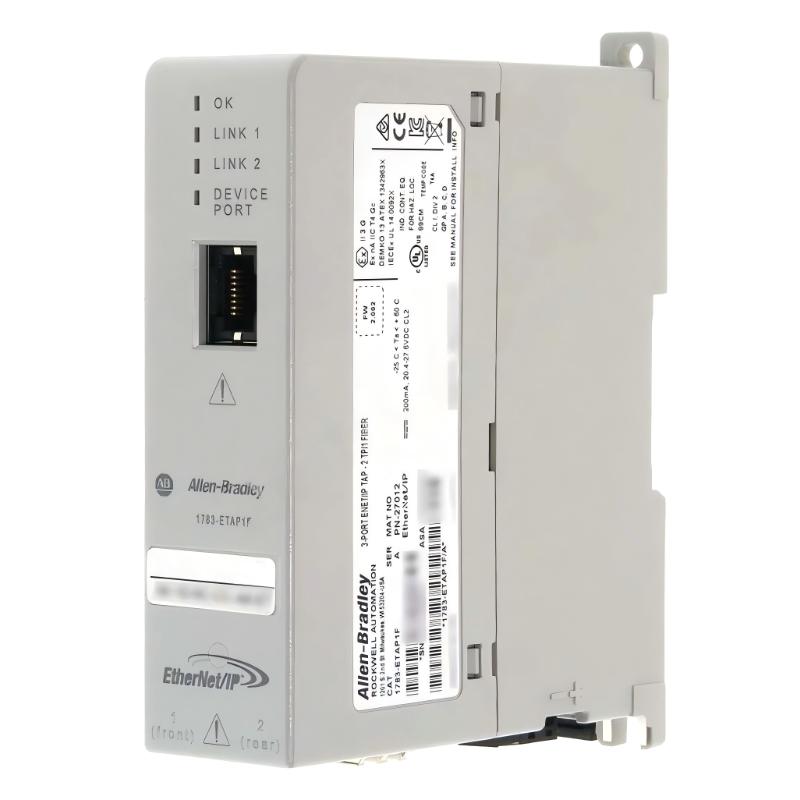

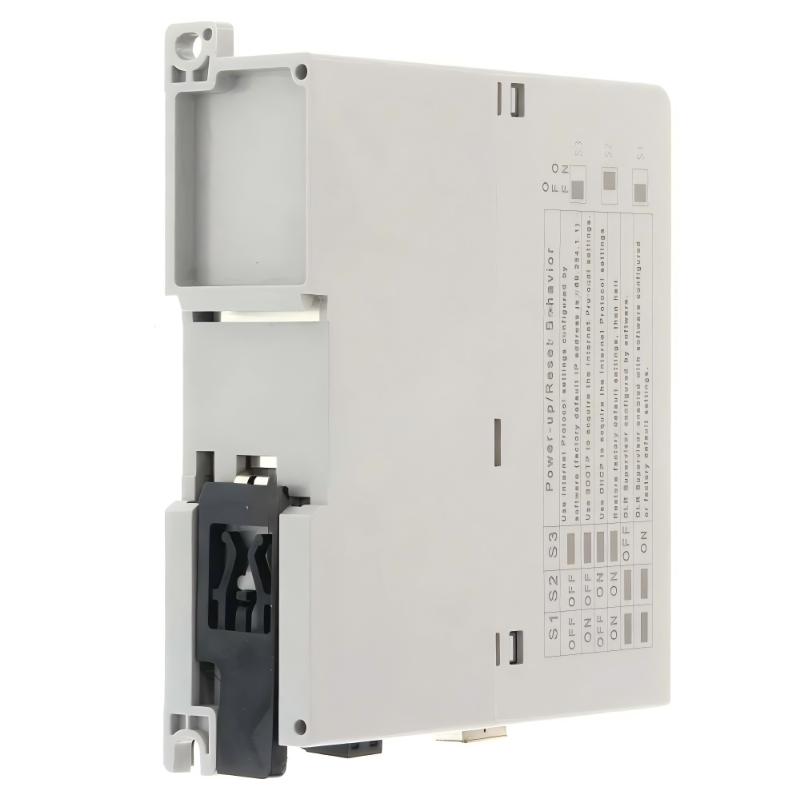

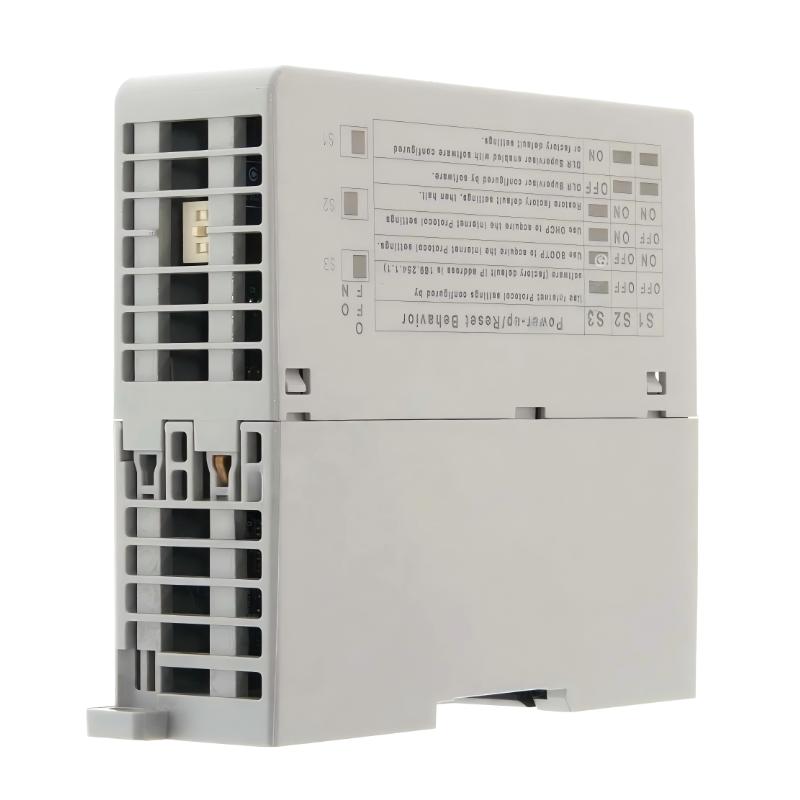

The Allen-Bradley 1783-ETAP1F is an Ethernet/IP Splitter designed to distribute Ethernet/IP signals to multiple devices in industrial networks. It allows a single Ethernet/IP connection to be shared, making it ideal for automation systems that require flexible network branching while maintaining performance and reliability.
This splitter is particularly suitable for compact network setups or modular machine networks where simplicity and reliability are essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1783-ETAP1F |
| Product Type | Ethernet/IP Splitter |
| Function | Splits a single Ethernet/IP connection to multiple devices |
| Network Protocols | EtherNet/IP, TCP/IP, industrial Ethernet standards |
| Compatibility | Allen-Bradley devices and standard Ethernet/IP-enabled equipment |
| Management | Plug-and-play; no configuration required |
| Operating Environment | Industrial automation, factory automation, process control |
Function and Working Principle
The 1783-ETAP1F works by:
- Receiving a single Ethernet/IP input from a controller or network switch
- Splitting the connection to two or more downstream devices
- Maintaining network integrity and communication speed
- Facilitating reliable communication for PLCs, HMIs, drives, and sensors
- Supporting compact or modular network topologies without requiring additional switches
It functions as a simple yet effective network branching device for industrial Ethernet/IP systems.
Role in Industrial Automation
The 1783-ETAP1F is vital for flexible network branching:
- Enables multiple devices to share a single Ethernet/IP connection
- Reduces the need for additional Ethernet switches in compact networks
- Maintains high-speed and reliable communication
- Supports modular, scalable network layouts
- Simplifies network deployment in space-constrained installations
Industrial Applications
Typical applications include:
- Factory automation networks requiring multiple devices from a single connection
- Distributed control systems (DCS) where network branching is necessary
- Machine-to-machine (M2M) communication
- Modular network designs in production lines
- Industrial IoT networks connecting sensors, actuators, and controllers
Installation and System Integration
Installation steps:
- Connect the input Ethernet/IP cable from the controller or switch
- Connect output cables to the devices needing Ethernet/IP connectivity
- Verify connectivity to ensure all devices communicate correctly
- No configuration is needed; the device is plug-and-play
- Test network performance and signal integrity
Proper installation ensures reliable, high-speed network communication.
Compatible System Components
- Allen-Bradley PLCs, HMIs, drives, and Ethernet/IP-enabled controllers
- Industrial sensors and actuators
- Ethernet/IP switches for larger networks
- Network monitoring and management tools
Ensures robust and flexible industrial Ethernet/IP network setups.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Allen-Bradley 1783-ETAP | Ethernet/IP Splitter | Splits Ethernet/IP signal | Compact industrial networks |
| Allen-Bradley 1783-EMS04T | Stratix 6000 Switch | Managed 4-port Ethernet switch | Small industrial networks |
| Allen-Bradley Stratix 5700 | Ethernet Switch | 10/20-port managed switch | Medium to large networks |
| Cisco Industrial Splitters | Ethernet/IP Splitter | Reliable network branching | Redundant or critical networks |
Key Advantages
- Efficient splitting of Ethernet/IP connections
- Plug-and-play for easy integration
- Maintains high-speed, reliable communication
- Reduces cabling and switch requirements in compact networks
- Compatible with Allen-Bradley and standard Ethernet/IP devices
Technical FAQs
What is the primary function of the 1783-ETAP1F?
It splits a single Ethernet/IP connection to multiple devices while maintaining high-speed communication.
Is configuration required?
No, it is fully plug-and-play.
Can it connect standard Ethernet/IP devices?
Yes, compatible with Allen-Bradley and other Ethernet/IP-enabled devices.
Does it affect network performance?
No, it maintains high-speed, reliable network communication with minimal latency.
Conclusion
The Allen-Bradley 1783-ETAP1F Ethernet/IP Splitter is a compact, reliable solution for splitting Ethernet/IP signals in industrial networks. It provides flexible, high-speed, and dependable connectivity, making it ideal for factory automation, modular networks, and distributed control systems.
