Product Overview

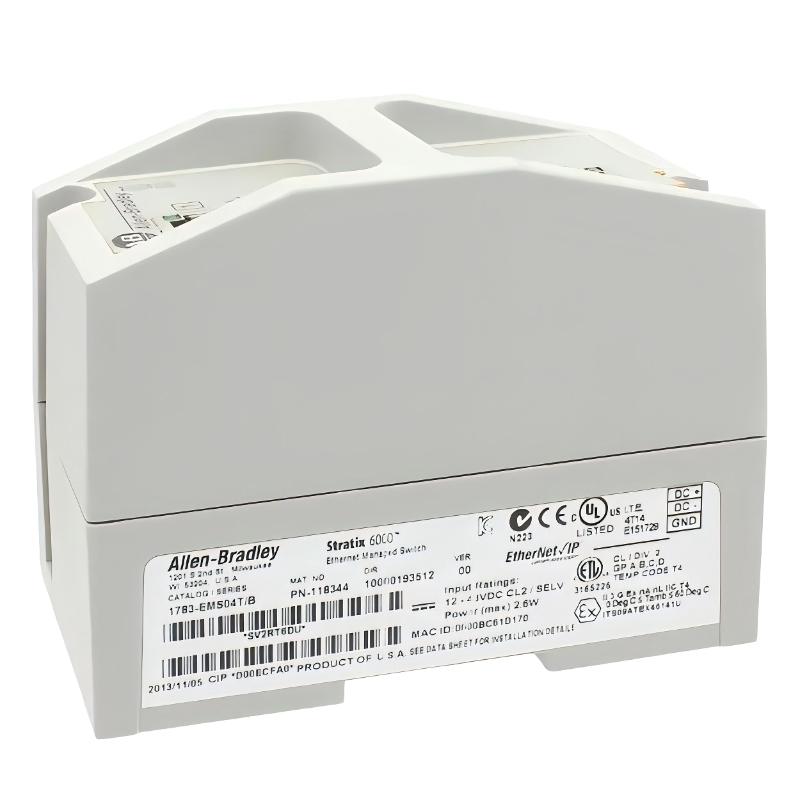

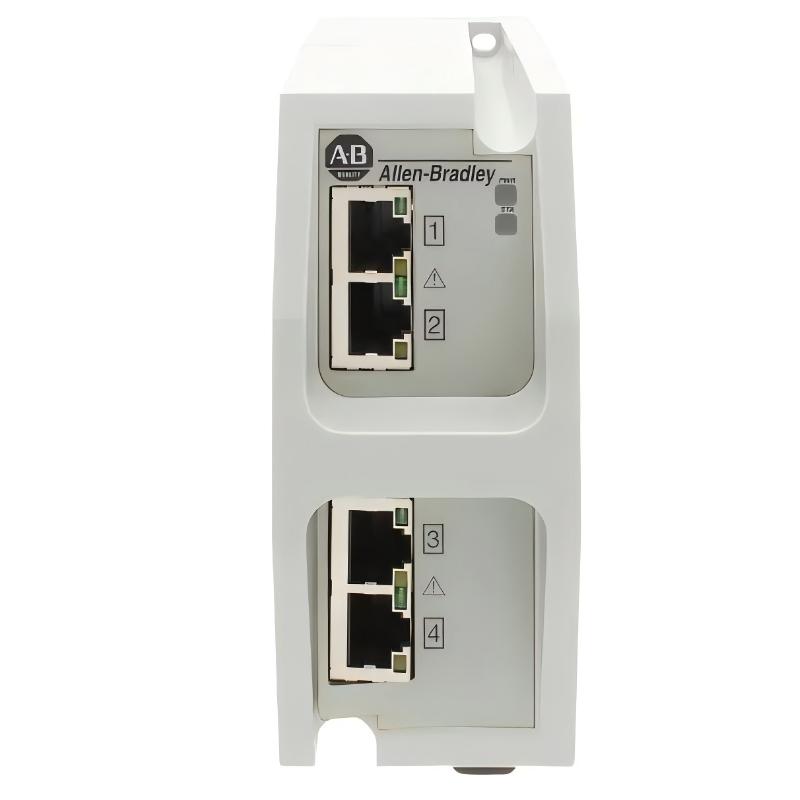

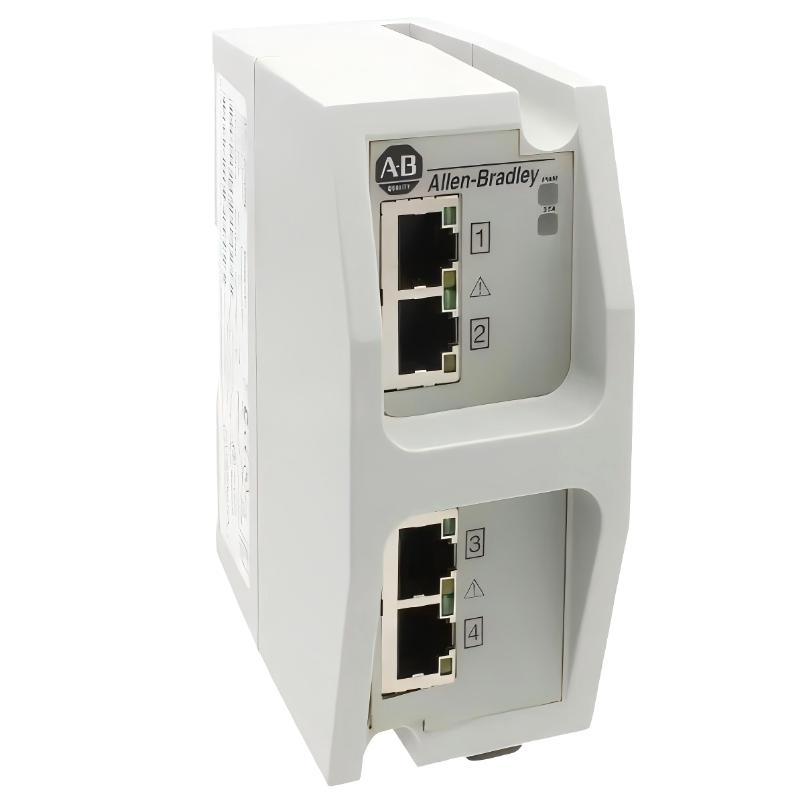

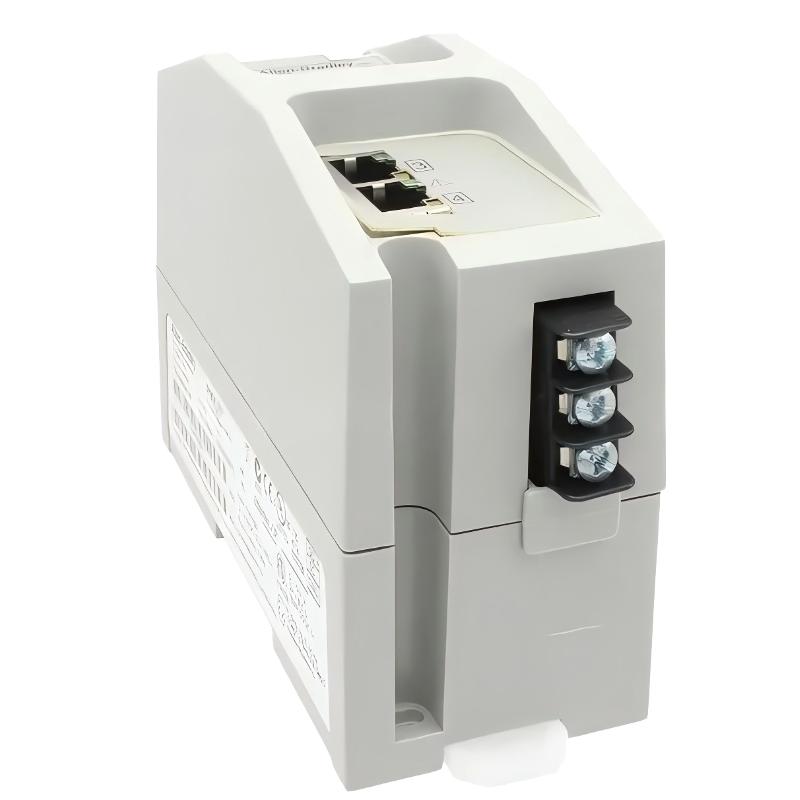

The Allen-Bradley 1783-EMS04T is a Stratix 6000 Ethernet Managed Switch designed for small to medium industrial networks. It provides secure, reliable, and managed Ethernet connectivity, making it ideal for automation systems requiring dependable communication between multiple devices.
This switch supports advanced management features and monitoring, ensuring continuous network reliability in industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1783-EMS04T |
| Product Type | Stratix 6000 Ethernet Managed Switch |
| Ports | 4 Ethernet ports (10/100/1000 Mbps) |
| Function | Managed Ethernet connectivity with advanced network features |
| Network Protocols | EtherNet/IP, TCP/IP, industrial Ethernet standards |
| Management | Web interface, SNMP, RMON, VLAN support |
| Compatibility | Allen-Bradley devices and standard Ethernet-enabled industrial equipment |
| Operating Environment | Industrial automation, manufacturing, process control |
Function and Working Principle
The 1783-EMS04T operates by:
- Providing managed Ethernet connectivity for up to 4 devices
- Facilitating high-speed, secure communication between PLCs, HMIs, drives, and sensors
- Offering advanced network management, including VLANs, QoS, and SNMP monitoring
- Supporting network redundancy to ensure continuous operation
- Enabling modular and scalable network expansion for industrial setups
It acts as the central hub for compact industrial Ethernet networks, ensuring efficient and reliable communication among connected devices.
Role in Industrial Automation
The 1783-EMS04T is critical for compact industrial networking:
- Connects PLCs, HMIs, drives, and Ethernet-enabled devices
- Provides managed network features for configuration, monitoring, and diagnostics
- Enhances network reliability with redundancy protocols
- Supports modular and scalable network design
- Ensures efficient data flow for automation and process control systems
Industrial Applications
Typical applications include:
- Small factory automation networks
- Process control systems with compact network requirements
- Distributed control systems (DCS)
- Machine-to-machine (M2M) communication
- Industrial IoT networks connecting sensors, actuators, and controllers
Installation and System Integration
Installation steps:
- Mount the switch in a control cabinet or network rack
- Connect Ethernet cables from PLCs, HMIs, drives, and other devices
- Configure the switch via web interface or network management software
- Enable redundancy protocols and VLANs as needed
- Test the network for connectivity, performance, and reliability
Proper setup ensures secure, high-speed, and reliable industrial network operation.
Compatible System Components
- Allen-Bradley Stratix series devices
- PLCs, HMIs, industrial drives, and Ethernet-enabled controllers
- Industrial sensors and actuators
- Network monitoring and management tools
This ensures robust and scalable industrial Ethernet networking.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Allen-Bradley 1783-BMS4S2SGA | Stratix 5700 Switch | 4-port managed switch | Compact industrial networks |
| Allen-Bradley 1783-EMS08T | Stratix 6000 Switch | 8-port managed switch | Medium-sized networks |
| Cisco IE2000 | Industrial Ethernet Switch | Ruggedized and managed | Factory automation |
| Hirschmann OCTOPUS | Managed Ethernet Switch | Redundant and robust networking | High-reliability industrial networks |
Key Advantages
- Compact, high-performance managed Ethernet connectivity
- Advanced network monitoring and configuration features
- Supports network redundancy for uninterrupted operation
- Flexible integration with Allen-Bradley and standard Ethernet devices
- Enhances network reliability, scalability, and uptime
Technical FAQs
What is the primary function of the 1783-EMS04T?
It provides managed Ethernet connectivity for industrial devices, ensuring secure, reliable, and high-speed communication.
Can it connect with other Allen-Bradley Ethernet devices?
Yes, it integrates with PLCs, HMIs, drives, and other Ethernet-enabled Allen-Bradley devices.
Does it support network redundancy?
Yes, it supports redundancy protocols for minimized downtime.
Can it be configured remotely?
Yes, through a web interface, SNMP, or network management tools.
Conclusion
The Allen-Bradley 1783-EMS04T Stratix 6000 Ethernet Managed Switch is a compact and reliable networking solution for industrial automation. It provides secure communication, advanced management, and redundancy, making it ideal for small to medium-scale factory, process, and machine networks that require efficient and uninterrupted Ethernet connectivity.
