Product Overview
Industrial Ethernet communication has become an essential part of modern automation systems. As factories continue to adopt intelligent manufacturing technologies, the number of connected devices such as PLC controllers, HMIs, remote I/O modules, industrial computers, and smart field devices continues to increase.

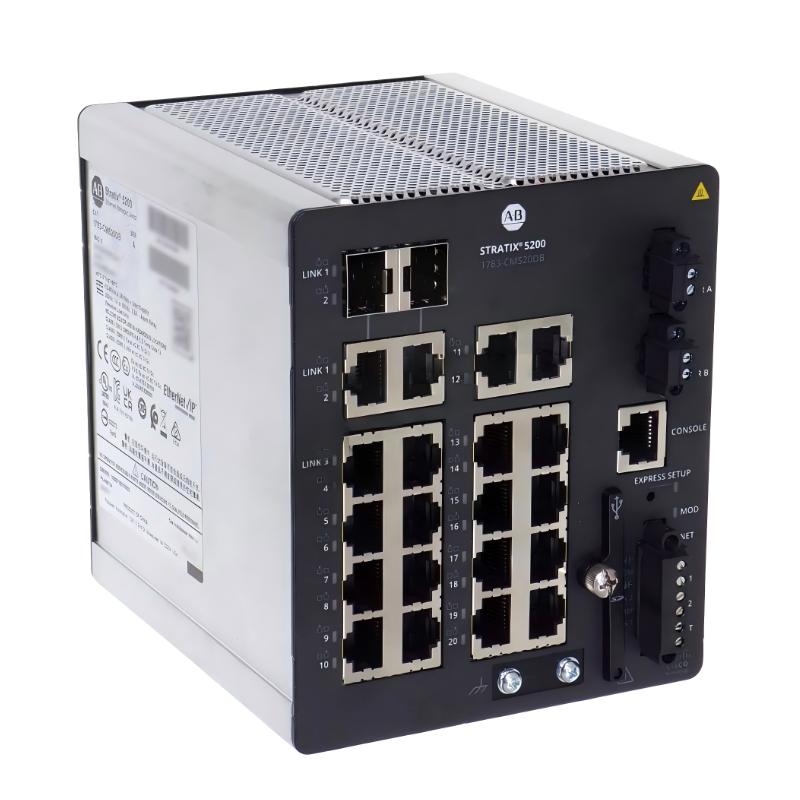

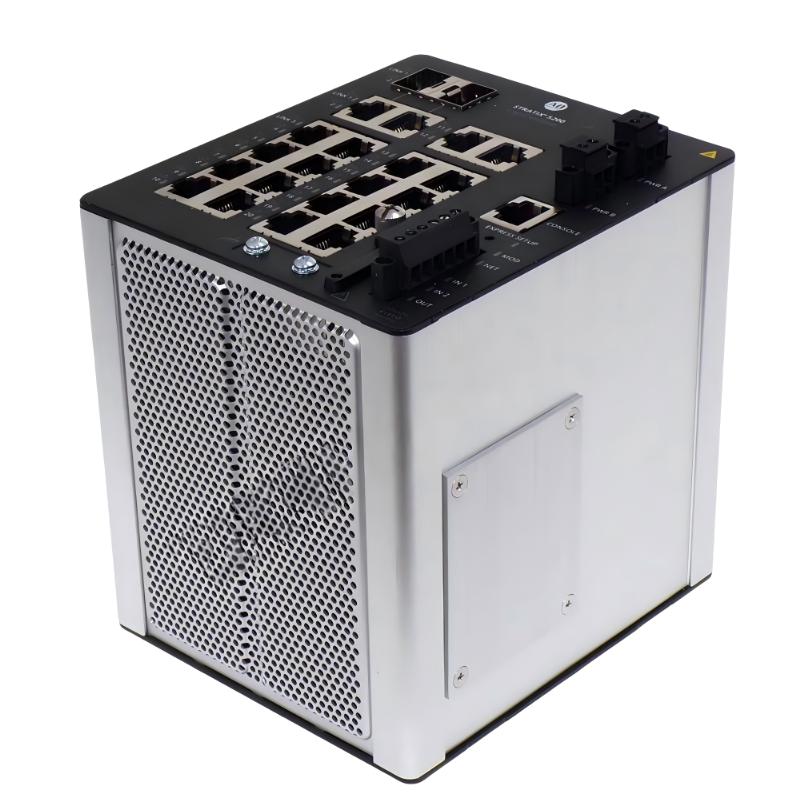

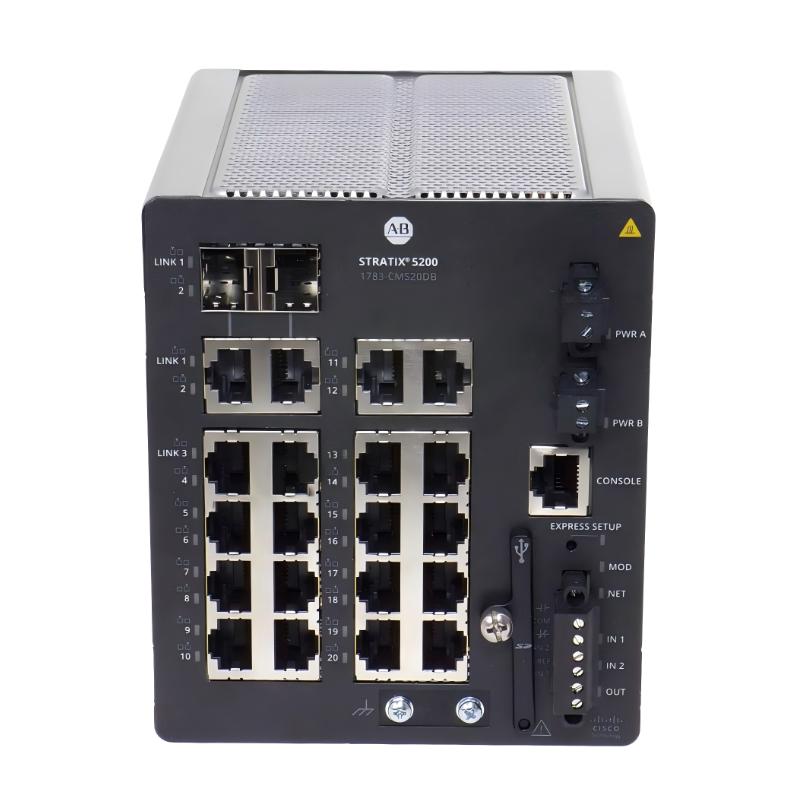

The Allen Bradley 1783-CMS20DB Stratix 5200 Ethernet Managed Switch is an industrial managed Ethernet switch designed to provide reliable communication, efficient network management, and flexible connectivity for industrial automation applications.
The switch provides multiple Ethernet communication ports, allowing various automation devices to be connected within a structured industrial network. With managed network capabilities, engineers can monitor communication performance, improve system reliability, and simplify troubleshooting processes.
The Allen Bradley Stratix 5200 Ethernet Managed Switch features an industrial-grade design suitable for control cabinets, production equipment, and factory network environments. It is widely used in manufacturing automation, machine control systems, process industries, and industrial Ethernet infrastructure applications.
By providing stable communication and effective network management, the 1783-CMS20DB helps automation systems achieve higher efficiency, improved reliability, and easier maintenance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1783-CMS20DB |
| Product Series | Stratix 5200 |
| Product Type | Ethernet Managed Switch |
| Network Type | Industrial Ethernet |
| Number of Ports | 20 Ports |
| Communication Function | Managed Ethernet networking |
| Application | Industrial automation communication |
| Dimensions | 129 × 109.2 × 127 mm |
| Weight | 2.8 kg |

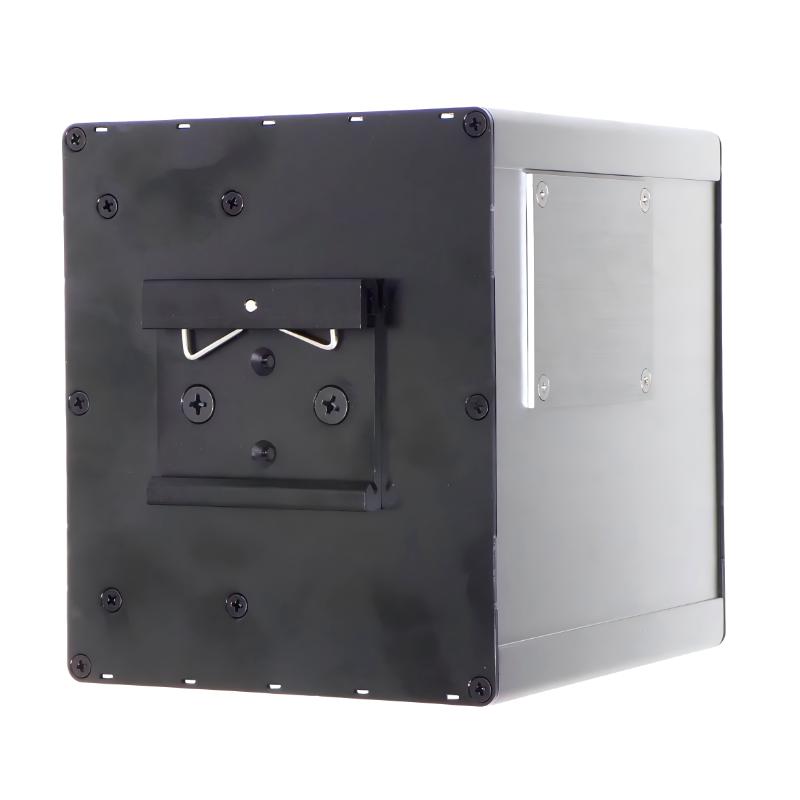

| Installation Method | DIN rail mounting |
| Operating Environment | Industrial environment |
| Design Feature | High-density managed switch |
Function and Working Principle
The Allen Bradley 1783-CMS20DB Stratix 5200 Ethernet Managed Switch operates as a central communication device within industrial Ethernet networks.
The switch receives data from connected automation devices, processes communication traffic, and forwards information between devices according to network requirements. Managed functions allow engineers to monitor network conditions and maintain stable communication performance.
The basic communication structure is:
PLC Controller → Stratix 5200 Managed Switch → Industrial Ethernet Network → Field Devices
The main functions include:
- Connecting multiple Ethernet-based automation devices
- Managing industrial communication traffic
- Supporting network expansion
- Improving communication reliability
- Providing network monitoring capability
The operation process includes:
- Automation devices send Ethernet communication signals
- The switch receives network data
- Communication traffic is processed and managed
- Data is transmitted to the correct destination
- Connected industrial devices exchange information
This communication method creates a reliable network foundation for industrial automation systems.
Role in Industrial Automation Systems
The Allen Bradley 1783-CMS20DB plays an important role in industrial communication architectures where multiple devices require stable and efficient data exchange.
Modern automation systems depend on network connectivity between different control and monitoring components. A managed Ethernet switch provides a structured communication platform that improves system organization and maintenance efficiency.
The switch is commonly integrated with:
- PLC controllers
- HMI operator panels
- Remote I/O modules
- Industrial computers
- Servo systems
- Robotics equipment
- Ethernet-enabled field devices
A typical industrial network structure includes:
Automation Controller → Managed Ethernet Switch → Industrial Devices → Production Equipment
This architecture provides:
- Flexible system expansion
- Improved communication stability
- Reduced wiring complexity
- Easier maintenance
- Better network control
Network Management Functions
Industrial Ethernet Connectivity
The main purpose of the Allen Bradley 1783-CMS20DB is to provide reliable Ethernet communication between industrial devices.
It supports:
- PLC communication
- Machine data exchange
- Industrial equipment networking
- Factory automation integration
The switch enables different automation components to communicate through a unified network platform.
Managed Network Configuration
Managed Ethernet switches provide more control compared with standard unmanaged switches.
The 1783-CMS20DB helps engineers:
- Configure network parameters
- Monitor communication conditions
- Manage connected devices
- Improve network performance
These functions are important for industrial systems requiring continuous operation and high reliability.
Network Diagnostic Capability
Communication failures can affect production efficiency. Network diagnostic functions help maintenance teams locate problems quickly.
The switch helps monitor:
- Communication status
- Port operation
- Network connection conditions
- Device availability
Effective diagnostics reduce downtime and improve automation system performance.
Industrial Applications
Manufacturing Automation
The Allen Bradley 1783-CMS20DB is widely used in:
- Automated production lines
- Assembly systems
- Packaging machinery
- Industrial manufacturing equipment
It provides reliable communication between controllers and production devices.
Machine Control Systems
Typical applications include:
- Robotics systems
- CNC equipment
- Automated testing machines
- Special-purpose machinery
The switch supports communication between multiple machine components.
Process Automation
The switch is suitable for:
- Energy systems
- Water treatment applications
- Industrial monitoring systems
- Continuous process equipment
It helps maintain stable communication in demanding environments.
Factory Network Infrastructure
The 1783-CMS20DB can be used in:
- Control cabinets
- Production cells
- Industrial Ethernet networks
- Automation upgrades
It provides a reliable communication foundation for smart manufacturing environments.
Installation and System Integration
Proper installation is important to ensure reliable operation of the Allen Bradley 1783-CMS20DB.
Recommended installation steps include:
- Mounting the switch securely
- Connecting Ethernet cables correctly
- Checking power supply connections
- Configuring network settings
- Testing communication performance
During commissioning, engineers should verify:
- Network connection status
- Device communication
- Port activity
- Data transmission performance
- System response
Correct installation helps prevent:
- Communication interruptions
- Device connection problems
- Network instability
- Production downtime
Compatible System Components
| Component | Function |
|---|---|
| PLC Controller | Executes automation programs |
| HMI System | Provides operator monitoring |
| Remote I/O Modules | Collect field information |
| Industrial Computer | Processes production data |
| Servo Drives | Controls motion equipment |
| Sensors and Actuators | Execute field operations |
These components work together to create a complete industrial Ethernet control system.
Common Failure Symptoms
| Fault Symptom | Possible Cause |
|---|---|
| Network communication failure | Cable connection issue |
| Device cannot communicate | Configuration problem |
| Slow network response | Communication overload |
| Port abnormal condition | Hardware connection fault |
| Intermittent communication | Electrical interference |
Maintenance Recommendations
To maintain reliable operation of the Allen Bradley 1783-CMS20DB:
- Check Ethernet cables regularly
- Inspect power connections
- Monitor network performance
- Verify communication settings
- Keep the control cabinet clean
Preventive maintenance helps improve network reliability and extend equipment service life.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Allen Bradley 1783-CMS20DB | Stratix 5200 Managed Switch | High-density Ethernet communication | Large automation systems |
| Allen Bradley 1783-BMS20CGN | Stratix 5700 Managed Switch | Industrial network management | Factory networks |
| Allen Bradley 1783-BMS06SGL | Stratix 5700 Managed Switch | Compact Ethernet networking | Machine automation |
| Allen Bradley Stratix Series | Industrial Managed Switch | Flexible network solutions | Industrial communication |
Key Advantages
- High-density Ethernet connectivity
- Reliable industrial communication
- Managed network functionality
- Supports large automation systems
- Improves troubleshooting efficiency
- Suitable for industrial environments
- Enhances network scalability
Technical FAQs
What is Allen Bradley 1783-CMS20DB used for?
The Allen Bradley 1783-CMS20DB is an industrial Ethernet managed switch used for communication management between multiple automation devices.
Is the 1783-CMS20DB a PLC module?
No. It is an industrial network communication device, not a controller module.
How many ports does the 1783-CMS20DB provide?
The switch provides 20 Ethernet communication ports for industrial networking applications.
Where is the 1783-CMS20DB commonly used?
It is commonly used in manufacturing automation, machine control systems, process industries, and industrial Ethernet infrastructure.
Conclusion
The Allen Bradley 1783-CMS20DB Stratix 5200 Ethernet Managed Switch is a reliable industrial networking solution designed to improve communication efficiency and network stability in automation systems.
With its high port capacity, managed Ethernet features, and industrial-grade construction, it helps engineers build scalable and dependable industrial communication networks.
For automation engineers, machine builders, and industrial system integrators, the Allen Bradley 1783-CMS20DB provides an effective solution for modern factory networking, industrial communication management, and automation system expansion.
