- Allen Bradley
- 1783-BMS10CGP

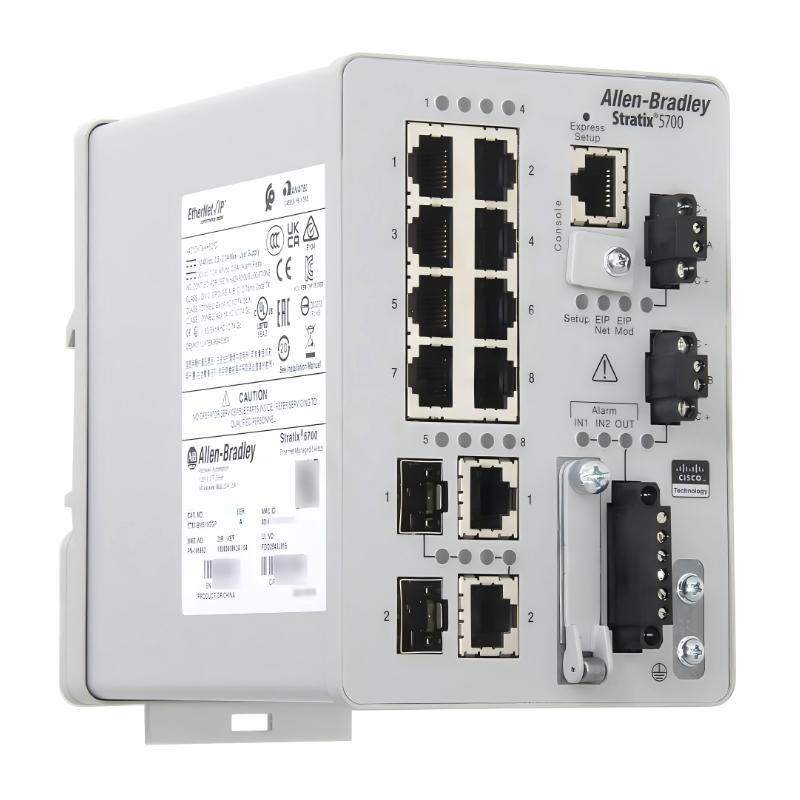

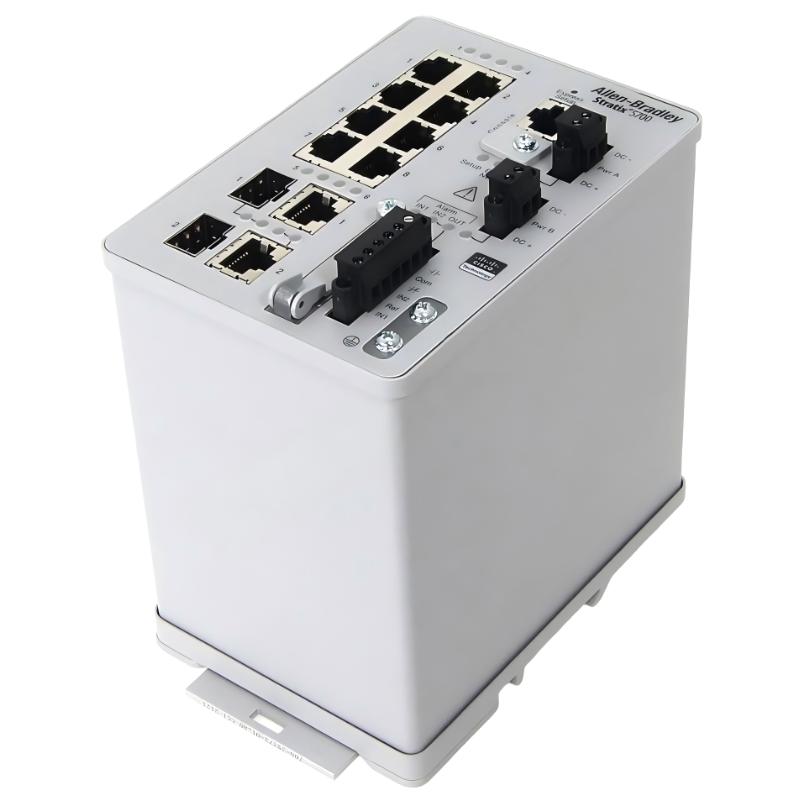

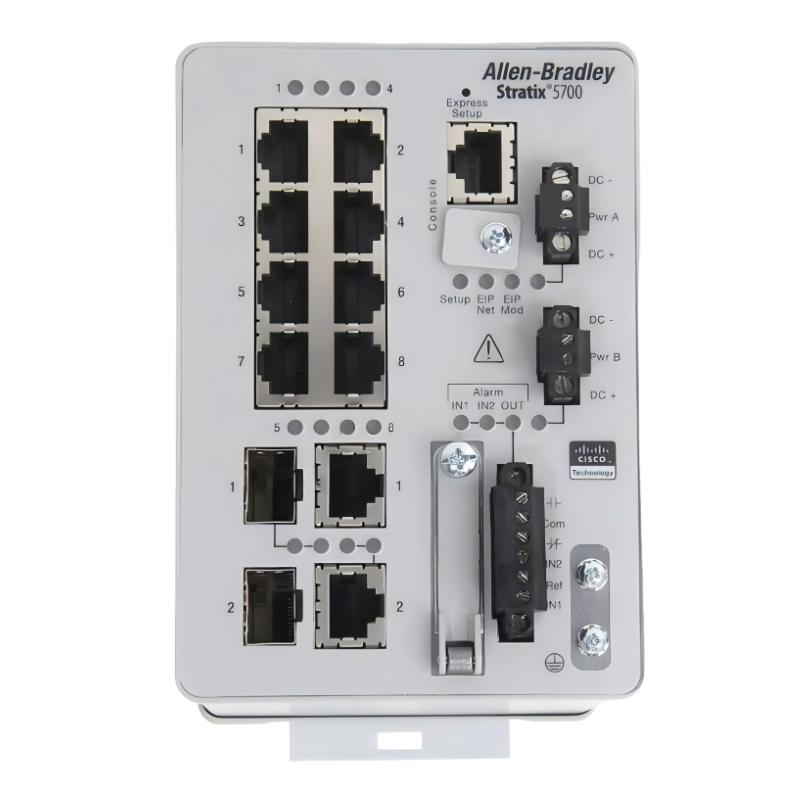

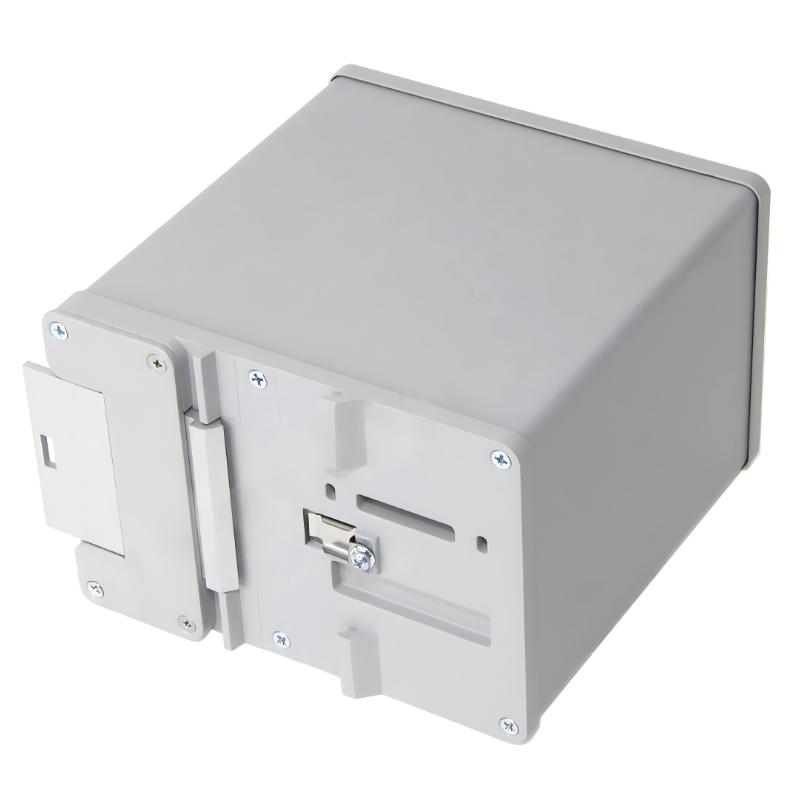

- Stratix 5700 Ethernet Managed Switch
- USA
- 135.8 x 91.4 x 129.5 mm
- 1.38 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The Allen-Bradley 1783-BMS10CGP is a Stratix 5700 Ethernet Managed Switch built for high-performance industrial networking. It provides secure, reliable, and managed Ethernet connectivity, ideal for automation systems that require seamless communication between multiple devices.
This switch supports advanced management, monitoring, and redundancy, making it suitable for complex industrial Ethernet networks that demand uninterrupted operations.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1783-BMS10CGP |
| Product Type | Stratix 5700 Ethernet Managed Switch |
| Ports | 10 Ethernet ports (10/100/1000 Mbps) |
| Function | Managed Ethernet connectivity with advanced network features |
| Network Protocols | EtherNet/IP, TCP/IP, industrial Ethernet standards |
| Management | Web interface, SNMP, RMON, Device Level Ring (DLR) |
| Compatibility | Allen-Bradley devices and standard Ethernet-enabled industrial equipment |
| Operating Environment | Industrial automation, manufacturing, process control |
Function and Working Principle
The 1783-BMS10CGP operates by:
- Providing managed Ethernet connectivity for up to 10 devices
- Facilitating high-speed, secure communication between PLCs, HMIs, drives, and sensors
- Offering advanced network management, including VLANs, QoS, and SNMP monitoring
- Supporting network redundancy with Device Level Ring (DLR) to minimize downtime
- Enabling scalable network expansion in industrial environments
It acts as the central hub for industrial Ethernet networks, ensuring efficient and reliable communication between all connected devices.
Role in Industrial Automation
The 1783-BMS10CGP is a key component for industrial networks:
- Connects PLCs, HMIs, drives, and Ethernet-enabled devices
- Provides managed network features for configuration, monitoring, and diagnostics
- Enhances network reliability with redundancy protocols
- Supports modular and scalable network design
- Ensures efficient data flow for process automation and control systems
Industrial Applications
Common applications include:
- Factory automation networks
- Process control systems requiring robust Ethernet communication
- Distributed control systems (DCS)
- Machine-to-machine (M2M) networking
- Industrial IoT networks connecting sensors, actuators, and controllers
Installation and System Integration
Installation steps:
- Mount the switch in a control cabinet or network rack
- Connect Ethernet cables from PLCs, HMIs, drives, and other devices
- Configure the switch via web interface or network management software
- Enable redundancy protocols and VLANs as required
- Test the network to ensure connectivity, performance, and reliability
Proper setup guarantees high-speed, secure, and reliable industrial network operation.
Compatible System Components
- Allen-Bradley Stratix series devices
- PLCs, HMIs, industrial drives, and Ethernet-enabled controllers
- Industrial sensors and actuators
- Network monitoring and management tools
This enables robust, dependable, and scalable industrial Ethernet networking.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Allen-Bradley 1783-BMS06TL | Stratix Ethernet Switch | 6-port managed switch | Small industrial networks |
| Allen-Bradley 1783-BMS08 | Stratix Ethernet Switch | 8-port managed switch | Medium-scale networks |
| Cisco IE3000 | Industrial Ethernet Switch | Ruggedized for harsh environments | Factory automation |
| Hirschmann OCTOPUS | Managed Ethernet Switch | Redundant and robust networking | High-reliability industrial networks |
Key Advantages
- High-performance, managed Ethernet connectivity
- Advanced network monitoring and configuration
- Supports network redundancy with Device Level Ring (DLR)
- Flexible integration with Allen-Bradley and standard Ethernet devices
- Enhances network reliability, scalability, and uptime
Technical FAQs
What is the main purpose of the 1783-BMS10CGP?
It provides managed Ethernet connectivity for industrial devices, ensuring secure, reliable, and high-speed communication.
Is it compatible with Allen-Bradley Ethernet devices?
Yes, it works with PLCs, HMIs, drives, and other Ethernet-enabled Allen-Bradley devices.
Does it support redundancy?
Yes, Device Level Ring (DLR) redundancy minimizes network downtime.
Can it be managed remotely?
Yes, via web interface, SNMP, or network management software.
Conclusion
The Allen-Bradley 1783-BMS10CGP Stratix 5700 Ethernet Managed Switch is a reliable and high-performance industrial networking solution. It ensures secure communication, advanced management, and network redundancy, making it ideal for factory, process, and machine networks requiring efficient and uninterrupted Ethernet connectivity.
