Product Overview

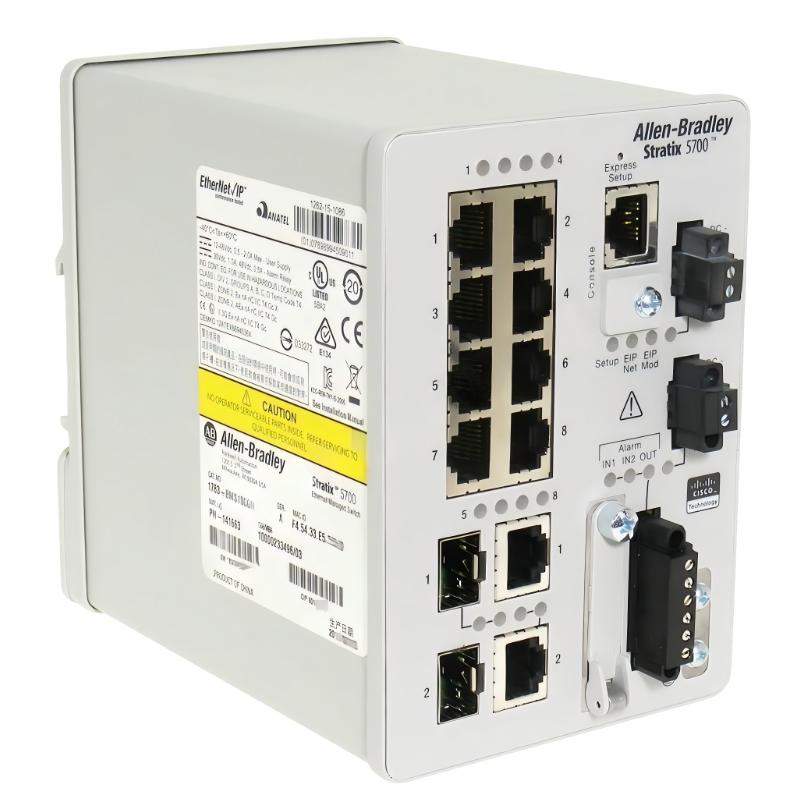

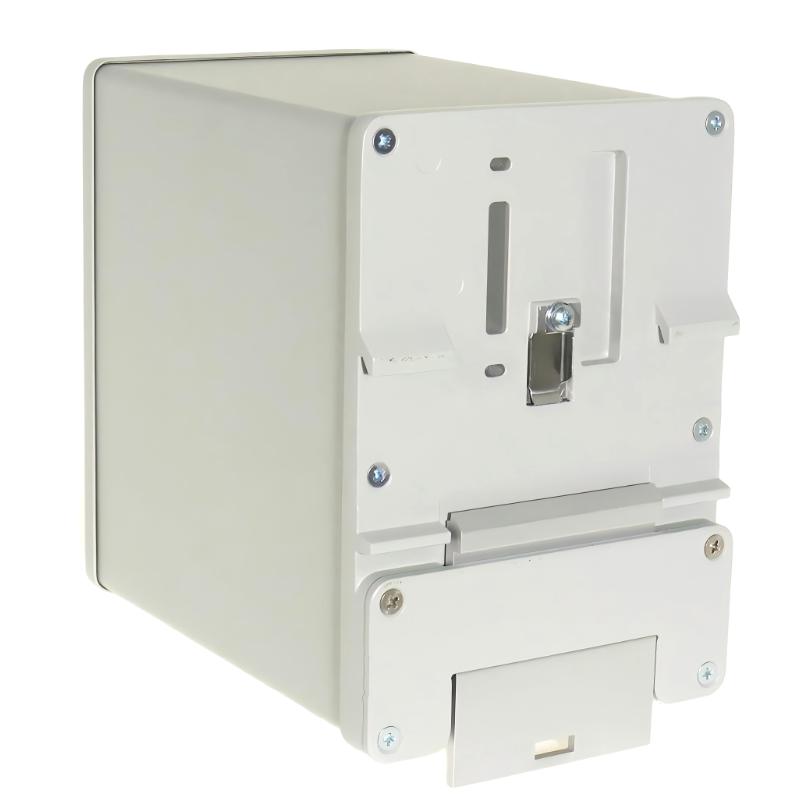

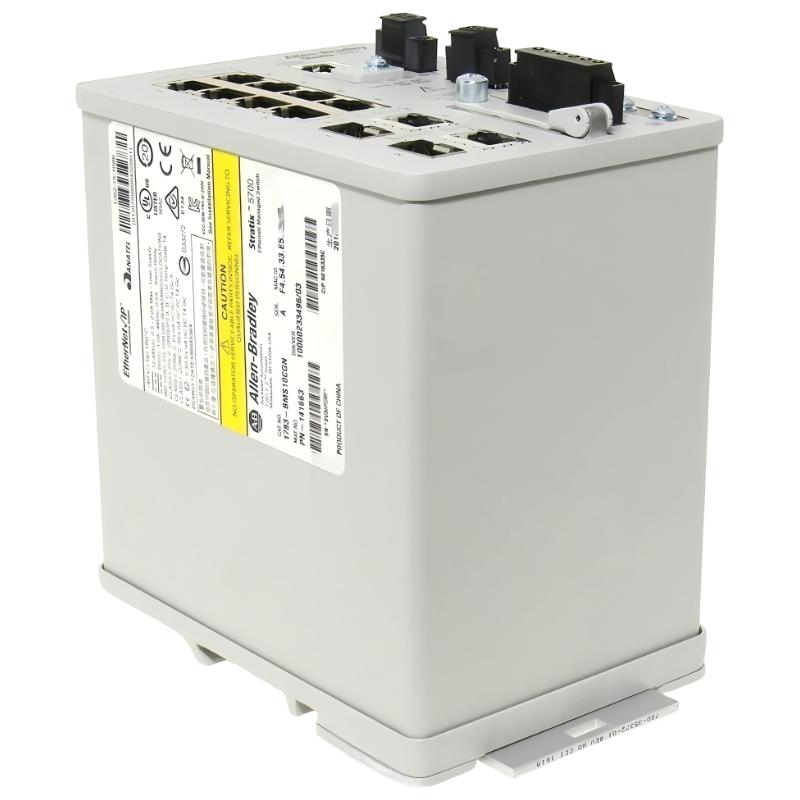

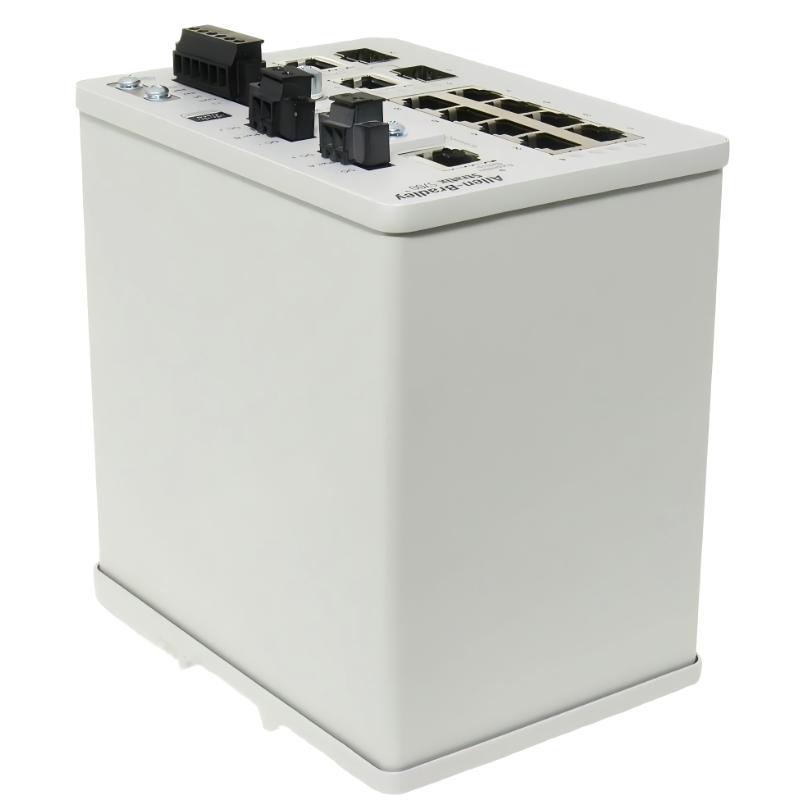

The Allen-Bradley 1783-BMS10CGN is a Stratix 5700 Ethernet Managed Switch designed for high-performance industrial networking. It delivers reliable, secure, and managed Ethernet connectivity, supporting automation systems that require efficient communication between multiple devices.
This switch is ideal for complex industrial Ethernet networks, offering advanced management, monitoring, and redundancy features to ensure uninterrupted operations.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1783-BMS10CGN |
| Product Type | Stratix 5700 Ethernet Managed Switch |
| Ports | 10 Ethernet ports (10/100/1000 Mbps) |
| Function | Provides managed Ethernet connectivity with advanced network features |
| Network Protocols | EtherNet/IP, TCP/IP, industrial Ethernet standards |
| Management | Web interface, SNMP, RMON, Device Level Ring (DLR) |
| Compatibility | Allen-Bradley devices and standard Ethernet-enabled industrial equipment |
| Operating Environment | Industrial automation, manufacturing, process control |
Function and Working Principle
The 1783-BMS10CGN operates by:
- Providing managed Ethernet connectivity for up to 10 devices
- Facilitating high-speed, secure communication between PLCs, HMIs, drives, and sensors
- Offering advanced network management, including VLANs, QoS, and SNMP monitoring
- Supporting network redundancy with Device Level Ring (DLR) to maintain uptime
- Enabling scalable network expansion in industrial environments
It serves as the central hub for industrial Ethernet networks, ensuring efficient and reliable communication between connected devices.
Role in Industrial Automation
The 1783-BMS10CGN plays a critical role in industrial networks:
- Connects PLCs, HMIs, drives, and Ethernet-enabled devices
- Provides managed network features for configuration, monitoring, and diagnostics
- Enhances network reliability with redundancy support
- Supports scalable and modular network design
- Ensures efficient data flow for process automation and control
Industrial Applications
Common use cases include:
- Factory automation networks
- Process control systems requiring robust Ethernet communication
- Distributed control systems (DCS)
- Machine-to-machine (M2M) networking
- Industrial IoT networks connecting sensors, actuators, and controllers
Installation and System Integration
Installation steps:
- Mount the switch in a control cabinet or network rack
- Connect Ethernet cables from PLCs, HMIs, drives, and other devices
- Configure the switch using web interface or network management tools
- Enable redundancy protocols and VLANs as required
- Test the network for connectivity, performance, and reliability
Proper setup ensures high-speed, secure, and reliable industrial network operation.
Compatible System Components
- Allen-Bradley Stratix series devices
- PLCs, HMIs, industrial drives, and Ethernet-enabled controllers
- Industrial sensors and actuators
- Network monitoring and management software
This enables robust, dependable, and scalable industrial Ethernet networking.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Allen-Bradley 1783-BMS06TL | Stratix Ethernet Switch | 6-port managed switch | Small-scale industrial networks |
| Allen-Bradley 1783-BMS08 | Stratix Ethernet Switch | 8-port managed switch | Medium-scale networks |
| Cisco IE3000 | Industrial Ethernet Switch | Ruggedized for harsh environments | Factory automation |
| Hirschmann OCTOPUS | Managed Ethernet Switch | Redundant and robust networking | High-reliability industrial networks |
Key Advantages
- High-performance, managed Ethernet connectivity
- Advanced network monitoring and configuration features
- Supports network redundancy with Device Level Ring (DLR)
- Flexible integration with Allen-Bradley and standard Ethernet devices
- Enhances network reliability, scalability, and uptime
Technical FAQs
What is the main purpose of the 1783-BMS10CGN?
It provides managed Ethernet connectivity for industrial devices, ensuring secure, reliable, and high-speed communication.
Can it work with all Allen-Bradley Ethernet devices?
Yes, it is compatible with PLCs, HMIs, drives, and other Ethernet-enabled Allen-Bradley devices.
Does it support redundancy?
Yes, it supports Device Level Ring (DLR) redundancy to minimize network downtime.
Can it be configured remotely?
Yes, via web interface, SNMP, or network management software.
Conclusion
The Allen-Bradley 1783-BMS10CGN Stratix 5700 Ethernet Managed Switch is a reliable and high-performance networking solution for industrial automation. It ensures secure communication, advanced management, and network redundancy, making it ideal for factory, process, and machine networks that demand efficient and uninterrupted Ethernet connectivity.
