Product Overview

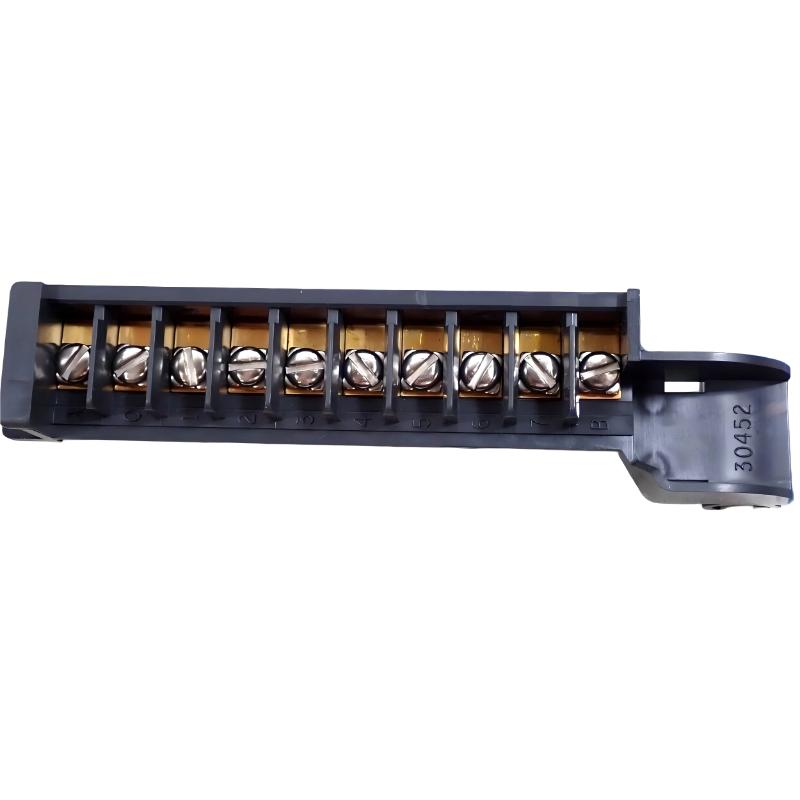

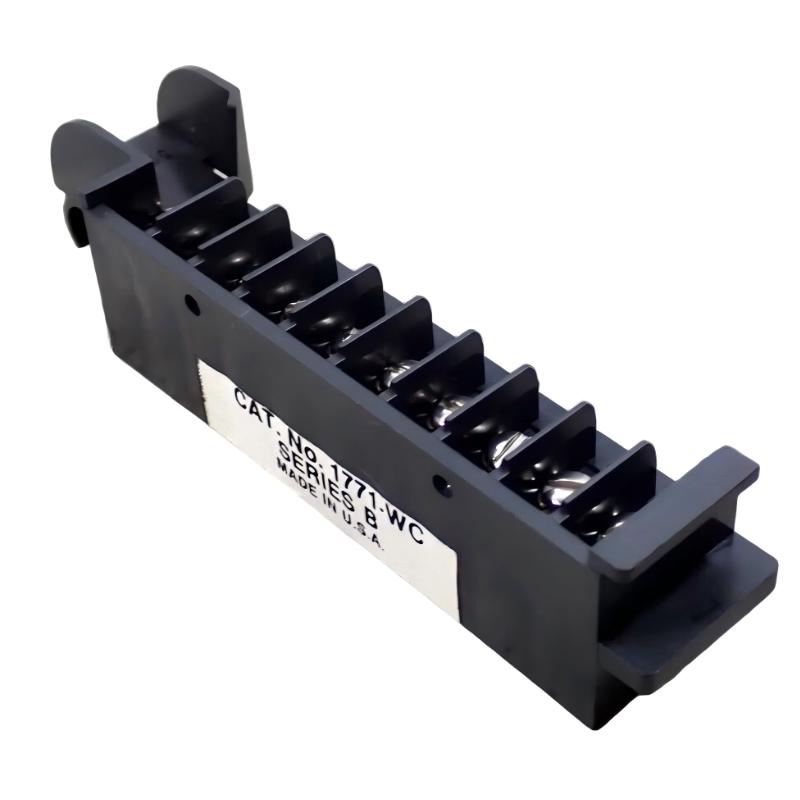

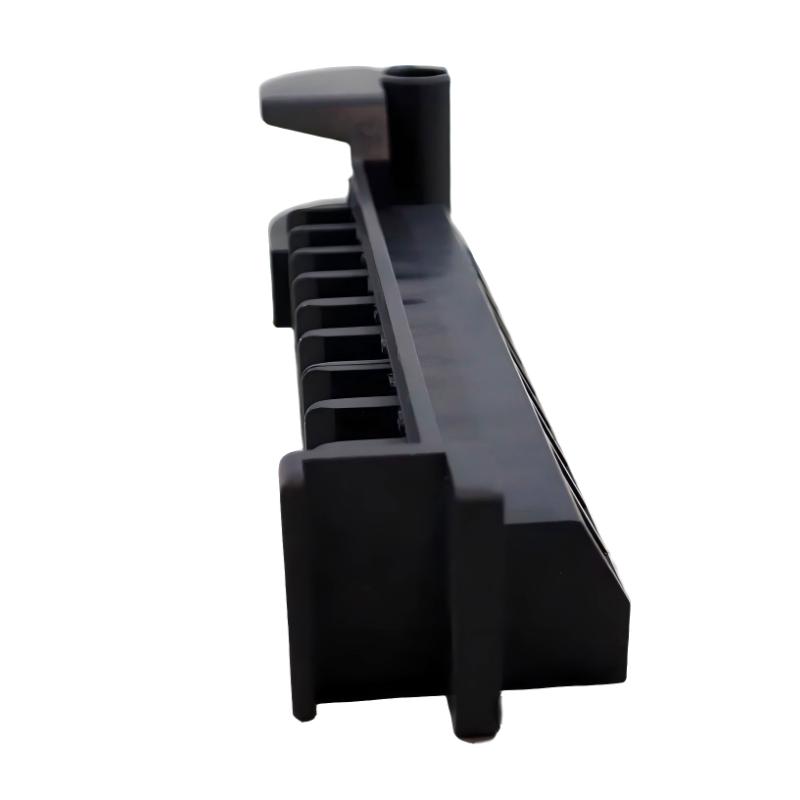

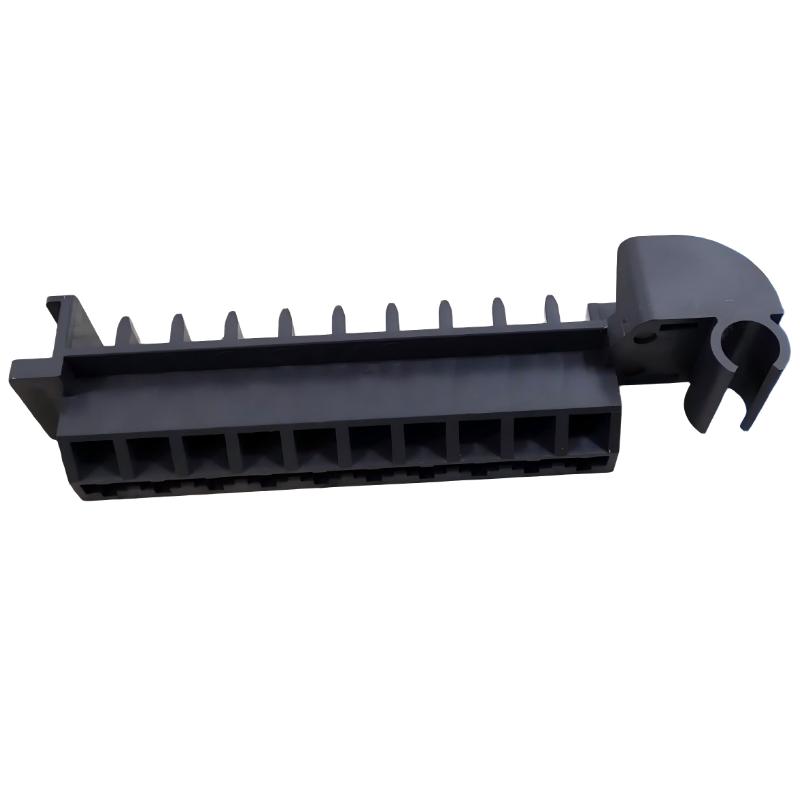

The Allen-Bradley 1771-WC is a Field Connection Arm designed for 1771 I/O systems, providing a secure and reliable interface for connecting field wiring to remote I/O modules.
With dimensions of 100 × 25 × 80 mm and a weight of 0.09 kg, it is slightly heavier than the 1771-WB, offering enhanced durability for industrial applications where a more robust field connection is needed.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1771-WC |
| Product Type | Field Connection Arm |
| Function | Connects field devices to 1771 I/O modules |
| Dimensions | 100 × 25 × 80 mm |
| Weight | 0.09 kg |
| Mounting Type | Panel-mounted or chassis-mounted |
| Compatibility | Allen-Bradley 1771 I/O modules |
| Operating Environment | Industrial automation and process control |
Function and Working Principle
The 1771-WC operates by:
- Providing a secure connection point for field wiring
- Organizing and simplifying wiring from sensors, switches, and actuators
- Maintaining reliable signal transmission to the I/O module
- Reducing installation errors in distributed or space-limited systems
It acts as a bridge between field devices and the 1771 I/O chassis, improving both installation efficiency and signal reliability.
Role in Industrial Automation
The 1771-WC serves as a key interface for field connections:
- Facilitates remote I/O integration with 1771 systems
- Improves wiring organization and maintenance
- Provides a robust connection for industrial sensors and actuators
- Enhances system reliability in high-demand environments
- Supports modular system layouts for flexible automation design
Industrial Applications
The 1771-WC is suitable for:
- Remote I/O installations in manufacturing and process control
- Industrial machinery requiring reliable field connections
- Distributed control systems (DCS) with modular layouts
- Automation setups in space-constrained panels
- Applications with frequent maintenance, benefiting from organized wiring
Its slightly higher weight ensures durability without sacrificing compactness.
Installation and System Integration
Installation steps:
- Mount the 1771-WC near the I/O module or field device
- Connect field wiring from sensors, switches, or actuators to the arm terminals
- Attach the arm to the 1771 chassis or compatible terminal interface
- Verify signal continuity and proper LED status (if applicable)
- Test the system to ensure reliable operation
Proper installation ensures robust and organized field connections.
Compatible System Components
- Allen-Bradley 1771 I/O modules (digital, analog, AC/DC)
- 1771 Remote Termination Panels (RTP)
- Sensors, actuators, and other field devices
This enables efficient signal integration and organized wiring for industrial automation systems.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Allen-Bradley 1771-WB | Field Connection Arm | Lightweight design | Compact installations |
| Allen-Bradley 1771-RTP4 | Remote Termination Panel | Remote I/O connection | Distributed I/O systems |
| Phoenix Contact Axioline Field Connector | Field I/O interface | Modular and compact | Industrial automation wiring |
| Siemens ET 200SP Field Connector | Field I/O interface | Flexible mounting | Distributed control systems |
Key Advantages
- Provides reliable and durable field connections
- Slightly heavier (0.09 kg) for enhanced robustness
- Simplifies wiring and maintenance
- Supports modular and distributed I/O layouts
- Ensures stable signal transmission from field devices to I/O modules
Technical FAQs
What is the difference between 1771-WC and 1771-WB?
The 1771-WC is slightly heavier (0.09 kg vs. 0.07 kg) and offers a more robust field connection while maintaining the same compact size.
Is it compatible with all 1771 I/O modules?
Yes, it works with standard Allen-Bradley 1771 digital, analog, and AC/DC modules.
Can it be installed in tight spaces?
Yes, it is compact (100 × 25 × 80 mm) and suitable for panel-mounted or chassis-mounted applications.
Does it improve signal reliability?
Yes, it provides a secure and organized connection point, reducing wiring errors and improving signal integrity.
Conclusion
The Allen-Bradley 1771-WC Field Connection Arm is a robust, compact, and reliable solution for connecting field devices to 1771 I/O modules. Its durable construction, organized wiring interface, and ease of installation make it ideal for space-constrained industrial automation and distributed control applications.
