Product Overview

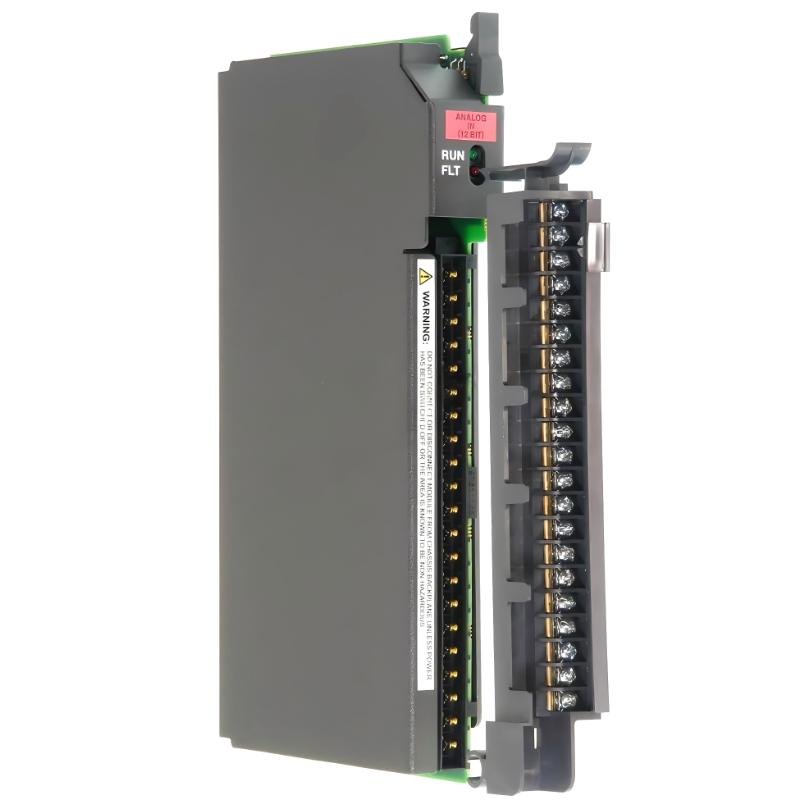

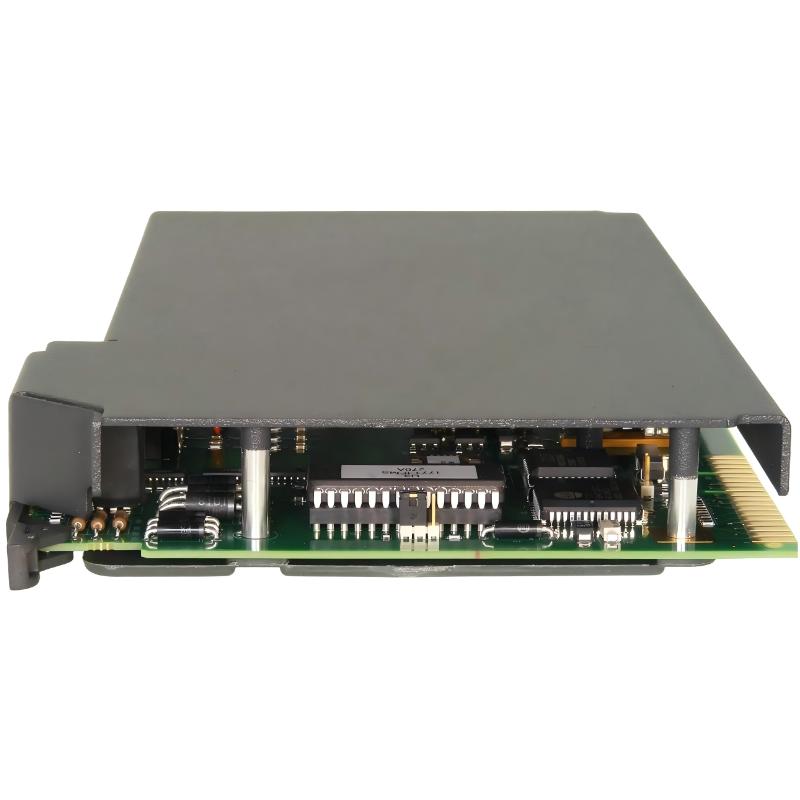

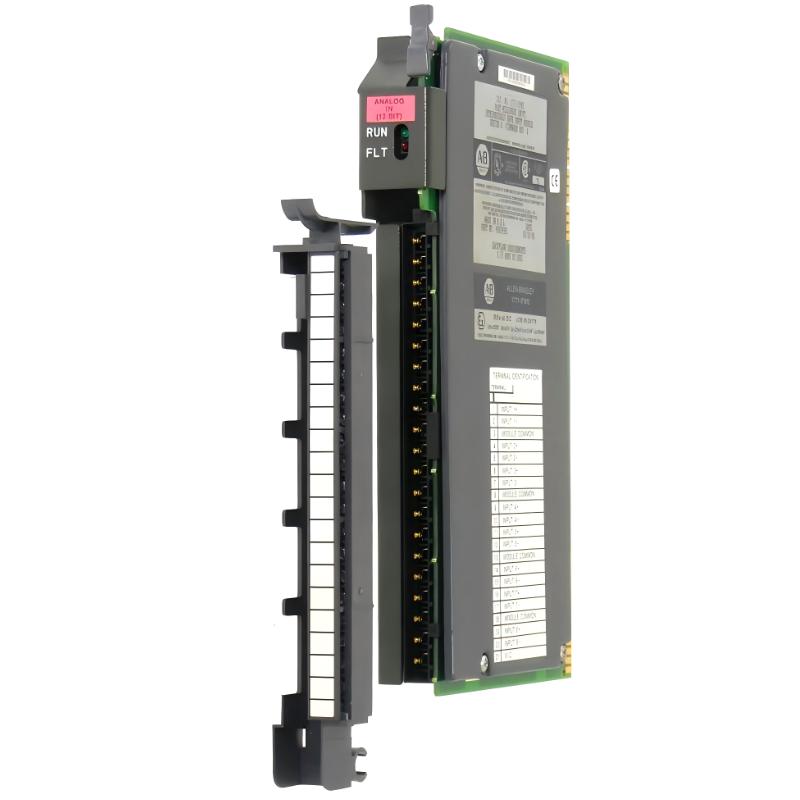

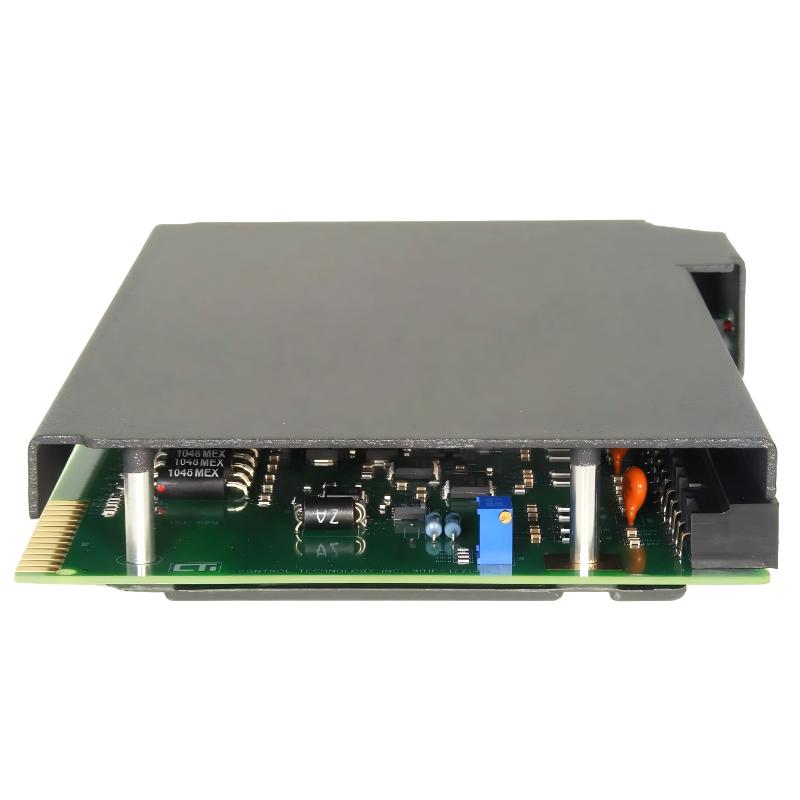

The Allen-Bradley 1771-IFM Fast Millivolt Input Module is designed for precise, high-speed millivolt signal acquisition in Allen-Bradley 1771 PLC systems. It is ideal for applications requiring rapid measurement of low-voltage signals from devices such as thermocouples, strain gauges, and other millivolt-level sensors.
The module ensures high-resolution, reliable data conversion, enabling PLCs to process dynamic and critical process signals with minimal latency.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1771-IFM |
| Product Type | Fast Millivolt Input Module |
| Function | Converts fast millivolt-level analog signals into PLC-readable digital data |
| Compatible Modules | Allen-Bradley 1771 PLC processors and I/O modules |
| Input Type | Millivolt analog signals (mV) |
| Channels | Multiple high-speed channels |
| Mounting Type | Panel or rack-mounted within 1771 chassis |
| Dimensions | 165 × 51 × 89 mm |
| Weight | 0.59 kg |
| Operating Environment | Industrial automation systems |
| Slots Required | 1 slot per module |
| Installation | Plug-in within 1771 I/O chassis |
Function and Working Principle
The 1771-IFM module operates by:
- Acquiring low-voltage millivolt signals from field devices at high sampling rates
- Converting these signals into digital values that the PLC processor can interpret
- Providing signal conditioning and amplification to ensure accuracy and noise reduction
- Supporting multiple high-speed input channels for real-time monitoring
- Allowing precise measurement and control in critical industrial applications
This ensures fast, reliable, and accurate millivolt-level input acquisition for automation systems.
Role in Industrial Control Systems
The 1771-IFM module acts as a high-speed, precision interface:
- Monitors low-voltage sensor outputs with high accuracy
- Enables real-time control in dynamic industrial processes
- Integrates seamlessly with other 1771 I/O modules within a modular chassis
- Reduces measurement errors due to noise, interference, or slow response
- Supports high-speed data acquisition for time-sensitive automation processes
It is essential in systems requiring fast and precise monitoring of small analog signals.
Industrial Applications
The 1771-IFM module is commonly used in:
- Thermocouple and temperature measurement systems
- Strain gauge or pressure sensor monitoring
- High-speed chemical process control
- Material testing and measurement systems
- Water and wastewater treatment with precise analog measurement needs
- Safety-critical industrial processes requiring millivolt-level precision
Its fast-response capability ensures accurate and timely data for dynamic processes.
Installation and System Integration
To install the 1771-IFM module:
- Insert into a compatible 1771 I/O chassis
- Ensure proper alignment and secure connection to the backplane
- Connect millivolt-level sensors to the terminals
- Verify accurate signal acquisition via the PLC processor
- Follow industrial safety, grounding, and wiring best practices
Proper installation guarantees high-speed, precise millivolt signal processing.
Compatible System Components
The 1771-IFM module integrates with:
- Allen-Bradley 1771 PLC processors
- 1771 Digital and Analog I/O Modules
- Local I/O Adapter Modules (e.g., 1771-ALX)
- 1771 I/O chassis of various slot capacities
- 1771 Power Supply Modules
Together, these components form a modular, high-speed PLC automation system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1771-IFM2 | Fast Millivolt Input Module | Higher channel density | Complex high-speed applications |
| 1771-IFF | Fast Analog Input Module | High-speed analog acquisition | Dynamic process control |
| 1771-IFE | Standard Analog Input Module | Standard precision analog inputs | General analog acquisition |
| 1771-IFC | Thermocouple Input Module | Direct thermocouple connection | Temperature measurement systems |
| Siemens ET 200SP AI Fast | Distributed High-Speed Analog Input | Rapid millivolt-level acquisition | Modern high-speed automation systems |
Key Advantages
- High-speed, precise acquisition of millivolt-level signals
- Compact, modular, and lightweight for easy integration
- Ensures rapid and accurate PLC input processing
- Reduces errors from noise and signal interference
- Compatible with a wide range of Allen-Bradley 1771 modules
- Reliable performance in industrial environments
Technical FAQs
What type of signals does the 1771-IFM support?
It supports fast millivolt-level analog signals from sensors and thermocouples.
How many slots does it occupy in a 1771 chassis?
It occupies 1 slot per module.
Is it suitable for high-speed or safety-critical applications?
Yes, it provides fast, precise millivolt input acquisition.
Can it operate with standard analog modules?
Yes, it integrates seamlessly with other 1771 analog and digital I/O modules.
Conclusion
The Allen-Bradley 1771-IFM Fast Millivolt Input Module is a high-performance solution for precise, high-speed millivolt signal acquisition in 1771 PLC systems. Its rapid response, signal conditioning, and modular compatibility make it an essential component for industrial automation applications requiring accurate, high-speed monitoring of low-voltage signals.
