Product Overview

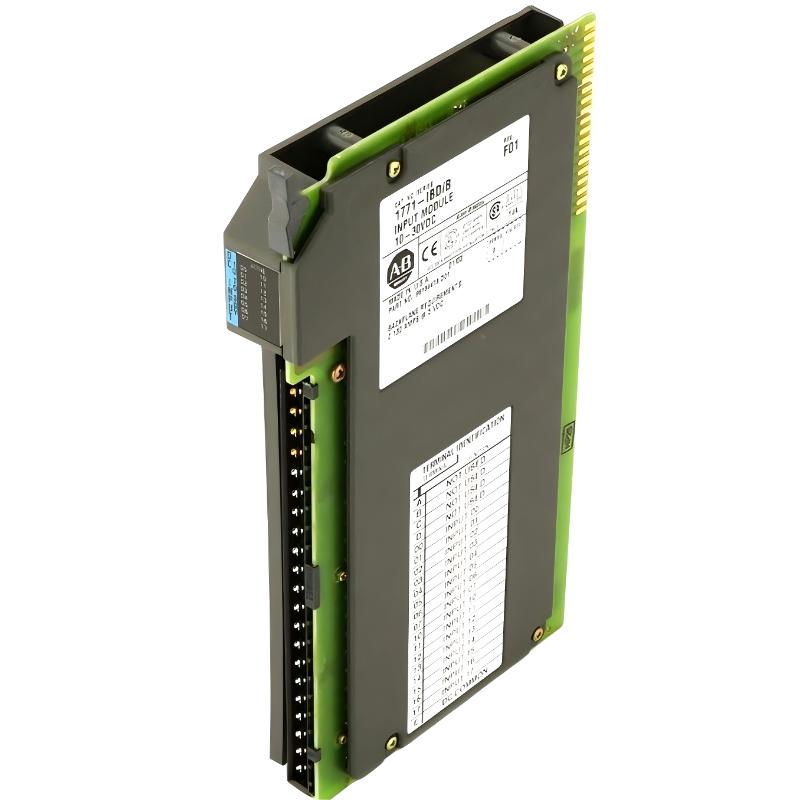

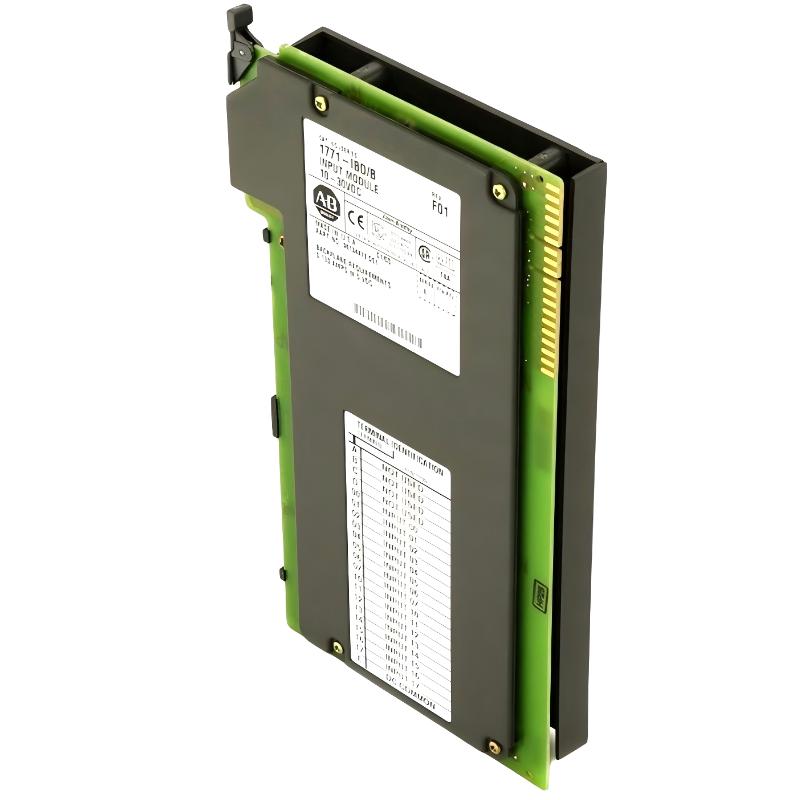

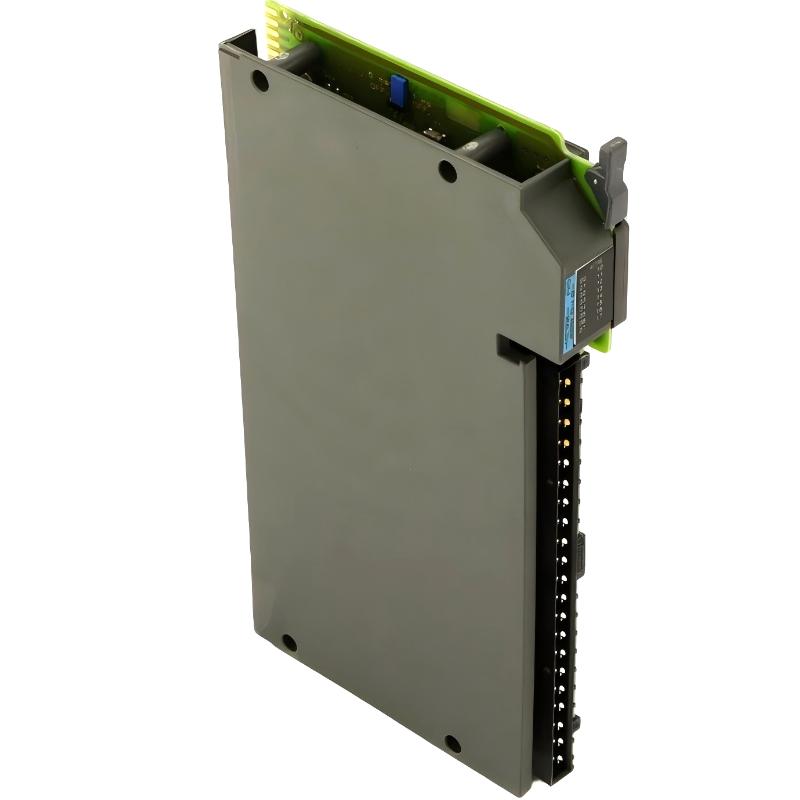

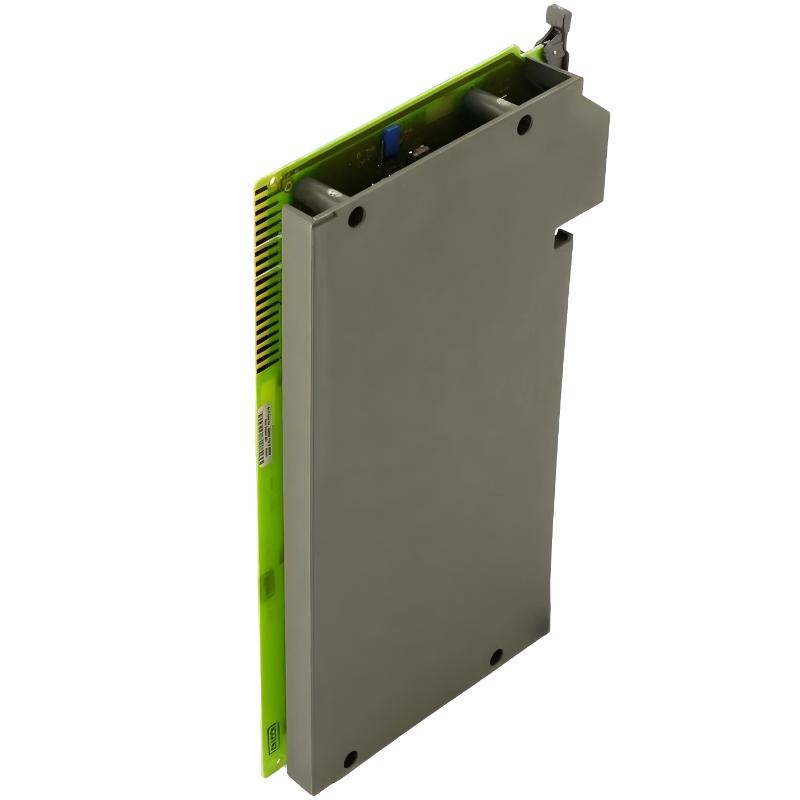

The Allen-Bradley 1771-IBD Digital DC Input Module is designed to interface DC field devices with Allen-Bradley 1771 PLC systems. This module allows PLCs to receive and process DC digital signals from sensors, switches, and other control equipment, converting them into logic signals that the PLC can interpret.
With its compact and industrial-grade design, the 1771-IBD ensures accurate, fast, and reliable signal acquisition, supporting robust control system performance in modular PLC architectures.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1771-IBD |
| Product Type | Digital DC Input Module |
| Function | Converts field DC signals into PLC-readable digital inputs |
| Compatible Modules | Allen-Bradley 1771 PLC Processors and I/O Modules |
| Input Type | DC digital signals |
| Mounting Type | Panel or rack-mounted within 1771 chassis |
| Dimensions | 165 × 51 × 89 mm |
| Weight | 0.45 kg |
| Operating Environment | Industrial automation systems |
| Slots Required | 1 slot per module |
| Installation | Plug-in within 1771 I/O chassis |
Function and Working Principle
The 1771-IBD module operates by receiving DC input signals from field devices:
- Converts DC on/off signals into logic levels readable by the PLC processor
- Provides multiple DC input channels (depending on configuration)
- Conditions signals to prevent false triggering due to electrical noise
- Interfaces with the PLC backplane for real-time monitoring
- Supports reliable operation in harsh industrial environments
This module ensures accurate and consistent digital signal acquisition from DC field devices.
Role in Industrial Control Systems
The 1771-IBD serves as a critical interface component for DC digital inputs:
- Enables PLCs to detect the status of DC sensors, switches, and relays
- Ensures reliable signal acquisition for process monitoring and control
- Works seamlessly within modular 1771 I/O chassis for scalable system expansion
- Reduces wiring complexity by centralizing DC input connections
- Supports fast and deterministic input processing for automation systems
It is essential in systems where DC inputs are dominant.
Industrial Applications
The 1771-IBD module is commonly used in:
- Manufacturing automation lines with DC sensors
- Material handling and conveyor systems
- Packaging automation
- Water and wastewater treatment facilities
- Oil, gas, and chemical plant automation
- Industrial systems requiring fast and reliable DC input detection
Its compact size and robust design make it ideal for a wide range of industrial environments.
Installation and System Integration
To install the 1771-IBD:
- Insert the module into a compatible 1771 I/O chassis
- Ensure proper alignment with the backplane and secure locking
- Connect field DC signals to the module input terminals
- Verify input signals are correctly read by the PLC processor
- Follow industrial safety and grounding procedures
Proper installation ensures reliable operation and minimizes downtime.
Compatible System Components
The 1771-IBD integrates with:
- Allen-Bradley 1771 PLC processors
- 1771 Digital Output Modules
- 1771 Analog Input/Output Modules
- Local I/O Adapter Modules (e.g., 1771-ALX)
- 1771 I/O chassis of various slot capacities
- 1771 power supply modules
Together, these components form a complete modular automation system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1771-IAD | AC/DC Input Module | Supports both AC and DC signals | Systems requiring mixed signal inputs |
| 1771-IBD2 | High-Density DC Input Module | More input channels | Complex DC input systems |
| 1771-DMC | Control Coprocessor | High-speed processing | Time-critical automation tasks |
| 1771-A3B1 | 12-Slot I/O Chassis | Medium capacity | Mid-scale automation panels |
| Siemens ET 200SP Digital Input | Distributed DC Input Module | Flexible DC field connection | Modern industrial setups |
Key Advantages
- Reliable DC input signal acquisition
- Compact and lightweight design for efficient panel layout
- Supports modular system expansion
- High signal integrity in industrial environments
- Compatible with a wide range of 1771 PLC modules
- Reduces wiring complexity and simplifies installation
Technical FAQs
What type of signals does the 1771-IBD support?
It supports DC digital input signals only.
How many slots does it occupy in a 1771 chassis?
It occupies 1 slot per module.
Can it work with AC input modules in the same system?
Yes, it can coexist with AC or AC/DC input modules in the same 1771 chassis.
Is it suitable for harsh industrial environments?
Yes, it is designed for reliable operation in electrically noisy and industrial conditions.
Conclusion
The Allen-Bradley 1771-IBD Digital DC Input Module is a reliable and versatile solution for integrating DC field signals into 1771 PLC systems. Its compact design, robust performance, and easy integration make it an essential component for industrial automation applications that rely on fast, accurate, and dependable DC input monitoring.
