Product Overview

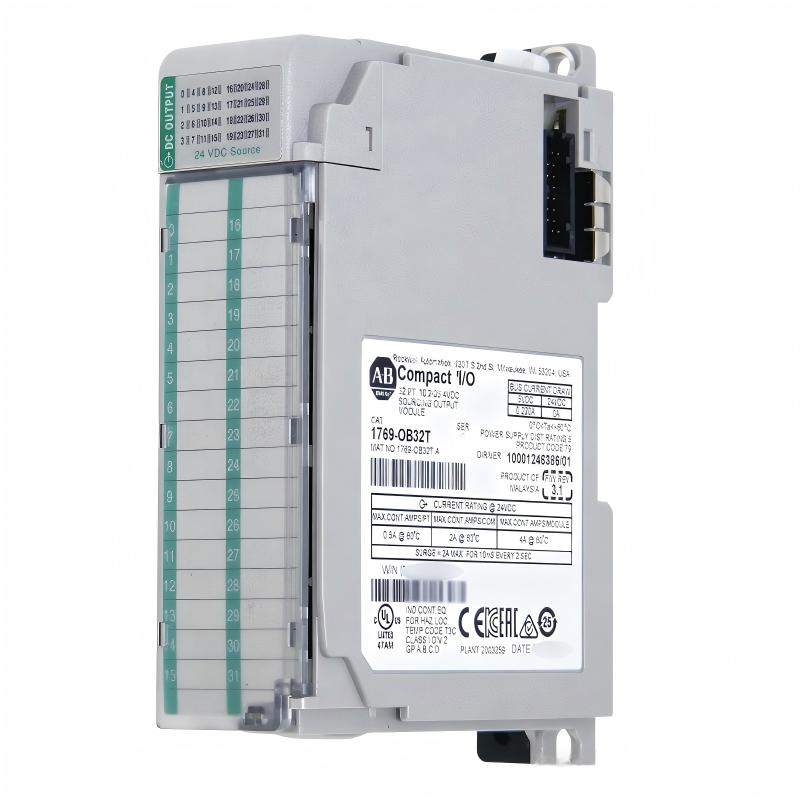

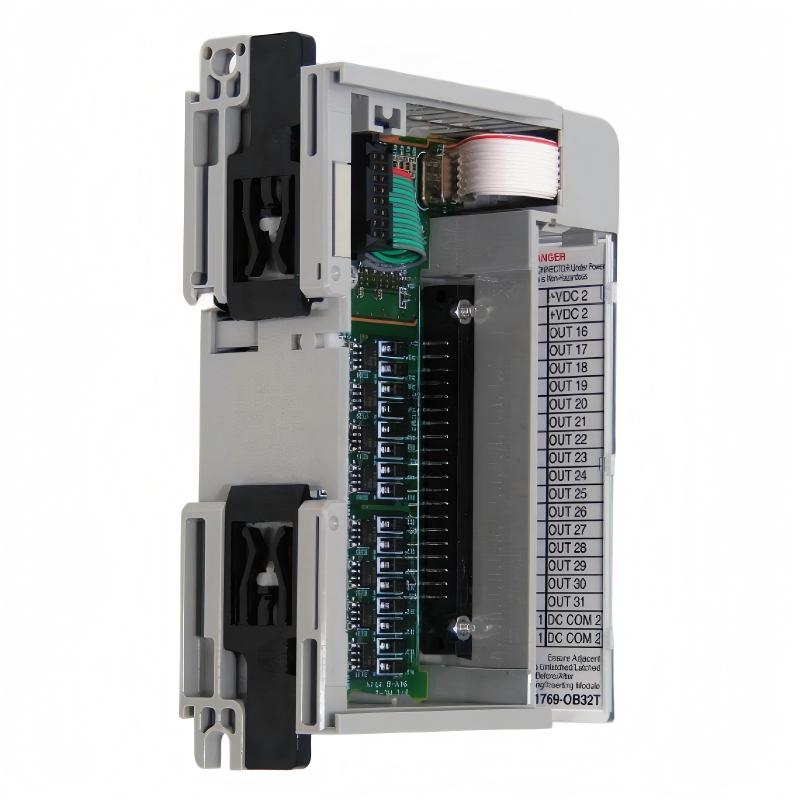

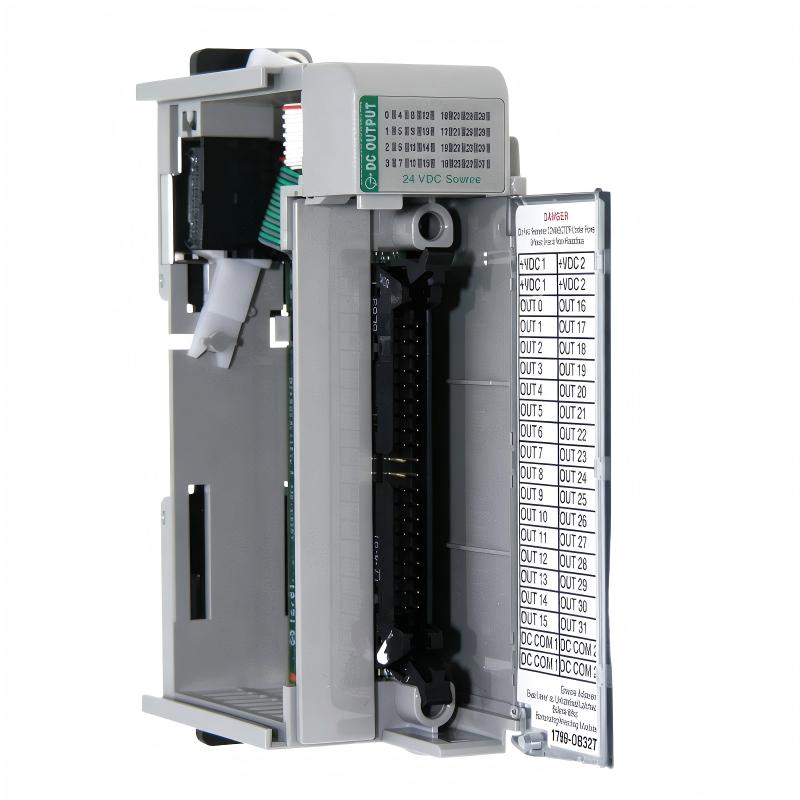

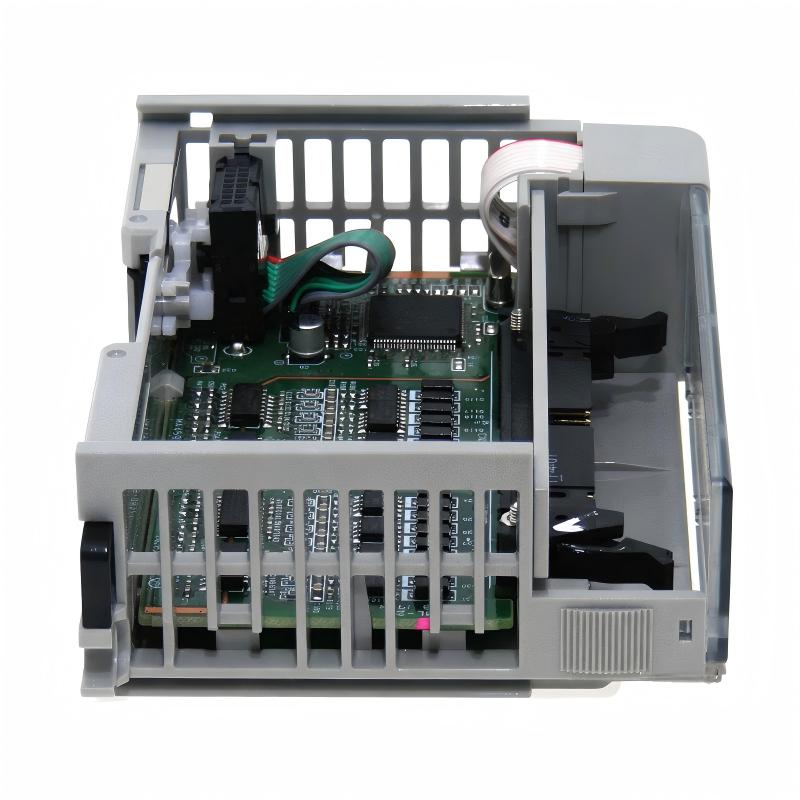

In industrial automation systems, reliable digital output control is essential for operating field devices such as actuators, solenoid valves, relays, contactors, and indicator equipment. The Allen Bradley 1769-OB32T CompactLogix 32-Point DC Power Output Module is a high-density digital output module designed for CompactLogix automation platforms, providing flexible and efficient control of multiple DC output devices.
The Allen Bradley 1769-OB32T provides 32 output channels for controlling connected field equipment. It receives output commands from the CompactLogix controller and converts control logic into electrical signals that activate external devices in industrial applications.
With its compact design, high channel density, and reliable switching performance, the 1769-OB32T helps engineers reduce cabinet space requirements while expanding machine control capability. It is widely used in manufacturing equipment, automated production lines, packaging systems, and industrial control applications.
The module is designed to provide stable communication and dependable output performance in demanding industrial environments, making it a suitable choice for distributed machine automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1769-OB32T |
| Product Series | CompactLogix |
| Product Type | 32-Point DC Power Output Module |
| Function | Digital DC output control |
| Output Type | Transistor output |
| Number of Outputs | 32 points |
| Application | Industrial automation control systems |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.23 kg |
| Installation Type | CompactLogix expansion mounting |
| Signal Type | Digital output |
| Operating Environment | Industrial automation environment |
| Design Feature | High-density compact output module |
Function and Working Principle
The Allen Bradley 1769-OB32T CompactLogix Output Module operates as an interface between the CompactLogix controller and external DC-powered field devices.
When the controller executes the automation program, output instructions are transmitted to the module. The 1769-OB32T then switches the corresponding output channels to control connected devices.
The working process can be described as:
CompactLogix Controller → 1769-OB32T Output Module → DC Output Signal → Field Devices
The main functions include:
- Receiving control commands from the processor
- Switching DC output channels
- Controlling external devices
- Providing electrical isolation between control logic and field equipment
- Monitoring output status
During operation:
- The controller processes machine logic
- Output commands are sent to the 1769-OB32T
- The module activates selected output points
- Connected devices receive electrical signals
- Industrial equipment performs the required operation
This process enables accurate and reliable machine control.
Role in CompactLogix Automation Systems
The Allen Bradley 1769-OB32T plays an important role in CompactLogix-based automation systems by providing high-density digital output capability.
In many industrial applications, controllers need to operate multiple field devices simultaneously. A 32-point output module allows engineers to control more devices while reducing the number of required modules inside the control cabinet.
The module is commonly integrated with:
- CompactLogix controllers
- Digital input modules
- Sensors
- Solenoid valves
- Relays
- Motor control equipment
- Machine actuators
A typical control structure includes:
PLC Controller → Output Module → Field Actuators → Machine Operation
This architecture provides:
- Efficient device control
- Reduced cabinet space requirements
- Flexible system expansion
- Improved machine automation performance
- Simplified electrical design
Output Control Functions
Multi-Channel DC Output Control
The Allen Bradley 1769-OB32T provides 32 independent output points for controlling multiple devices.
Typical controlled equipment includes:
- Solenoid valves
- Indicator lights
- Relays
- Contactors
- Small DC actuators
The high channel count improves system flexibility for complex machines.
Fast Switching Capability
Transistor-based output technology provides reliable switching performance for applications requiring frequent operation cycles.
Advantages include:
- Fast response time
- High switching reliability
- Suitable for repetitive machine operations
- Improved automation efficiency
Industrial Device Control
The module converts digital control instructions into physical electrical actions.
Applications include:
- Start/stop control
- Valve operation
- Alarm activation
- Machine sequence control
Industrial Applications
Manufacturing Automation
The Allen Bradley 1769-OB32T is commonly used in:
- Automated production lines
- Assembly machines
- Packaging equipment
- Industrial machinery
It provides reliable control for multiple output devices.
Material Handling Systems
Applications include:
- Conveyor systems
- Sorting equipment
- Transfer machines
- Automated handling equipment
The module enables precise control of machine components.
Process Control Equipment
Used in:
- Pump control systems
- Valve control applications
- Industrial processing equipment
It supports efficient operation of process devices.
Machine Building
Applied in:
- Custom automation equipment
- Special-purpose machines
- Integrated production systems
It helps simplify control panel design.
Installation and System Integration
Proper installation of the Allen Bradley 1769-OB32T is important for achieving reliable output performance.
Recommended installation procedures include:
- Installing the module correctly within the CompactLogix system
- Connecting field wiring according to system requirements
- Checking output device compatibility
- Configuring the controller program
- Testing each output channel
During commissioning, engineers should verify:
- Module recognition
- Output channel operation
- Wiring correctness
- Device response
- System sequence performance
Correct installation helps prevent:
- Output failures
- Incorrect device operation
- Wiring-related problems
- Unexpected machine downtime
Compatible System Components
| Component | Function |
|---|---|
| CompactLogix Controller | Executes control programs |
| 1769-OB32T Module | Provides digital output control |
| Sensors | Provide machine feedback |
| Solenoid Valves | Execute pneumatic control |
| Relays | Switch external circuits |
| Actuators | Perform mechanical operations |
Together, these components create a complete industrial automation control system.
Common Failure Symptoms
| Fault Symptom | Possible Cause |
|---|---|
| Output channel does not activate | Wiring or module fault |
| Field device does not respond | Device power problem |
| Incorrect output operation | Program configuration issue |
| Multiple outputs unavailable | Module communication problem |
| Intermittent operation | Loose connection or electrical interference |
Regular maintenance helps maintain reliable system operation.
Maintenance Recommendations
To maintain stable performance of the Allen Bradley 1769-OB32T:
- Inspect output wiring regularly
- Check terminal connections
- Monitor module status indicators
- Verify field device conditions
- Maintain proper control cabinet environment
Preventive maintenance helps reduce equipment downtime and extends system service life.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Allen Bradley 1769-OB32T | 32-Point DC Output Module | High-density transistor outputs | CompactLogix systems |
| Allen Bradley 1769-OB16 | 16-Point DC Output Module | Standard digital output control | Machine automation |
| Allen Bradley 1769-OW16 | Relay Output Module | Flexible switching capability | Industrial equipment |
| Allen Bradley 1769-IF8 | Analog Input Module | Analog signal processing | Process applications |
Key Advantages
- Provides 32 digital DC output channels
- Compact and space-saving design
- Reliable transistor switching performance
- Easy integration with CompactLogix systems
- Supports complex machine automation
- Improves control cabinet efficiency
- Suitable for industrial environments
Technical FAQs
What is Allen Bradley 1769-OB32T used for?
The Allen Bradley 1769-OB32T is a CompactLogix 32-point DC output module used to control multiple DC-powered field devices in industrial automation systems.
Is the 1769-OB32T an input module?
No. It is a digital output module designed to send control signals to external devices.
How many output points does the 1769-OB32T provide?
The module provides 32 digital DC output channels.
Where is the 1769-OB32T commonly used?
It is commonly used in manufacturing automation, machine control systems, packaging equipment, and industrial production lines.
Conclusion
The Allen Bradley 1769-OB32T CompactLogix 32-Point DC Power Output Module is a reliable digital output solution designed for efficient control of multiple industrial devices.
With its compact structure, high channel density, and dependable switching performance, it helps engineers build flexible and efficient CompactLogix automation systems.
For machine builders, automation engineers, and industrial system integrators, the Allen Bradley 1769-OB32T provides an effective solution for expanding digital output capability and improving industrial control performance.
