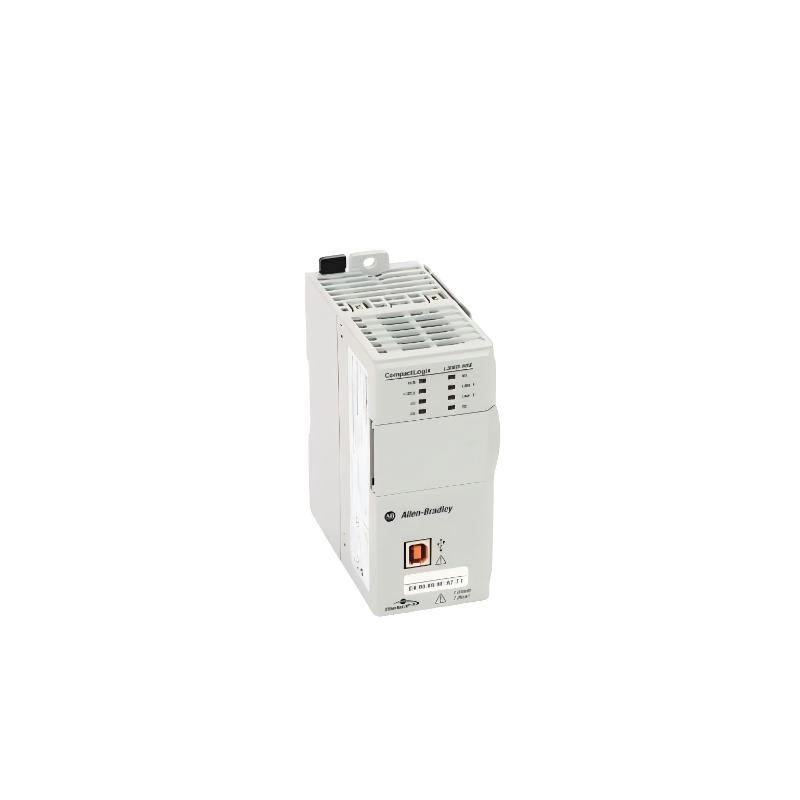

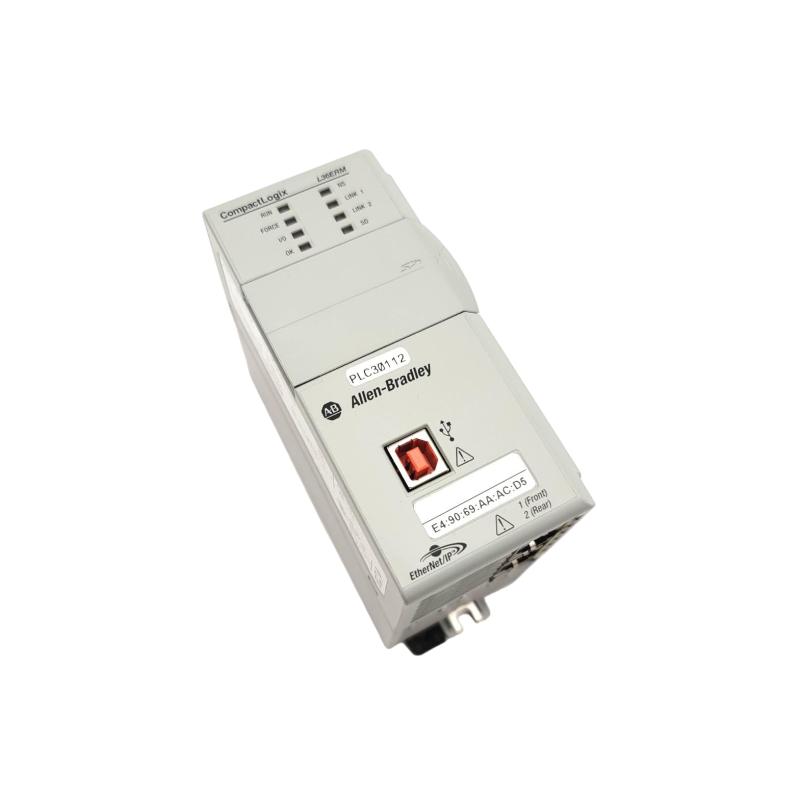

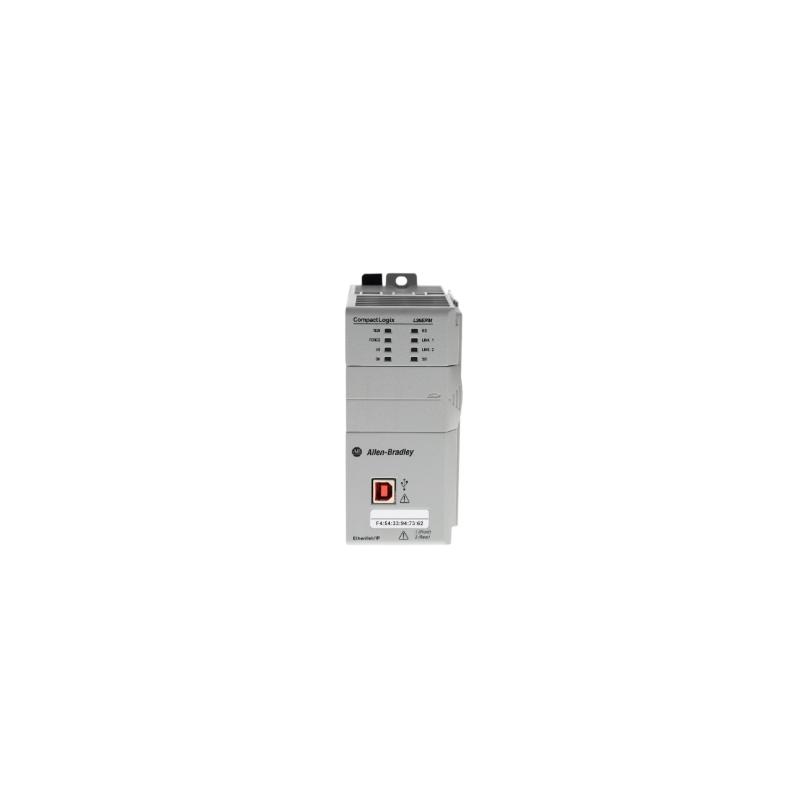

Allen Bradley 1769-L36ERM CompactLogix Motion Controller Detailed Overview

Name: Allen Bradley 1769-L36ERM CompactLogix I/O Module
Brand: Allen Bradley
SKU: 87829
Availability: InStock
Rating: 5 (1 reviews)

Product Introduction

The Allen Bradley 1769-L36ERM is a CompactLogix 5370 L3 series motion controller designed for industrial automation systems requiring high-speed logic execution, multi-axis motion control, and Ethernet/IP communication.

It is part of the CompactLogix 1769 platform and is widely used in packaging machinery, robotics, automotive production lines, conveyor systems, and OEM machine automation.

The key highlight of this model is its CIP Motion capability, which allows synchronized motion control of servo drives over Ethernet/IP networks.

With 3 MB of user memory and dual Ethernet ports, it provides strong performance for medium-to-high complexity automation applications.

It is considered an active mature product, still widely used in installed industrial systems and machine upgrades.

Brand Information

Item	Description
Brand	Industrial Automation Controller Manufacturer
Product Type	Programmable Automation Controller (PAC)
Product Category	CompactLogix Motion Controller
Main Function	Logic + Motion Control
Communication Protocol	Ethernet/IP
Application Fields	Manufacturing, Robotics, Packaging, Automotive
Mounting Type	DIN Rail Mount

Product Series Information

Item	Description
Product Series	CompactLogix 5370 L3 Series
Controller Family	CompactLogix
Architecture Type	Modular PLC + Motion Platform
Expansion System	1769 Compact I/O Modules
Communication Architecture	Dual Ethernet/IP
Programming Software	Studio 5000 Logix Designer
Motion Technology	CIP Motion over Ethernet/IP
Application Level	Medium to Advanced Automation Systems

Detailed Technical Specifications

Parameter	Details
Model	1769-L36ERM
Controller Type	CompactLogix Motion Controller
User Memory	3 MB
Nonvolatile Memory	1 GB SD card (up to 2 GB supported)
Digital I/O	Via 1769 Compact I/O modules
Analog I/O	Via 1769 Compact I/O modules
Communication Ports	2 × Ethernet/IP + 1 × USB
Ethernet Protocol	EtherNet/IP
Ethernet Nodes	Up to 32 nodes
Motion Capability	Up to 16-axis CIP Motion
I/O Modules Supported	Up to 30 modules
I/O Banks	Up to 3 banks
Controller Tasks	Up to 32 tasks
Programming Languages	Ladder, ST, FBD, SFC
Operating Voltage	24V DC system power
Power Dissipation	~4.5 W typical
Isolation Voltage	30V continuous insulation
Mounting Type	DIN rail or panel mount
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity Range	5%–95% non-condensing
Dimensions	118 mm × 55 mm × 105 mm
Weight kg	Approx. 0.5–2.0 kg (varies by configuration)
Communication Architecture	Dual Ethernet/IP
Motion Standard	CIP Motion
Certifications	CE, UL, CSA
Product Lifecycle	Active Mature

Product Features

1. High-Performance Multi-Axis Motion Control

The 1769-L36ERM supports up to 16-axis synchronized CIP Motion, enabling precise coordination of servo systems.

It is widely used in packaging lines, robotics, and high-speed indexing systems.

2. Dual Ethernet/IP Communication Architecture

Two Ethernet ports support industrial network topologies such as Device Level Ring (DLR) and linear configurations.

This improves network redundancy and system reliability.

3. High Processing and Memory Capacity

With 3 MB user memory, the controller can handle complex logic, motion tasks, and large program structures.

This makes it suitable for multi-machine automation systems.

4. Modular Expansion Capability

Supports up to 30 Compact I/O modules and 3 I/O banks, allowing flexible system scaling.

This reduces hardware redesign when system requirements increase.

5. Industrial Reliability Design

Designed for harsh environments with vibration resistance, electrical noise immunity, and long operational stability.

Product Applications

Packaging Automation Systems

Used in high-speed filling machines, labeling systems, sealing equipment, and conveyor synchronization lines.

Robotics and Motion Systems

Applied in pick-and-place robots, servo indexing tables, and coordinated motion platforms.

Automotive Manufacturing

Used in assembly lines, welding systems, and precision manufacturing equipment.

Material Handling Systems

Supports conveyor synchronization, sorting systems, and warehouse automation.

OEM Machine Control

Widely used in machine builder equipment requiring integrated motion and logic control.

Product Advantages

Advantage	Description
Multi-Axis Motion Control	Supports up to 16-axis CIP Motion
Dual Ethernet Ports	Improves redundancy and stability
High Memory Capacity	Supports complex automation programs
Modular Expansion	Up to 30 I/O modules
Flexible Architecture	Supports multiple system configurations
Industrial Reliability	Stable long-term operation
High-Speed Processing	Suitable for motion synchronization
USB Engineering Port	Easy maintenance and commissioning
Scalable System Design	Supports machine expansion
Proven Installed Base	Widely used in factories
Real-Time Communication	Deterministic Ethernet/IP performance
Compact Design	Saves cabinet space

Recommended Models from Same Series or Related Controllers

Parameter	1769-L36ERM	1769-L33ERM	1769-L30ERM	1769-L33ER	1769-L30ER
Series	CompactLogix 5370 L3	CompactLogix 5370 L3	CompactLogix 5370 L3	CompactLogix 5370 L3	CompactLogix 5370 L3
Memory	3 MB	2 MB	1 MB	2 MB	1 MB
Ethernet Ports	2	2	2	2	2
Motion Capability	16-axis CIP Motion	8-axis CIP Motion	4-axis	Limited	Basic
Integrated I/O	No	No	No	No	No
Max I/O Modules	30	16	16	16	16
Dimensions	118×55×105 mm	118×55×105 mm	118×55×105 mm	118×55×105 mm	118×55×105 mm
Weight kg	0.5–2.0 kg	0.65 kg	0.65 kg	0.65 kg	0.65 kg
Application	High Motion Systems	Motion Control	Basic Motion	General Control	Entry Control

Related Model Notes

1769-L33ERM

Mid-range motion controller for synchronized servo applications.

1769-L30ERM

Lower-axis motion controller for compact machines.

1769-L33ER

High memory controller without full motion expansion.

1769-L30ER

Standard Ethernet PLC for general automation tasks.

Popular Models from Same Platform

Parameter	1756-L81E	5069-L310ER	1734-AENTR	1769-IF8	2080-LC50-48QWB
Type	ControlLogix CPU	CompactLogix CPU	I/O Adapter	Analog Module	Micro PLC
Memory	3 MB	2 MB	N/A	N/A	Embedded
Communication	Ethernet/IP	Ethernet/IP	Ethernet/IP	Backplane	Ethernet
Motion	Advanced	Integrated	None	None	Basic
Mounting	Chassis	DIN Rail	DIN Rail	DIN Rail	DIN Rail
Dimensions	145×145×90	150×130×90	75×35×118	118×87×35	90×130×80
Weight kg	1.10 kg	1.20 kg	0.15 kg	0.32 kg	0.70 kg
Main Use	Large Systems	Modern Automation	Distributed I/O	Signal Processing	Small Machines

Summary

The 1769-L36ERM is a high-performance CompactLogix motion controller designed for multi-axis industrial automation systems requiring precise synchronization and Ethernet-based control.

Its core strengths are 16-axis CIP Motion capability, dual Ethernet architecture, and high system scalability, making it suitable for advanced robotics, packaging, and coordinated production environments.
