Technical Report: 1769-IQ6XOW4 Compact I/O Combination Module (6 DC Inputs + 4 Relay Outputs)

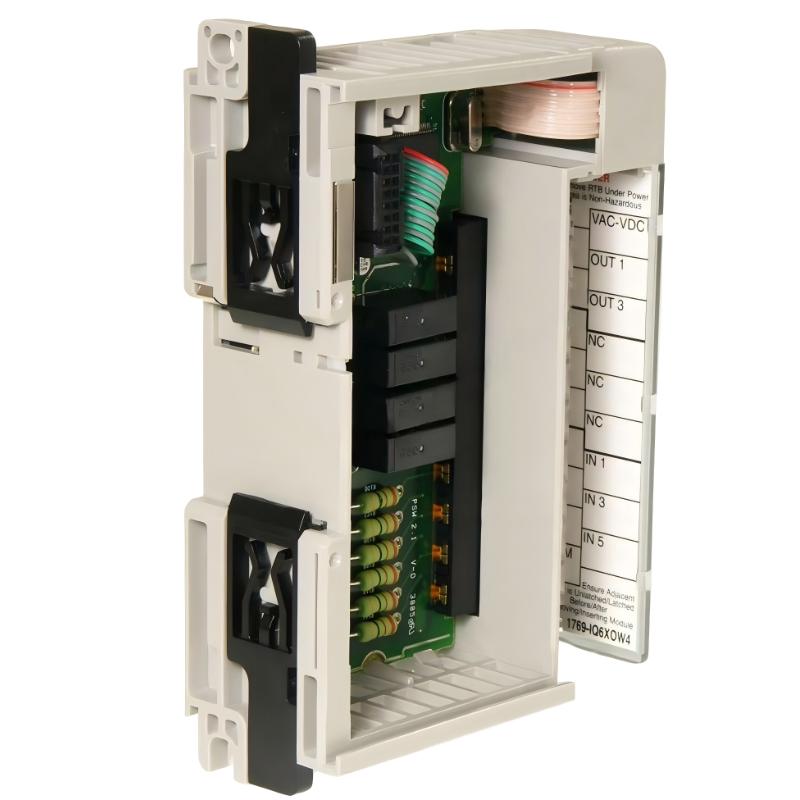

1. Product Overview
The 1769-IQ6XOW4 is a Compact I/O combination module designed for industrial automation systems requiring both digital input acquisition and relay output control in a single unit.
It integrates 6 channels of 24V DC digital inputs and 4 relay outputs, enabling compact mixed-signal control for small and medium automation systems.
This module is commonly used in CompactLogix and MicroLogix 1500 architectures where space-saving and flexible I/O integration are required.
2. Brand and Series Information
Brand: Industrial automation control platform ecosystem
Series: 1769 Compact I/O Series
Product Family: Digital Combination Modules (DC Input + Relay Output)
Module Type: 6 DC Inputs + 4 Relay Outputs Mixed I/O Module

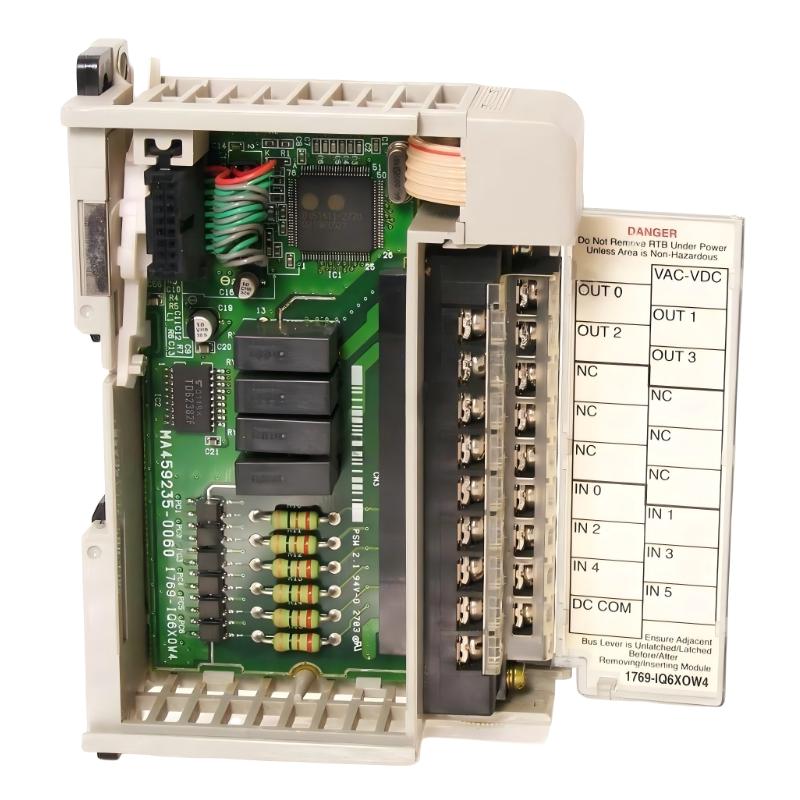

3. Product Function Description
The 1769-IQ6XOW4 is designed to perform both signal acquisition and output switching within a single compact module.
Core functions include:
- 6 digital input channels (24V DC sink/source)
- 4 relay output channels (isolated contacts)
- Input signal conversion from field devices to PLC logic
- Output switching for AC or DC loads via relay contacts
- LED status indication for inputs and outputs
- Electrical isolation between input, output, and backplane circuits
- Compact integration for space-limited control panels
It is widely used in systems requiring both sensing and direct load switching.

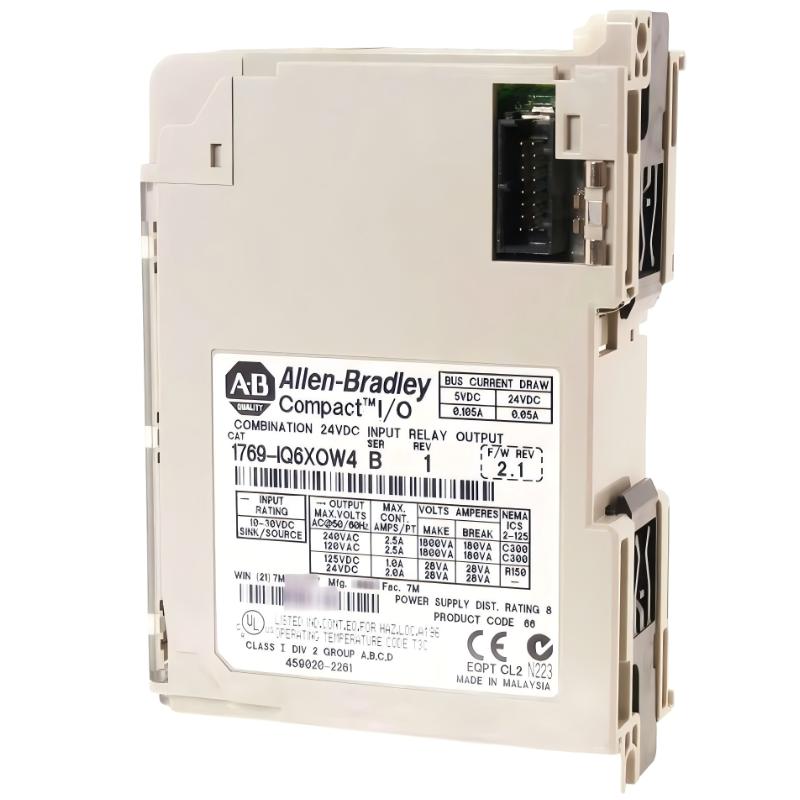

4. Technical Parameters
Electrical Specifications
| Parameter | Value |
|---|---|
| Number of Inputs | 6 channels |
| Input Voltage Range | 10–30V DC |
| Nominal Input Voltage | 24V DC |
| Input Type | Sink/Source DC |
| Number of Outputs | 4 relay outputs |
| Output Type | Normally open relay contacts |
| Output Voltage Range | 5–265V AC / 5–125V DC |
| Output Current | Up to 2.5A per contact |
| Backplane Current | ~250 mA |
| Power Dissipation | ~4–5 W |
| Input Response Time | ~8 ms |
| Output Switching Type | Mechanical relay |
Sources: field specifications and module datasheets
Isolation & Protection
| Parameter | Value |
|---|---|
| Isolation Voltage | 1200V AC / 1697V DC (1s test) |
| Isolation Structure | Input-to-output-to-backplane isolation |
| Working Voltage | Industrial reinforced insulation class |
| Output Isolation | Individually isolated relay contacts |
| Protection Level | Industrial control environment grade |
Performance Characteristics
| Parameter | Value |
|---|---|
| Input Channels | 6 |
| Output Channels | 4 |
| Signal Delay | ~8 ms |
| Input Compatibility | IEC Type 1 DC sensors |
| Output Load Type | AC/DC inductive or resistive loads |
| Diagnostic Indicators | LED per channel |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Dimensions (H × W × D) | 118 mm × 35 mm × 87 mm |
| Height with Tabs | ~138 mm |
| Width | 35 mm |
| Depth | 87 mm |
| Weight | ~0.29–0.97 kg (variant dependent) |
| Mounting Type | DIN rail / panel mount |
| Slot Width | 1 slot |
| Terminal Type | Removable terminal block |
Environmental Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% – 95% non-condensing |
| Vibration Resistance | Industrial IEC standard |
| Shock Resistance | Up to 15G |
| Protection Level | Industrial open-style module |
5. Product Advantages
1. Mixed I/O Integration
Combines digital inputs and relay outputs in a single module, reducing system footprint.
2. Space Saving Design
Eliminates the need for separate input and output modules in small systems.
3. Flexible Output Capability
Relay outputs support both AC and DC loads up to industrial switching levels.
4. Strong Electrical Isolation
Separation between input, output, and backplane improves system safety.
5. Simplified Wiring
Reduces panel wiring complexity and installation time.
6. High Compatibility
Works seamlessly with CompactLogix and MicroLogix systems.
6. Application Areas
The 1769-IQ6XOW4 is widely used in:
- Small automation machines
- Packaging equipment
- Conveyor systems
- Pump and valve control systems
- HVAC control panels
- Motor starter control logic
- Industrial retrofit projects
- Mixed signal control panels
It is especially suitable for compact machines requiring both sensing and direct relay switching.
7. Recommended Models (Same Series / Related Modules)
| Model | Type | Key Parameters | Application |
|---|---|---|---|
| 1769-IQ16 | DC input module | 16-point 24V DC input | Standard sensing |
| 1769-IQ32 | High-density input | 32-point DC input | Large systems |
| 1769-OW4 | Relay output module | 4-point relay output | Load switching |
| 1769-OW16 | Relay output module | 16-point relay output | Expanded output |
| 1769-IQ16F | Fast DC input | High-speed input | Fast signal detection |
8. Other Popular Models (Same Platform – Widely Used)
| Model | Type | Key Parameters | Application |
|---|---|---|---|
| 1769-L33ER | PLC controller | EtherNet/IP CPU | Machine automation |
| 1769-L36ERM | Motion PLC | High-performance CPU | Advanced control |
| 1769-AENTR | Ethernet adapter | Dual-port network | Distributed I/O |
| 1769-SDN | DeviceNet scanner | Fieldbus master | Legacy integration |
| 1769-ASCII | Serial communication module | ASCII protocol | Barcode/serial systems |
9. System Role Summary
The 1769-IQ6XOW4 acts as a compact mixed-signal interface module in Compact I/O systems, combining input acquisition and output switching in one unit.
It is typically used in small automation architectures where space efficiency and functional integration are key design requirements.
10. Summary
The 1769-IQ6XOW4 is a 6-input 4-relay output combination module designed for compact industrial automation systems. It provides flexible signal handling, strong isolation, and efficient system integration.
Its main strengths include mixed I/O integration, compact structure, reliable relay switching, and compatibility with CompactLogix platforms.
