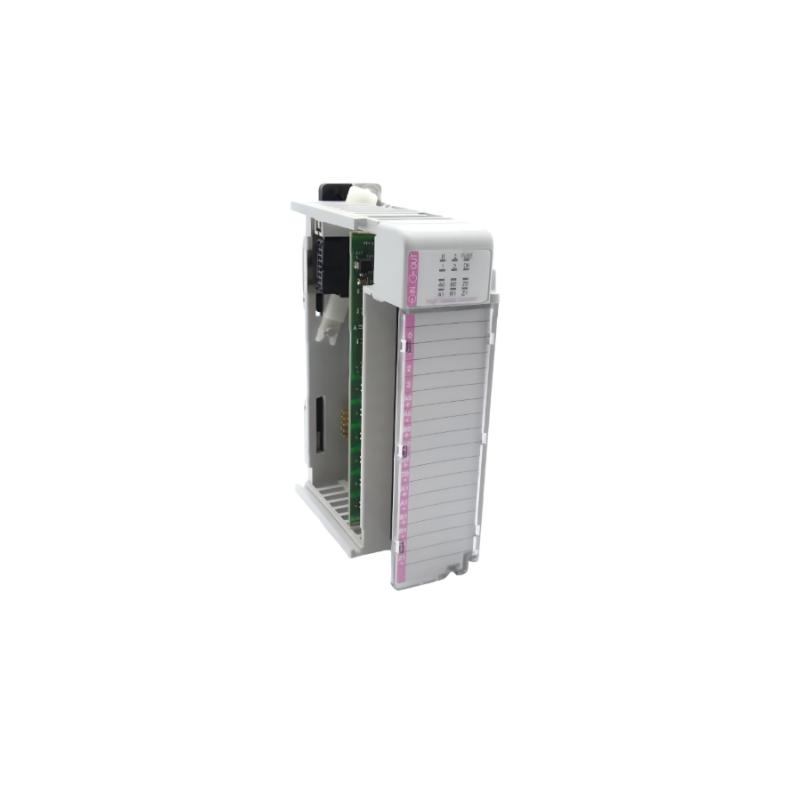

Technical Report: 1769-HSC High-Speed Counter Module
1. Product Overview
The 1769-HSC is a Compact I/O high-speed counter module designed for industrial automation systems requiring precise pulse counting, encoder signal processing, and high-frequency measurement.
It is used to capture fast digital signals that standard PLC input modules cannot reliably process. The module includes its own embedded processing capability, allowing it to independently handle high-speed events and generate outputs based on counter conditions.
This module is commonly used in motion control, positioning systems, flow measurement, packaging lines, and high-speed production monitoring applications.
2. Brand and Series Information
Brand: Industrial automation control platform ecosystem
Series: 1769 Compact I/O Series
Product Family: Specialty High-Speed Counter Modules
Module Type: High-Speed Counter / Encoder Input Module
3. Product Function Description
The 1769-HSC is an intelligent counter module with onboard processing capability.
Core functions include:
- High-speed pulse counting up to 1 MHz
- Quadrature encoder signal processing (A/B/Z inputs)
- Frequency measurement and position tracking
- Onboard digital outputs for fast response control
- Independent processing without PLC scan delay
- Event-based output triggering based on counter values
It can handle multiple counting modes including up/down counting, pulse direction control, and rate measurement.

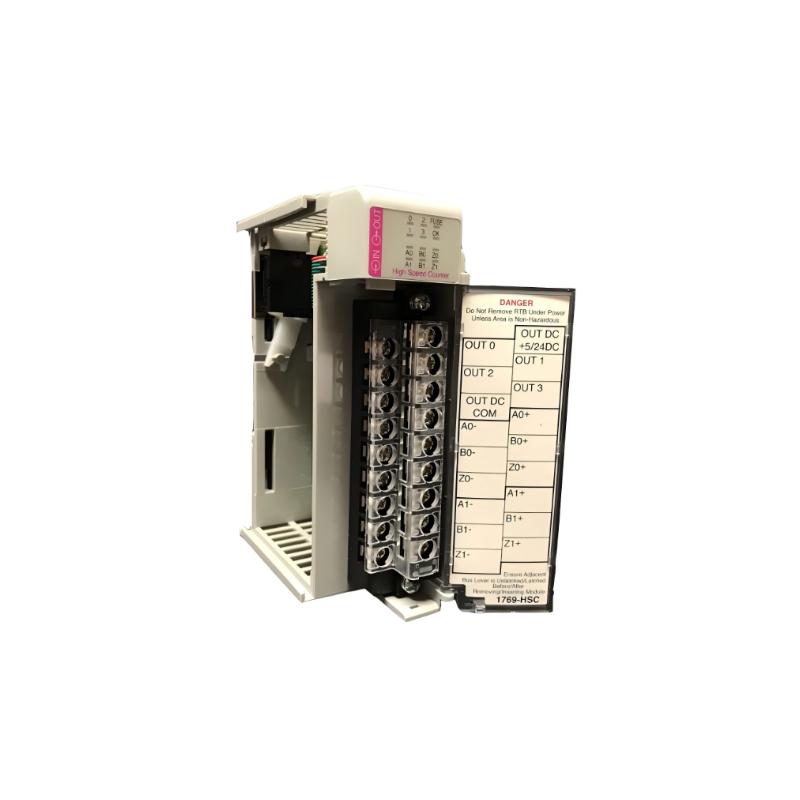

4. Technical Parameters
Electrical & Input/Output Specifications
| Parameter | Value |
|---|---|
| Input Channels | 2 quadrature (ABZ) differential inputs |
| Counter Channels | 2–4 high-speed counters |
| Input Voltage Range | 2.6–30 V DC |
| Max Input Frequency | Up to 1 MHz |
| Output Channels | 4 physical + 12 virtual outputs |
| Output Type | 5–30 V DC sourcing outputs |
| Output Current | Up to 1 A per channel |
| Backplane Current | ~0.425 A at 5 V DC |
Communication & Processing
| Parameter | Value |
|---|---|
| Processing Type | Embedded microprocessor |
| Response Type | Hardware-level high-speed reaction |
| PLC Dependency | Independent real-time operation |
| Data Transfer | Backplane I/O mapping |
| Configuration | Software-configurable via PLC system |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Dimensions (H × W × D) | 118 mm × 35 mm × 87 mm |
| Height with Tabs | ~138 mm |
| Weight | ~0.20 kg – 0.31 kg |
| Mounting Type | DIN rail / chassis mount |
| Slot Width | 1 slot |
| Housing Type | Open industrial module |
Environmental Specifications
| Parameter | Value |
|---|---|
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% – 95% non-condensing |
| Vibration Resistance | Industrial IEC standard |
| Shock Resistance | Up to 15G |
| Electrical Isolation | Up to 75V continuous, reinforced |
5. Product Advantages
1. Ultra-High Speed Signal Processing
Supports input frequencies up to 1 MHz, enabling accurate capture of fast encoder and pulse signals.
2. Independent Embedded Processing
Built-in intelligence allows the module to operate without waiting for PLC scan cycles.
3. High Precision Motion Control Support
Ideal for positioning, speed measurement, and synchronization applications.
4. Flexible Output Control
Provides both physical and virtual outputs for advanced logic control at hardware speed.
5. Reduced PLC Load
Offloads high-speed counting tasks from the main controller, improving overall system performance.
6. Industrial Reliability
Designed for harsh industrial environments with electrical noise, vibration, and temperature variation.
6. Application Areas
The 1769-HSC is widely used in:
- High-speed packaging machinery
- Conveyor speed monitoring systems
- Industrial motion control systems
- Rotary encoder position tracking
- Flow measurement systems
- Printing and labeling machines
- Textile machinery
- Automated production lines requiring precise counting
It is especially suitable for applications where timing accuracy and fast response are critical.
7. Recommended Models (Same Series / Related Modules)
| Model | Type | Key Parameters | Application |
|---|---|---|---|
| 1769-IF8 | Analog Input Module | 8-channel analog measurement | Process control |
| 1769-OF2 | Analog Output Module | 2-channel analog output | Actuator control |
| 1769-IQ16 | Digital Input Module | 16-point DC input | Machine sensing |
| 1769-OB16 | Digital Output Module | 16-point transistor output | Industrial control |
| 1769-AENTR | EtherNet/IP Adapter | Dual-port Ethernet communication | Distributed I/O systems |
8. Other Popular Models (Same Platform – Widely Used)
| Model | Type | Key Parameters | Application |
|---|---|---|---|
| 1769-L33ER | PLC Controller | Integrated EtherNet/IP CPU | Machine automation |
| 1769-L36ERM | PLC Controller | High-performance motion control CPU | Advanced automation systems |
| 1769-SDN | DeviceNet Scanner Module | Fieldbus master communication | Legacy network integration |
| 1769-ASCII | Serial Communication Module | Dual-port ASCII interface | Barcode and printer systems |
| 1769-PA4 | Power Supply Module | AC input power supply | Rack power distribution |
9. System Role Summary
The 1769-HSC is a specialized intelligent module designed for high-speed signal acquisition and processing. Unlike standard digital input modules, it operates independently from the PLC scan cycle, allowing real-time response to fast industrial events.
It plays a key role in systems where precise timing, motion tracking, and high-frequency signal interpretation are required.
10. Summary
The 1769-HSC is a high-performance counter module designed for demanding industrial automation applications. Its embedded processing capability, high-frequency input support, and flexible output functions make it suitable for precision motion and counting tasks.
Its main strengths are speed, accuracy, autonomous processing, and reliability in high-speed industrial environments.
