Product Overview

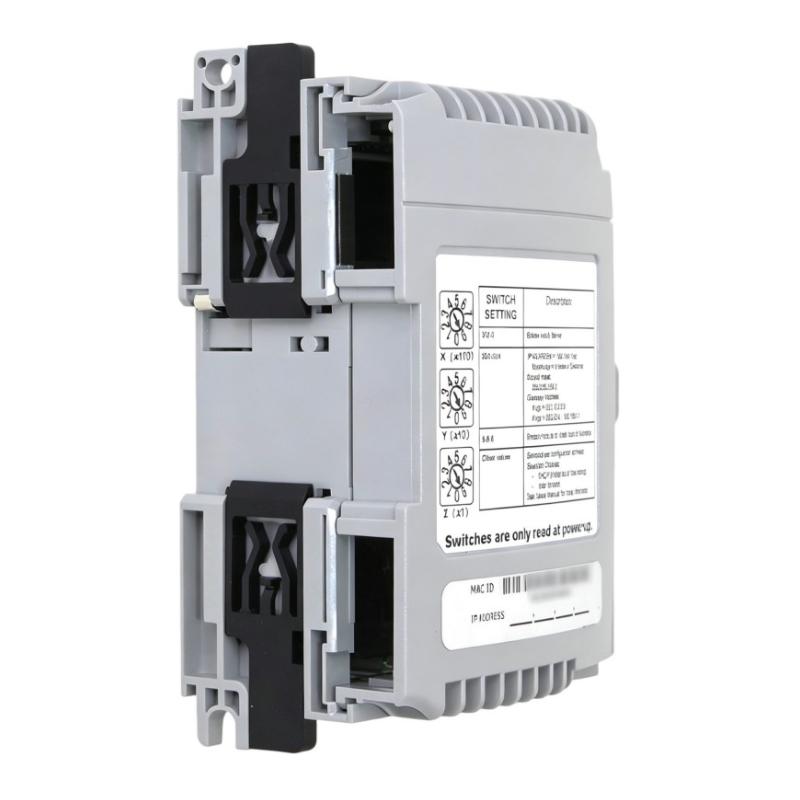

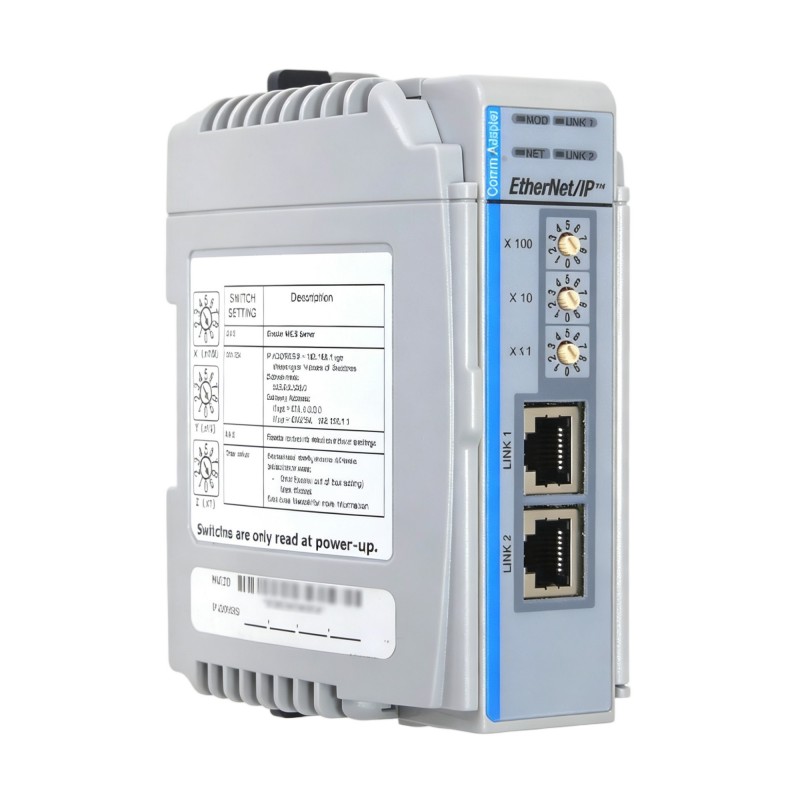

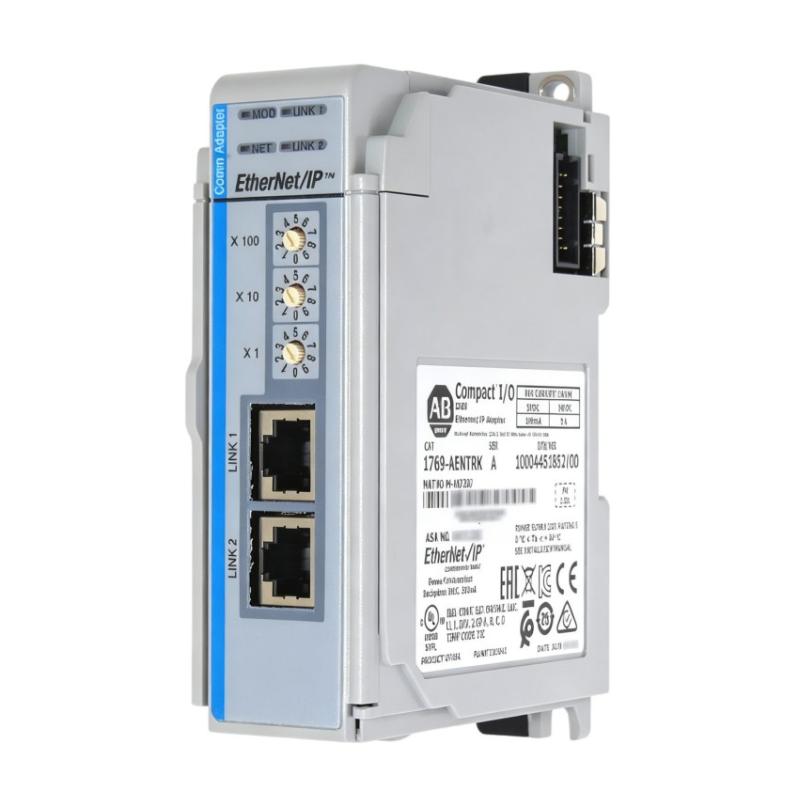

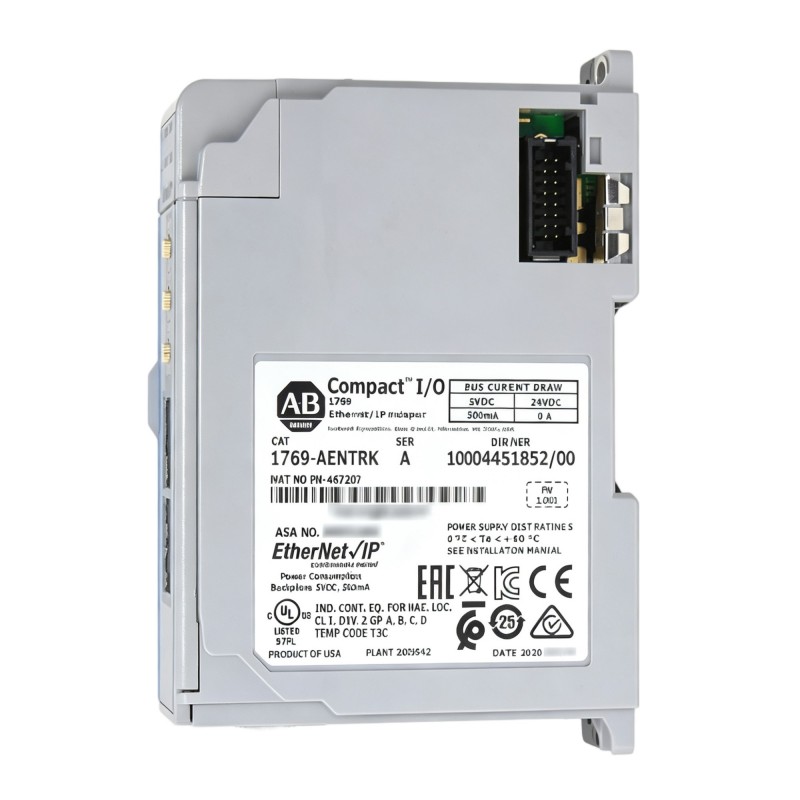

The Allen Bradley 1769-AENTRK CompactLogix EtherNet/IP Adapter is a network interface component used to connect compatible CompactLogix I/O hardware to an EtherNet/IP industrial network. It serves as the communication link between distributed I/O and the controller, allowing I/O data to be exchanged through the Ethernet-based control architecture.
In a distributed automation system, the adapter can be installed with a remote I/O assembly while the CompactLogix controller remains at a separate location. Input information collected by the remote I/O can be transferred across the EtherNet/IP network to the controller, while output commands travel in the opposite direction.
This architecture reduces the need to route every field signal back to a central control cabinet. It is particularly useful for machine sections, remote control panels, and production equipment where distributed I/O can simplify cabinet wiring and system expansion.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1769-AENTRK |
| Product Family | CompactLogix |
| Product Type | EtherNet/IP Adapter |
| Network | EtherNet/IP |
| Primary Function | Remote I/O Network Interface |
| Application | Distributed Industrial Automation |
| Dimensions | 118 × 50 × 87 mm |
| Weight | 0.11 kg |
Product Features
The 1769-AENTRK is focused on network connectivity between CompactLogix I/O assemblies and an EtherNet/IP control network.
Key characteristics include:
- Allen Bradley CompactLogix EtherNet/IP adapter
- Model 1769-AENTRK
- Provides an Ethernet-based interface for compatible distributed I/O
- Supports remote I/O system architecture
- Connects field I/O to the controller through an industrial network
- Suitable for machine-level distributed I/O
- Helps reduce long runs of individual I/O wiring
- Useful for modular control-system expansion
- Suitable for industrial Ethernet installations
- Applicable to maintenance and replacement projects
Its role is primarily communication and I/O connectivity rather than PLC application execution.
Working Principle
The 1769-AENTRK operates as the communication bridge between the remote I/O assembly and the EtherNet/IP network.
A typical data path is:
Field Devices → Remote I/O → 1769-AENTRK → EtherNet/IP Network → CompactLogix Controller
Input signals are first acquired by the connected I/O modules. The adapter then exchanges the I/O data with the controller over the EtherNet/IP network.
For output operations, the process occurs in the opposite direction:
CompactLogix Controller → EtherNet/IP Network → 1769-AENTRK → Output Modules → Field Devices
The controller can therefore access distributed I/O as part of the overall automation program without requiring every I/O point to be physically installed beside the CPU.
Role in a CompactLogix Control Architecture
The adapter occupies the network interface layer of a distributed CompactLogix system.
CompactLogix Controller → EtherNet/IP Network → 1769-AENTRK → Remote I/O → Field Equipment
| System Layer | Component | Function |
|---|---|---|
| Controller | CompactLogix CPU | Executes the control program |
| Network | EtherNet/IP | Transfers control and I/O data |
| Interface | 1769-AENTRK | Connects remote I/O to the network |
| I/O | Compatible I/O Modules | Acquires and outputs field signals |
| Field Layer | Sensors / Actuators | Interacts with the process |
| Operator Layer | HMI / SCADA | Monitoring and operator control |
This arrangement is useful when the physical location of the field devices makes centralized I/O wiring impractical.
Industrial Applications
The 1769-AENTRK can be applied to automation systems that use distributed EtherNet/IP I/O.
| Application | Typical Use |
|---|---|
| Factory Automation | Distributed machine I/O |
| Production Lines | Remote control-panel I/O |
| Conveyor Systems | Distributed sensors and actuators |
| Packaging Machinery | Machine-section I/O networking |
| Material Handling | Remote field-device connections |
| Process Equipment | Distributed instrumentation |
| Assembly Machines | Local I/O near machine stations |
| System Expansion | Adding remote I/O to an existing network |
Network Integration and Maintenance
Correct network configuration is essential when commissioning an EtherNet/IP adapter.
Before installation, engineers should:
- Confirm the complete 1769-AENTRK part number.
- Verify compatibility with the intended I/O assembly.
- Confirm the EtherNet/IP network architecture.
- Assign and document the adapter’s network address.
- Check Ethernet cabling and connectors.
- Verify network switch configuration where applicable.
- Confirm the controller can recognize the remote I/O.
- Check the configured I/O assembly and communication parameters.
- Inspect status indicators during commissioning.
- Verify input data at the controller.
- Test output commands with the machine in a controlled state.
- Document the final network configuration.
When remote I/O stops communicating, troubleshooting should proceed through the entire path: controller, Ethernet switch or infrastructure, cable, adapter, I/O assembly, and field wiring.
Related Components
The 1769-AENTRK normally operates with several components in a distributed CompactLogix architecture.
| Component | Function |
|---|---|
| CompactLogix Controller | Executes the control application |
| Compatible I/O Modules | Handles digital or analog field signals |
| EtherNet/IP Switch | Connects network devices |
| Ethernet Cable | Transfers network data |
| HMI | Provides operator interface |
| Remote Sensors | Supplies process information |
| Actuators | Performs commanded machine actions |
| Programming Software | Configures controller and network devices |
The adapter itself does not replace the controller. Its primary task is to provide the network connection required for the distributed I/O architecture.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Allen Bradley 1769-AENTRK | CompactLogix EtherNet/IP Adapter | Distributed I/O networking |
| Allen Bradley 1769-L30ER | CompactLogix Controller | Compact machine control |
| Allen Bradley 1769-L33ER | CompactLogix Controller | Medium-scale automation |
| Allen Bradley 1769-L36ER | CompactLogix Controller | Larger CompactLogix applications |
| Allen Bradley 1769 Series I/O | Compact I/O Modules | Local and distributed signal handling |
Model selection should be based on the required controller architecture, I/O configuration, network topology, and application scale.
Key Advantages
- CompactLogix EtherNet/IP network interface
- Connects compatible remote I/O to the control network
- Supports distributed I/O architecture
- Reduces the need for extensive centralized field wiring
- Suitable for machine-level Ethernet networking
- Supports flexible I/O placement
- Useful for system expansion and retrofit work
- Integrates with EtherNet/IP-based automation architectures
- Suitable for industrial production and machine-control applications
Technical FAQs
What is the main function of the Allen Bradley 1769-AENTRK?
The 1769-AENTRK serves as an EtherNet/IP interface for compatible CompactLogix I/O hardware. It allows the controller to exchange input and output data with an I/O assembly located away from the main controller.
Why use an EtherNet/IP adapter instead of placing all I/O beside the CompactLogix controller?
Distributed I/O can be positioned closer to sensors and actuators, reducing the amount of individual field wiring routed back to the main control cabinet. This can be particularly useful on large machines and production lines with physically separated equipment sections.
What should be checked when remote I/O connected through the 1769-AENTRK is unavailable?
The troubleshooting path should include the controller configuration, network address, Ethernet cabling, switches, adapter status, I/O assembly, and field-side connections. Checking whether other EtherNet/IP devices remain online can also help determine whether the problem is local to the adapter or part of a wider network issue.
How does the 1769-AENTRK affect the CompactLogix I/O architecture?
It allows compatible I/O to participate in the controller’s I/O system through EtherNet/IP rather than requiring the I/O assembly to be located directly beside the CPU. This makes the control architecture more suitable for distributed machine and plant layouts.
