Product Overview

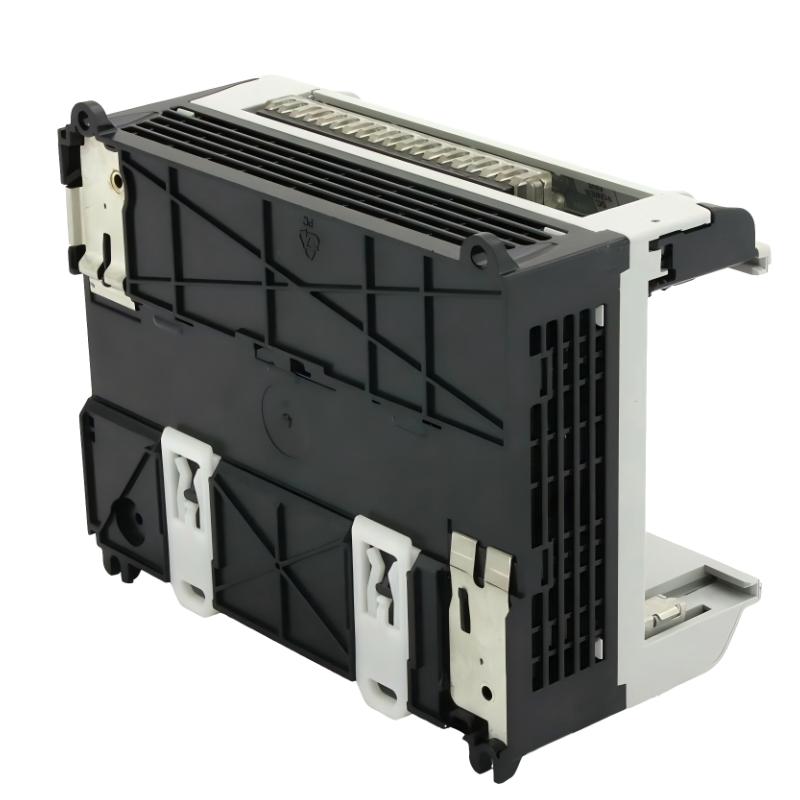

The Allen Bradley 1764-24BWA is a MicroLogix 1500 programmable controller base unit designed for small to medium industrial automation systems. It provides reliable, flexible, and scalable control for industrial processes. Its robust design, built-in I/O, and communication interfaces allow integration into distributed control networks and compact control panels.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Model Number | 1764-24BWA |
| Product Type | MicroLogix 1500 Programmable Controller Base Unit |
| Function | Industrial automation controller |
| Dimensions (L x W x H) | 168 × 87 × 138 mm |
| Weight | 0.748 kg |
| CPU | 32-bit microprocessor |
| Memory | 24 KB user memory |
| Communication Interfaces | Ethernet, Serial (RS-232/RS-485), DH-485 |
| I/O Type | Built-in digital I/O (14 DI / 10 DO) |
| Power Supply | 24 V DC |
| Mounting | Panel or DIN rail |
| Environment | Industrial-grade |
Function and Working Principle
The 1764-24BWA operates as a compact PLC to manage industrial automation tasks. Key functionalities include:
- Executes programmable logic to control machinery and processes
- Monitors digital inputs and drives output devices
- Supports communication with remote I/O and supervisory systems
- Provides real-time control, diagnostics, and data logging
This ensures precise process control and seamless integration into industrial automation networks.
Role in Industrial Control Systems
The MicroLogix 1500 PLC serves as a core controller in small to medium automation systems:
- Controls sensors, actuators, and industrial machinery
- Interfaces with distributed I/O and communication modules
- Provides real-time monitoring, diagnostics, and alarms
- Supports scalable PLC-based control for industrial processes
Industrial Applications
The Allen Bradley 1764-24BWA is commonly used in:
- Manufacturing automation and assembly lines
- Packaging machinery and conveyor systems
- Process control in chemical, water treatment, and food processing plants
- Building automation and monitoring systems
- Small to medium distributed control systems
Its industrial-grade construction ensures reliable operation in demanding environments.
Installation and System Integration
For optimal performance:
- Mount on a panel or DIN rail according to system design
- Connect digital I/O, power, and communication lines per wiring schematics
- Integrate with HMIs, remote I/O, or supervisory systems
- Ensure proper grounding and follow industrial electrical safety standards
- Configure using RSLogix 500 or RSLogix 5000 programming software
Proper installation ensures reliable operation and long-term performance.
Compatible System Components
The 1764-24BWA works seamlessly with:
- MicroLogix 1500 I/O expansion modules
- Ethernet, serial, and DH-485 communication modules
- Human-machine interfaces (HMIs)
- Remote I/O networks and sensors
- Industrial actuators and relay modules
These components together create a flexible and scalable industrial automation system.
Recommended Alternative Models
| Model Number | Type | Key Feature / Advantage | Application |
|---|---|---|---|
| 1764-24BWB | MicroLogix 1500 PLC | Similar I/O with alternate communications | Small to medium systems |
| 1764-24BWA-1 | MicroLogix 1500 PLC | Additional memory and I/O capabilities | Medium automation systems |
| MicroLogix 1400 | PLC | Advanced communication and memory | High-demand automation setups |
| Micro850 | CompactLogix PLC | Modern scalable architecture | Flexible automation solutions |
Key Advantages
- Compact and reliable PLC for small to medium automation systems
- Built-in I/O with expandable options for modular designs
- Supports Ethernet, serial, and DH-485 communication
- Provides real-time monitoring, diagnostics, and process control
- Industrial-grade construction suitable for continuous operation
Technical FAQs
Q1: What is the main function of the 1764-24BWA?
A1: It is a MicroLogix 1500 PLC base unit that executes programmable logic to automate industrial processes.
Q2: How many I/O points does it support?
A2: Built-in 14 digital inputs and 10 digital outputs, expandable via MicroLogix 1500 I/O modules.
Q3: Can it communicate with supervisory systems?
A3: Yes, it supports Ethernet, serial, and DH-485 communication for remote monitoring and control.
Conclusion
The Allen Bradley 1764-24BWA MicroLogix 1500 PLC base unit is a compact, reliable, and essential controller for small to medium industrial automation systems. Its robust design, versatile I/O, and communication capabilities make it ideal for precise, scalable, and efficient industrial control applications.
Engineers and system integrators can rely on this PLC for high-performance control, seamless integration, and long-term operational reliability.
