Product Overview

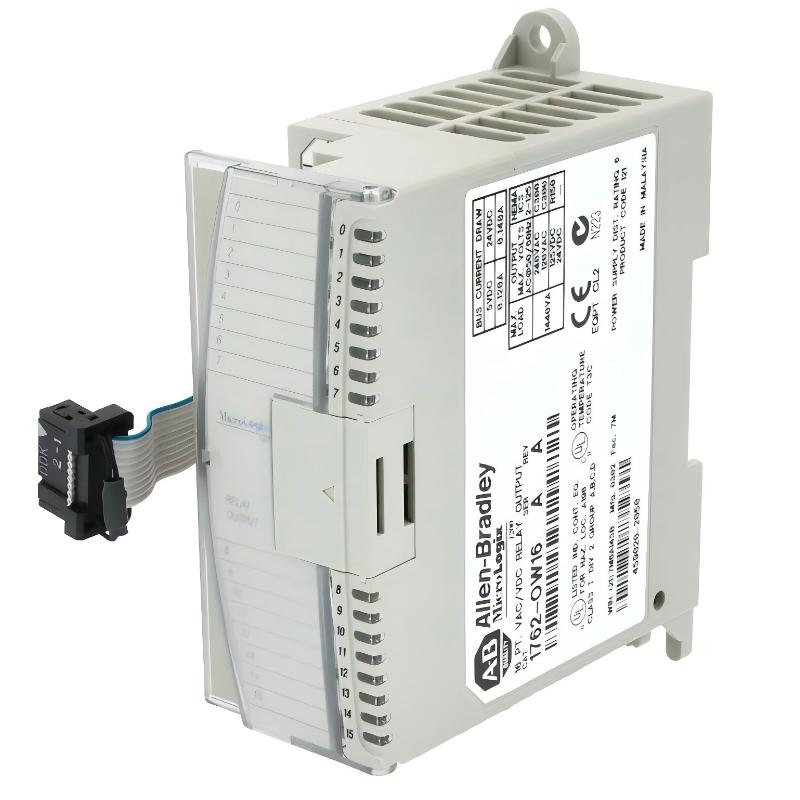

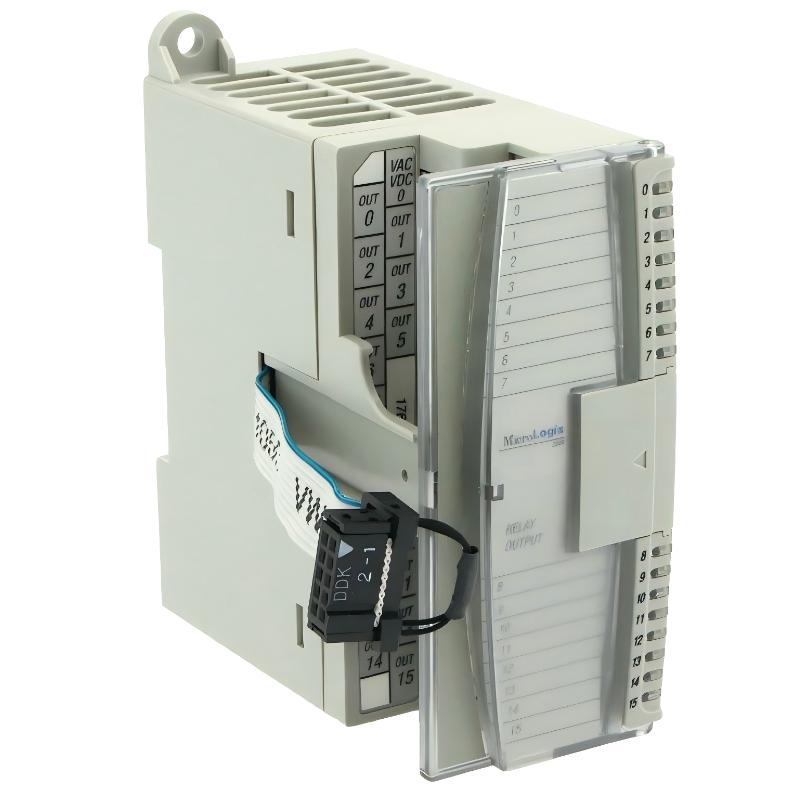

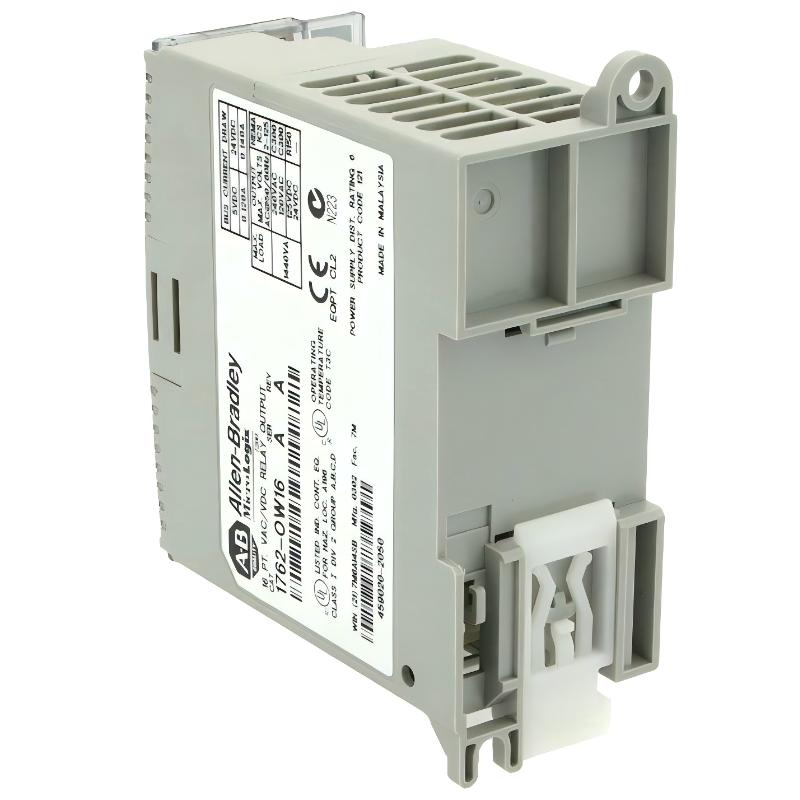

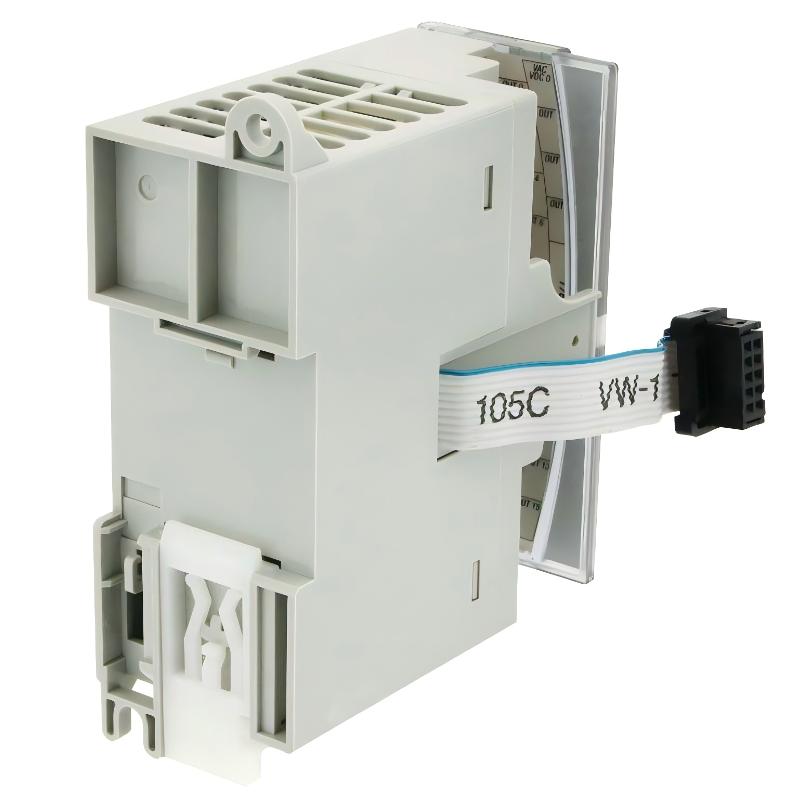

The Allen-Bradley 1762-OW16 MicroLogix 1200 16-Point Relay Output Module is a compact industrial relay output expansion module designed for PLC automation and machine control systems.
This module provides sixteen relay output channels for controlling industrial field devices such as motors, contactors, alarms, solenoid valves, and indicator systems. Designed for reliable switching performance and flexible load compatibility, the 1762-OW16 is widely used in industrial automation applications requiring stable relay-based output control.
As part of the MicroLogix expansion I/O family, the module integrates seamlessly with MicroLogix controllers and supports scalable industrial automation architectures.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model | 1762-OW16 |
| Product Type | Relay Output Module |
| Series | MicroLogix 1200 Expansion I/O |
| Number of Outputs | 16 relay outputs |
| Output Type | Mechanical relay outputs |
| Signal Type | Digital output |
| Contact Configuration | Normally open relay contacts |
| Load Compatibility | AC and DC loads |
| Isolation | Relay-to-backplane isolation |
| Wiring Method | Screw terminal connection |
| Communication Method | PLC backplane communication |
| Mounting Type | DIN rail / panel mounted |
| Compatible Controllers | MicroLogix 1100 / 1200 / 1400 |
| Dimensions | 90 × 40.4 × 87 mm |
| Weight | 0.285 kg |
| Application | Industrial relay output expansion |
| Operating Environment | Industrial-grade automation systems |
Function and Working Principle
The 1762-OW16 functions as a relay-based digital output interface module for industrial PLC systems.
Its operating process includes:
- Receiving output commands from the PLC processor
- Activating internal relay contacts
- Switching connected industrial loads ON or OFF
- Supporting control of both AC and DC devices
- Providing electrical isolation between control logic and field equipment
The relay-based design allows the module to control a wide range of industrial devices with flexible voltage compatibility.
Role in Industrial Control Systems
Within industrial automation systems, the 1762-OW16 serves as a digital relay output expansion module.
It is commonly used to control:
- Industrial contactors
- Motor starters
- Alarm systems
- Solenoid valves
- Indicator lamps
- Process control equipment
Its 16-point architecture allows efficient expansion of PLC-controlled relay outputs.
Industrial Applications
The Allen-Bradley 1762-OW16 is widely used in:
- Manufacturing automation
- Conveyor and transport systems
- Packaging machinery
- Material handling equipment
- HVAC automation systems
- Water treatment facilities
- Industrial process control systems
It is especially suitable for applications requiring flexible relay-based switching for mixed AC and DC loads.
Installation and System Integration
Proper installation ensures reliable operation:
- Mounted on DIN rail or industrial control panels
- Connected directly to MicroLogix PLC expansion buses
- Wired through industrial screw terminal connections
- Installed within protected industrial cabinets
- Requires proper grounding and electrical protection
Correct installation improves system stability and reduces electrical interference.
Compatible System Components
The 1762-OW16 typically works with:
- MicroLogix PLC controllers
- 1762 analog and digital I/O modules
- Human Machine Interfaces (HMI)
- Industrial sensors and actuators
- Motor control systems
- Industrial communication modules
It functions as part of a scalable industrial automation platform.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1762-OW8 | Relay output module | 8-point relay outputs | Compact systems |
| 1762-OB16 | DC transistor output module | High-speed DC switching | Fast automation control |
| 1762-OA8 | AC solid-state output module | Solid-state AC outputs | AC automation systems |
| 1769-OW16 | CompactLogix relay module | Higher system integration | Advanced automation |
| Siemens SM1222 Relay | Relay output module | Industrial PLC compatibility | Industrial automation |
Key Advantages
- Sixteen relay output channels
- Supports both AC and DC loads
- Reliable industrial relay switching
- Compact expansion module design
- Seamless MicroLogix PLC integration
- Suitable for continuous industrial operation
Technical FAQs
What is the primary function of the 1762-OW16?
It provides sixteen relay outputs for industrial automation systems.
What types of loads can it control?
It can control both AC and DC industrial loads.
Which PLC systems are compatible with this module?
It is compatible with MicroLogix 1100, 1200, and 1400 controllers.
What are the advantages of relay outputs?
Relay outputs provide flexible load compatibility and electrical isolation for industrial control applications.
Conclusion
The Allen-Bradley 1762-OW16 MicroLogix 1200 16-Point Relay Output Module is a reliable industrial expansion module designed for efficient relay-based output control in PLC automation systems. With sixteen relay outputs, flexible AC/DC load compatibility, and seamless integration with MicroLogix controllers, it provides dependable performance for industrial machine automation and process control applications.
For engineers and system integrators, the 1762-OW16 offers scalable output expansion, stable industrial operation, and long-term reliability across demanding industrial environments.
