ProductPRODUCT
Featured products
Contact Us
- Allen-Bradley
- 1762-L24BWAR
- MicroLogix 1200 Programmable Controller
- USA
- 110 x 87 x 90 mm
- 0.9 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

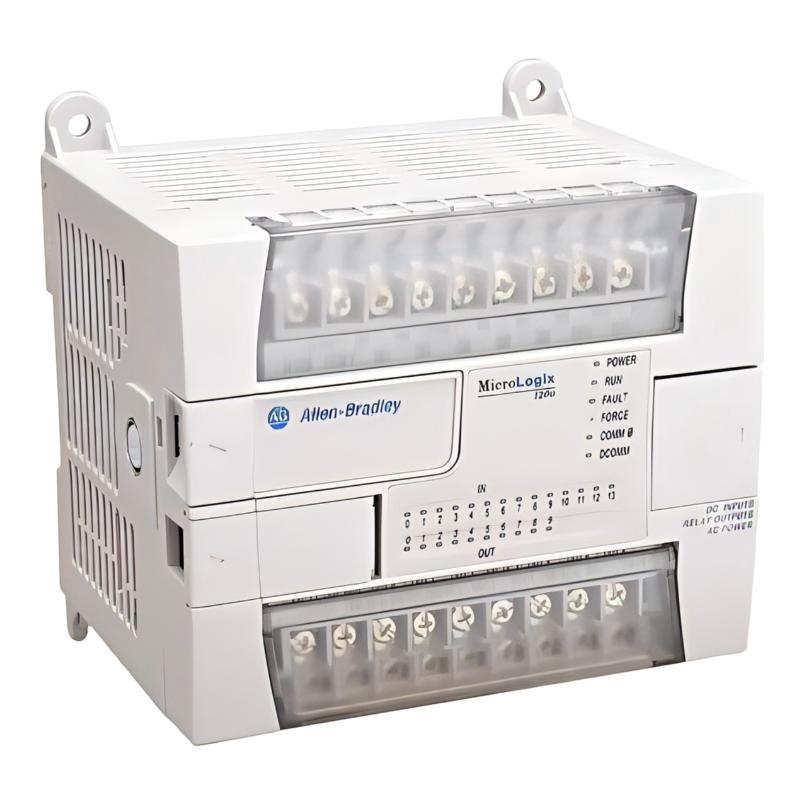

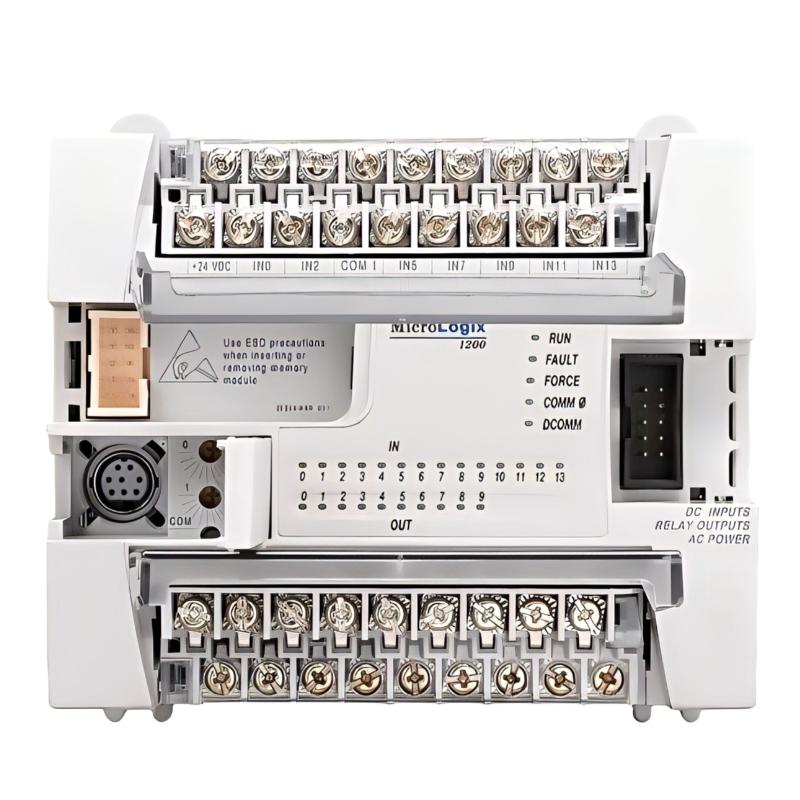

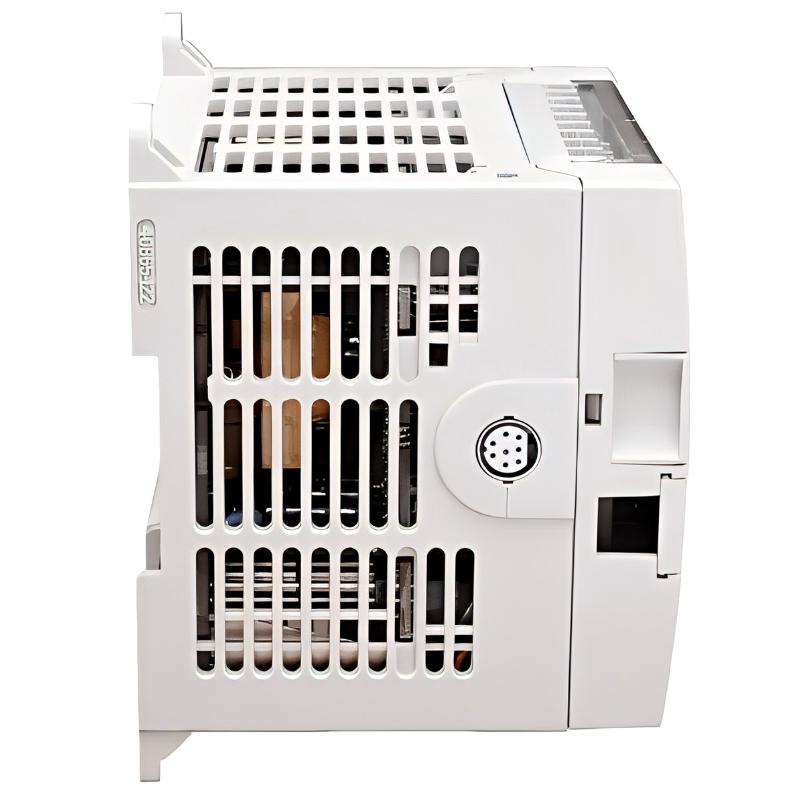

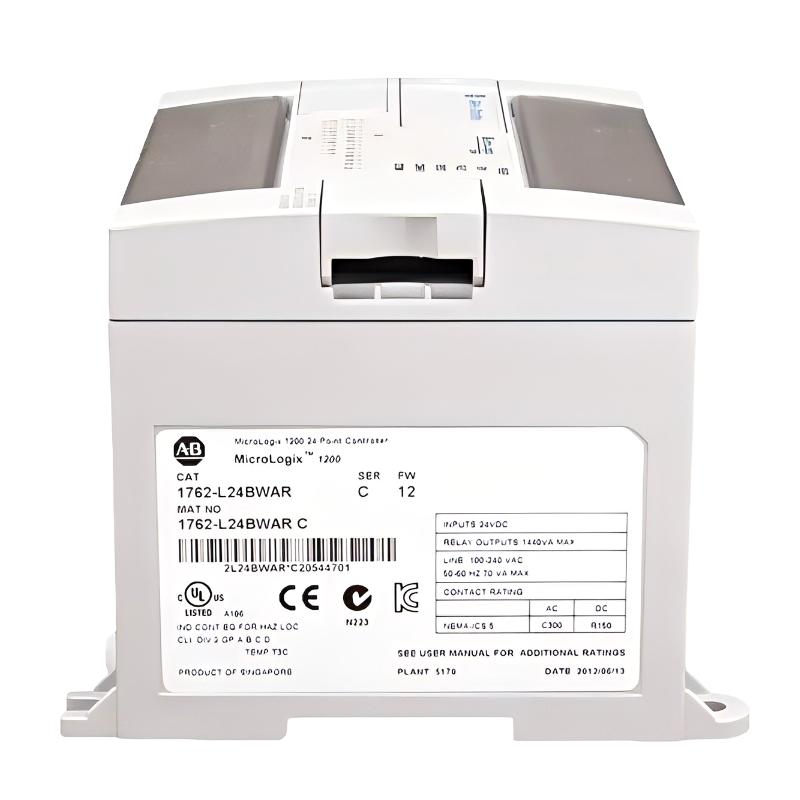

The Allen-Bradley 1762-L24BWAR MicroLogix 1200 Programmable Controller is a compact programmable logic controller (PLC) engineered for industrial machine control and process automation applications.
As part of the MicroLogix 1200 family, this controller integrates digital DC inputs and relay outputs into a single compact platform, providing efficient automation control for small and medium-sized systems. Its modular expansion capability and reliable real-time processing make it suitable for industrial environments requiring dependable control performance and flexible system integration.
The 1762-L24BWAR is widely used in manufacturing equipment, conveyor systems, packaging machinery, and general industrial automation processes.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Model | 1762-L24BWAR |
| Product Type | MicroLogix 1200 Programmable Controller |
| Power Supply | 120/240V AC |
| Integrated Inputs | 14 digital DC inputs |
| Integrated Outputs | 10 relay outputs |
| Input Voltage | 24V DC |
| Output Type | Relay |
| Expansion Capability | Supports 1762 expansion I/O modules |
| Communication Interface | RS-232 serial communication |
| Programming Software | RSLogix 500 |
| Processor Type | Embedded PLC processor |
| Memory Support | EEPROM and RAM |
| Mounting Type | DIN rail / panel mounted |
| Dimensions | 110 × 87 × 90 mm |
| Weight | 0.9 kg |
| Application | Industrial machine and process automation |
| Operating Environment | Industrial-grade continuous operation |
Function and Working Principle
The 1762-L24BWAR functions as a centralized industrial automation controller.
Its operating process includes:
- Receiving digital DC input signals from field devices
- Processing ladder logic instructions continuously
- Controlling relay outputs connected to industrial equipment
- Managing machine sequences, timing operations, and process logic
- Communicating with external systems through serial communication interfaces
The controller continuously scans inputs, executes programmed logic, and updates outputs to maintain stable and synchronized automation control.
Role in Industrial Control Systems
Within industrial automation systems, the 1762-L24BWAR acts as a core PLC control processor.
It is commonly used to manage:
- Industrial production machinery
- Conveyor and transport systems
- Packaging and assembly equipment
- Pump and motor control systems
- HVAC automation
- Material handling systems
It provides reliable and centralized control for industrial operations.
Industrial Applications
The Allen-Bradley 1762-L24BWAR is widely used in:
- Manufacturing automation systems
- Packaging and labeling machines
- Food and beverage processing lines
- Water and wastewater treatment facilities
- Building automation systems
- Industrial process control applications
- OEM machine automation systems
It is particularly suitable for compact automation projects requiring integrated control functionality and expansion flexibility.
Installation and System Integration
Proper installation ensures reliable long-term operation:
- Mounted on DIN rail or industrial control panels
- Connected using industrial screw terminal wiring
- Integrated with 1762 expansion I/O modules
- Connected to HMIs and monitoring systems through RS-232 communication
- Requires proper grounding and power protection practices
Correct installation improves operational stability and minimizes electrical interference.
Compatible System Components
The 1762-L24BWAR typically works with:
- 1762 digital and analog expansion I/O modules
- Human Machine Interfaces (HMI)
- Industrial sensors and switches
- Relay and motor starter systems
- Communication interface modules
- RSLogix 500 programming software
It functions as the main control platform within MicroLogix automation systems.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1762-L24BWA | MicroLogix controller | Standard DC input version | General automation |
| 1762-L24AWA | AC input PLC | AC input compatibility | Mixed-voltage systems |
| 1762-L40BWA | Expanded PLC controller | Higher I/O capacity | Larger control systems |
| 1766-L32BXB | MicroLogix 1400 PLC | Ethernet communication support | Advanced automation |
| CompactLogix Controllers | High-performance PLC platform | Advanced processing capability | Complex industrial systems |
Key Advantages
- Compact integrated PLC architecture
- Reliable DC input and relay output configuration
- Flexible I/O expansion capability
- Stable industrial-grade operation
- Easy programming and maintenance
- Suitable for continuous industrial applications
Technical FAQs
What is the primary function of the 1762-L24BWAR?
It controls industrial machines and automation processes using programmable logic control.
What type of inputs does it support?
It supports 24V DC digital input signals.
Can expansion modules be added?
Yes, it supports 1762 series expansion I/O modules.
Which programming software is used?
It is programmed using RSLogix 500 software.
Conclusion
The Allen-Bradley 1762-L24BWAR MicroLogix 1200 Programmable Controller is a reliable and compact PLC designed for efficient industrial automation control. With integrated DC inputs, relay outputs, modular expansion capability, and dependable processing performance, it provides a practical solution for a wide range of industrial automation applications.
For engineers and system integrators, the 1762-L24BWAR offers stable operation, flexible system integration, and cost-effective machine control performance in demanding industrial environments.
