Product Overview

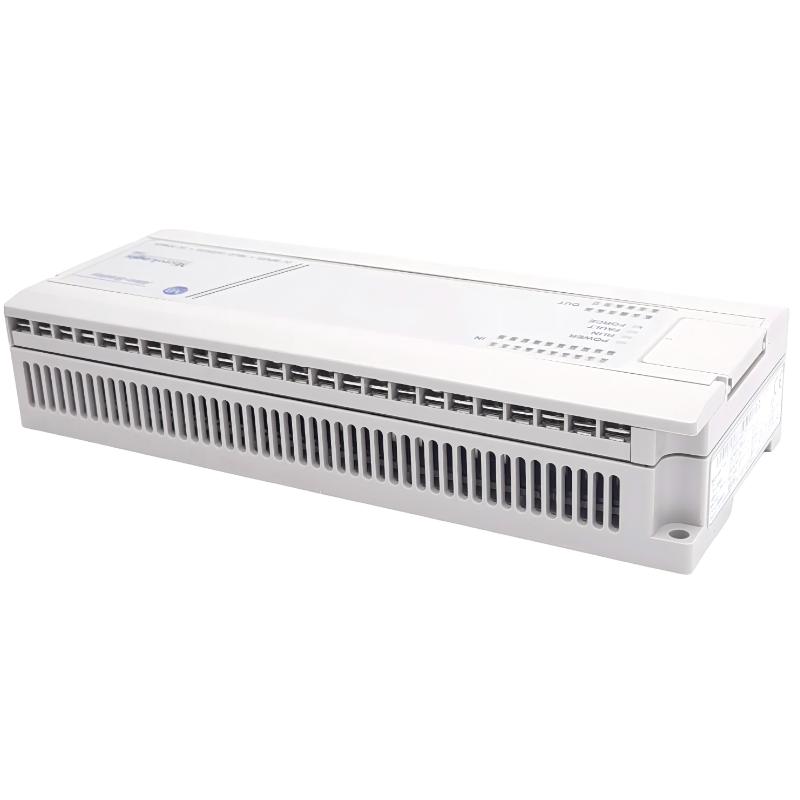

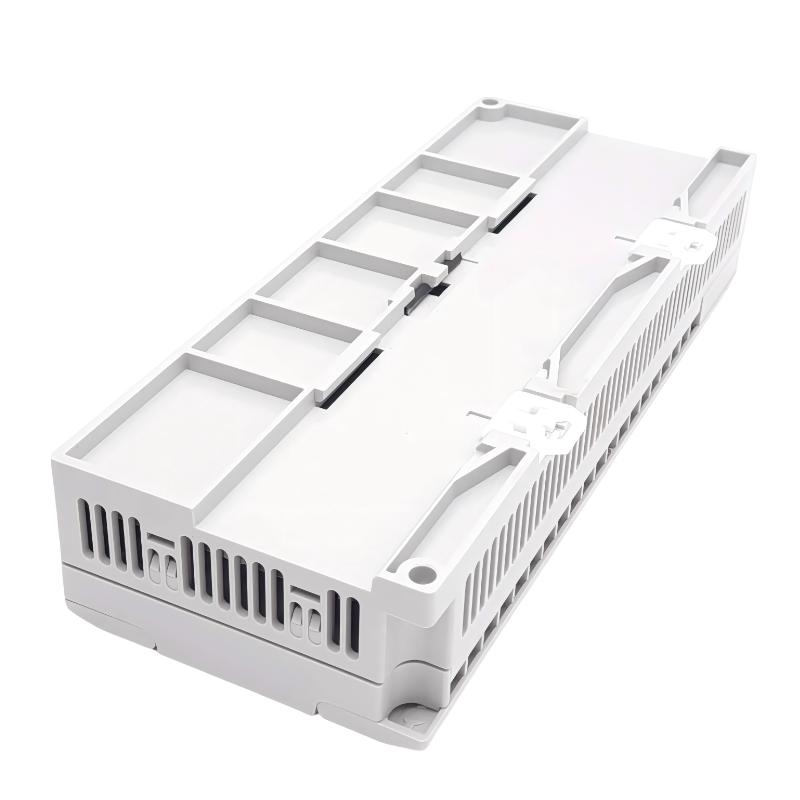

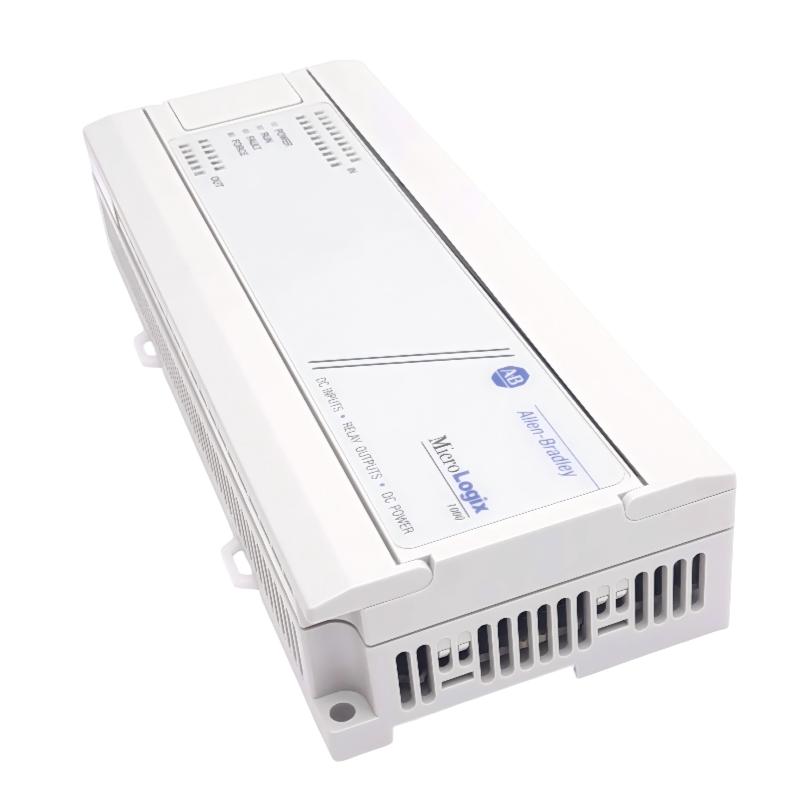

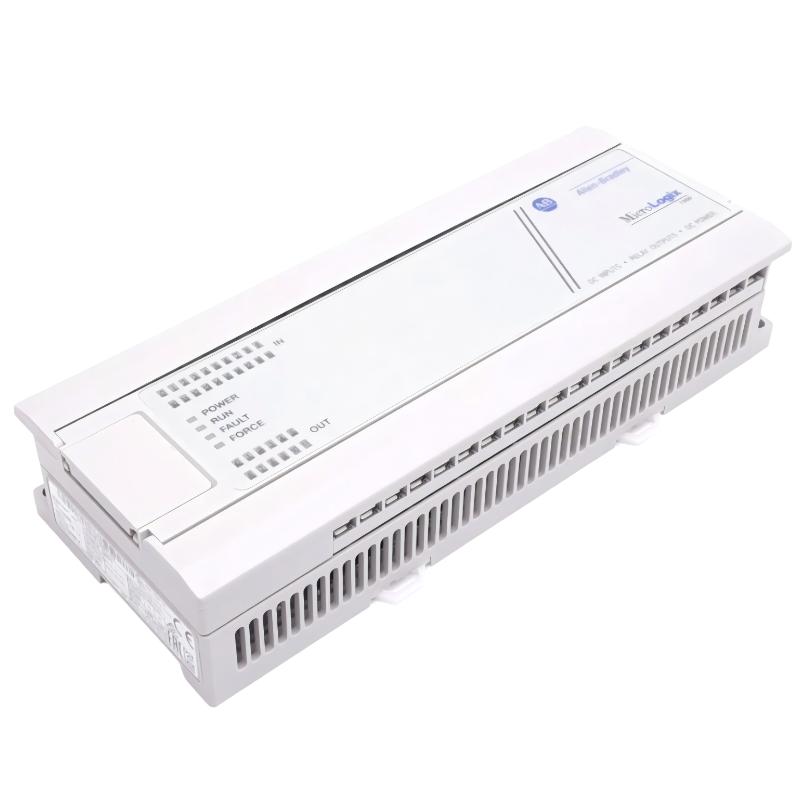

The Allen-Bradley 1761-L32BWB is a MicroLogix 1000 Programmable Controller designed for compact industrial automation and machine control applications. As part of the MicroLogix 1000 series, it provides reliable programmable logic control, integrated I/O, and stable performance for small to medium industrial systems.
It is commonly used in standalone machines, manufacturing equipment, and process automation systems requiring compact size and dependable PLC functionality.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Programmable Controller |
| Manufacturer | Allen-Bradley |
| Model | 1761-L32BWB |
| Series | MicroLogix 1000 |
| Function | Industrial machine and process control |
| Power Supply | DC powered |
| Integrated I/O | 32 points (20 inputs, 12 relay outputs) |
| Input Type | 24V DC digital inputs |
| Output Type | Relay outputs |
| Communication | RS-232 (DF1 protocol) |
| Memory | ~1 KB EEPROM |
| Programming | RSLogix 500 ladder logic |
| Mounting Type | DIN rail / panel mounting |
| Operating Environment | Industrial automation |
| Dimensions | 200 × 40 × 80 mm |
| Weight | ~0.34 kg |
Function and Working Principle
The 1761-L32BWB operates by executing ladder logic programs stored in its EEPROM memory. It continuously scans inputs, processes logic instructions, and updates outputs in real time.
It integrates:
- 20 digital inputs for sensor/switch signals
- 12 relay outputs for actuators and control devices
- Serial communication for programming and system integration
This enables reliable small-machine automation with simple architecture and fast response control.
Industrial Role
This controller is typically used in:
- Small automation machines
- Conveyor systems
- Packaging equipment
- Simple process control systems
- Standalone industrial control panels
It is designed for cost-effective and compact PLC applications.
Installation and Integration
- DIN rail or panel mounting
- Powered by 24V DC supply
- Programming via RSLogix 500
- RS-232 serial communication interface
- Direct connection to sensors and relay-controlled devices
Compatible Components
- Allen-Bradley MicroLogix I/O devices
- Push buttons and sensors
- Relay and contactor systems
- HMI panels
- Serial communication adapters
Alternative Models
| Model | Description |
|---|---|
| 1761-L32BWA | AC-powered version |
| 1761-L32AWA | Expanded AC I/O variant |
| 1761-L20BWB | Lower I/O count model |
| MicroLogix 1100 | Newer PLC with Ethernet support |
| CompactLogix series | Advanced scalable PLC platform |
Key Advantages
- 32 integrated I/O points
- Compact industrial design
- Reliable relay output control
- Simple ladder logic programming
- Low-cost automation solution
- Suitable for small industrial systems
Conclusion
The Allen-Bradley 1761-L32BWB MicroLogix 1000 Programmable Controller is a reliable compact PLC designed for small-scale industrial automation. With 32 I/O points, relay outputs, and straightforward programming, it provides a practical and stable solution for basic machine and process control applications.
