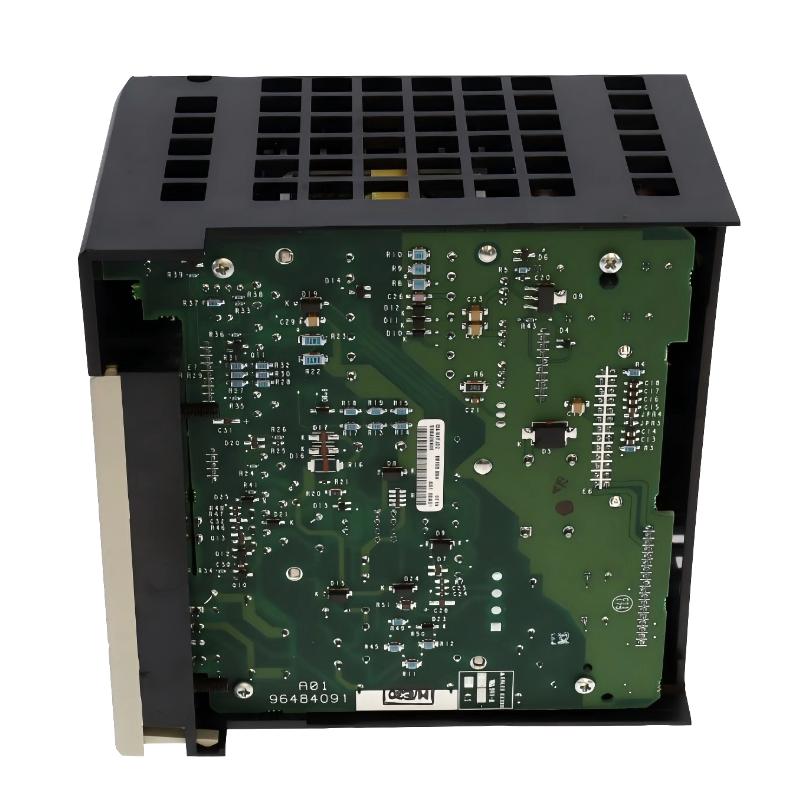

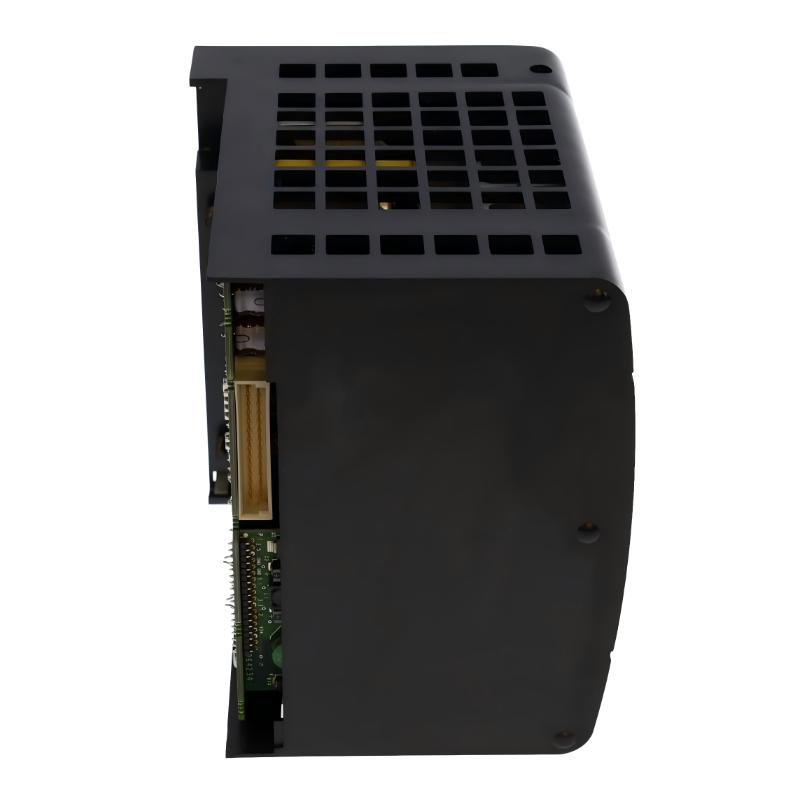

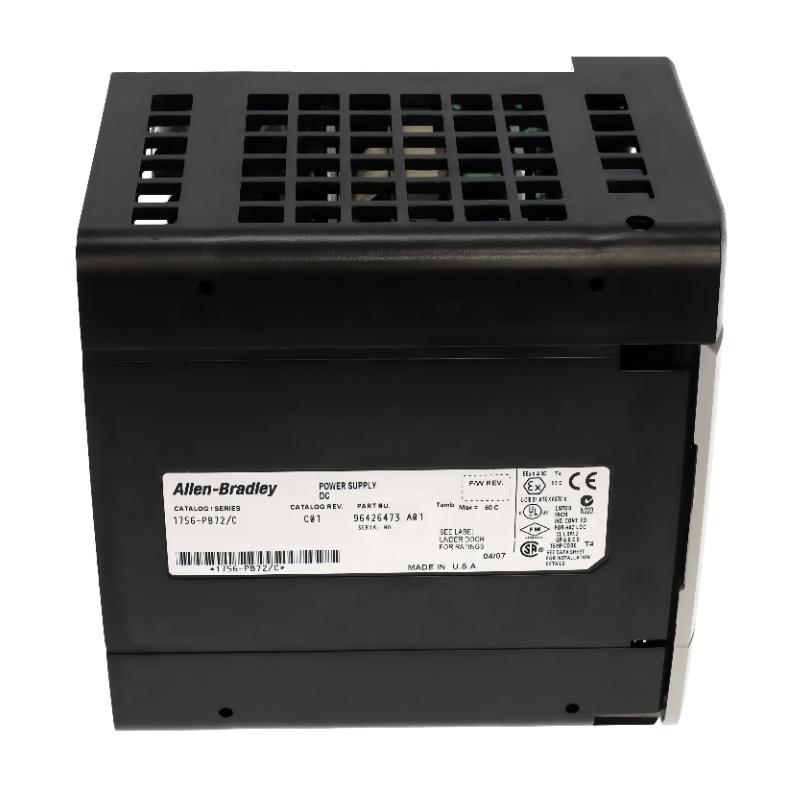

Industrial Technical Report – 1756-PB72 ControlLogix DC Power Supply Module
Product Overview
The 1756-PB72 is a DC input power supply module designed for ControlLogix automation systems. It is responsible for converting 24V DC input into regulated backplane power, ensuring stable operation of PLC chassis modules such as processors, communication modules, and I/O devices.
This model is widely used in industrial automation systems where DC power distribution is preferred, including battery-backed systems, energy plants, transportation control systems, and remote industrial installations.
The 1756-PB72 is a higher-capacity version compared with lower-tier DC power modules, offering stronger output capability and improved system stability for medium to large control systems.
Brand Information
The product belongs to a globally established industrial automation technology ecosystem focused on PLC control systems, industrial networking, motion control, and process automation.
It is widely applied in:
- Industrial automation systems
- Smart manufacturing platforms
- Process control environments
- Energy distribution systems
- High-reliability industrial infrastructures
Key characteristics include:
- Strong industrial durability
- High system stability
- Modular architecture design
- Long operational lifespan
- Global industrial adoption
Product Series
ControlLogix Modular Automation Platform
The 1756-PB72 belongs to the ControlLogix series, a high-performance modular PLC system designed for large-scale automation applications.
Core features include:
- Modular system architecture
- High-speed industrial communication
- Distributed control capability
- Flexible system expansion
- Multi-module integration
- Redundancy-ready architecture
Supported module types include:
- CPU processors
- Digital I/O modules
- Analog modules
- Communication modules
- Motion control modules
- Power supply modules
The 1756-PB72 ensures stable DC power delivery to the entire chassis backplane.
Technical Parameters
Detailed Specification Table
| Parameter | Specification |
|---|---|
| Model | 1756-PB72 |
| Product Type | DC Power Supply Module |
| Series | ControlLogix |
| Input Voltage Range | 18–32V DC |
| Nominal Input | 24V DC |
| Maximum Input Power | 95 W |
| Output Power | 75 W |
| Backplane Current (5V DC) | 10 A |
| Backplane Current (3.3V DC) | 4 A |
| Backplane Current (1.2V DC) | 1.5 A |
| Backplane Current (24V DC) | 2.8 A |
| Isolation Voltage | 250V continuous |
| Inrush Current | ≤ 30 A |
| Hold-up Time | ~35–40 ms |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% non-condensing |
| Mounting Type | Chassis left-slot installation |
| Cooling Method | Natural convection |
| EMC Protection | Industrial-grade shielding |
| Dimensions | 14.5 × 11.2 × 14.0 cm |
| Weight kg（ ） | 0.94 kg – 0.96 kg |
Product Description
The 1756-PB72 converts DC input power into stable backplane voltage required by ControlLogix systems. It ensures continuous and regulated power distribution across all installed modules inside the chassis.
It is designed for systems requiring stable DC operation in environments where AC power is not available or where DC backup systems are used.
Typical installation environments include:
- Industrial DC power networks
- Battery-supported automation systems
- Remote control stations
- Renewable energy control systems
Product Applications
Industrial Automation Systems
Used in:
- Production line control systems
- Packaging automation
- Conveyor systems
- Assembly line equipment
Energy Industry
Applied in:
- Solar power systems
- Wind energy control systems
- Battery storage systems
- Power distribution automation
Transportation Systems
Used in:
- Railway signaling systems
- Metro control systems
- Traffic control infrastructure
- Electrified transport systems
Oil & Gas Industry
Common in:
- Pipeline monitoring systems
- Offshore control platforms
- SCADA networks
- Refinery automation systems
Manufacturing Industry
Used in:
- CNC machinery
- Industrial robotics
- Process automation lines
- Heavy equipment control
Product Advantages
1. Stable DC Power Conversion
Ensures reliable transformation of DC input into system backplane power.
2. High Output Capacity
Provides stronger power support for medium to large automation systems.
3. Industrial Reliability
Designed for continuous operation in harsh industrial environments.
4. Low Electrical Noise
Stable output with minimal ripple improves system performance.
5. Flexible Application Range
Suitable for various DC-powered industrial automation systems.
6. Long Service Life
Built with industrial-grade components for extended operational lifespan.
Recommended Models (Same Series or Related)
ControlLogix Power Module Family
| Model | Type | Input | Key Feature | Dimensions | Weight kg（ ） |
|---|---|---|---|---|---|
| 1756-PB72 | DC Power Supply | 18–32V DC | Medium-high capacity DC module | 14.5×11.2×14.0 cm | 0.94–0.96 kg |
| 1756-PB50 | DC Power Supply | 18–32V DC | Lower capacity DC module | 14.2×14.0×13.2 cm | 0.95–1.05 kg |
| 1756-PB75 | DC Power Supply | 18–32V DC | High-efficiency DC module | 14.8×14.2×13.5 cm | 1.50–1.60 kg |
| 1756-PB75R | Redundant DC Supply | 18–32V DC | Redundant DC architecture | 17.5×14.5×13.7 cm | 1.55–1.65 kg |
| 1756-PA72 | AC Power Supply | 85–265V AC | AC equivalent version | 14.5×14.0×13.2 cm | 1.45 kg |
| 1756-PSCA2 | Chassis Adapter | N/A | Redundancy interface module | 13×12×6 cm | 0.85 kg |
Recommended Popular Models (Same Platform Ecosystem)
Widely Used Automation Modules
| Model | Function | Network | Role | Dimensions | Weight kg（ ） |
|---|---|---|---|---|---|
| 1756-L85E | PLC Controller | EtherNet/IP | Main processor module | 15×14×13 cm | 0.65 kg |
| 1756-EN2TR | Ethernet Module | EtherNet/IP | Communication module | 13×14×12 cm | 0.48 kg |
| 1769-L36ERM | Compact PLC | Ethernet | Mid-range controller | 15×11×10 cm | 0.75 kg |
| 1734-AENTR | I/O Adapter | EtherNet/IP | Remote I/O gateway | 7×7×7 cm | 0.20 kg |
| 5069-L320ER | Advanced PLC | EtherNet/IP | High-performance control system | 13×10×9 cm | 0.54 kg |
Installation Notes
The module is installed in the left slot of a ControlLogix chassis and connects directly to the backplane system.
Key installation requirements:
- Verify correct DC input range
- Ensure proper chassis compatibility
- Maintain grounding integrity
- Provide adequate ventilation
- Avoid high vibration environments
Maintenance Characteristics
- Hot-swappable design
- Simple diagnostics
- Low maintenance requirements
- Long operational lifecycle
- Fast replacement capability
Final Summary
The 1756-PB72 is a reliable DC power supply module designed for ControlLogix automation systems. It provides stable backplane power for medium-to-large industrial control applications and ensures consistent operation in DC-powered environments.
With strong durability, stable output performance, and wide industrial compatibility, it remains a key component in modern automation systems requiring reliable and continuous operation.
