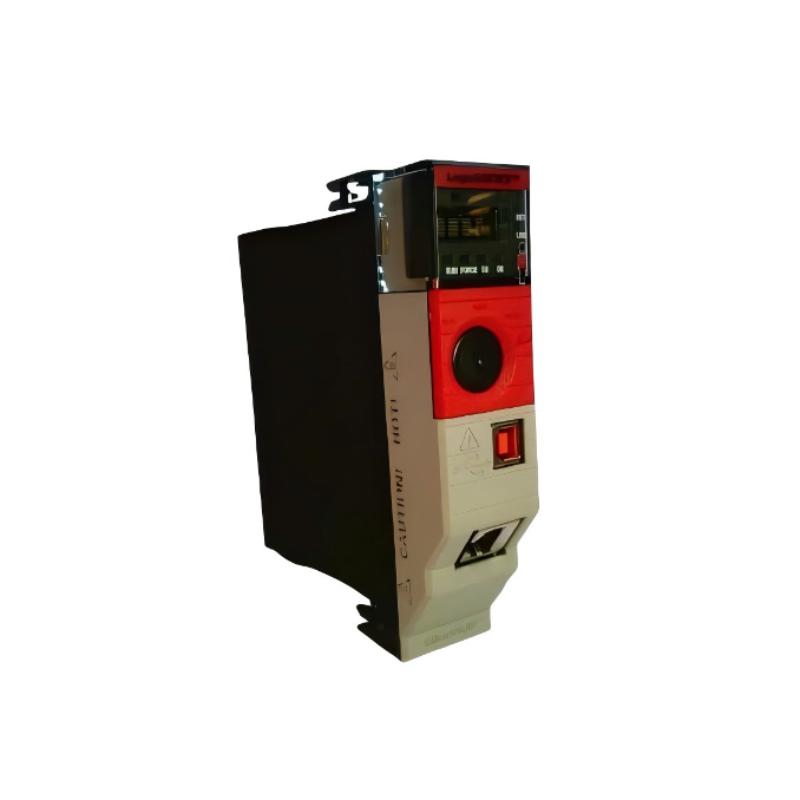

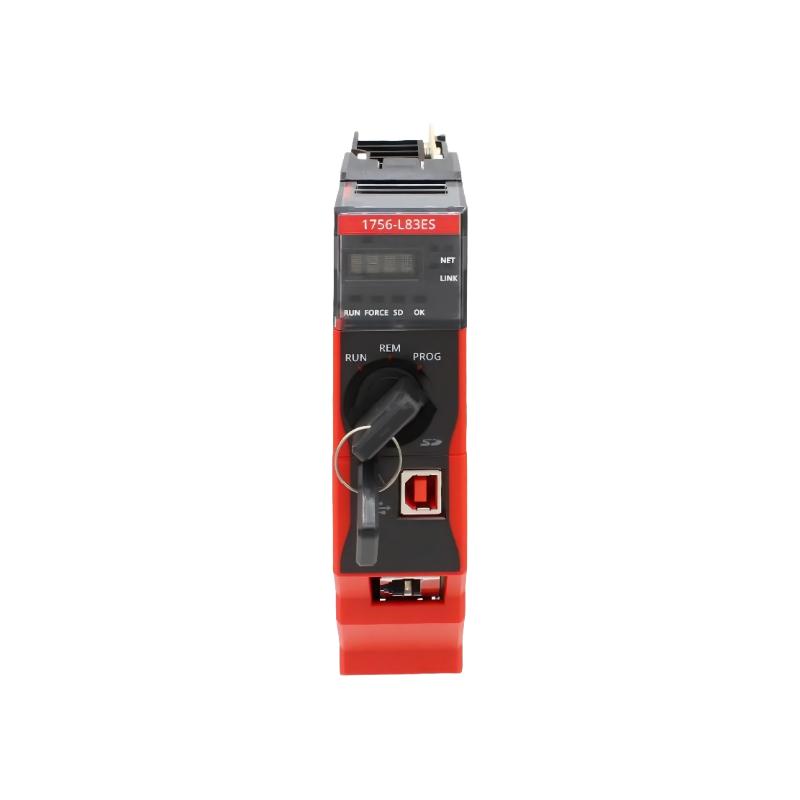

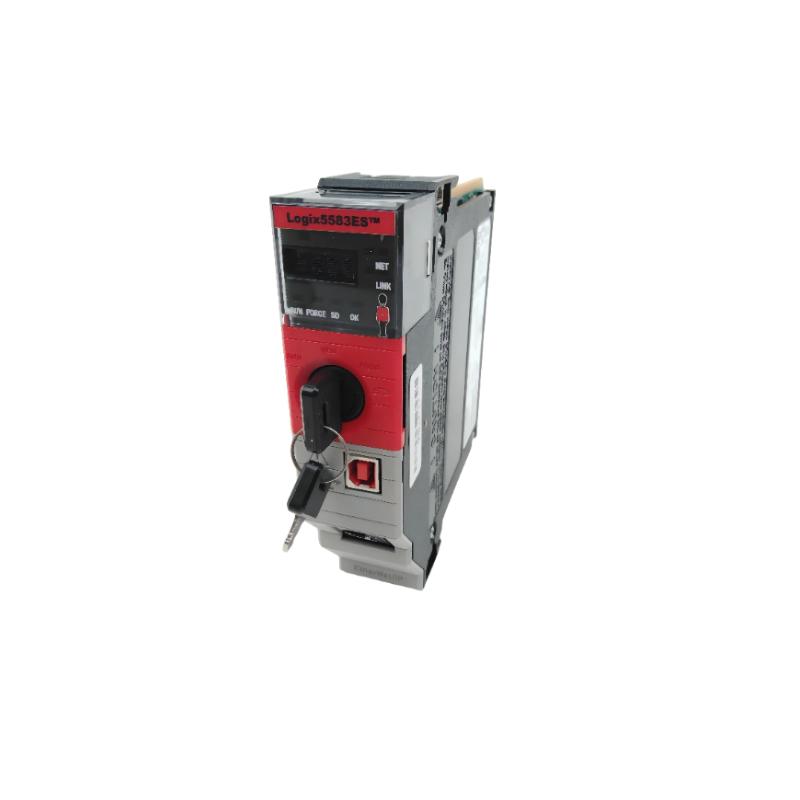

Technical Profile Report – 1756-L83ES Controller Module
1. Product Overview
The 1756-L83ES is a high-end GuardLogix 5580 safety programmable automation controller (PAC) developed for complex industrial automation systems that require integrated standard control, certified functional safety, high-speed Ethernet communication, and large-scale distributed architecture support.
It belongs to the ControlLogix 5580 GuardLogix series, a next-generation industrial control platform designed for demanding manufacturing and process industries.
The controller is commonly used in applications requiring:
- Advanced machine safety integration
- Large distributed EtherNet/IP systems
- High-speed deterministic processing
- Complex motion and process automation
The 1756-L83ES combines standard automation control and safety logic execution into a single scalable industrial platform.
2. Product Introduction
The 1756-L83ES serves as the primary processor inside a modular ControlLogix chassis. It simultaneously executes standard control tasks and SIL-certified safety functions while maintaining deterministic real-time communication across industrial Ethernet networks.
Key characteristics include:
- 10 MB standard user memory
- 5 MB dedicated safety memory
- Integrated Gigabit EtherNet/IP communication
- High-speed processing architecture
- USB programming interface
- Large motion and distributed I/O capability
The controller is optimized for high-performance industrial environments where safety, speed, and reliability are critical operational requirements.
3. Technical Parameters
Core Specifications Table
| Parameter | Value |
|---|---|
| Controller Type | GuardLogix Safety PAC |
| Platform Series | ControlLogix 5580 GuardLogix |
| Processor Family | Logix 5583 |
| Standard User Memory | 10 MB |
| Safety Memory | 5 MB |
| Non-volatile Storage | 2 GB SD card support |
| Maximum Digital I/O | 128,000 points |
| Maximum Analog I/O | 4,000 channels |
| EtherNet/IP Device Support | Up to 250 devices |
| Task Capacity | 32 tasks |
| Programs per Task | Up to 1000 programs |
| Motion Axis Support | Up to 256 axes |
| Programming Interface | USB 2.0 |
| Communication Networks | EtherNet/IP (10/100/1000 Mbps) |
| Integrated Ethernet Port | 1 Gbps |
| Display | 4-character alphanumeric display |
| Power Consumption | Approx. 6.2 W |
| Backplane Current (5.1V DC) | Approx. 1.2 A |
| Backplane Current (1.2V DC) | 5 mA |
| Thermal Dissipation | Approx. 21 BTU/hr |
| Isolation Voltage | 50 V continuous |
| Safety Certification | SIL 3 / PLe capable |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% – 95% non-condensing |
| Scan Type | Deterministic real-time execution |
| Dimensions (H×L×W) | ≈ 145 × 136 × 105 mm |
| Weight | ≈ 0.45 kg – 0.50 kg |
4. Product Application Areas
The 1756-L83ES is widely used in advanced industrial automation systems requiring integrated safety and high-performance process execution.
Industrial Applications
- Automotive body welding systems
- Robotic manufacturing cells
- Semiconductor production lines
- Oil and gas processing facilities
- Pharmaceutical automation systems
- High-speed packaging machinery
Safety Applications
- Emergency shutdown systems
- Safety interlock systems
- Light curtain and safety scanner integration
- Safety motion monitoring
- Machine guarding systems
- High-risk industrial process protection
Motion Control Applications
- Multi-axis servo systems
- Coordinated robotic motion
- Conveyor synchronization systems
- Precision packaging equipment
5. Product Advantages
1. Integrated Safety and Standard Control
Combines automation and certified safety functionality in one controller platform.
2. High Memory Capacity
Provides large memory resources for complex industrial applications and extensive safety programming.
3. Gigabit EtherNet/IP Communication
Supports fast industrial Ethernet communication and large distributed systems.
4. High Motion Performance
Supports large-scale coordinated motion control architectures.
5. SIL 3 Functional Safety Capability
Designed for high-risk industrial environments requiring advanced safety compliance.
6. Deterministic Real-Time Processing
Ensures stable and predictable execution under heavy system loads.
7. Scalable Modular Architecture
Works within ControlLogix chassis systems for flexible future expansion.
8. Reduced Engineering Complexity
Allows standard automation and safety programming within one unified environment.
6. Brand Positioning
The product belongs to a globally recognized industrial automation ecosystem known for:
- Programmable automation controllers
- Industrial safety systems
- EtherNet/IP networking solutions
- Distributed control architectures
- Advanced motion control platforms
It is widely used in industries requiring high-speed, safety-integrated industrial automation systems.
7. Product Series
Series Name: ControlLogix 5580 GuardLogix Series
The 1756-L83ES belongs to the advanced GuardLogix 5580 integrated safety controller family.
Series Features
- Integrated standard + safety control
- Gigabit EtherNet/IP architecture
- High-speed deterministic execution
- Modular chassis-based expansion
- SIL 3 / PLe certified safety design
- Advanced motion and distributed control capability
8. Recommended Models – Same Series or Related
A. Same Series / Closely Related Models
| Model | Description | Key Parameters |
|---|---|---|
| 1756-L81ES | Entry safety CPU | 3 MB standard + 1.5 MB safety memory |
| 1756-L82ES | Mid safety CPU | 5 MB standard + 3 MB safety memory |
| 1756-L83ES | Advanced safety CPU | 10 MB standard + 5 MB safety memory |
| 1756-L84ES | High-performance safety CPU | Enhanced motion architecture |
| 1756-L85ES | Flagship GuardLogix CPU | Maximum processing and memory capacity |
9. Recommended Popular Models From the Same Brand
| Model | Product Type | Key Parameters |
|---|---|---|
| 1756-L83ES | GuardLogix Safety Controller | 10 MB standard + 5 MB safety memory |
| 1756-L85E | Advanced ControlLogix CPU | High-speed Ethernet architecture |
| 1756-L84ES | High-performance safety PAC | Large distributed systems |
| 1756-L81E | Standard Ethernet CPU | Gigabit communication platform |
| 1756-L73S | Legacy safety controller | SIL 3 capable, 8 MB memory |
10. Summary
The 1756-L83ES controller is a powerful integrated safety automation processor designed for large-scale industrial environments requiring advanced control performance and certified safety capability.
With its 10 MB standard memory, 5 MB dedicated safety memory, Gigabit EtherNet/IP communication, and SIL 3 certification, it is suitable for demanding industrial applications including robotics, process manufacturing, packaging systems, and high-speed production lines.
Its combination of safety integration, scalable architecture, deterministic processing, and large distributed system support makes it an important solution for modern industrial automation systems.
