Technical Profile Report – 1756-L82E Controller Module
1. Product Overview
The 1756-L82E is a ControlLogix 5580 programmable automation controller (PAC) designed for high-performance industrial automation systems. It belongs to the latest generation ControlLogix platform, engineered for fast Ethernet communication, high processing speed, and large-scale distributed control.
This controller is widely used in modern industrial environments where:
- High-speed data exchange is required
- Ethernet-based architecture is standard
- Large I/O systems must be managed
- Complex automation logic is executed in real time
It represents a new generation of controllers optimized for integrated industrial networking.

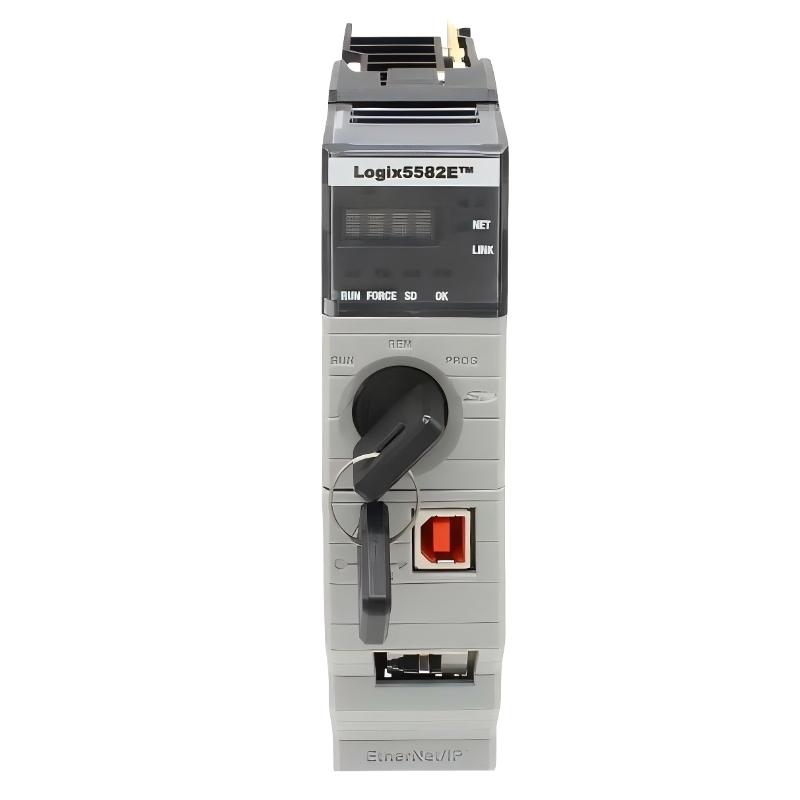

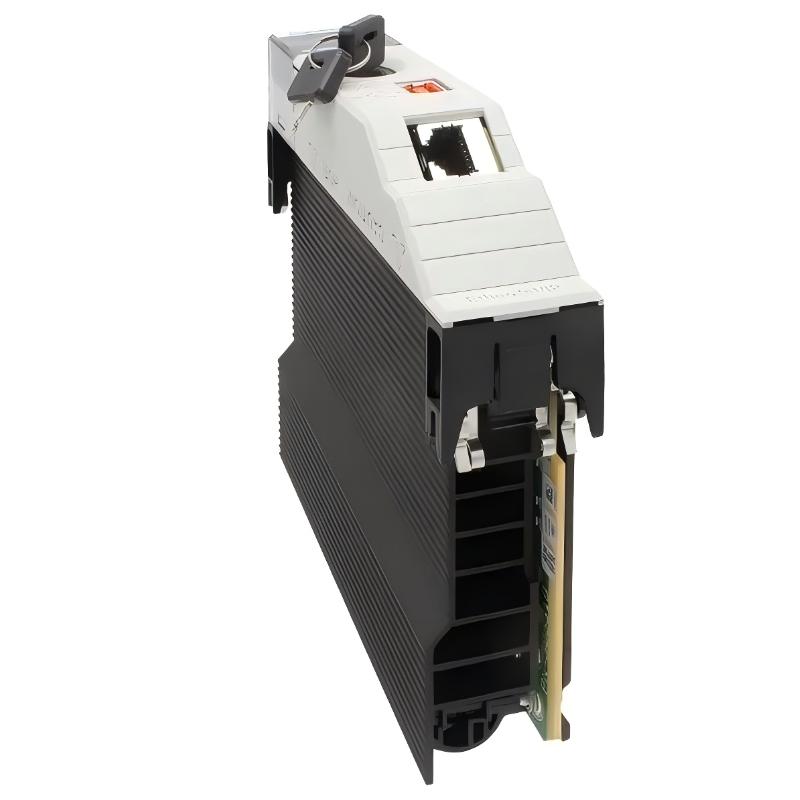

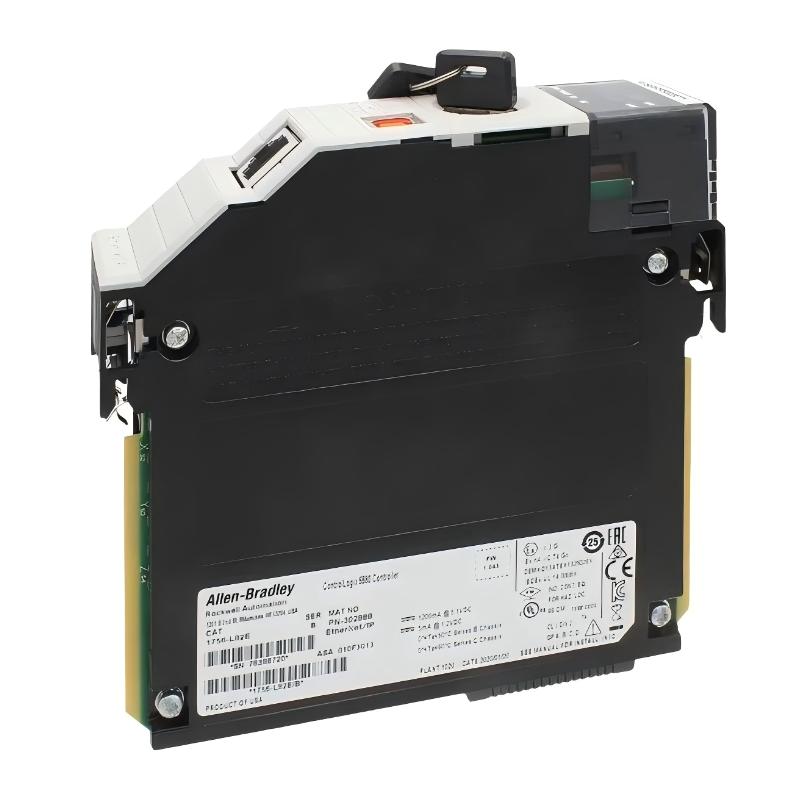

2. Product Introduction
The 1756-L82E functions as the central processor in a modular ControlLogix chassis system. It manages logic execution, communication, and I/O coordination across distributed industrial networks.
Key characteristics include:
- 5 MB user memory
- Integrated 1 Gbps Ethernet port
- USB programming interface
- 4-character alphanumeric display
- Support for high-density I/O systems
- Secure digital (SD) memory option
It is designed for fast, reliable, and scalable automation control in industrial applications.
3. Technical Parameters
Core Specifications Table
| Parameter | Value |
|---|---|
| Controller Type | Programmable Automation Controller (PAC) |
| Platform Series | ControlLogix 5580 |
| Processor Family | Logix 5582 |
| User Memory | 5 MB |
| Non-volatile Memory | 2 GB SD card option |
| Maximum Digital I/O | 128,000 points |
| Maximum Analog I/O | 4,000 channels |
| Controller Connections | Up to 175 EtherNet/IP devices |
| Task Capacity | 32 tasks |
| Programs per Task | Up to 1000 programs |
| Programming Interface | USB 2.0 |
| Communication Networks | EtherNet/IP (10/100/1000 Mbps) |
| Display | 4-character alphanumeric |
| Motion Axis Support | Up to 256 axes |
| Power Consumption | ~6.2 W |
| Backplane Current (5.1V DC) | 1.20 A |
| Backplane Current (1.2V DC) | 5 mA |
| Thermal Dissipation | 21.2 BTU/hr |
| Isolation Voltage | 50 V continuous |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% – 95% non-condensing |
| Scan Type | Deterministic real-time execution |
| Dimensions (H×L×W) | ≈ 145 × 136 × 105 mm |
| Weight | ≈ 0.4–0.6 kg (typical ~0.5 kg) |
4. Product Application Areas
The 1756-L82E is widely applied in industrial automation systems that require high-speed communication and scalable control.
Industrial Applications
- Automotive manufacturing production lines
- Semiconductor equipment systems
- Oil and gas process automation
- Power generation control systems
- Logistics and conveyor systems
- Large-scale packaging automation
Process Control Applications
- Continuous chemical processing
- Water treatment and distribution systems
- Refining and petrochemical systems
- Pump and compressor networks
- Energy monitoring systems
5. Product Advantages
1. High-Speed Ethernet Integration
Built-in Gigabit Ethernet enables fast and stable industrial communication.
2. High Processing Capability
Designed for complex automation tasks with large memory capacity.
3. Scalable System Architecture
Supports up to 128,000 I/O points for large industrial systems.
4. Strong Motion Control Capability
Supports up to 256 motion axes for advanced automation.
5. Secure Memory Expansion
Supports SD-based non-volatile memory for data retention.
6. Flexible Integration
Works with EtherNet/IP-based industrial networks.
7. Stable Real-Time Performance
Ensures deterministic execution for industrial control processes.
6. Brand Positioning
The product belongs to a globally recognized industrial automation ecosystem known for:
- Programmable automation controllers
- Industrial Ethernet communication systems
- Motion control platforms
- Large-scale distributed control architectures
It is widely used in industries requiring high-speed digital communication and modern automation infrastructure.
7. Product Series
Series Name: ControlLogix 5580 Series
The 1756-L82E is part of the ControlLogix 5580 next-generation controller family, designed for high-performance Ethernet-based automation.
Series Features
- Gigabit Ethernet integrated architecture
- High-speed processing engine
- Modular rack-based system design
- Large-scale distributed control capability
- Enhanced motion and network support
8. Recommended Models – Same Series or Related
A. Same Series / Closely Related Models
| Model | Description | Key Parameters |
|---|---|---|
| 1756-L80E | Entry 5580 CPU | Basic Ethernet control |
| 1756-L81E | Standard CPU | 3 MB memory, Gigabit Ethernet |
| 1756-L82E | Mid CPU | 5 MB memory, high performance |
| 1756-L83E | Advanced CPU | Larger systems, higher speed |
| 1756-L85E | High-end CPU | Maximum processing capability |
B. Same Brand – Popular Models
| Model | Type | Key Parameters |
|---|---|---|
| 1756-L82E | ControlLogix CPU | 5 MB memory, EtherNet/IP |
| 1756-L85E | High-performance CPU | Advanced processing system |
| 1756-L83E | Multi-core controller | Large automation systems |
| 1756-L73 | Legacy CPU | 8 MB memory, L7 platform |
| 1756-L72 | Mid CPU | 4 MB memory, stable control |
9. Summary
The 1756-L82E controller is a modern industrial automation CPU designed for Ethernet-centric control systems. With its 5 MB memory, Gigabit Ethernet interface, and high-speed deterministic processing, it is widely used in manufacturing, energy, and process industries.
It is a key component in modern industrial systems that require fast communication, scalable architecture, and stable real-time control performance.
