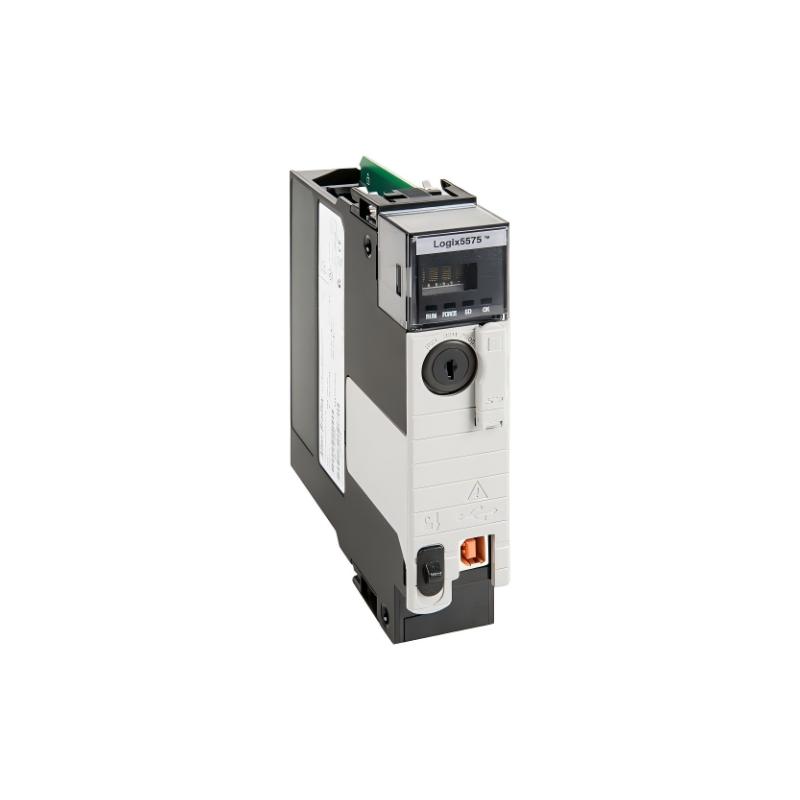

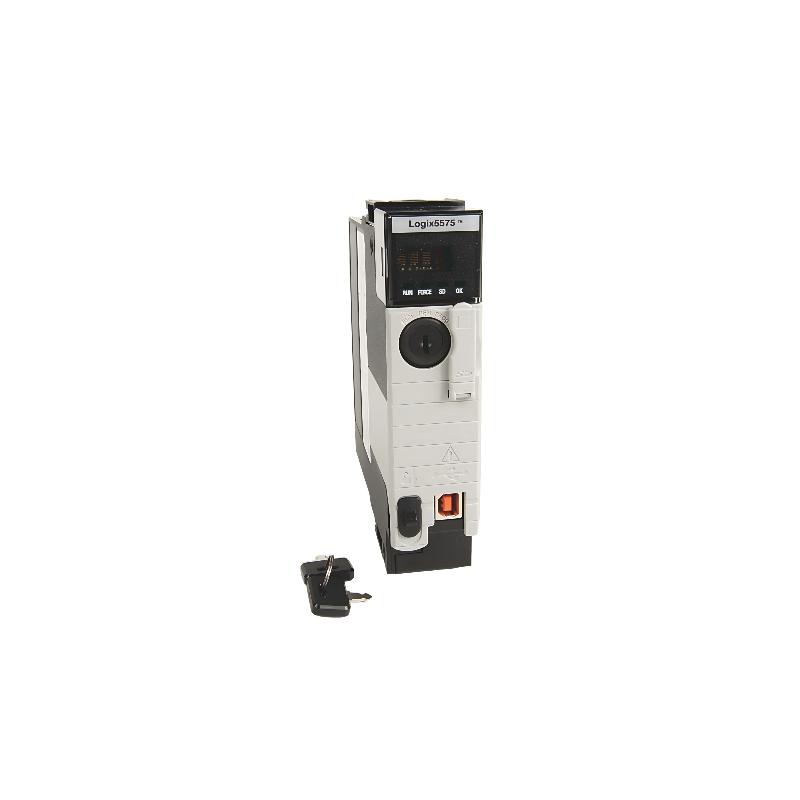

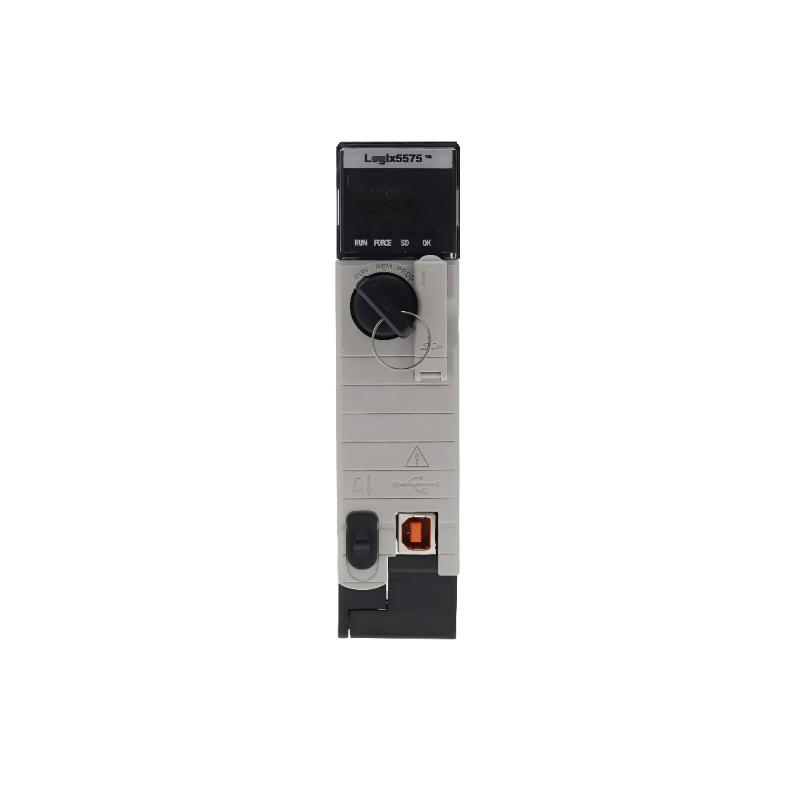

Technical Profile Report – 1756-L75 Controller Module
1. Product Overview
The 1756-L75 is a high-performance programmable automation controller (PAC) designed for large-scale industrial automation systems requiring very high processing capacity, expanded memory, and strong system integration capability. It belongs to the ControlLogix 5570 series, a modular automation platform widely used in manufacturing, energy, and process industries.
This controller is positioned as one of the top-tier standard CPUs in the L7 generation, offering significantly higher memory capacity compared with L71, L72, and L73 models.
It is commonly used in systems requiring:
- Large control programs and complex logic
- High-speed deterministic processing
- Distributed multi-chassis architecture
- High I/O density automation systems
2. Product Introduction
The 1756-L75 operates as the central processing unit within a ControlLogix chassis system. It executes automation programs, manages input/output updates, and handles communication across multiple industrial networks.
Key structural characteristics:
- 32 MB user memory capacity
- 0.98 MB I/O memory
- USB programming interface
- Modular chassis-based design
- Support for multiple industrial communication protocols
- Expandable architecture for large distributed systems
It is designed for long-term continuous operation in demanding industrial environments where reliability and scalability are essential.
3. Technical Parameters
Core Specifications Table
| Parameter | Value |
|---|---|
| Controller Type | Programmable Automation Controller (PAC) |
| Platform Series | ControlLogix 5570 |
| Processor Family | Logix 5575 |
| User Memory | 32 MB |
| I/O Memory | 0.98 MB |
| Maximum Digital I/O | 128,000 points |
| Maximum Analog I/O | 4,000 channels |
| Controller Connections | Up to 500 |
| Task Capacity | 32 tasks |
| Programs per Task | 100 programs |
| Programming Interface | USB 2.0 |
| Communication Networks | EtherNet/IP, ControlNet, DeviceNet |
| Motion Axis Support | Up to 100 axes (system dependent) |
| Power Consumption | ~2.5 W |
| Backplane Current (5.1V DC) | 800 mA |
| Backplane Current (1.2V DC) | 5 mA |
| Thermal Dissipation | 8.5 BTU/hr |
| Isolation Voltage | 30 V continuous |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% – 95% non-condensing |
| Scan Type | Deterministic real-time execution |
| Dimensions (H×L×W) | ≈ 127 × 178 × 102 mm |
| Weight | ≈ 0.25 kg – 0.26 kg |
4. Product Application Areas
The 1756-L75 is widely used in large industrial automation systems requiring high processing power and stable long-term performance.
Industrial Applications
- Automotive manufacturing systems
- Oil and gas production facilities
- Petrochemical processing plants
- Mining and material handling systems
- Power generation and distribution systems
- Large conveyor and logistics networks
Process Control Applications
- Continuous chemical processing systems
- Batch production systems
- Furnace and boiler control systems
- Pump and compressor control systems
- Complex multi-loop regulation systems
5. Product Advantages
1. Extremely High Memory Capacity
32 MB user memory supports very large and complex automation programs.
2. Strong System Expansion Capability
Supports up to 128,000 digital I/O points for large-scale industrial systems.
3. High-Speed Deterministic Execution
Ensures predictable scan performance for time-critical automation tasks.
4. Multi-Task Control Architecture
Supports up to 32 tasks and 100 programs per task for structured programming.
5. Flexible Communication Integration
Supports EtherNet/IP, ControlNet, and DeviceNet for industrial networking.
6. Modular System Design
Works within ControlLogix chassis for scalable system expansion.
7. Industrial Reliability
Designed for continuous operation in mission-critical environments.
6. Brand Positioning
The product belongs to a globally established industrial automation ecosystem known for:
- Programmable automation controllers (PAC)
- Industrial communication systems
- Motion control technologies
- Large-scale distributed automation platforms
It is widely used in manufacturing, energy, infrastructure, and process industries worldwide.
7. Product Series
Series Name: ControlLogix 5570 Series
The 1756-L75 is part of the ControlLogix 5570 modular controller family, representing one of the highest-capacity CPUs in the L7 generation.
Series Features
- Rack-based modular architecture
- Hot-swappable modules
- Distributed control capability
- Multi-network communication support
- High system scalability and reliability
8. Recommended Models – Same Series or Related
A. Same Series / Closely Related Models
| Model | Description | Key Parameters |
|---|---|---|
| 1756-L71 | Entry CPU | 2 MB memory, compact systems |
| 1756-L72 | Mid CPU | 4 MB memory, balanced control |
| 1756-L73 | High CPU | 8 MB memory, large systems |
| 1756-L74 | Advanced CPU | 16 MB memory, high capacity |
| 1756-L75 | Top L7 CPU | 32 MB memory, maximum performance |
B. Same Brand – Popular Models
| Model | Type | Key Parameters |
|---|---|---|
| 1756-L75 | ControlLogix CPU | 32 MB memory, highest L7 capacity |
| 1756-L74 | High CPU | 16 MB memory, large-scale systems |
| 1756-L73 | Standard high CPU | 8 MB memory, stable performance |
| 1756-L72 | Mid CPU | 4 MB memory, balanced systems |
| 1756-L81E | Ethernet controller | Multi-core architecture, integrated networking |
9. Summary
The 1756-L75 controller is the highest-capacity standard CPU in the ControlLogix L7 generation. With its 32 MB user memory, strong I/O handling capability, and modular architecture, it is designed for large-scale industrial automation systems requiring maximum processing performance and system stability.
It is widely used in complex industrial environments where data volume, system size, and reliability demands are at their highest level.
