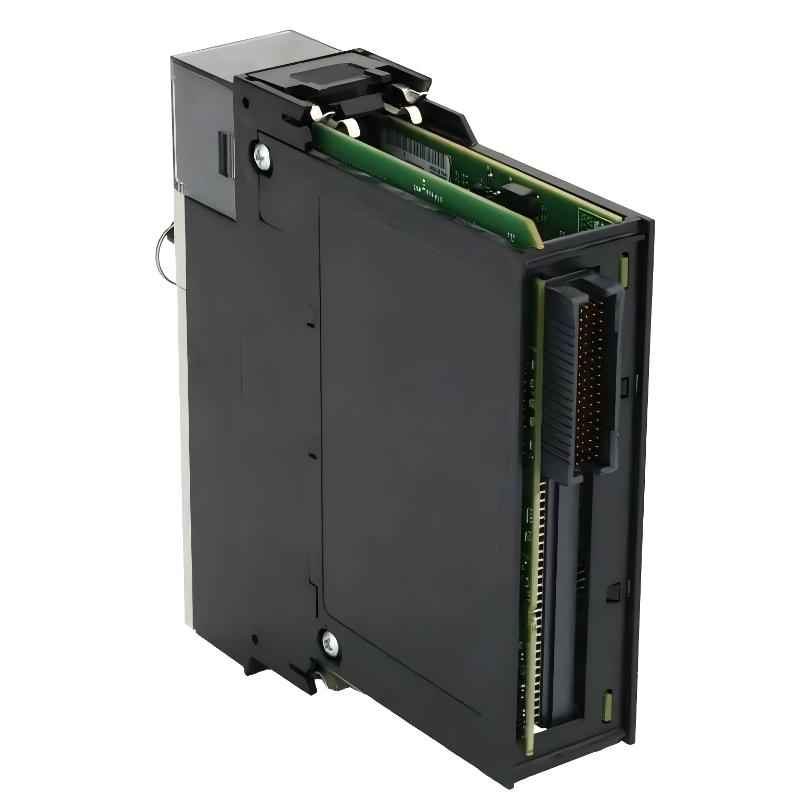

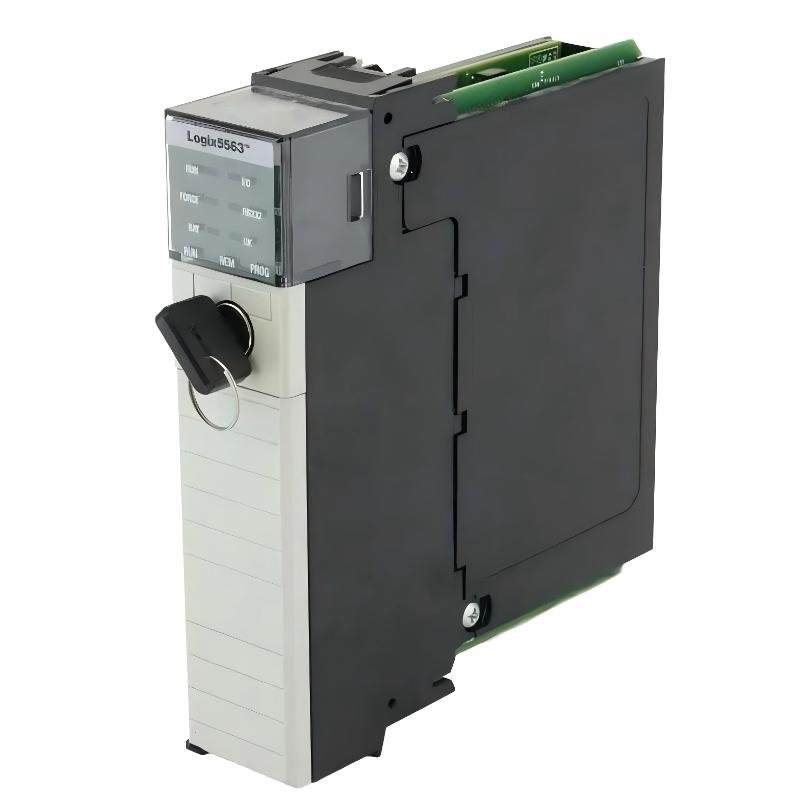

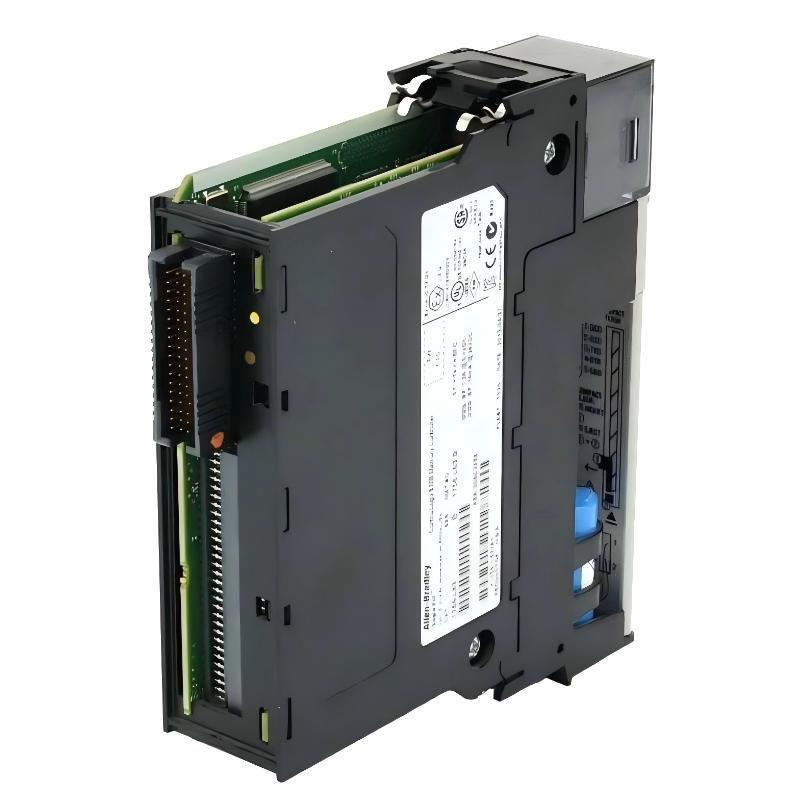

- Allen Bradley
- 1756-L63
- ControlLogix ControlNet Communication Module
- USA
- 152 × 140 × 100 mm
- 0.32kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 32
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Technical Profile Report – 1756-L63 Controller
1. Product Overview
The 1756-L63 is a high-performance industrial programmable automation controller (PAC) designed for complex control and automation systems. It belongs to the ControlLogix platform and is widely used in large-scale industrial environments requiring high-speed processing, modular expansion, and advanced communication capabilities.
This controller integrates seamlessly into a chassis-based architecture, enabling distributed I/O and multi-network communication support.
It is positioned as a mid-to-high capacity controller within its family, offering 8 MB user memory and strong multitasking capability for demanding industrial processes.
2. Product Introduction
The 1756-L63 operates as a central processing unit within a modular automation system. It executes control logic, manages I/O data, and coordinates communication across multiple industrial networks.
Key characteristics include:
- 8 MB user memory for control programs and data handling
- Support for up to 32 tasks and 100 programs per task
- High-speed execution with deterministic scan performance
- RS-232 serial communication port as standard interface
- Expandable via multiple communication modules
It is designed for use in both standalone and redundant control systems.
3. Technical Parameters
Core Specifications Table
| Parameter | Value |
|---|---|
| Controller Type | Programmable Automation Controller (PAC) |
| Platform Series | ControlLogix |
| User Memory | 8 MB |
| I/O Memory | 478 KB |
| Non-Volatile Memory | Up to 128 MB (optional CompactFlash) |
| Maximum Digital I/O | 128,000 points |
| Maximum Analog I/O | 4,000 points |
| Number of Tasks | 32 |
| Programs per Task | 100 |
| Communication Interface | RS-232 serial port |
| Backplane Current (5V DC) | 1.2 A |
| Backplane Current (24V DC) | 14 mA |
| Power Dissipation | ~3.5 W |
| Thermal Dissipation | ~11.9 BTU/hr |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% – 95% RH (non-condensing) |
| Scan Time | ~0.08 ms (typical) |
| Dimensions (H×L×W) | ≈ 152 × 140 × 100 mm |
| Weight | ≈ 0.32 kg |
4. Product Application Areas
The 1756-L63 is widely used in industrial automation systems where reliability, speed, and scalability are essential.
Industrial Applications
- Oil and gas production systems
- Petrochemical processing plants
- Power generation control systems
- Manufacturing automation lines
- Conveyor and logistics systems
- Robotics and motion control systems
- Water treatment and utility control systems
Process Control Applications
- Continuous process control
- Batch production systems
- Furnace and boiler control
- High-speed packaging systems
5. Product Advantages
1. High Processing Capability
8 MB memory supports large-scale automation programs with complex logic structures.
2. Modular System Architecture
Works within a chassis-based system allowing flexible expansion of I/O and communication modules.
3. Strong Multitasking Performance
Supports up to 32 tasks, enabling parallel execution of multiple control routines.
4. High I/O Capacity
Can handle up to 128,000 digital I/O points, suitable for large industrial plants.
5. Communication Flexibility
Supports multiple industrial protocols through expansion modules (Ethernet/IP, ControlNet, DeviceNet, etc.).
6. Reliable Industrial Design
Built for harsh environments with wide temperature and humidity tolerance.
7. Deterministic Execution
Provides stable scan times for time-critical automation processes.
6. Brand Positioning
The product belongs to a globally recognized industrial automation manufacturer known for:
- PLC systems
- Industrial control hardware
- Motion and drive systems
- Integrated automation platforms
The brand is widely adopted in global manufacturing and process industries.
7. Product Series
Series Name: ControlLogix Series
The 1756-L63 is part of the ControlLogix modular automation platform.
Series Features
- Chassis-based modular PLC system
- Hot-swappable I/O modules
- Distributed control architecture
- High scalability for large systems
- Integrated safety and motion control capability (depending on configuration)
This series is designed for large-scale, mission-critical industrial automation systems.
8. Recommended Models – Same Series or Related
A. Same Series / Closely Related Models
| Model | Description | Key Parameters |
|---|---|---|
| 1756-L61 | Entry-level ControlLogix CPU | 2 MB memory, lower capacity system |
| 1756-L62 | Mid-range controller | 4 MB memory, balanced performance |
| 1756-L63 | Standard high-capacity CPU | 8 MB memory, multitasking support |
| 1756-L71 | Newer generation CPU | Faster processing, improved architecture |
| 1756-L73 | High-performance controller | 8–16 MB memory, enhanced speed |
B. Same Brand – Popular Models
| Model | Type | Key Parameters |
|---|---|---|
| 1756-L71 | ControlLogix CPU | 2–3 MB memory, modern architecture |
| 1756-L72 | ControlLogix CPU | 4 MB memory, improved performance |
| 1756-L73 | High-end CPU | 8 MB+ memory, large system support |
| 1756-L81E | Ethernet-enabled controller | Multi-core CPU, integrated communication |
| 1756-L85E | Advanced control processor | High-speed processing, large memory capacity |
9. Summary
The 1756-L63 controller is a robust industrial automation CPU designed for medium to large-scale control systems. With its 8 MB memory, high I/O capacity, multitasking structure, and modular architecture, it remains a widely used solution in industrial automation environments.
It is particularly suitable for applications requiring stable long-term operation, flexible expansion, and high system reliability.
