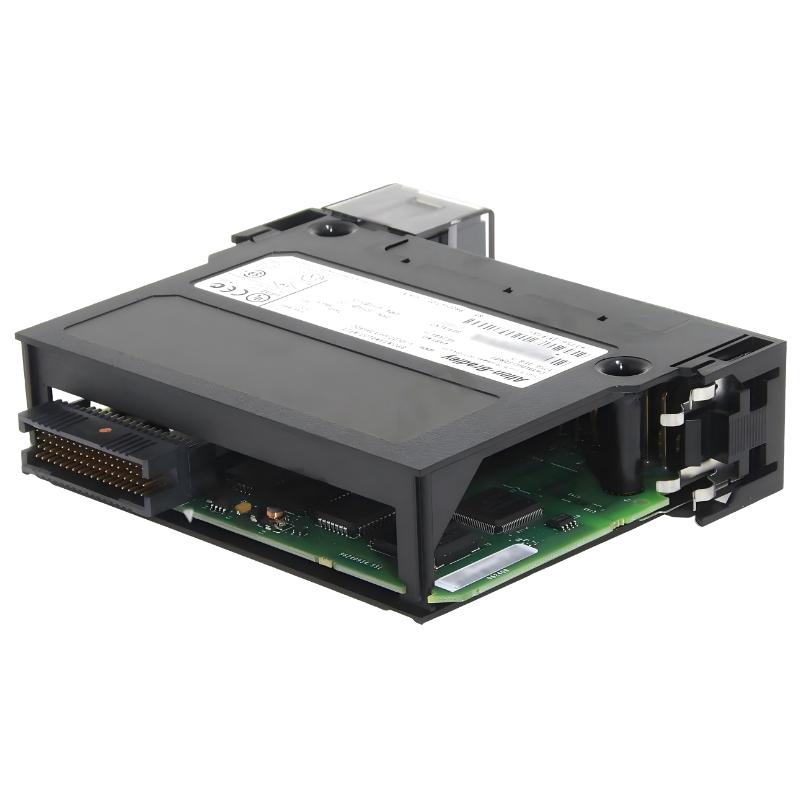

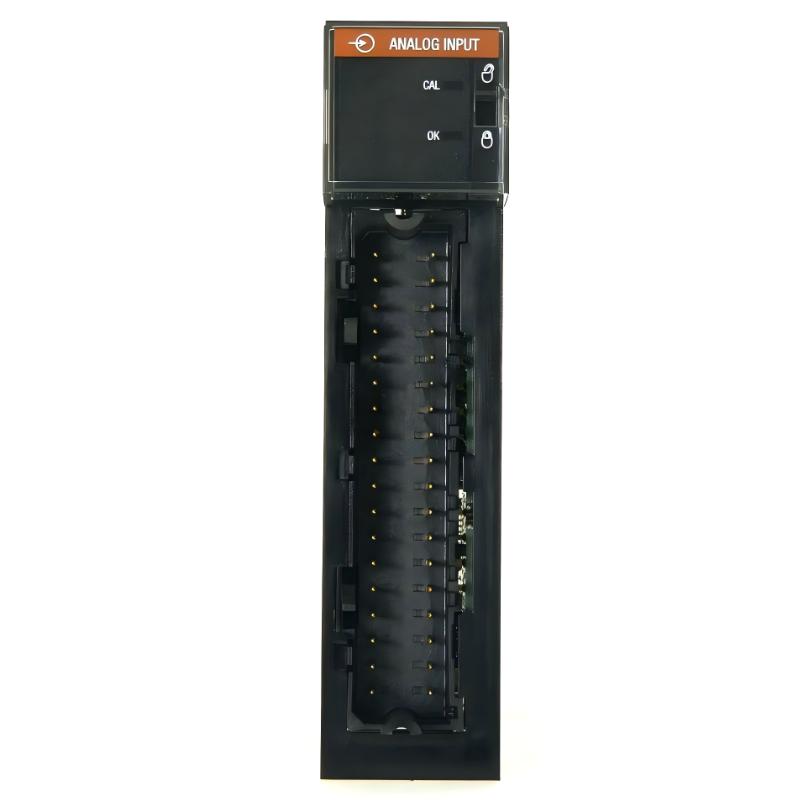

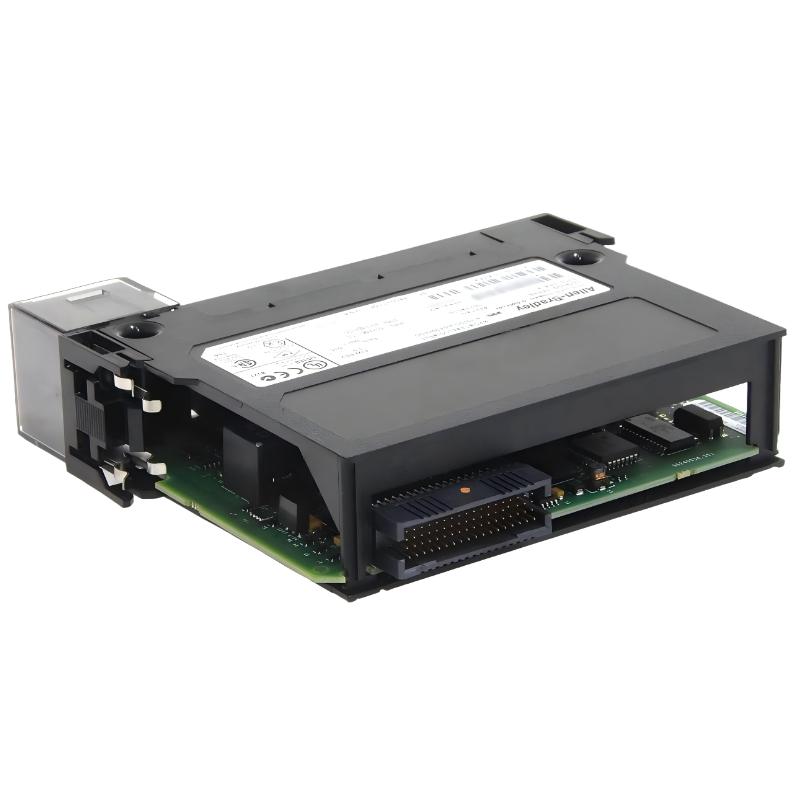

1756-IF8K Detailed Product Overview
Product Introduction
The 1756-IF8K is a high-performance analog input module designed for industrial automation systems requiring accurate and stable process signal acquisition. This module is part of the ControlLogix platform and is engineered for demanding industrial applications where reliability, precision, and continuous operation are essential.
The module provides eight analog input channels and is optimized for current signal monitoring applications commonly found in process industries. It supports accurate acquisition of analog signals from field devices such as pressure transmitters, flow meters, temperature sensors, level instruments, and other industrial process equipment.
The 1756-IF8K is designed with industrial-grade electronic architecture that improves signal integrity and operational stability in harsh environments containing electromagnetic interference, vibration, and temperature fluctuations.
This module is widely used in industrial sectors including oil and gas, petrochemical processing, pharmaceutical production, food and beverage manufacturing, water treatment facilities, mining operations, metallurgy plants, and intelligent manufacturing systems.
Its flexible modular design allows easy integration into ControlLogix automation systems and supports scalable industrial control architectures. The module also includes advanced diagnostics capabilities that simplify maintenance and improve system reliability.
Brand Information
| Item | Details |
|---|---|
| Brand | Allen Bradley |
| Product Category | Analog Input Module |
| Product Type | Analog Current Input Module |
| Platform | ControlLogix |
| Installation Type | Chassis Mounted |
| Main Function | Analog Signal Acquisition |
| Industrial Application | Process Automation |
| System Compatibility | Industrial Control Systems |
Product Series Overview
ControlLogix Series
The 1756-IF8K belongs to the ControlLogix family, a modular industrial automation platform developed for advanced control systems and large-scale industrial applications.
The ControlLogix platform is widely recognized for its powerful processing capability, high-speed communication performance, flexible modular architecture, and strong scalability.
The series supports multiple industrial automation functions including:
- Sequential logic control
- Motion control
- Distributed I/O systems
- Process automation
- Safety integration
- Industrial communication networks
- Real-time monitoring
- Remote diagnostics and maintenance
ControlLogix systems are extensively deployed in industrial facilities where stable production and operational reliability are critical.
Main Features of 1756-IF8K
1. Eight Analog Input Channels
The module provides eight analog input channels, enabling simultaneous monitoring of multiple industrial process variables.
This improves system efficiency and reduces the number of modules required in large automation systems.
2. High Signal Accuracy
The module delivers stable and accurate analog signal conversion performance for industrial instrumentation applications.
It supports precise monitoring of pressure, temperature, flow, level, and process variables.
3. Strong Anti-Interference Capability
Industrial facilities often contain electrical noise generated by motors, drives, inverters, and high-voltage equipment.
The module is designed with enhanced noise resistance capability to maintain stable signal quality in difficult operating environments.
4. Advanced Diagnostics Functions
The module supports built-in diagnostics features including:
- Channel fault monitoring
- Signal status indication
- Open circuit detection
- Overrange and underrange alarms
These functions help reduce maintenance time and improve troubleshooting efficiency.
5. Flexible Configuration Capability
Users can configure signal ranges, scaling parameters, filtering settings, and alarm functions according to specific application requirements.
6. Industrial-Grade Reliability
The module is built using durable industrial electronic components designed for continuous operation in demanding industrial environments.
Technical Specifications
Detailed Parameter Table
| Parameter | Specification |
|---|---|
| Model | 1756-IF8K |
| Product Type | Analog Current Input Module |
| Series | ControlLogix |
| Input Channels | 8 Analog Inputs |
| Signal Type | Current Input |
| Supported Input Range | 0-20 mA / 4-20 mA |
| Resolution | 16-bit |
| Isolation Type | Group Isolation |
| Signal Conversion | High-Speed Analog Processing |
| Backplane Current | Approx. 250 mA |
| Power Dissipation | Approx. 5.6 W |
| Wiring Method | Removable Terminal Block |
| Diagnostics | Advanced Channel Diagnostics |
| Mounting Method | Chassis Mount |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% Non-condensing |
| Shock Resistance | Industrial Standard |
| Vibration Resistance | High Stability Design |
| Certifications | CE, UL, CSA |
| Dimensions | 14.5 × 11.2 × 5.6 cm |
| Weight kg（ ） | 0.45 kg |
Product Applications
Oil and Gas Industry
The module is widely used in refineries, offshore drilling platforms, and pipeline transportation systems.
It supports accurate monitoring of pressure transmitters, flow instruments, and process control devices.
Chemical Processing Industry
Chemical production systems require stable and precise analog signal acquisition for safe process operation.
The 1756-IF8K provides reliable monitoring of process variables and improves overall automation efficiency.
Power Generation Systems
The module is commonly installed in thermal power plants, hydroelectric facilities, and renewable energy systems for monitoring turbines, generators, and process instrumentation.
Water and Wastewater Treatment
The module supports pump station control, liquid level monitoring, filtration systems, and chemical dosing process automation.
Pharmaceutical Manufacturing
Pharmaceutical production requires precise process monitoring and stable environmental control.
The module helps maintain production consistency and process reliability.
Food and Beverage Industry
The module is suitable for automated production lines, mixing systems, packaging machinery, and temperature control applications.
Product Advantages
High Operational Stability
The module provides stable long-term performance in industrial environments with electrical interference and temperature fluctuations.
Accurate Signal Monitoring
High-resolution analog conversion improves process monitoring precision and operational efficiency.
Reduced Maintenance Costs
Advanced diagnostics functions help maintenance personnel quickly identify and resolve system issues.
Compact Design Structure
The module provides high channel density while minimizing cabinet installation space requirements.
Flexible Industrial Integration
The module integrates smoothly with other ControlLogix controllers, communication modules, and distributed automation systems.
Excellent Reliability
The industrial-grade design ensures continuous operation and long service life in demanding applications.
Recommended Related Models
Same Series or Related Models
| Model | Product Type | Main Features | Channel Configuration | Dimensions | Weight kg（ ） |
|---|---|---|---|---|---|
| 1756-IF8 | Analog Input Module | Multi-signal analog acquisition | 8 Inputs | 14.5 × 11.2 × 5.6 cm | 0.42 kg |
| 1756-IF8H | HART Analog Input Module | HART communication capability | 8 Inputs | 14.5 × 11.2 × 5.6 cm | 0.46 kg |
| 1756-IF8I | Isolated Analog Input Module | Enhanced signal isolation | 8 Inputs | 14.5 × 11.2 × 5.6 cm | 0.46 kg |
| 1756-IF16 | High-density Analog Input Module | Large-scale analog monitoring | 16 Inputs | 14.5 × 11.2 × 5.6 cm | 0.48 kg |
| 1756-IF4FXOF2F | Combination Analog Module | Integrated analog input and output | 4 Inputs / 2 Outputs | 14.5 × 11.2 × 5.6 cm | 0.45 kg |
Popular Models from the Same Brand
Common Industrial Automation Products
| Model | Product Type | Main Function | Communication | Dimensions | Weight kg（ ） |
|---|---|---|---|---|---|
| 1756-L81E | PLC Controller | Advanced industrial automation control | EtherNet/IP | 15.2 × 14.0 × 5.5 cm | 0.62 kg |
| 1756-EN2TR | Ethernet Communication Module | Dual-port industrial networking | EtherNet/IP | 14.5 × 11.2 × 5.6 cm | 0.50 kg |
| 1734-AENTR | Distributed I/O Adapter | Remote I/O communication | EtherNet/IP | 13.2 × 7.5 × 5.0 cm | 0.30 kg |
| 2711P-T10C4D8 | HMI Operator Panel | Industrial touchscreen interface | Ethernet/USB | 27.1 × 21.1 × 6.0 cm | 1.80 kg |
| 25B-D017N104 | Variable Frequency Drive | AC motor speed control | EtherNet/IP | 35.0 × 21.6 × 18.0 cm | 4.90 kg |
Installation Notes
The 1756-IF8K should be installed inside a properly ventilated industrial control cabinet to ensure stable thermal performance during continuous operation.
Shielded signal wiring and proper grounding methods are recommended to minimize electromagnetic interference and improve analog signal stability.
Routine inspection of field wiring and terminal connections can improve operational reliability and reduce unexpected downtime.
The module also supports simplified replacement procedures, making maintenance operations more efficient in large automation systems.
Summary
The 1756-IF8K is a reliable and high-performance analog current input module designed for advanced industrial automation and process control applications.
Its eight-channel analog input capability, strong anti-interference performance, accurate signal acquisition, and advanced diagnostics functions make it highly suitable for industries requiring stable and precise process monitoring.
The module offers excellent scalability, simplified maintenance, and flexible integration within the ControlLogix platform. It is widely used in industrial facilities where operational reliability, process accuracy, and continuous automation performance are essential for maintaining production efficiency and long-term system stability.
