Product Overview

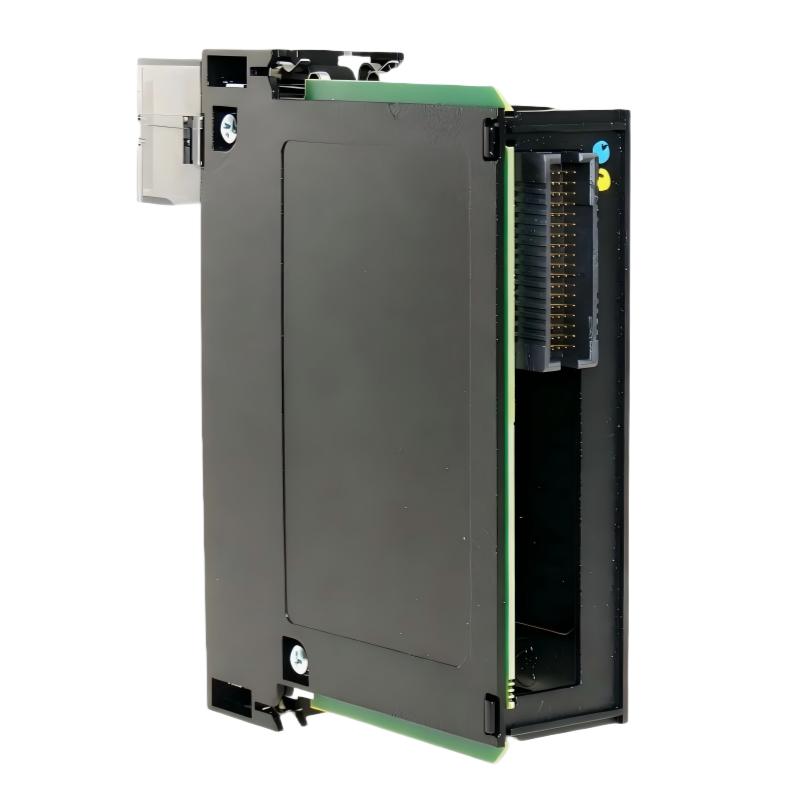

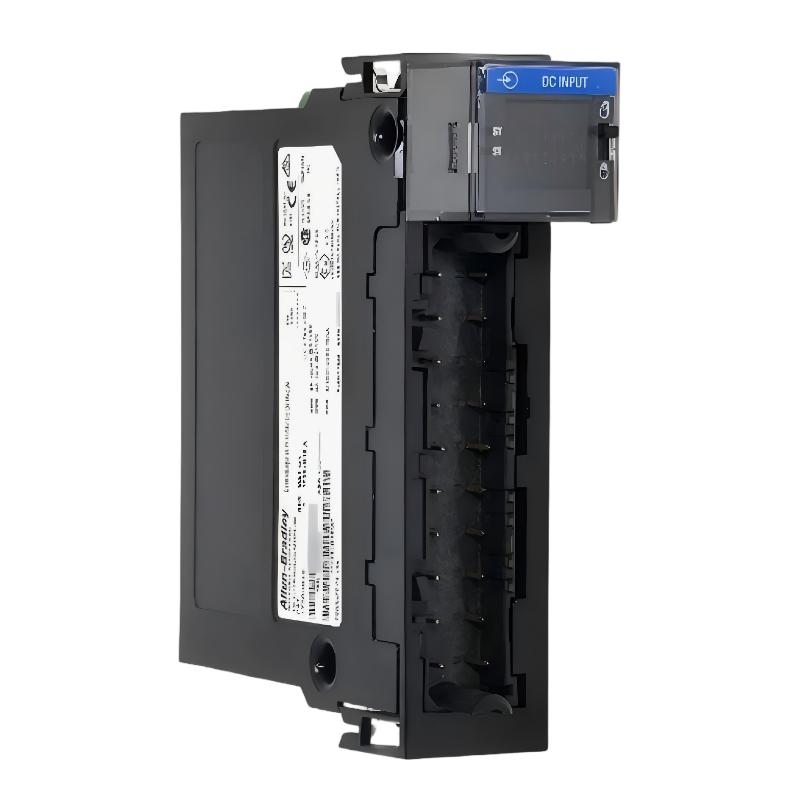

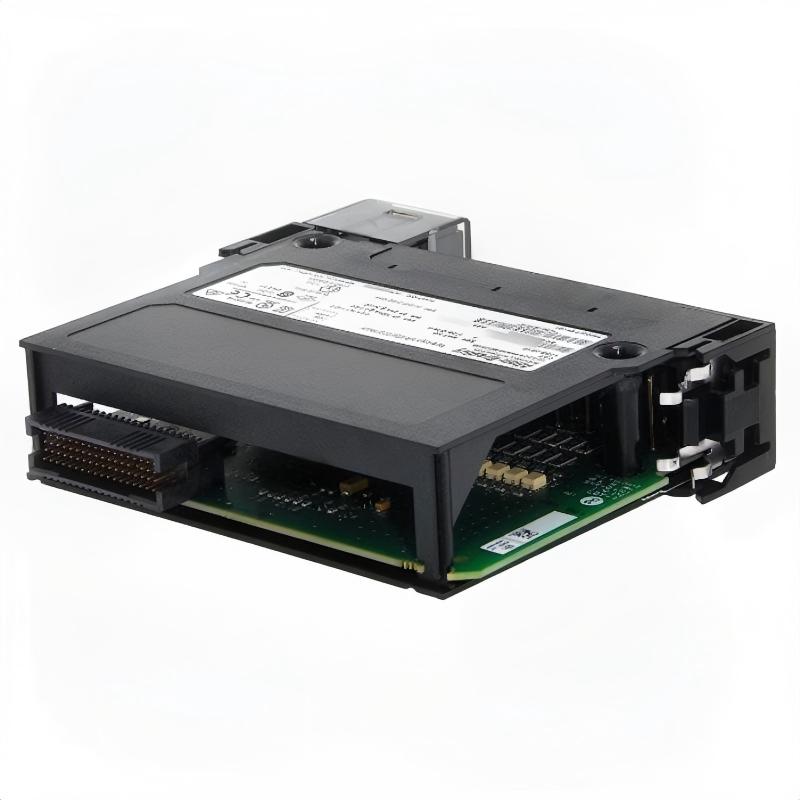

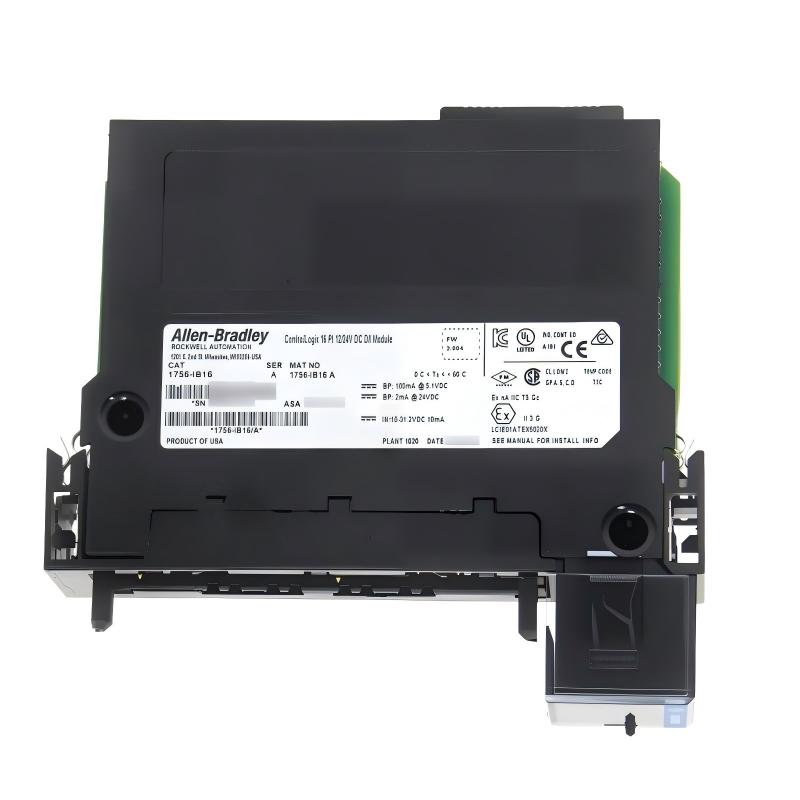

In modern industrial automation systems, reliable signal acquisition is essential for accurate machine control, equipment monitoring, and production stability. The Allen Bradley 1756-IB16/A ControlLogix Digital Input Module is a digital input interface module designed for the ControlLogix automation platform, providing a reliable connection between field devices and PLC control systems.
The 1756-IB16/A is mainly used to collect digital ON/OFF signals from industrial devices such as sensors, switches, push buttons, limit switches, and safety equipment. It converts external DC electrical signals into digital information that can be processed by the ControlLogix controller.
As an important part of the ControlLogix I/O system, this module helps automation engineers build flexible and reliable control architectures. It provides stable communication between field-level devices and the PLC processor, ensuring accurate monitoring and fast response during industrial operations.
The Allen Bradley 1756-IB16/A is widely used in manufacturing automation, machine control systems, packaging equipment, process industries, and industrial production lines requiring dependable digital signal monitoring.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1756-IB16/A |
| Product Type | ControlLogix Digital Input Module |
| Platform | ControlLogix |
| Module Type | Digital DC Input Module |
| Number of Inputs | 16 Channels |
| Signal Type | Digital Input |
| Input Type | DC Voltage Input |
| Function | Field signal acquisition and equipment status monitoring |
| Installation Type | ControlLogix Chassis Mounting |
| Dimensions | 144.57 × 22 × 105.42 mm |
| Weight | 0.2 kg |
| Communication Method | ControlLogix Backplane Communication |
| Application | Industrial automation and machine control |
| Operating Environment | Industrial control environment |
Function and Working Principle
The Allen Bradley 1756-IB16/A operates as an interface between external field devices and the ControlLogix processor.
The module receives electrical signals from connected devices and converts these signals into digital data that can be recognized by the PLC controller. Based on this information, the ControlLogix processor executes programmed logic and controls connected industrial equipment.
The working process can be described as:
Field Sensors / Switches → 1756-IB16/A Digital Input Module → ControlLogix Processor → Control Logic Execution
The main functions include:
- Collecting digital input signals
- Monitoring equipment operating conditions
- Detecting machine status changes
- Transmitting input information to the PLC CPU
- Supporting automated control sequences
The module continuously monitors connected devices and provides real-time feedback to the control system.
Role in Industrial Control Systems
The Allen Bradley 1756-IB16/A plays an important role in ControlLogix automation architectures by providing the connection between field equipment and the PLC control layer.
In industrial automation systems, the controller needs accurate information from sensors and switches before executing control commands. The digital input module acts as the information collection point, allowing the PLC to understand machine conditions and production processes.
The module typically works together with:
- ControlLogix processors
- ControlLogix chassis systems
- Digital output modules
- Analog input modules
- HMI operator interfaces
- Industrial sensors and switches
A typical control system structure includes:
Field Devices → Digital Input Module → ControlLogix Controller → Output Modules → Industrial Equipment
This architecture provides:
- Accurate equipment monitoring
- Reliable signal transmission
- Flexible system expansion
- Improved automation efficiency
- Stable machine operation
Industrial Applications
The Allen Bradley 1756-IB16/A ControlLogix Digital Input Module is commonly used in various industrial automation environments.
Manufacturing Automation
Used for:
- Machine operation monitoring
- Production line control
- Automated equipment feedback
- Assembly system applications
Packaging Industry
Applied in:
- Packaging machines
- Conveyor systems
- Material handling equipment
- Sorting systems
Automotive Manufacturing
Supports:
- Assembly line monitoring
- Robot workstation control
- Manufacturing equipment feedback
Process Automation
Used for:
- Pump status detection
- Valve position monitoring
- Equipment protection systems
- Industrial process control
Factory Automation Upgrades
Applied in:
- Control system expansion
- PLC replacement projects
- Existing ControlLogix system improvement
Installation and System Integration
Proper installation of the Allen Bradley 1756-IB16/A Digital Input Module is essential for reliable signal processing.
Recommended installation procedures include:
- Installing the module into a compatible ControlLogix chassis
- Confirming correct system power conditions
- Connecting field wiring correctly
- Configuring input channels
- Testing connected sensors and switches
During commissioning, engineers should verify:
- Module status indicators
- Input channel response
- PLC communication status
- Field signal accuracy
- Control program operation
Correct installation helps prevent:
- False input signals
- Communication problems
- Incorrect machine responses
- Unexpected production downtime
Compatible System Components
The Allen Bradley 1756-IB16/A typically works together with the following components:
| Component | Function |
|---|---|
| ControlLogix Processor | Executes PLC control programs |
| ControlLogix Chassis | Provides module installation structure |
| Digital Output Modules | Controls external devices |
| Analog Input Modules | Processes analog signals |
| HMI Systems | Provides operator monitoring |
| Industrial Sensors | Provides machine status information |
| Actuators | Executes control commands |
Together, these components form a complete industrial automation control system.
Common Failure Symptoms
When the Allen Bradley 1756-IB16/A Digital Input Module experiences problems, the system may show the following symptoms:
| Fault Symptom | Possible Cause |
|---|---|
| Input signal unavailable | Sensor or wiring problem |
| Module status fault | Hardware or configuration issue |
| Incorrect input status | Signal voltage problem |
| PLC cannot detect device | Communication or setup error |
| Intermittent signal changes | Loose wiring or electrical interference |
Regular inspection of field connections, sensor conditions, and PLC configuration can improve system reliability.
Recommended Alternative Models
Depending on application requirements, the following related models may be considered:
| Model | Type | Key Feature | Application |
|---|---|---|---|
| Allen Bradley 1756-IB16/A | ControlLogix Digital Input Module | 16-channel digital input processing | General automation systems |
| Allen Bradley 1756-IB32 | ControlLogix Digital Input Module | Higher input channel density | Large control systems |
| Allen Bradley 1756-IA16 | ControlLogix AC Input Module | AC signal monitoring capability | AC field applications |
| Allen Bradley 1756-OB16 | ControlLogix Digital Output Module | Digital output control | Machine actuator applications |
| Allen Bradley 1756-IF16 | ControlLogix Analog Input Module | Analog signal processing | Process monitoring systems |
Key Advantages
- Reliable digital signal acquisition
- Compatible with ControlLogix PLC systems
- Supports 16-channel input monitoring
- Provides stable field device communication
- Improves machine control accuracy
- Flexible integration with industrial equipment
- Suitable for continuous industrial operation
Technical FAQs
What is the Allen Bradley 1756-IB16/A used for?
The Allen Bradley 1756-IB16/A is a ControlLogix digital input module used to collect digital signals from industrial field devices and send them to the PLC controller.
How many input channels does the 1756-IB16/A have?
The module provides 16 digital input channels for monitoring industrial devices.
What devices can connect to the 1756-IB16/A?
It can connect with sensors, switches, limit switches, push buttons, and other digital field devices.
What causes digital input module failures?
Common causes include wiring problems, incorrect voltage levels, sensor failures, configuration errors, and electrical interference.
Conclusion
The Allen Bradley 1756-IB16/A ControlLogix Digital Input Module is a reliable industrial I/O component designed to provide accurate field signal acquisition for ControlLogix automation systems.
With stable digital input processing, flexible integration capability, and dependable industrial performance, it helps improve machine monitoring, automation efficiency, and overall control system reliability.
For automation engineers, system integrators, and maintenance professionals, the 1756-IB16/A provides an effective solution for connecting field devices with modern PLC-based industrial control systems.
